Master Power Window Switch Test

To test master power window switch, refer to illustration. See Fig 1.To identify wire colors associated with terminal letters, see WIRING DIAGRAMS .

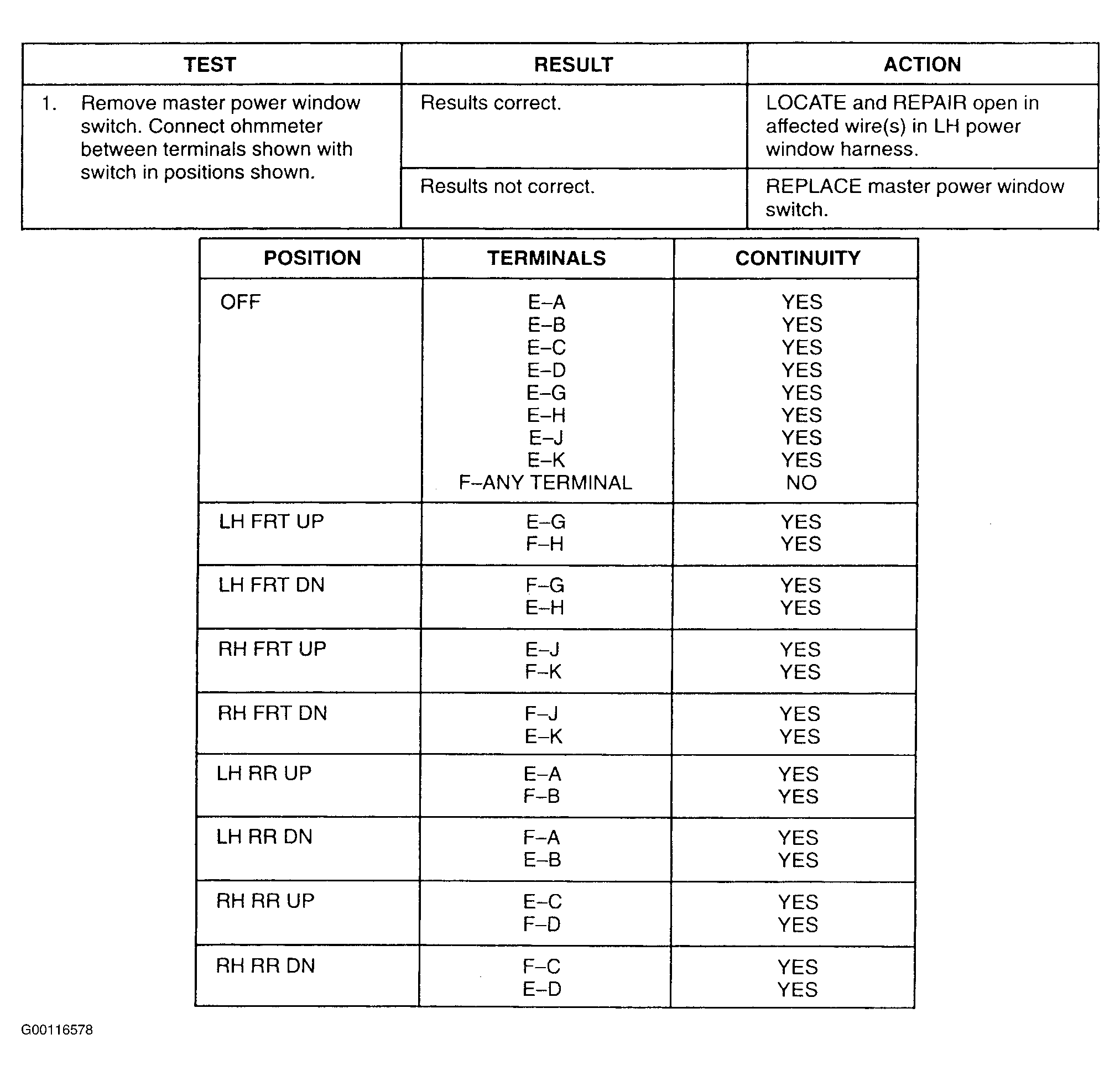

Fig 1: Testing Master Power Window Switch

Courtesy of GENERAL MOTORS CORP.
