Component Locations

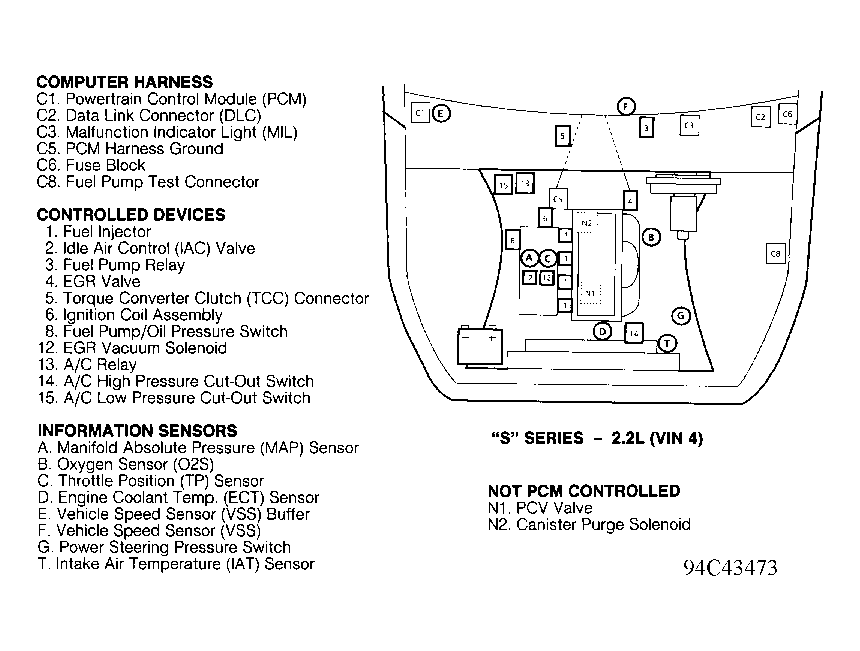

Fig 1: Component Location For "S" Series - 2.2L (VIN 4)

Courtesy of GENERAL MOTORS CORP.

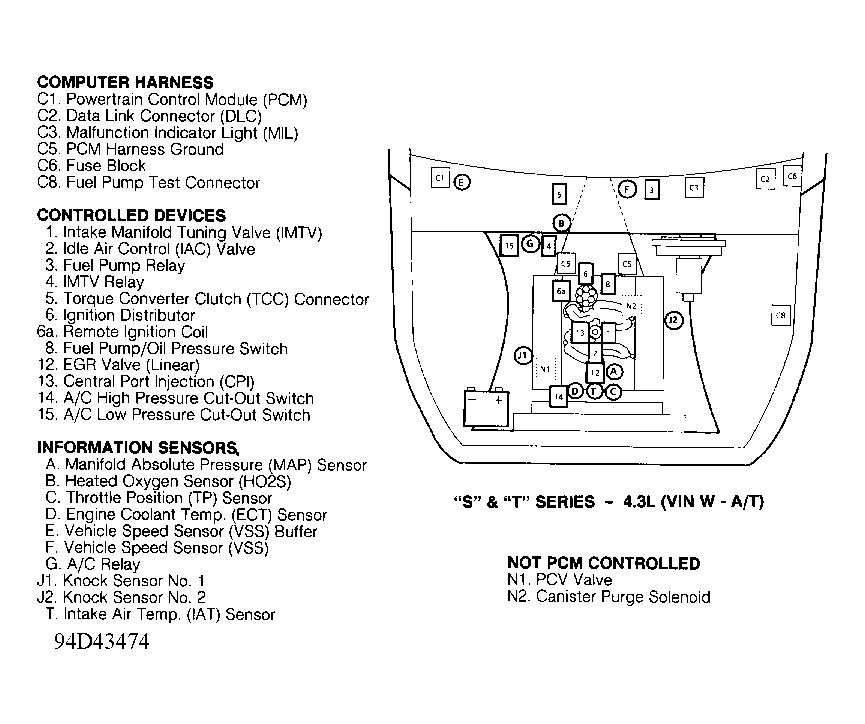

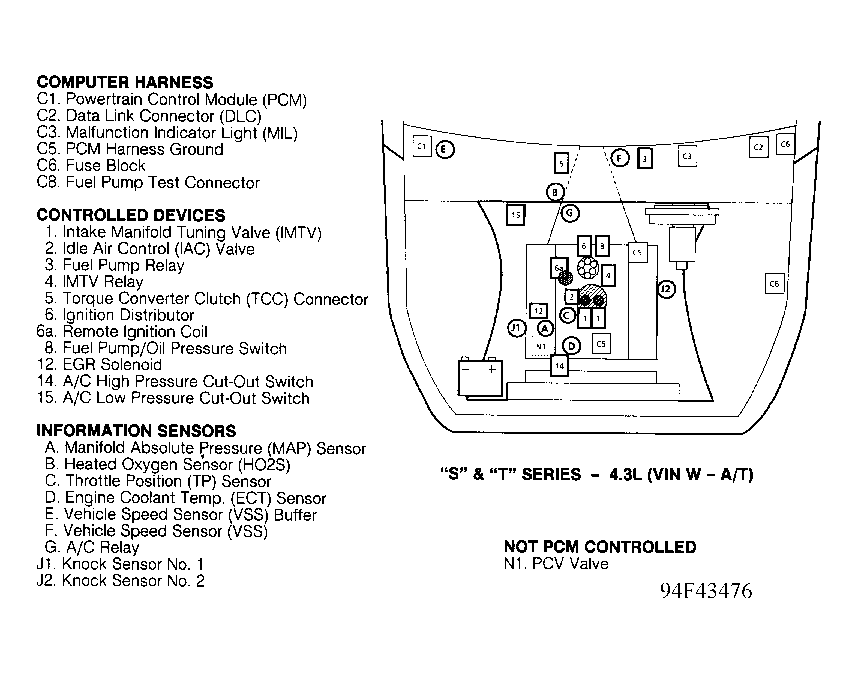

Fig 2: Component Location For "S" & "T" Series With A/T - 4.3L (VIN W)

Courtesy of GENERAL MOTORS CORP.

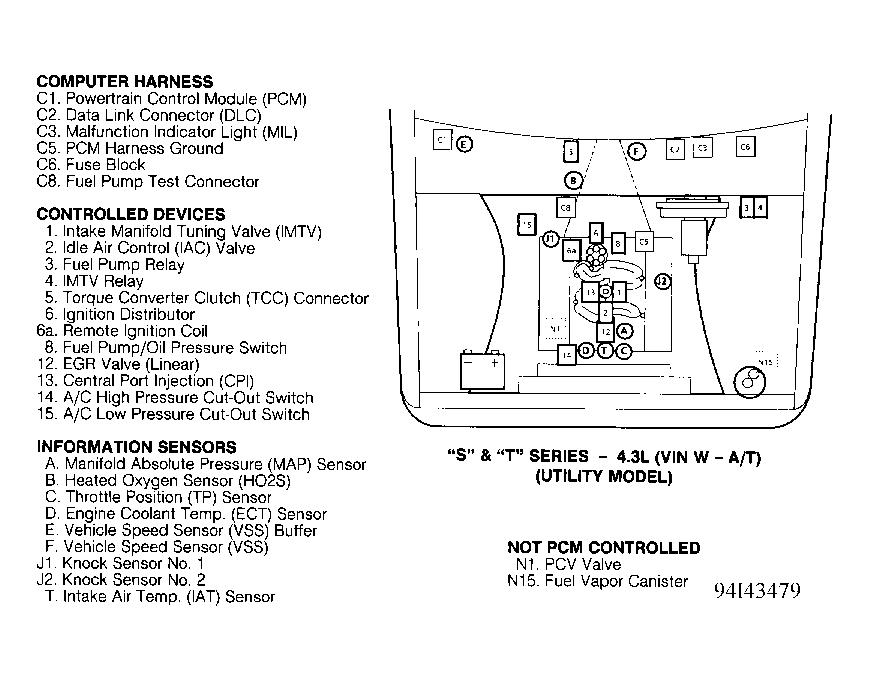

Fig 3: Component Location For "S" & "T" Series With A/T (Utility Model) - 4.3L (VIN W)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Component Location For "S" & "T" Series With A/T - 4.3L (VIN Z)

Courtesy of GENERAL MOTORS CORP.

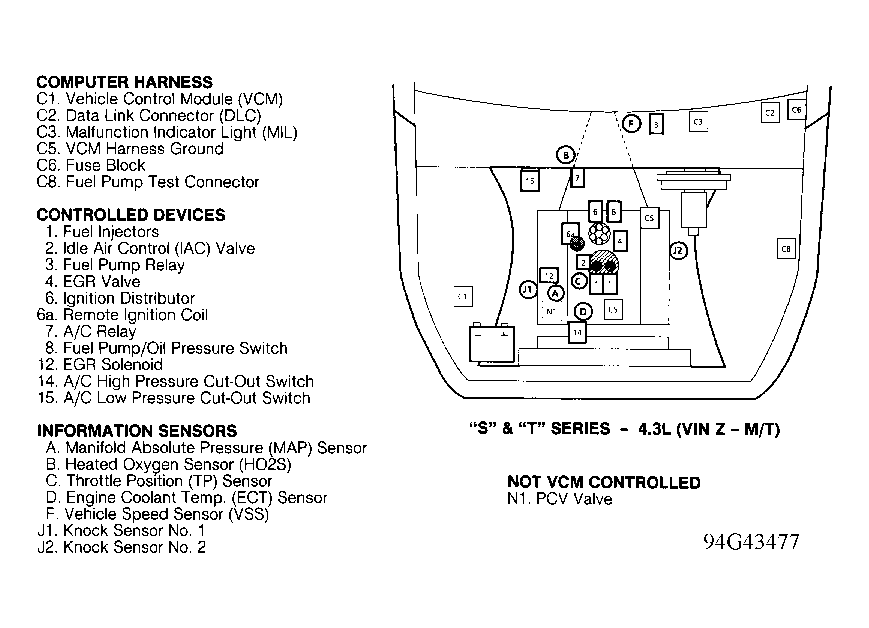

Fig 5: Component Location For "S" & "T" Series With M/T - 4.3L (VIN Z)

Courtesy of GENERAL MOTORS CORP.

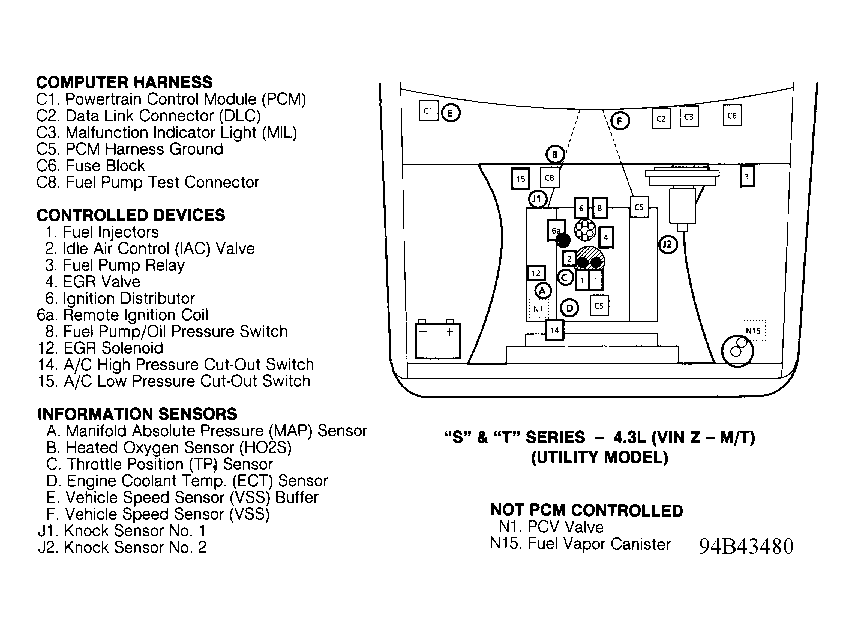

Fig 6: Component Location For "S" & "T" Series With M/T (Utility Model) - 4.3L (VIN Z)

Courtesy of GENERAL MOTORS CORP.

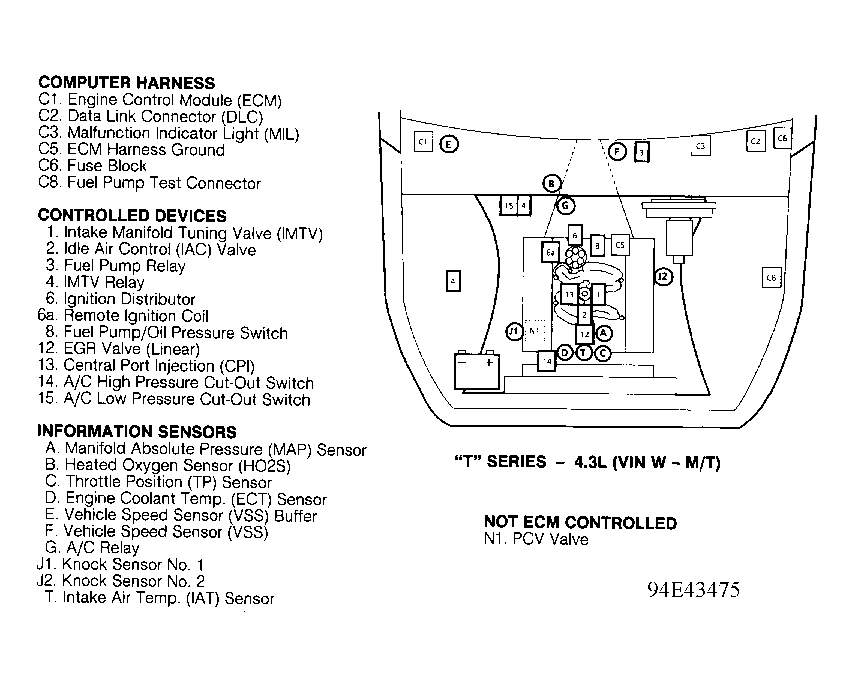

Fig 7: Component Location For "T" Series With M/T - 4.3L (VIN W)

Courtesy of GENERAL MOTORS CORP.

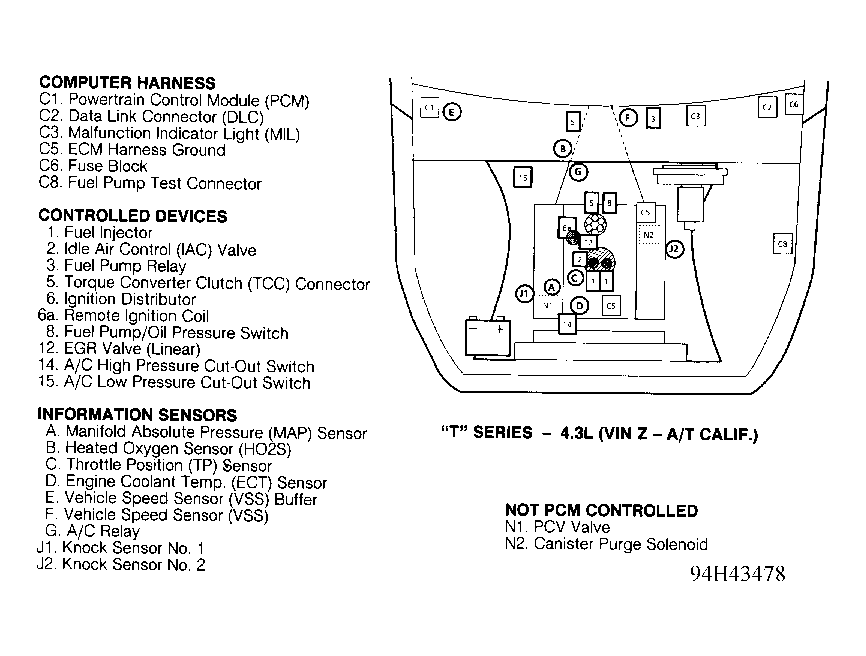

Fig 8: Component Location For "T" Series With A/T (Calif.) - 4.3L (VIN Z)

Courtesy of GENERAL MOTORS CORP.
