Model Identification

Vehicle model can be identified by the fifth character of Vehicle Identification Number (VIN). See MODEL IDENTIFICATION . VIN is stamped on a metal pad at top left of instrument panel, near windshield.

MODEL IDENTIFICATION

Series ⁽¹⁾

Model

"S"

2WD Blazer ⁽²⁾, Jimmy, Pickup ⁽²⁾ & Sonoma

"T"

4WD Bravada, Blazer ⁽²⁾, Jimmy, Pickup ⁽²⁾ & Sonoma

⁽¹⁾	Vehicle Series is the fifth character of VIN.

⁽²⁾	Blazer and Pickup models are available in 2 sizes: "S" and "T" Series (smaller version), and "C" and "K" Series (larger version).

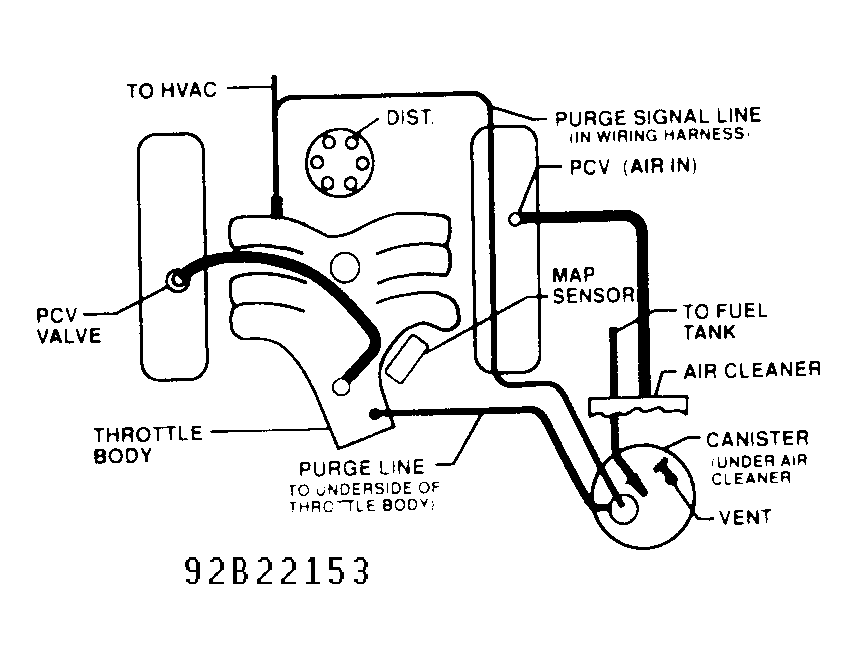

VACUUM DIAGRAM REFERENCE

Engine & Vehicle Series	Application	Trans.	Figure
4.3L V6 "S" & "T" Series	Calif. & Fed.	All	Fig. Figure
