Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Inflator Module (Driver) | In steering wheel pad. |
| Air Bag Inflator Module (Passenger) | In right side of instrument panel, above glove compartment. |

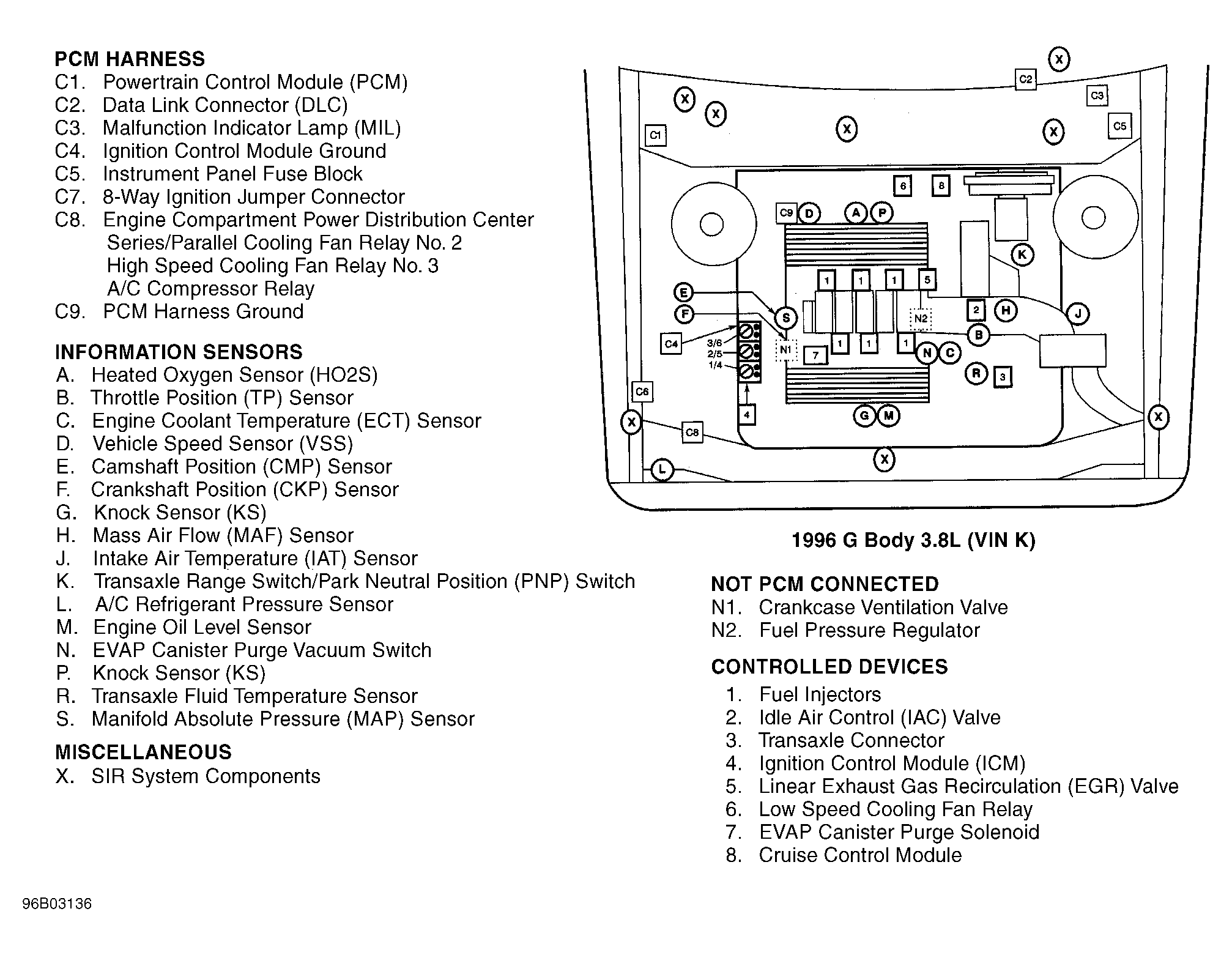

| Cruise Control Module (3.8L VIN K) | On center of firewall. See Figure . |

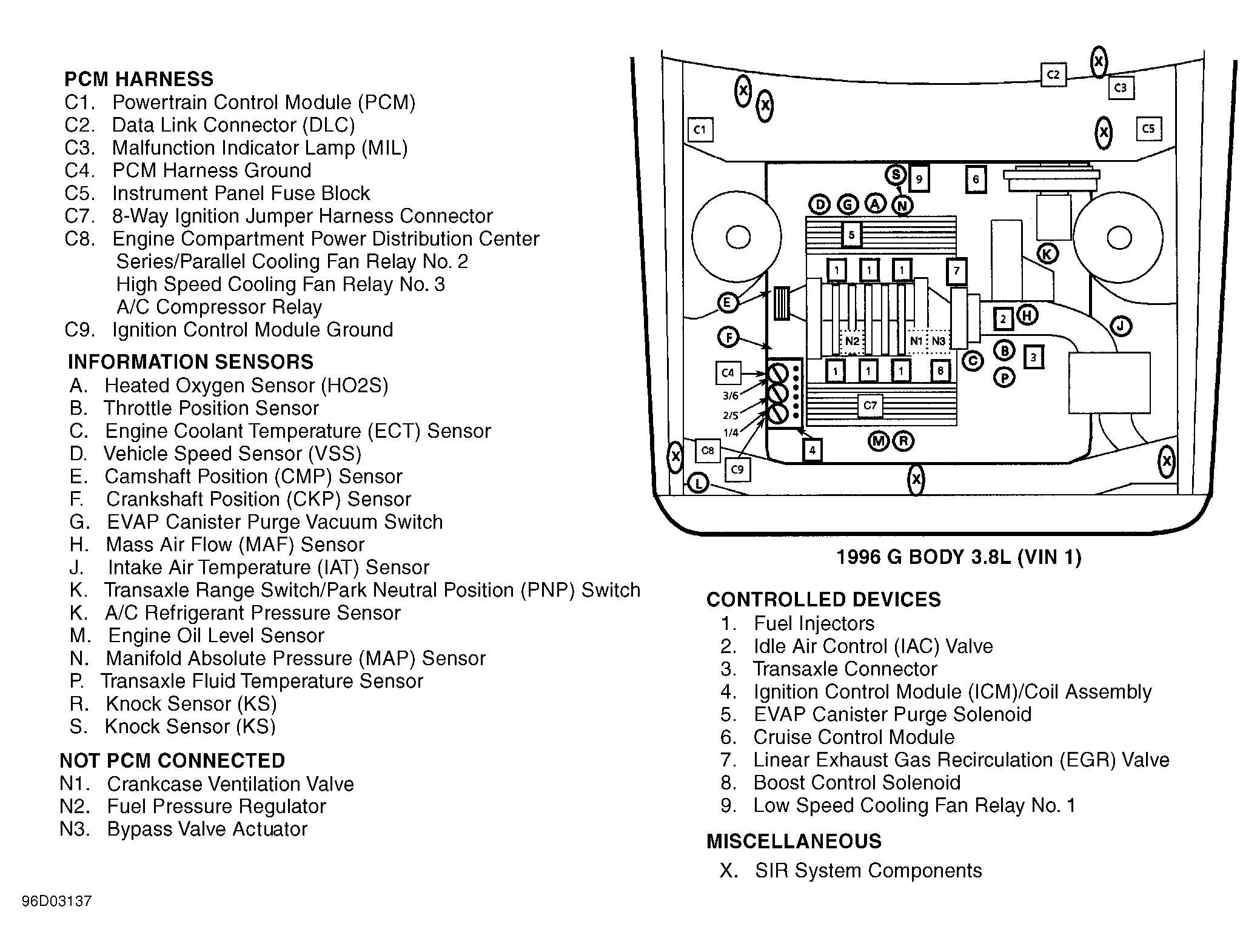

| Cruise Control Module (3.8L VIN 1) | On center of firewall. See Figure . |

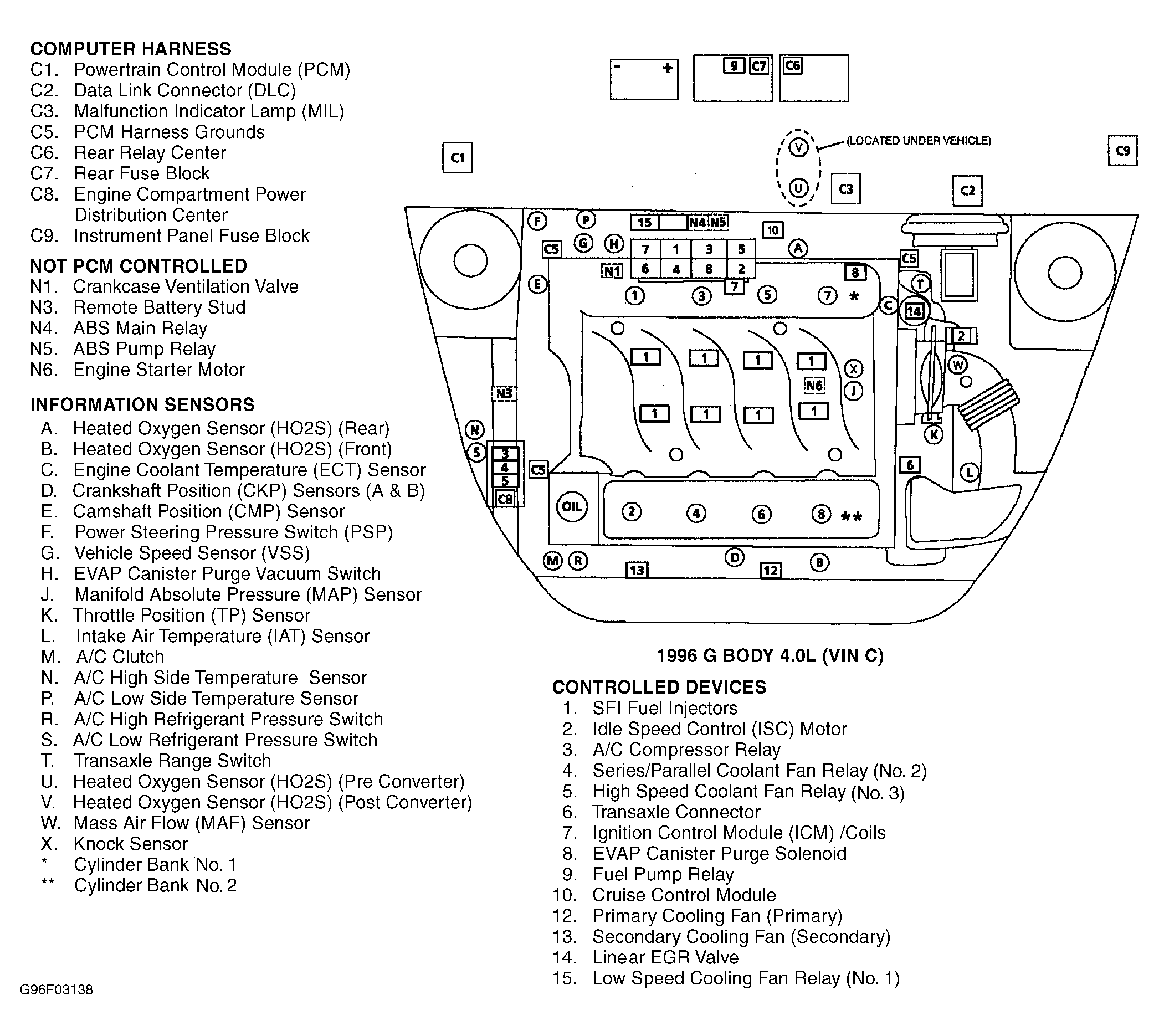

| Cruise Control Module (4.0L VIN C) | On center of firewall. See Figure . |
| Electronic Brake (& Traction) Control Module (EBCM/EBTCM) | Attached to left strut tower. |
| Express Down Window Module | Center of left front door. |
| Fuel Pump Speed Control Module | On left side of luggage compartment. |
| Ignition Control Module (3.8L VIN K) | At rear top of engine, under ignition coils. See Figure . |
| Ignition Control Module (3.8L VIN 1) | At rear top of engine, under ignition coils. See Figure . |
| Ignition Control Module (4.0L VIN C) | At rear top of engine, under ignition coils. See Figure . |
| Lamp Control Module | Behind left side of instrument panel. |
| Magna Steering Module | Under left side of instrument panel, on bracket at left of steering column. |
| Multi-Function Alarm Lock & Lighting Module | Behind left side of instrument panel. |
| Passkey II Decoder Module | Behind right side of instrument panel. |
| Powertrain Control Module (3.8L VIN K) | Behind right side of instrument panel. See Figure . |
| Powertrain Control Module (3.8L VIN 1) | Behind right side of instrument panel. See Figure . |
| Powertrain Control Module (4.0L VIN C) | Behind right side of instrument panel. See Figure . |
| Remote Function Actuator (RFA) Module | Under rear package shelf. |
| Sensing & Diagnostic Module (SDM) | Above right side of insulator. |
| Wiper/Washer Motor Module | On center of firewall. |
