Connector Terminal Identification
>>
Inflatable Restraint Diagnostic Energy Reserve Module
Inflatable Restraint Diagnostic Energy Reserve Module

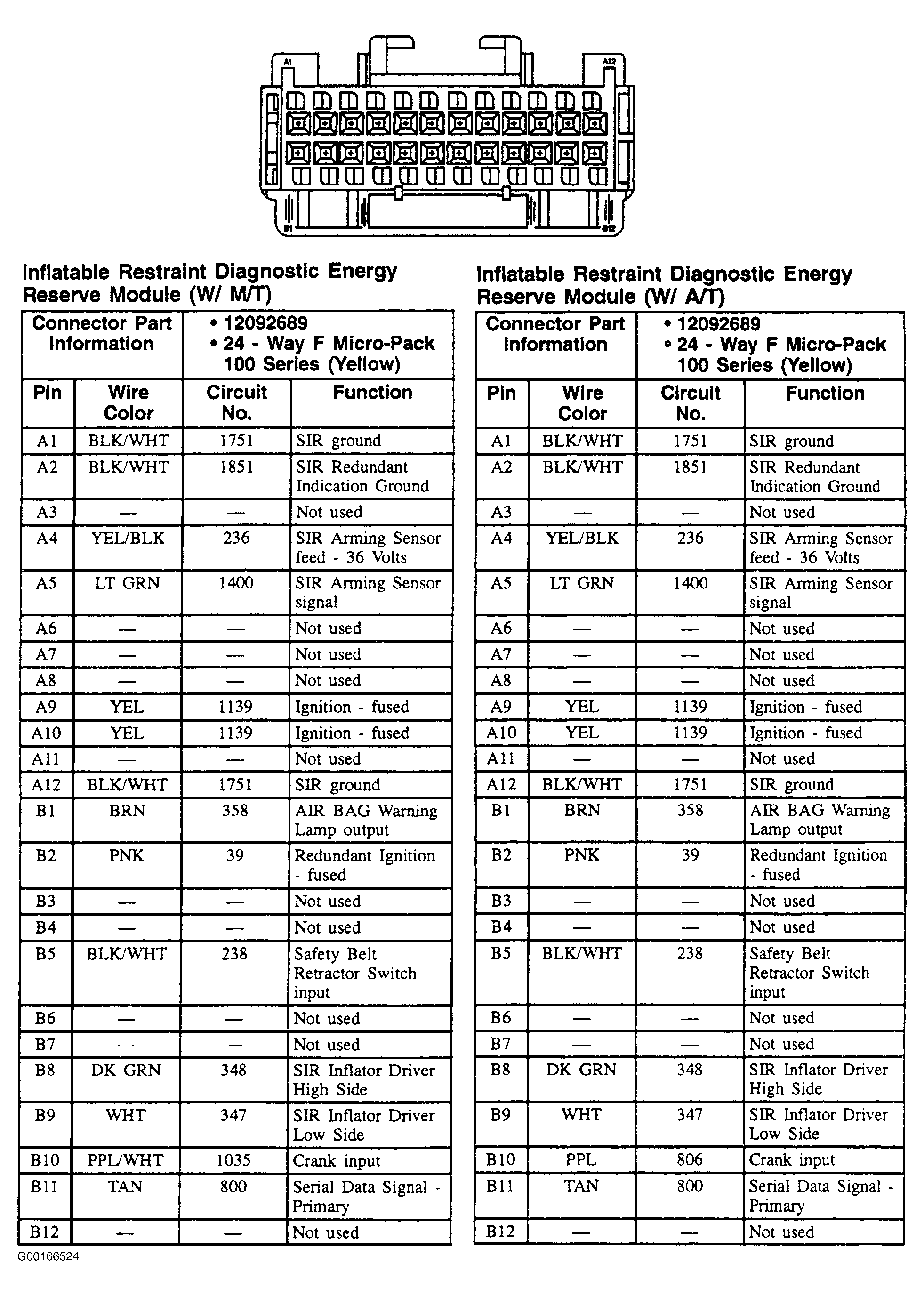

Fig 1: Inflatable Restraint Diagnostic Energy Reserve Module - 24-Pin Connector, Yellow
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
