Connector Identification

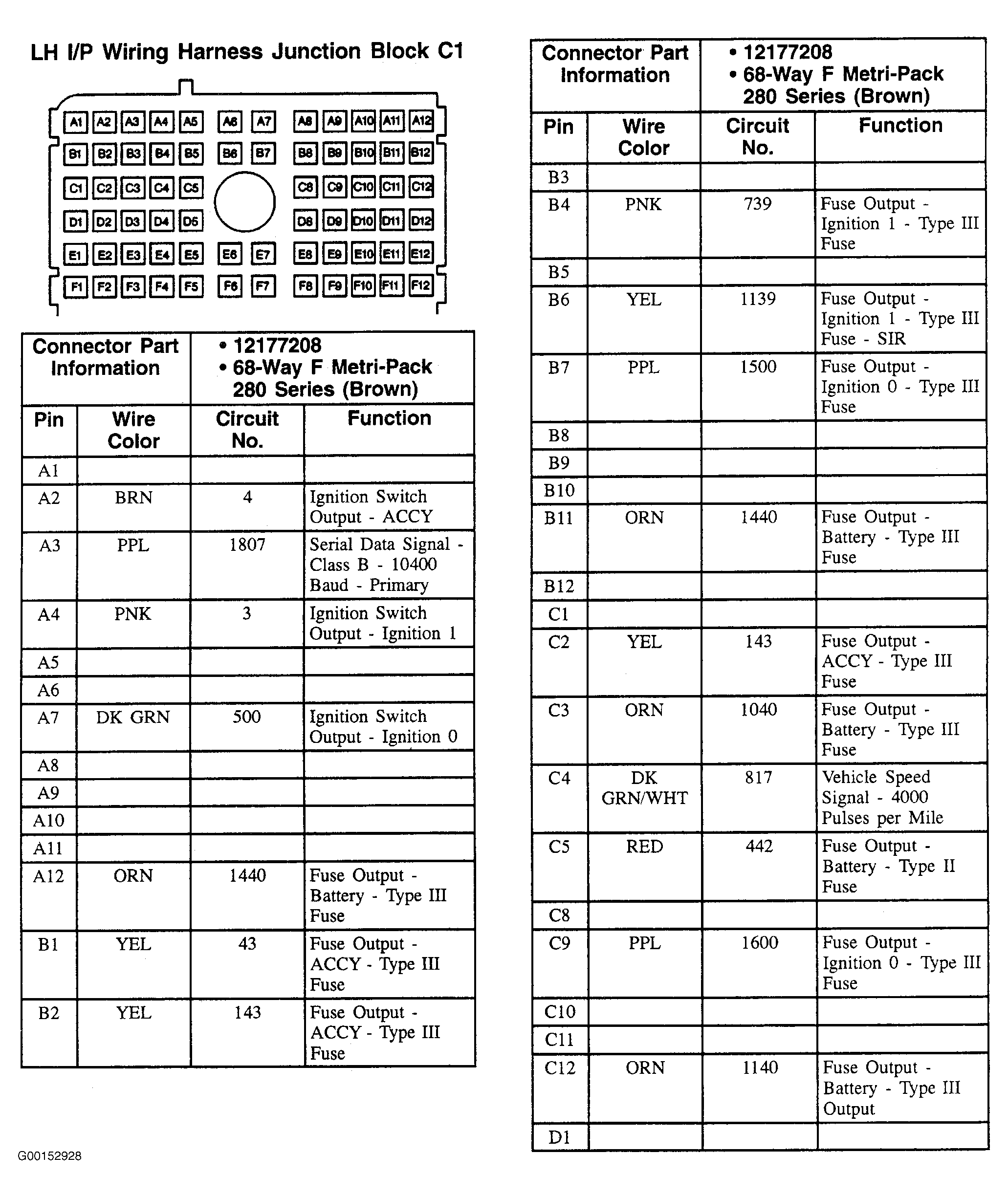

Fig 1: Identifying LH I/P Wiring Harness Junction Block C1

Courtesy of GENERAL MOTORS CORP.

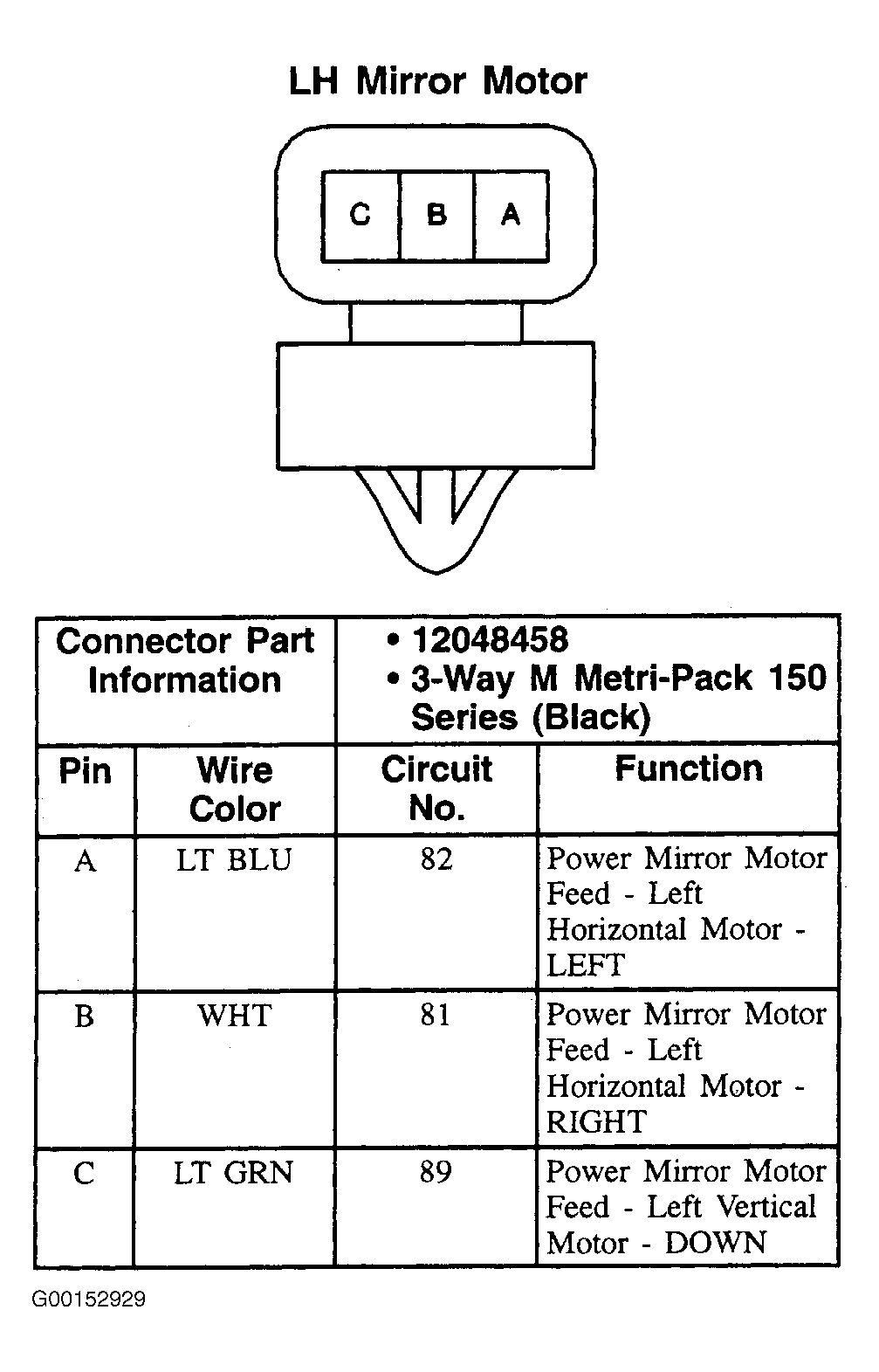

Fig 2: Identifying LH Mirror Motor Connector

Courtesy of GENERAL MOTORS CORP.

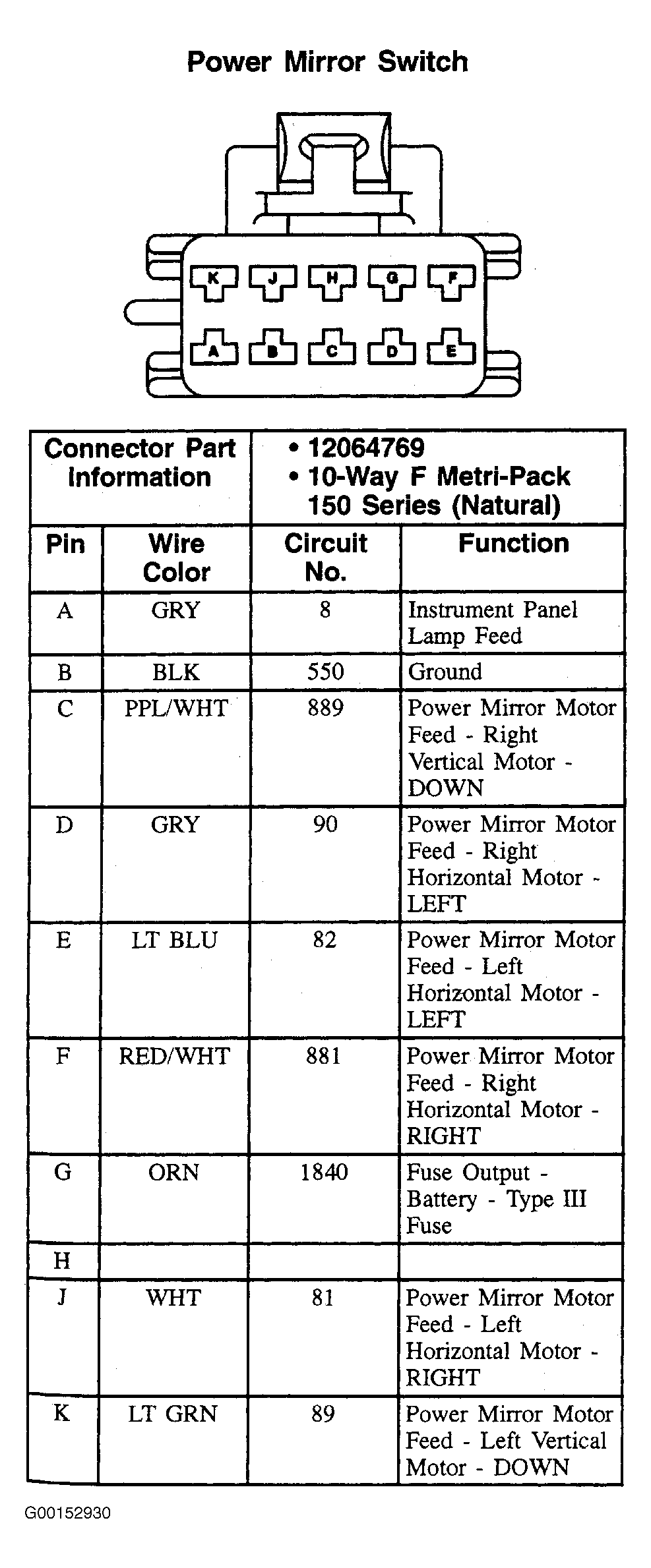

Fig 3: Identifying Power Mirror Switch

Courtesy of GENERAL MOTORS CORP.

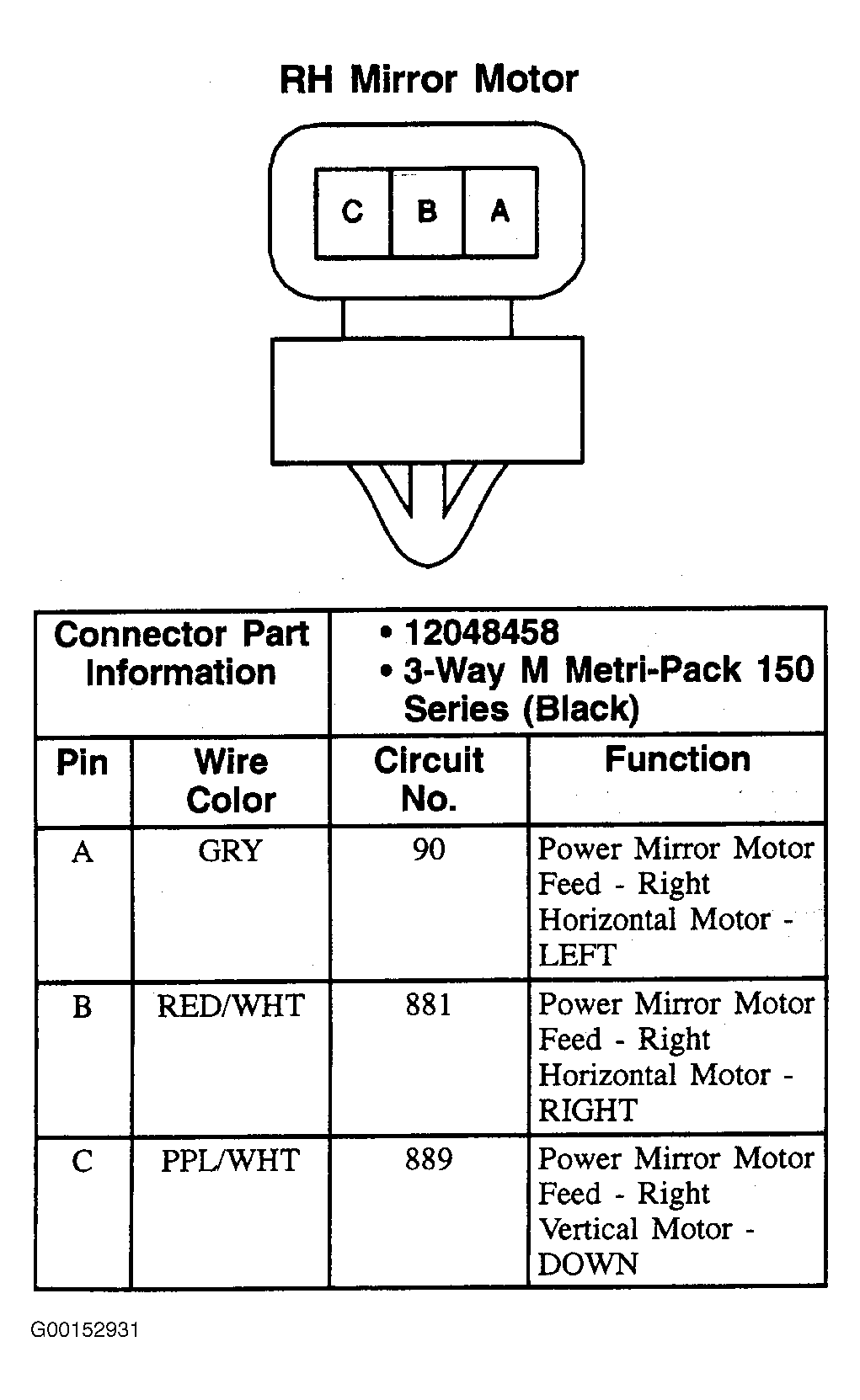

Fig 4: Identifying RH Mirror Motor

Courtesy of GENERAL MOTORS CORP.

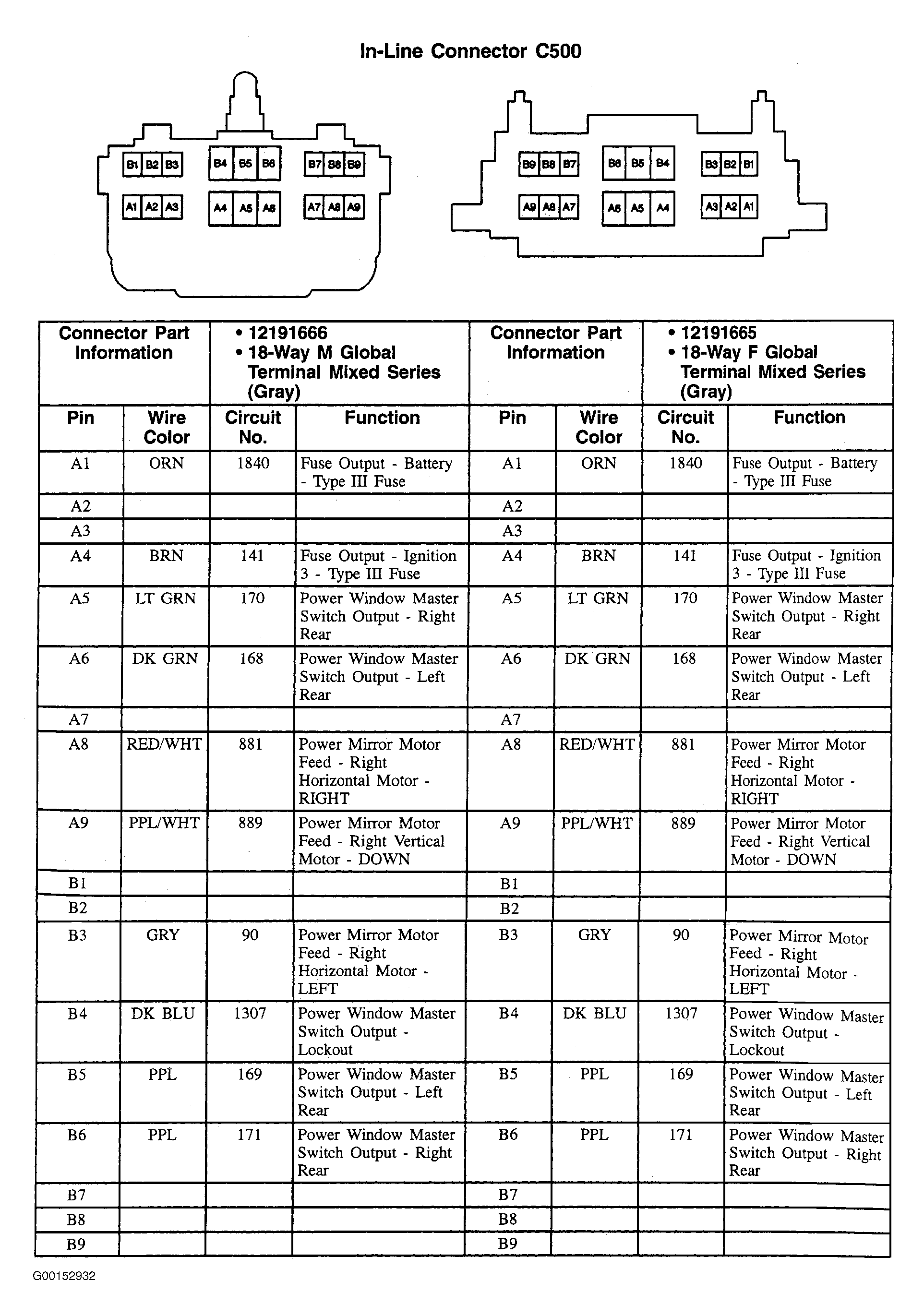

Fig 5: Identifying In-Line Connector C500

Courtesy of GENERAL MOTORS CORP.

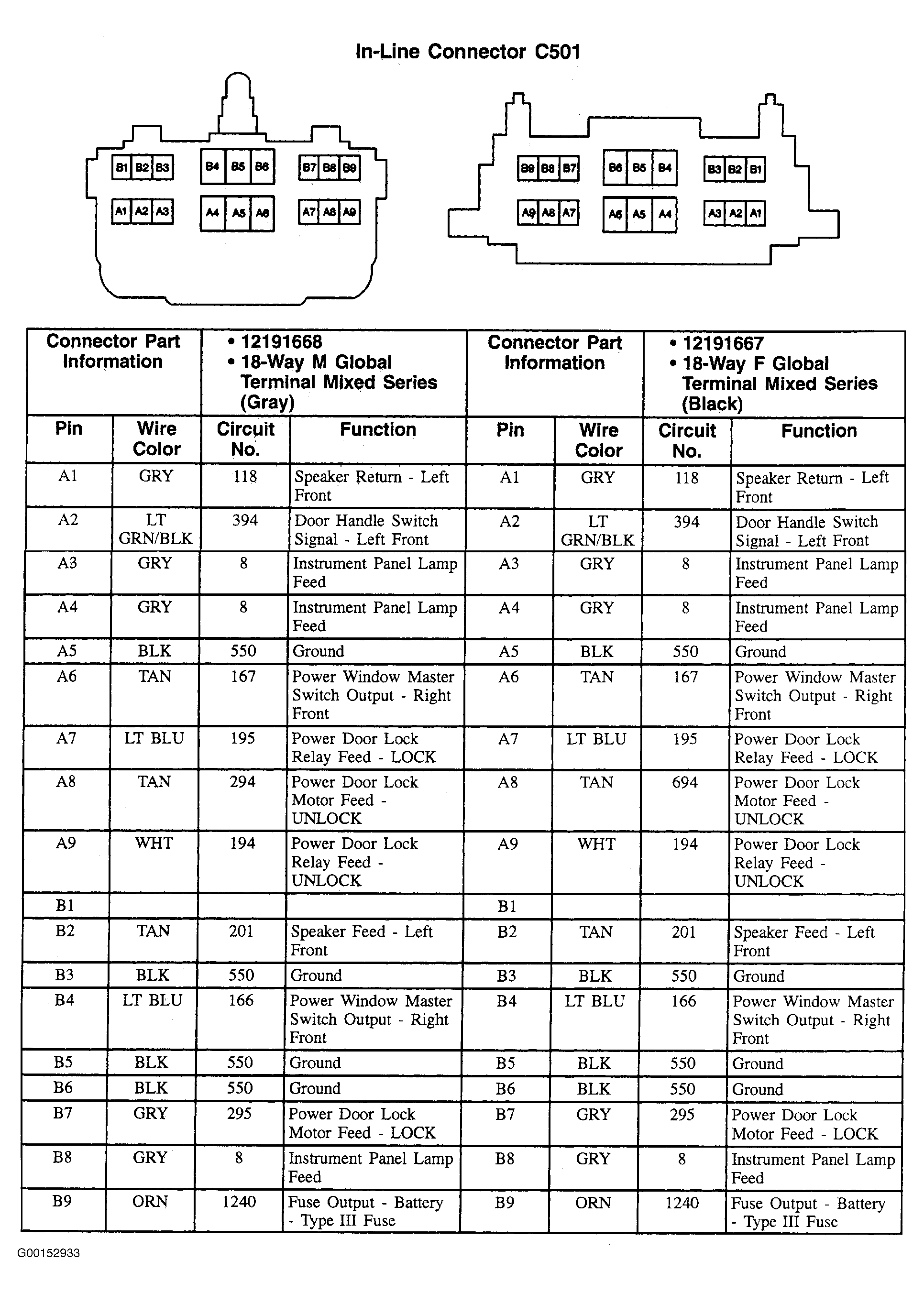

Fig 6: Identifying In-Line Connector C501

Courtesy of GENERAL MOTORS CORP.

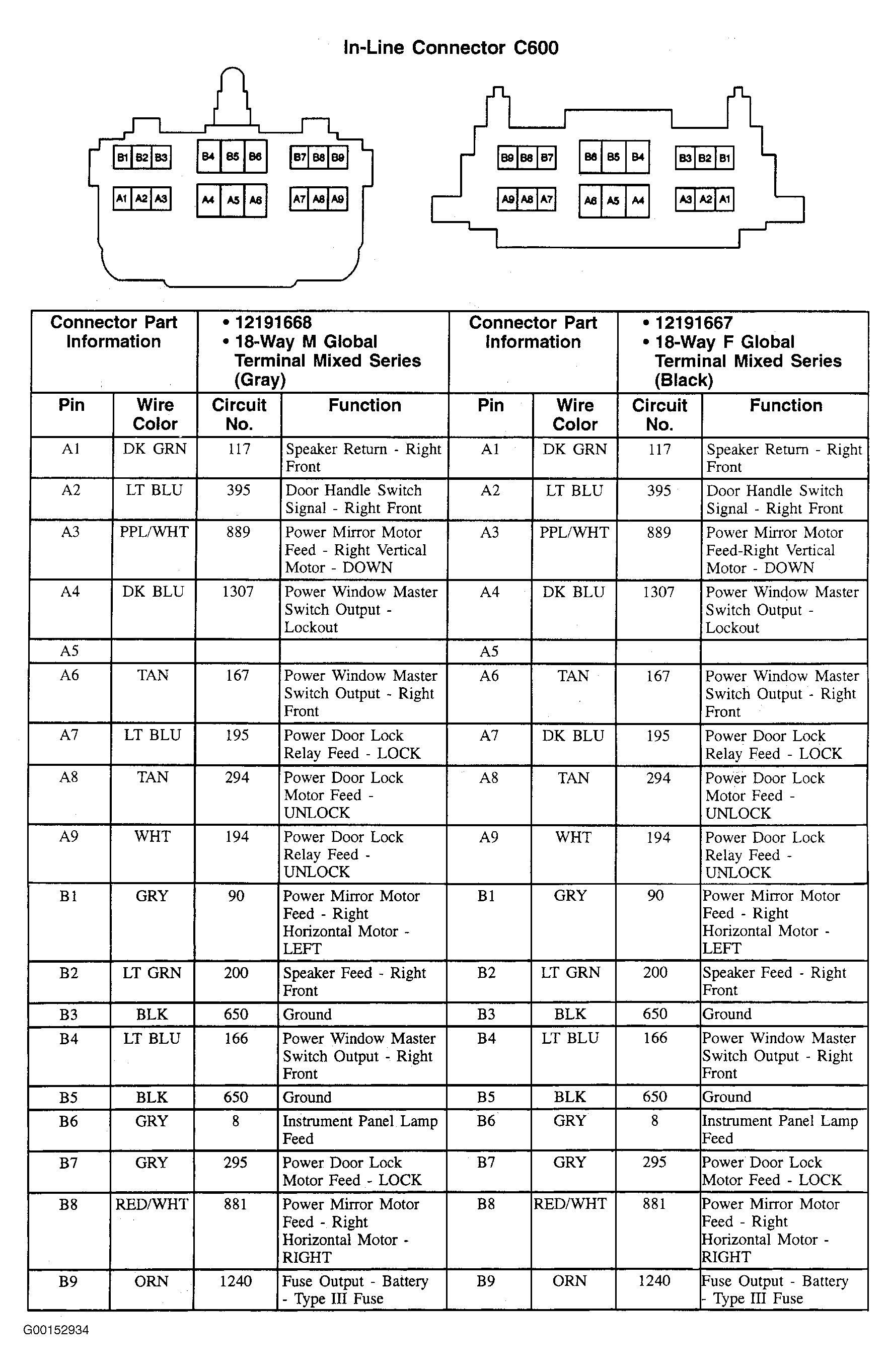

Fig 7: Identifying In-Line Connector C600

Courtesy of GENERAL MOTORS CORP.
