Remote Activation Verification (RAV) Customization

The Remote Activation Verification (RAV) provides feedback to the driver that the vehicle has received the command from the transmitter.

The driver may select various modes. See Fig 1 .

Customize the activation feature to each transmitter using the following procedure:

1. Hold the power door lock switch down. The doors lock.
2. Press the trunk lid release button on the transmitter. The RAV mode stays in the current mode. The horn chirps.
3. Press the trunk lid release button on the transmitter. The RAV mode changes to the next mode. The horn chirps.
4. Release the power door lock switch. The customization mode terminates.

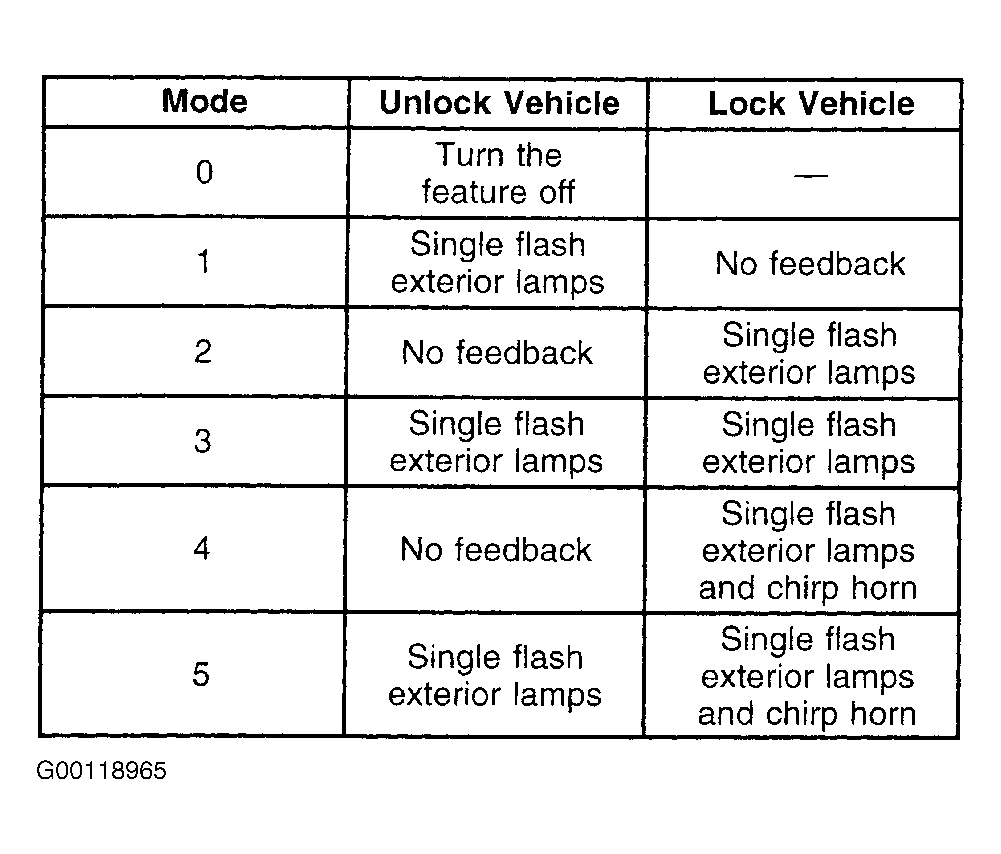

Fig 1: Identifying Remote Activation Verification (RAV) Modes

Courtesy of GENERAL MOTORS CORP.
