Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

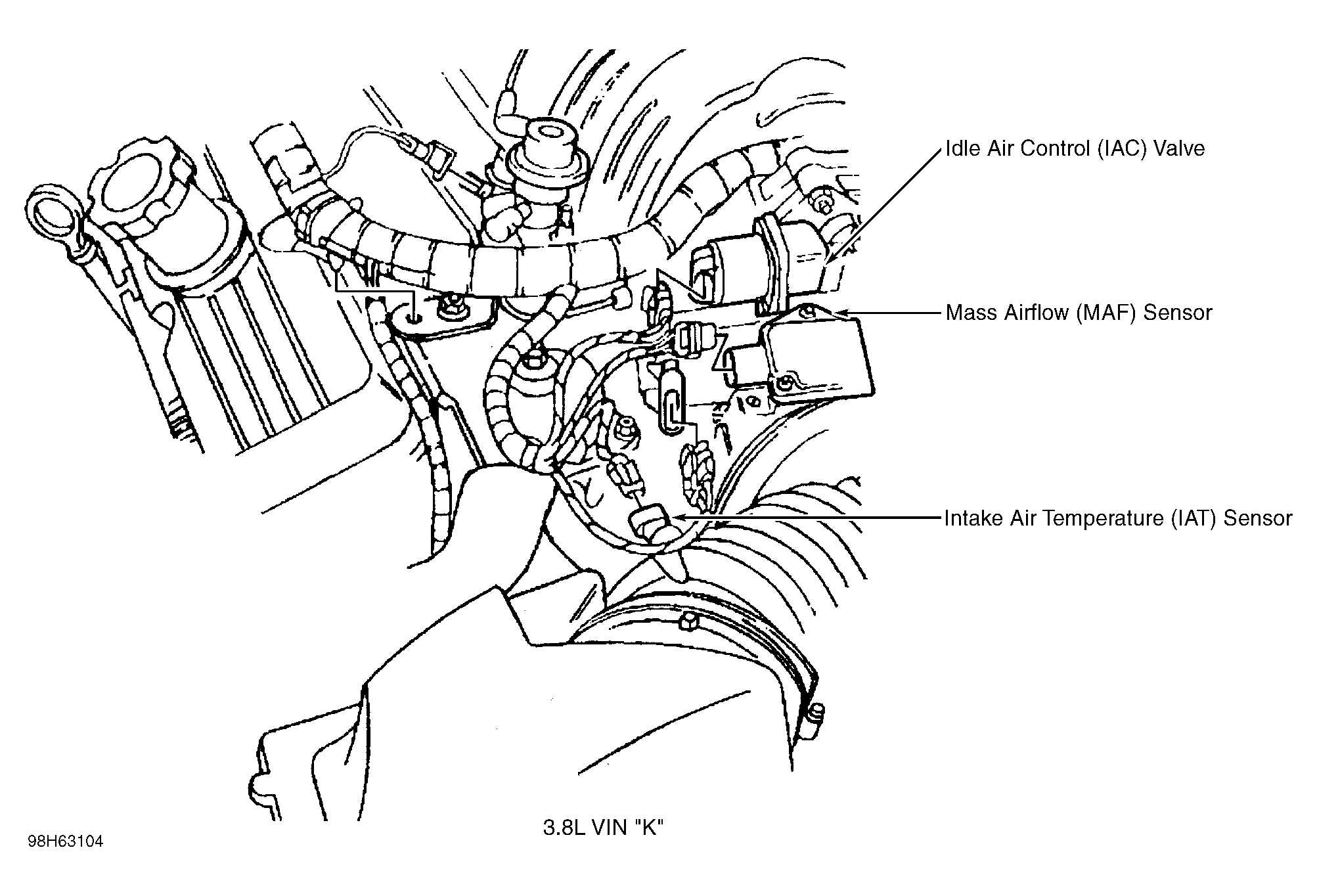

Fig 1: Rear Of Engine (3.8L VIN K)

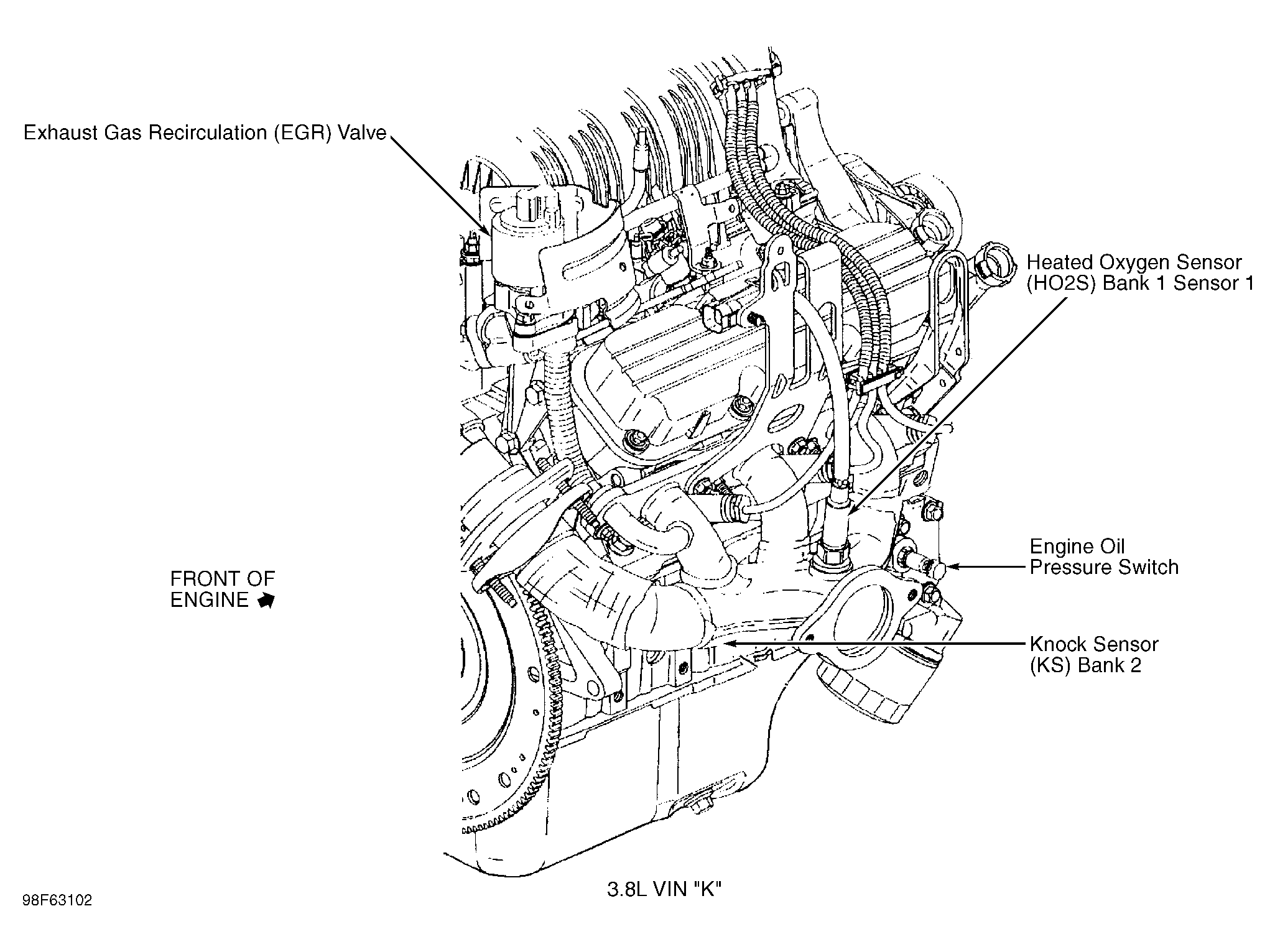

Fig 2: Front Of Engine (3.8L VIN K)

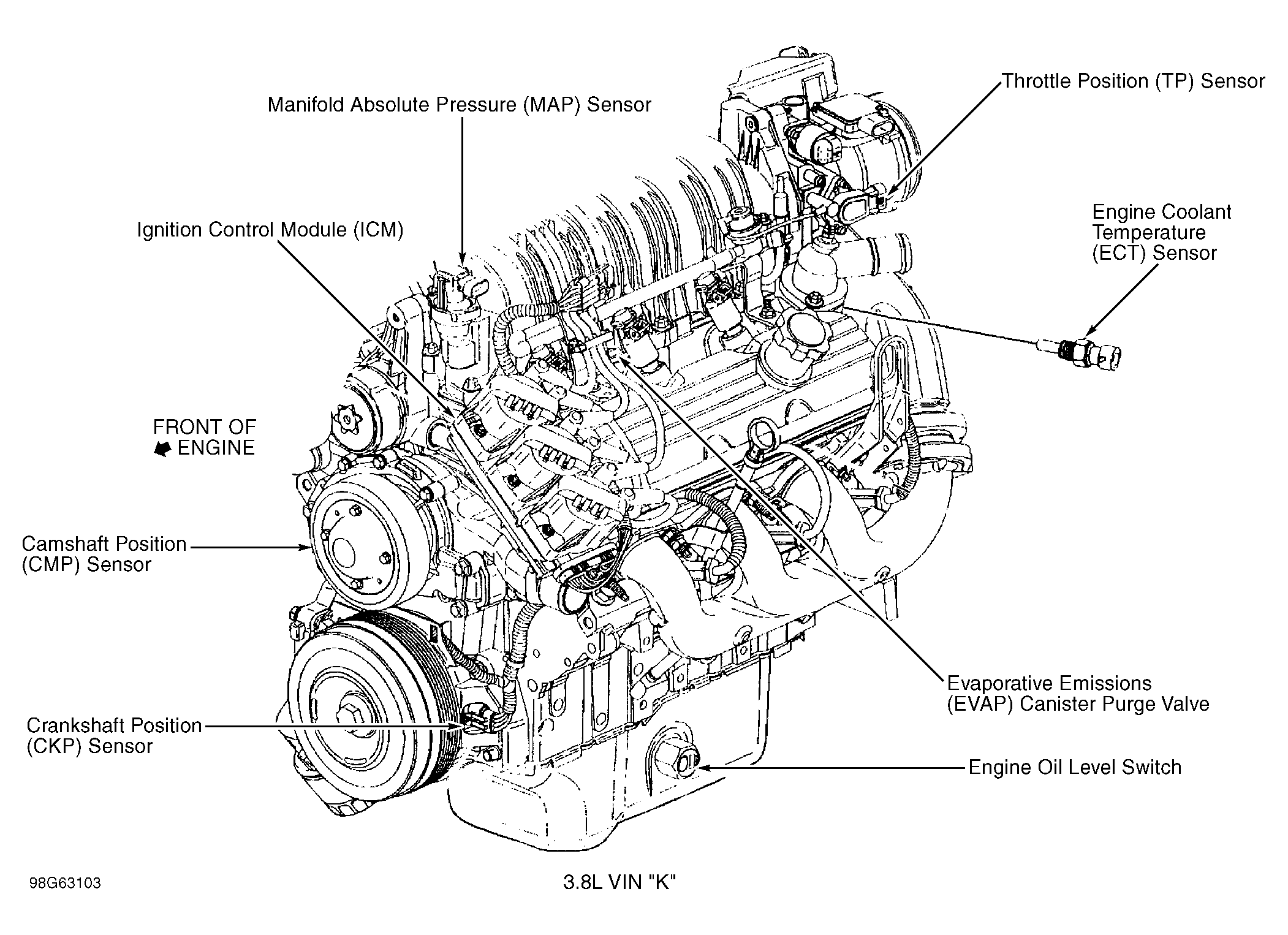

Fig 3: Top Of Engine (3.8L VIN K)

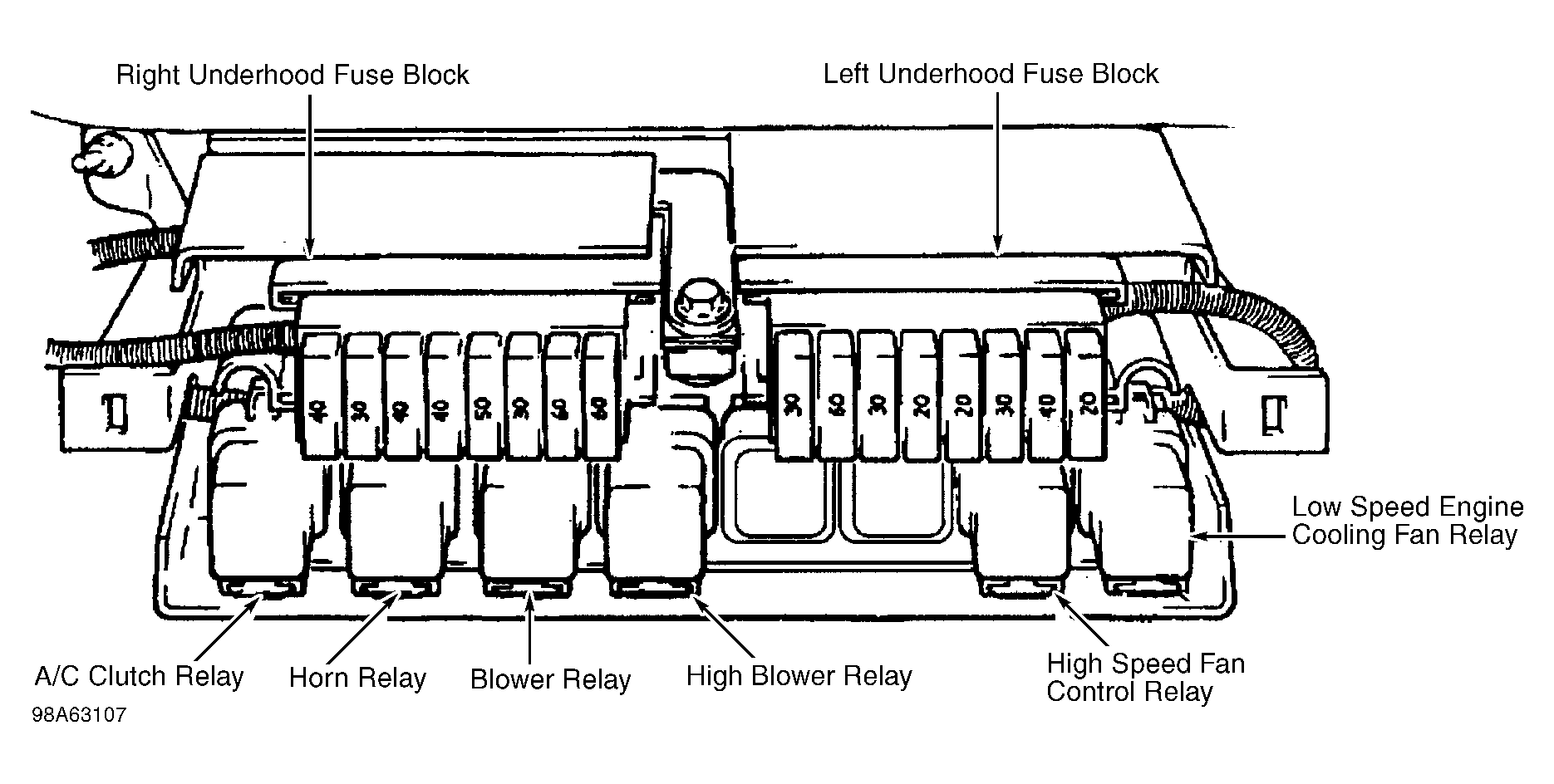

Fig 4: Fuse/Relay Block

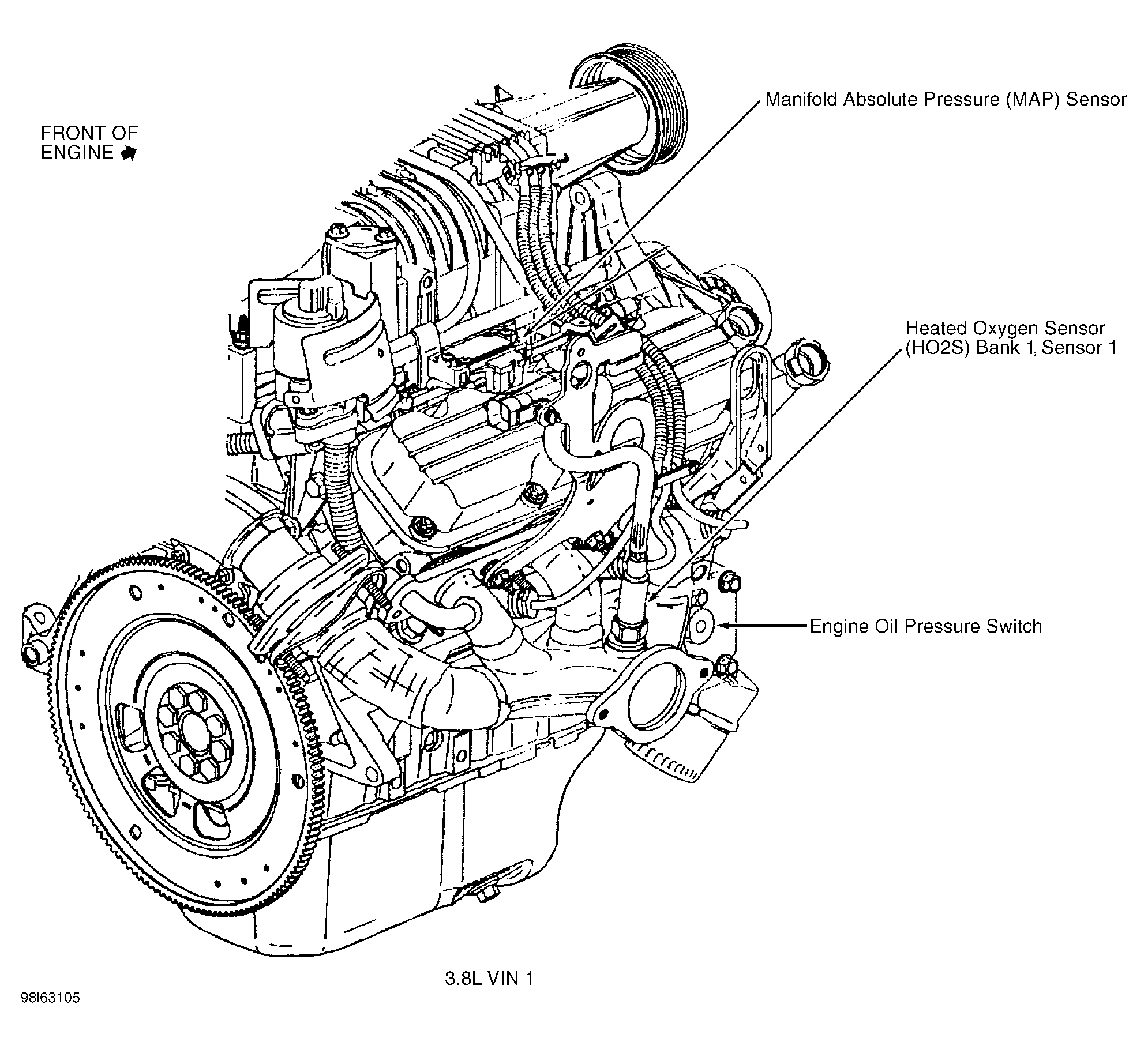

Fig 5: Rear Of Engine (3.8L VIN 1)

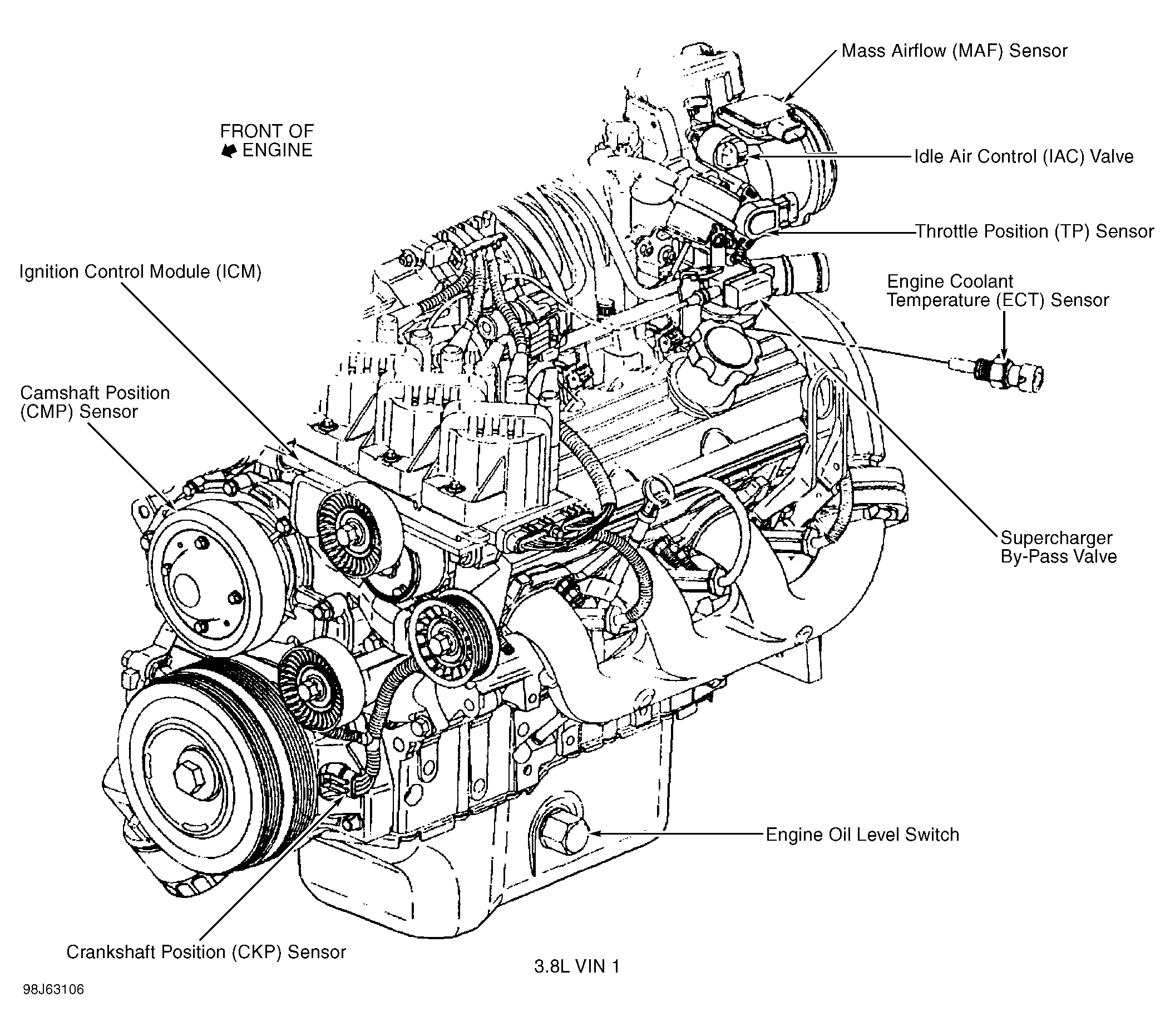

Fig 6: Front Of Engine (3.8L VIN 1)

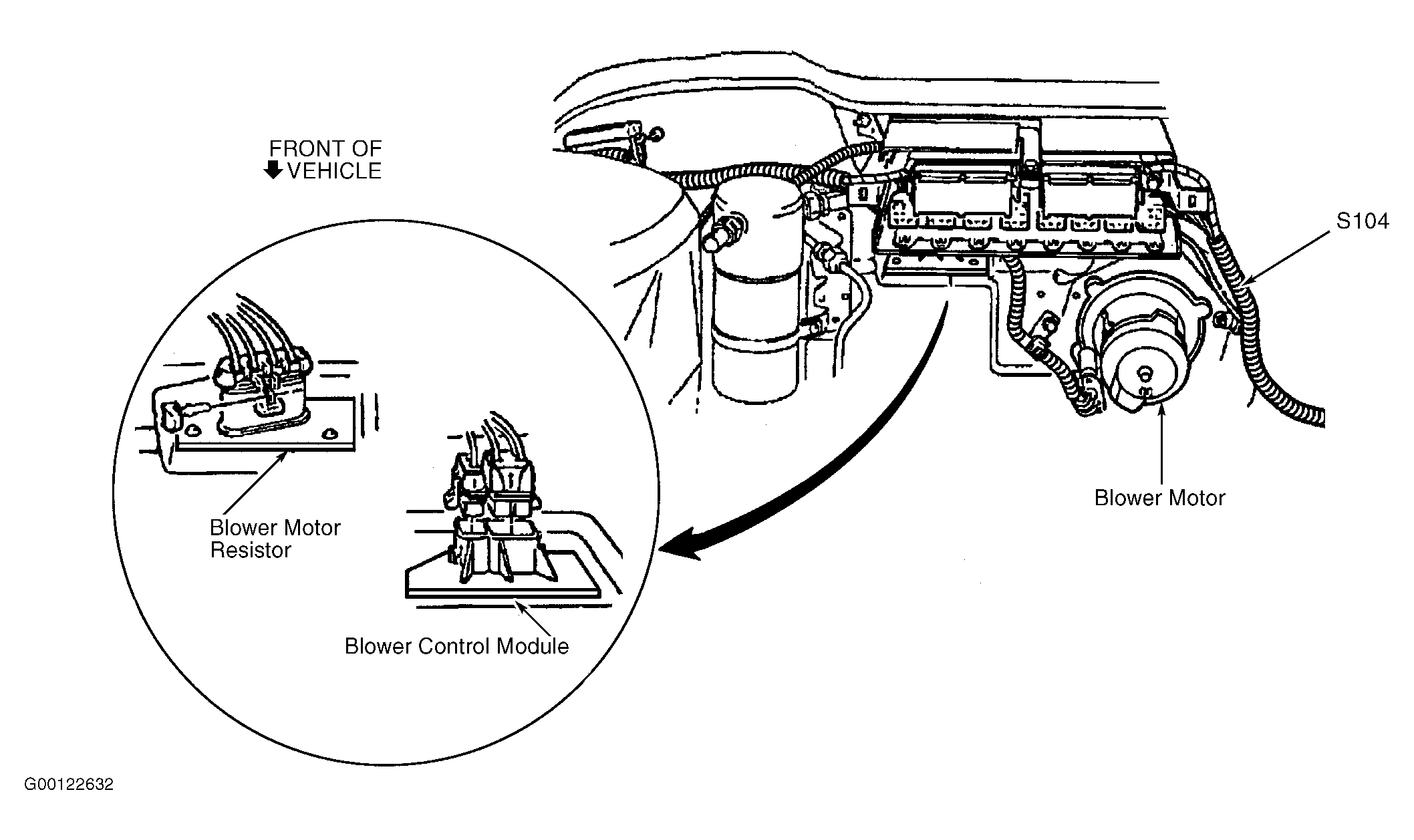

Fig 7: HVAC Components

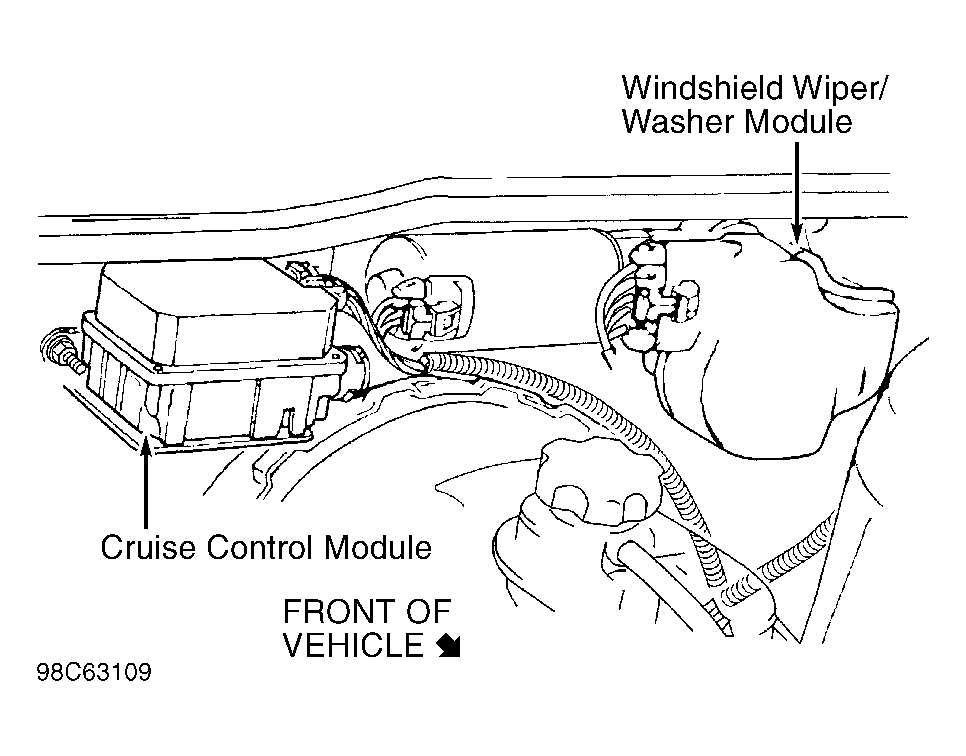

Fig 8: Cruise Control Module

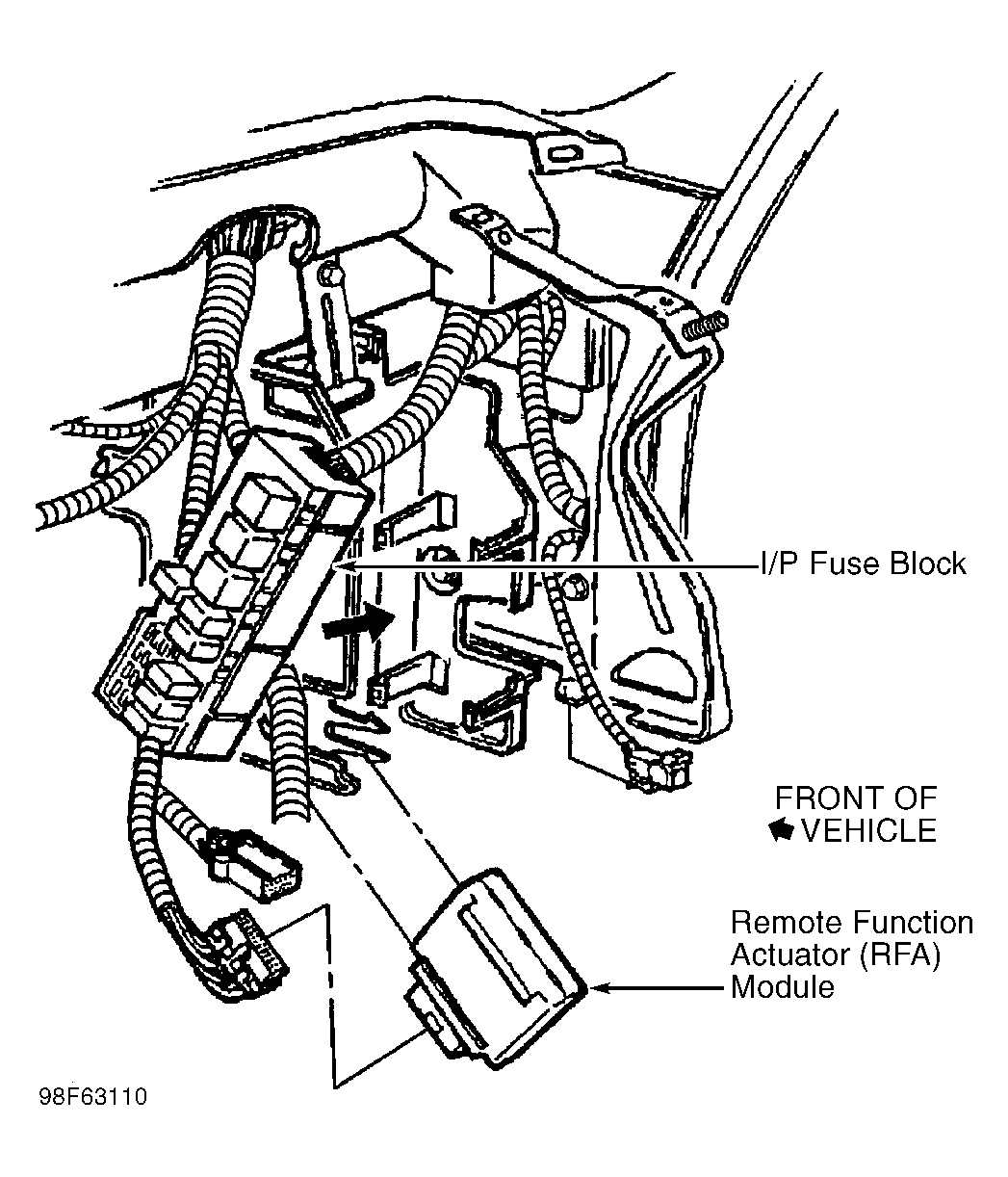

Fig 9: I/P Fuse Block

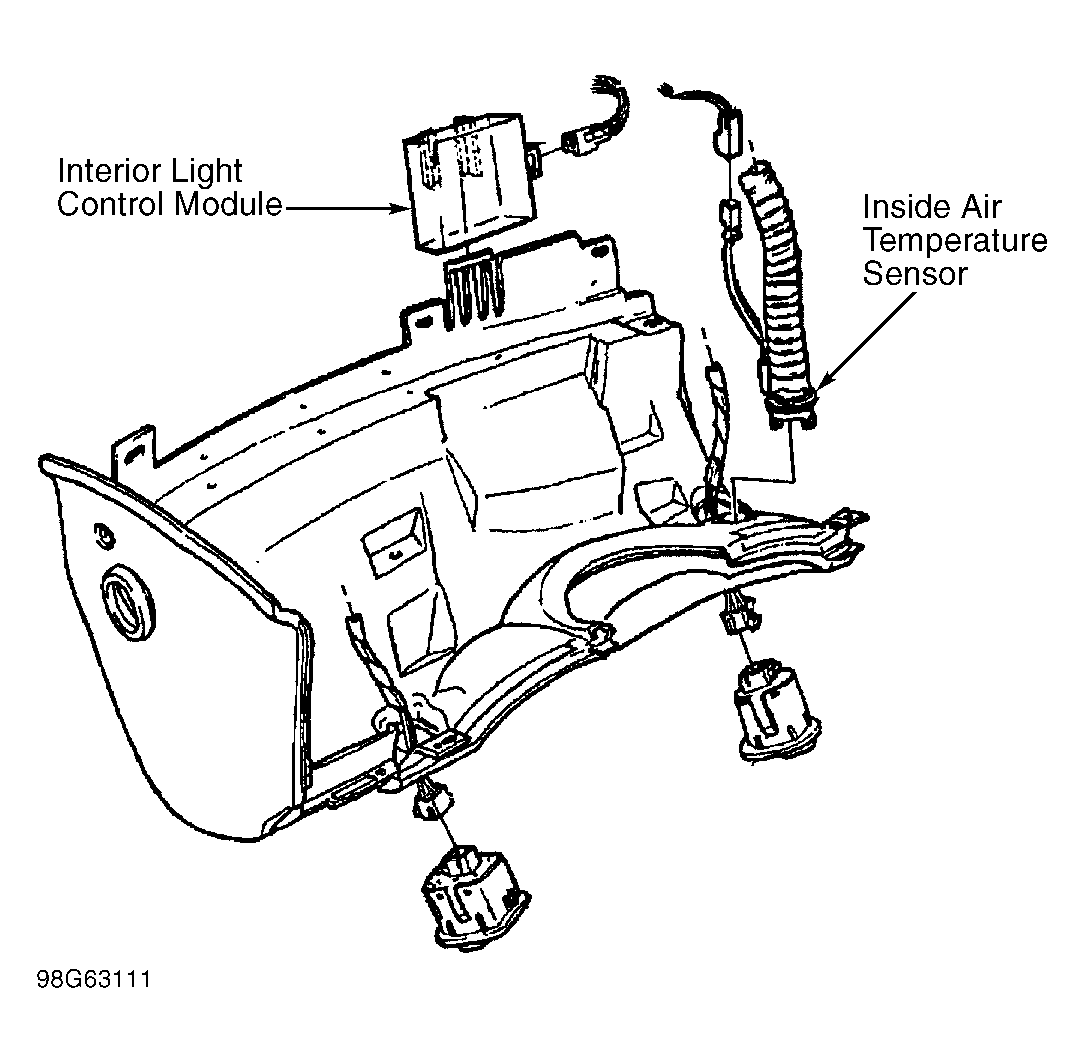

Fig 10: Interior Lamp Control Module

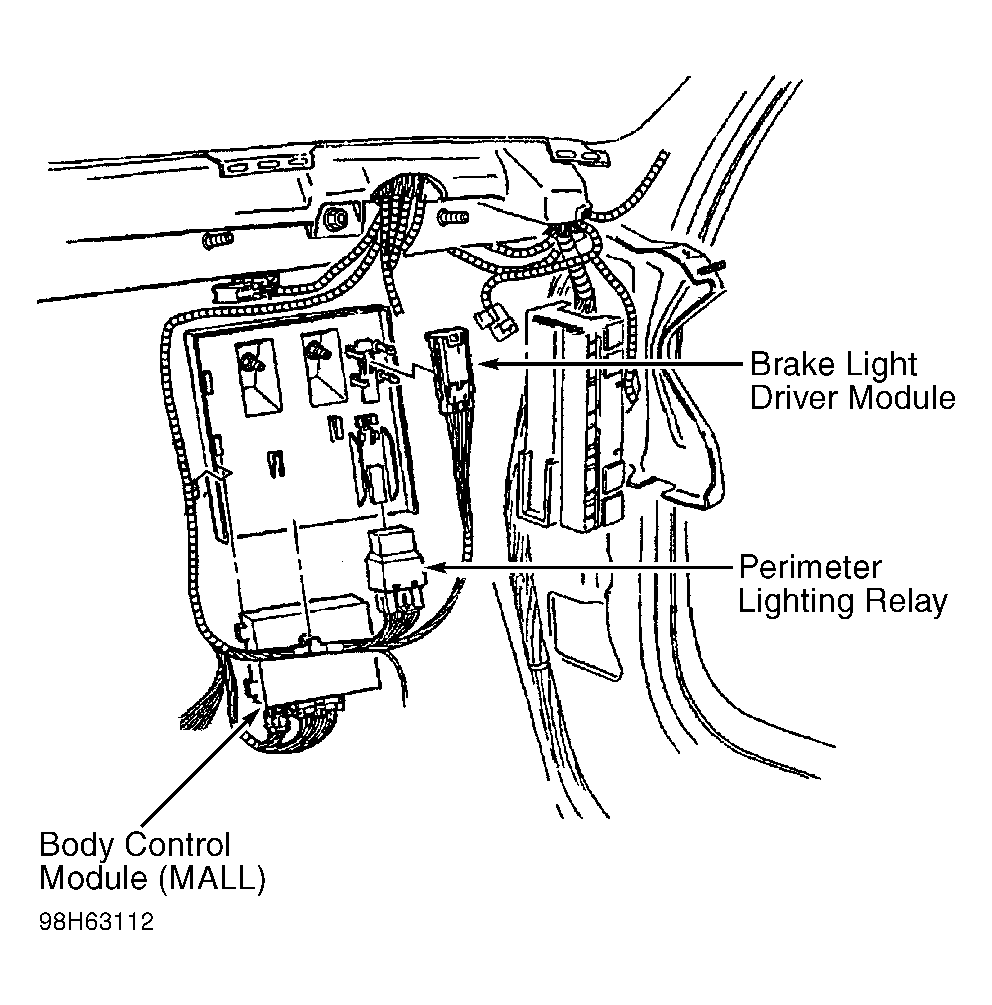

Fig 11: Body Control Module

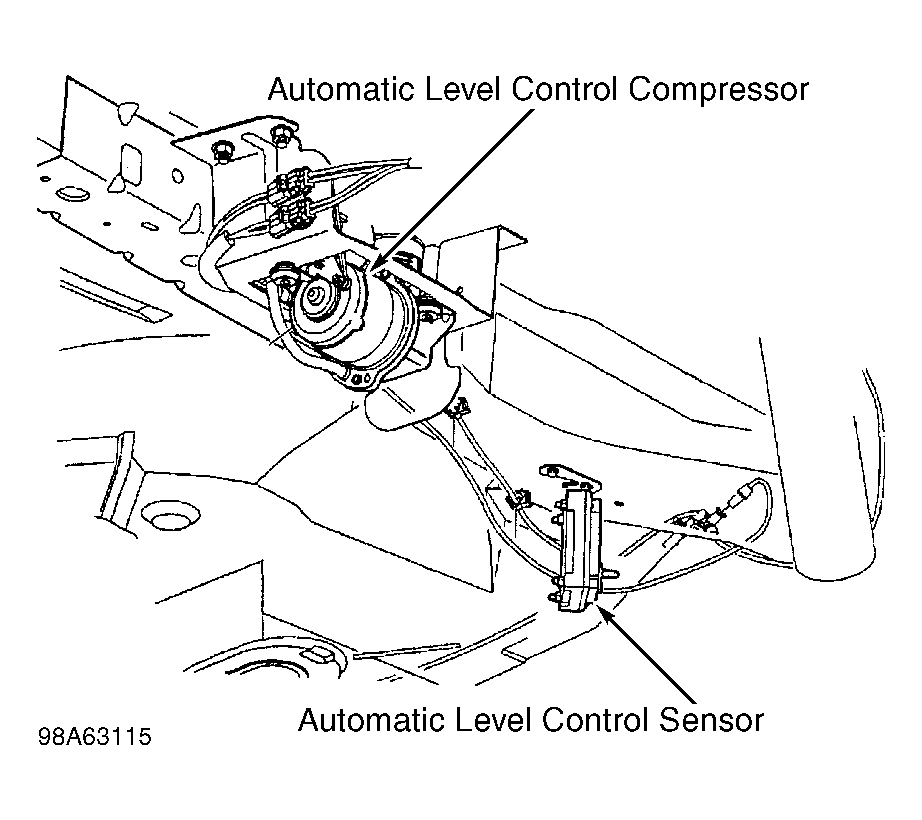

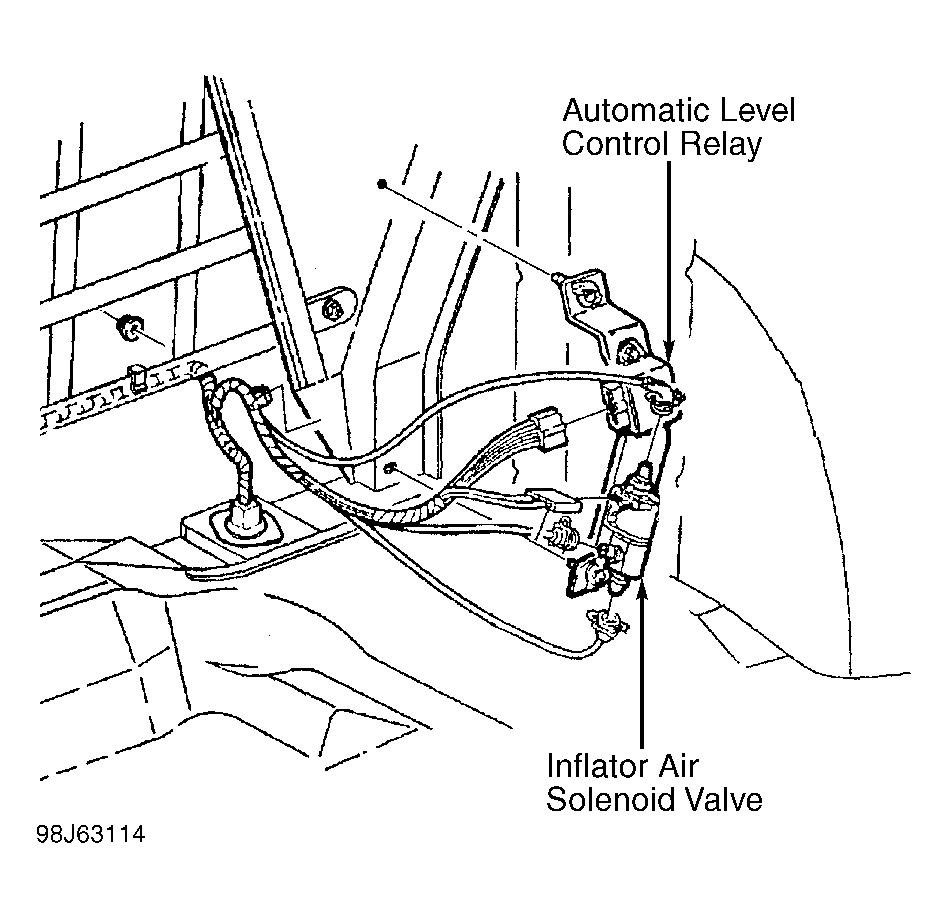

Fig 12: Automatic Level Control Suspension

Fig 13: Automatic Level Control Suspension

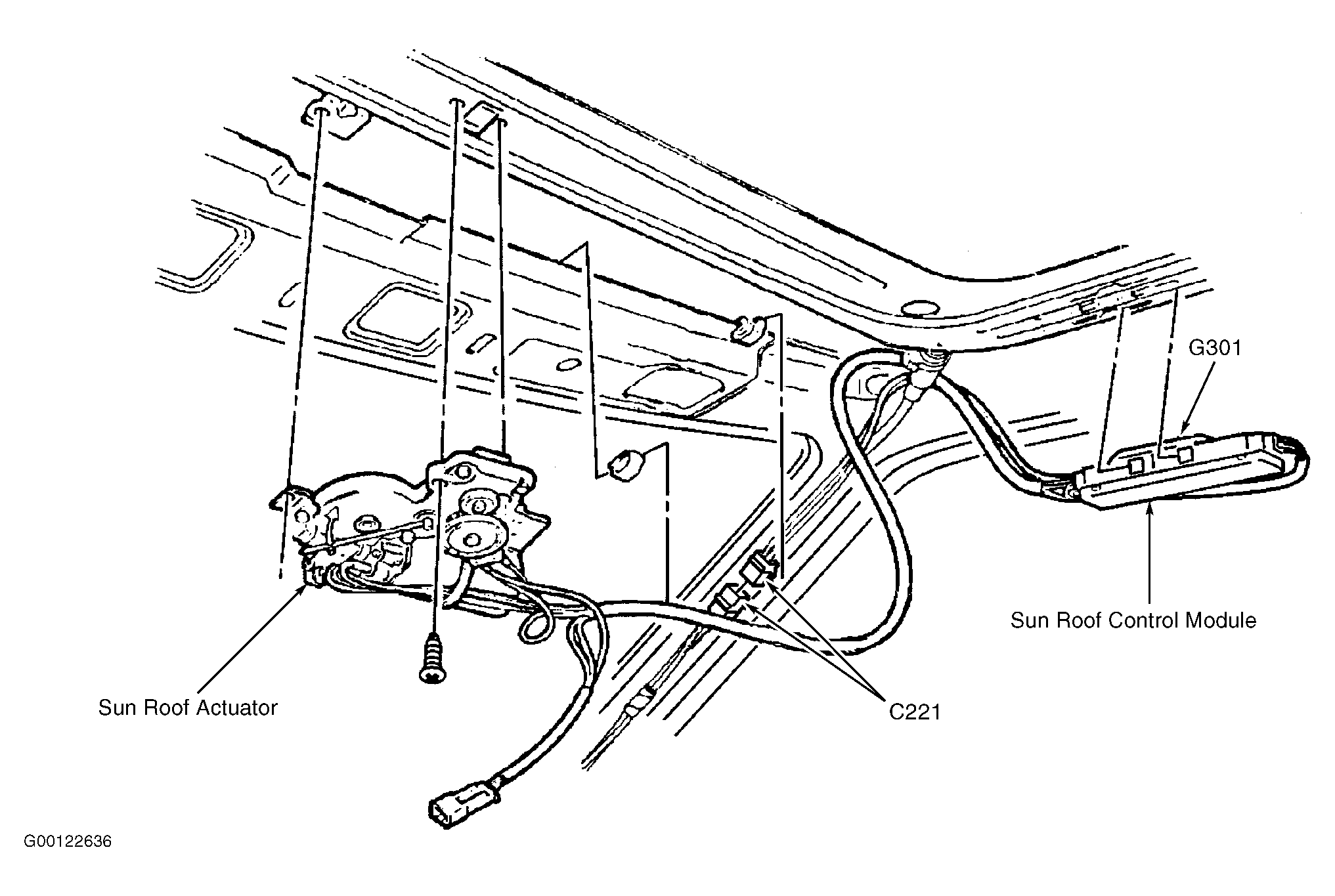

Fig 14: Sunroof Actuator
