Removal Procedure

  1. Remove the upper trim panel from the instrument panel (IP). Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (IP) Upper .
  2. Release the door lock receiver from the IP by releasing the retainer tabs.
  3. Disconnect the electrical connector.
  4. Remove the door lock receiver.

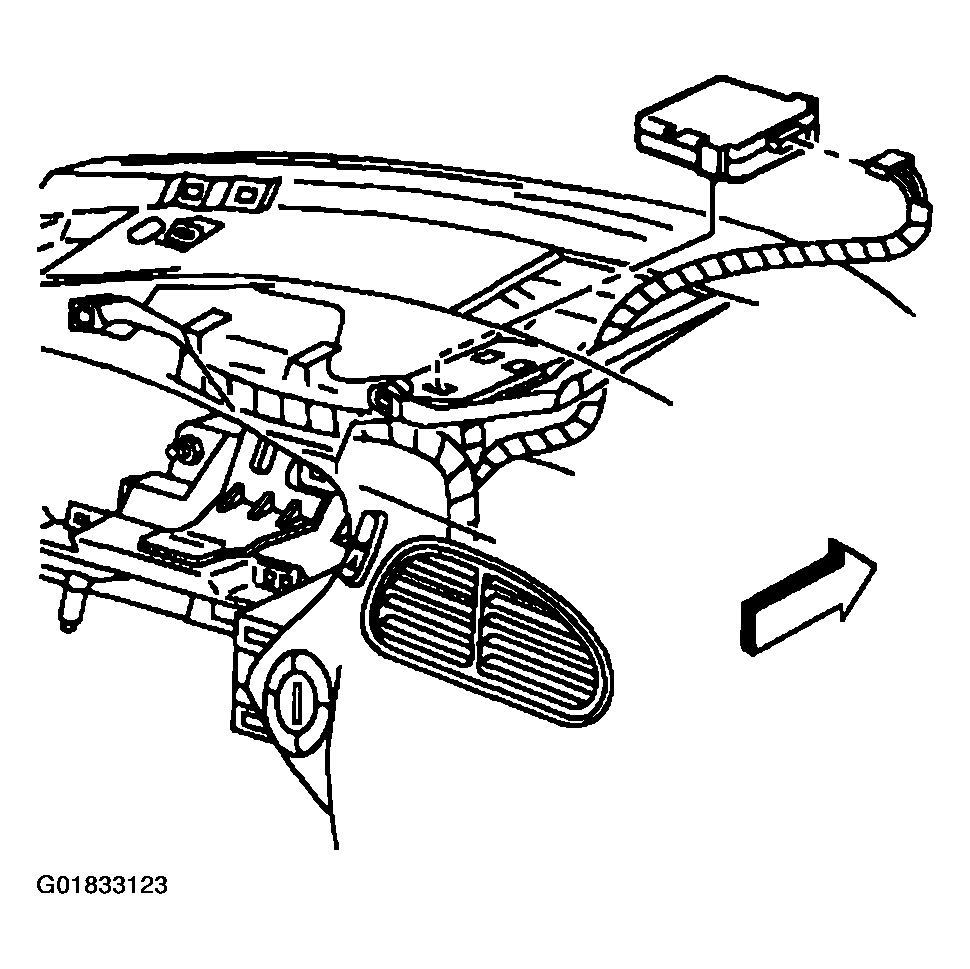

    Fig 1: Remove IP Upper Trim Panel, Door Lock Receiver & Electrical Connector
    G01833123Courtesy of GENERAL MOTORS CORP.
