Installation Procedure

  1. Install the battery into the transmitter.
  2. Reassemble the transmitter.
  3. Ensure that the halves snap together tightly in order to prevent water intrusion.
  4. Test for proper transmitter operation. Refer to Keyless Entry System Description and Operation
  5. Synchronize the transmitter, as needed. Refer to Transmitter Synchronization

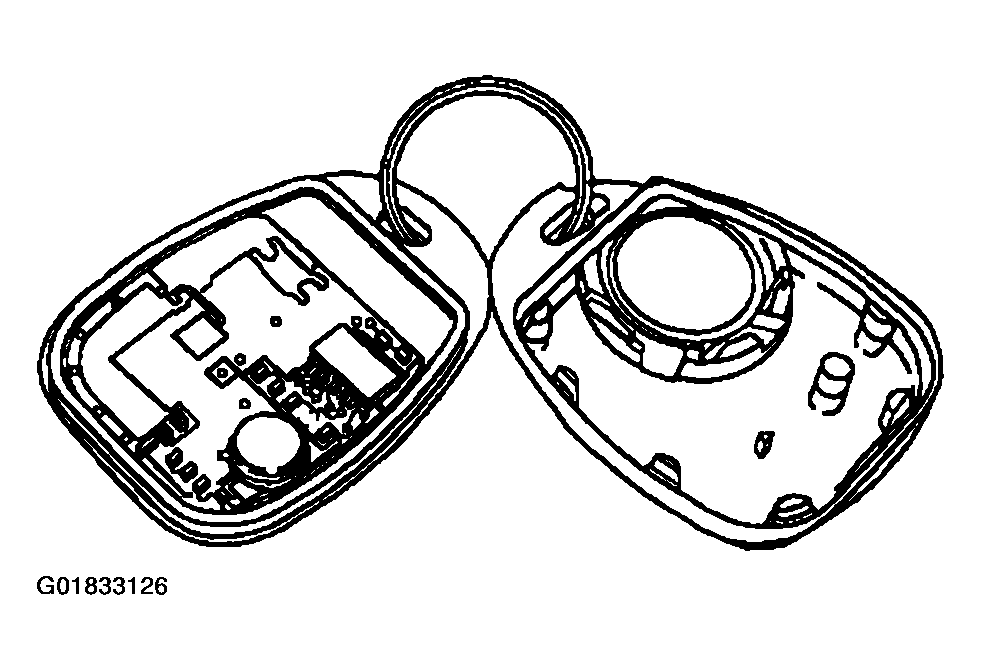

    Fig 1: Install Battery Into Transmitter
    G01833126Courtesy of GENERAL MOTORS CORP.
