Component Locations

Fig 1: Locating Air Injection Pump Relay

Courtesy of GENERAL MOTORS CORP.

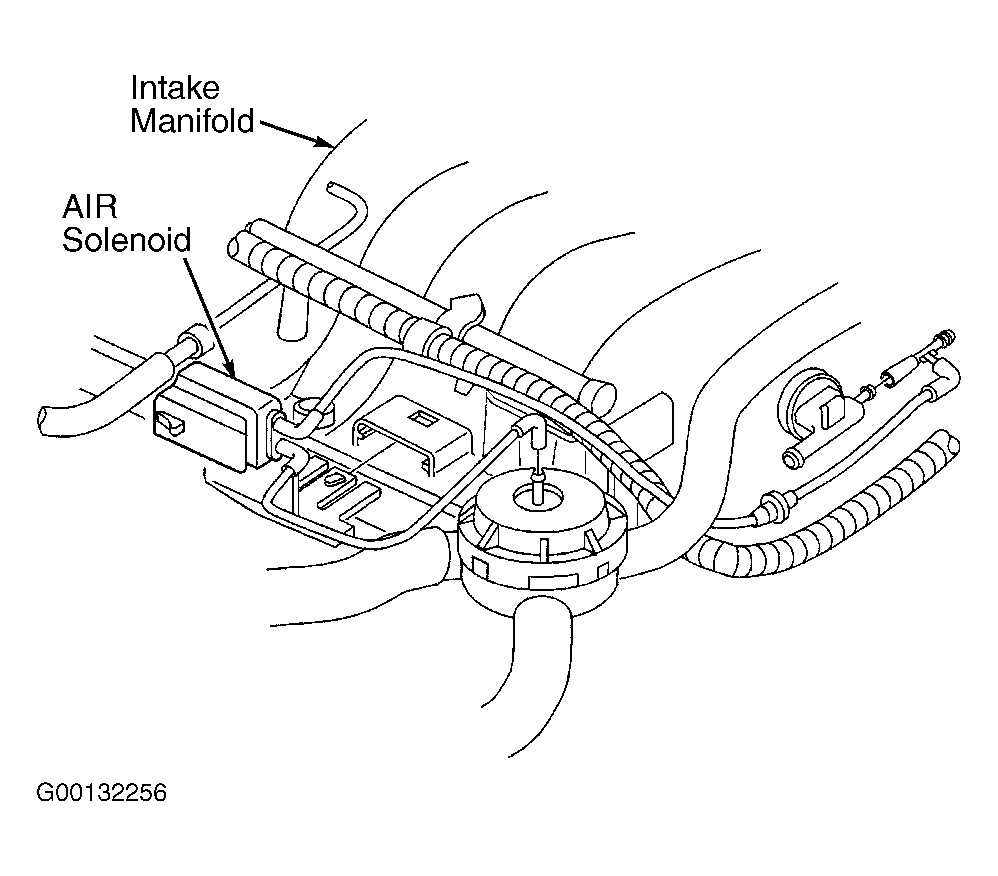

Fig 2: Locating Air Injection Solenoid

Courtesy of GENERAL MOTORS CORP.

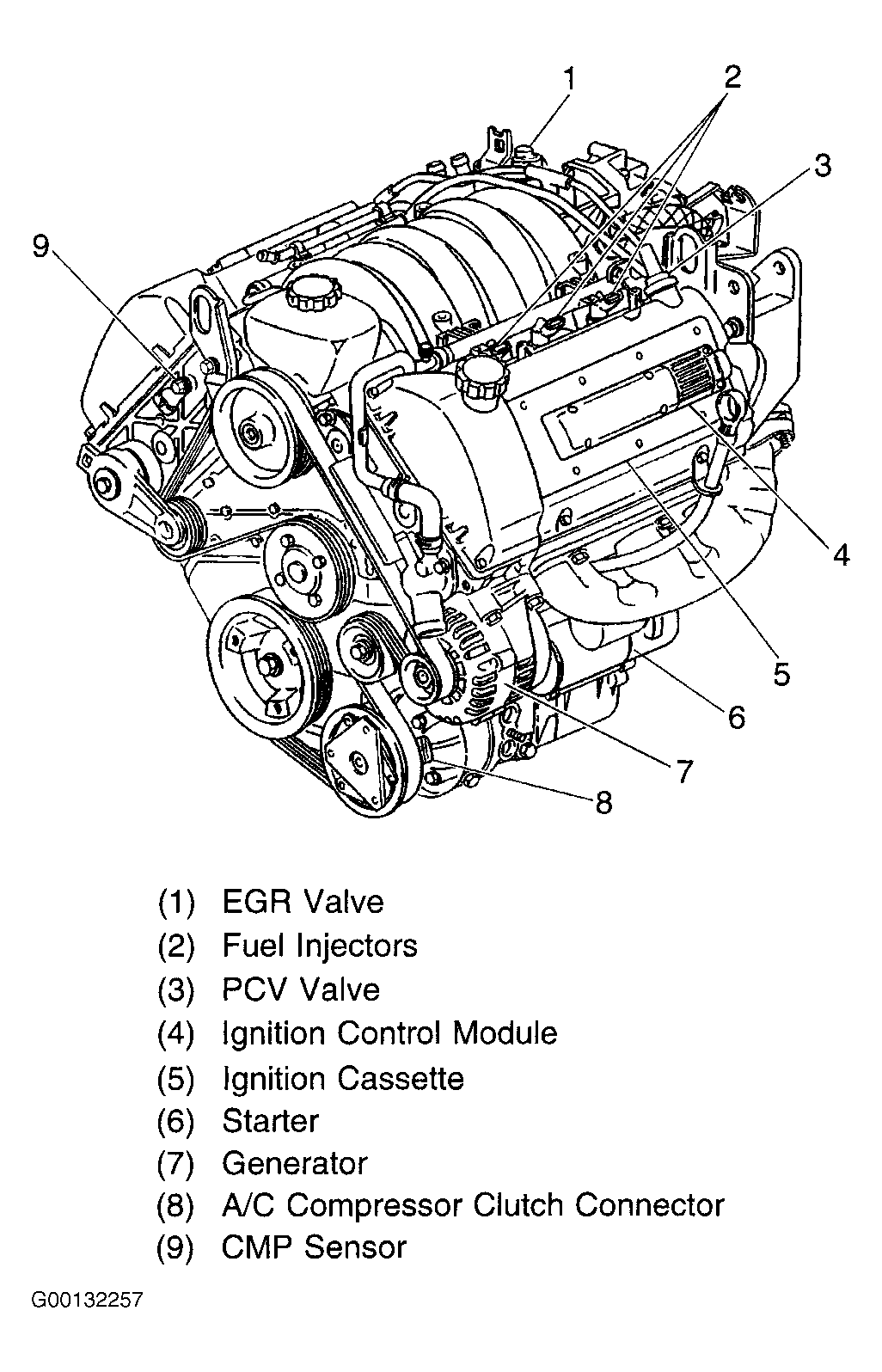

Fig 3: Locating Camshaft Position Sensor, EGR Valve & Ignition Control Module

Courtesy of GENERAL MOTORS CORP.

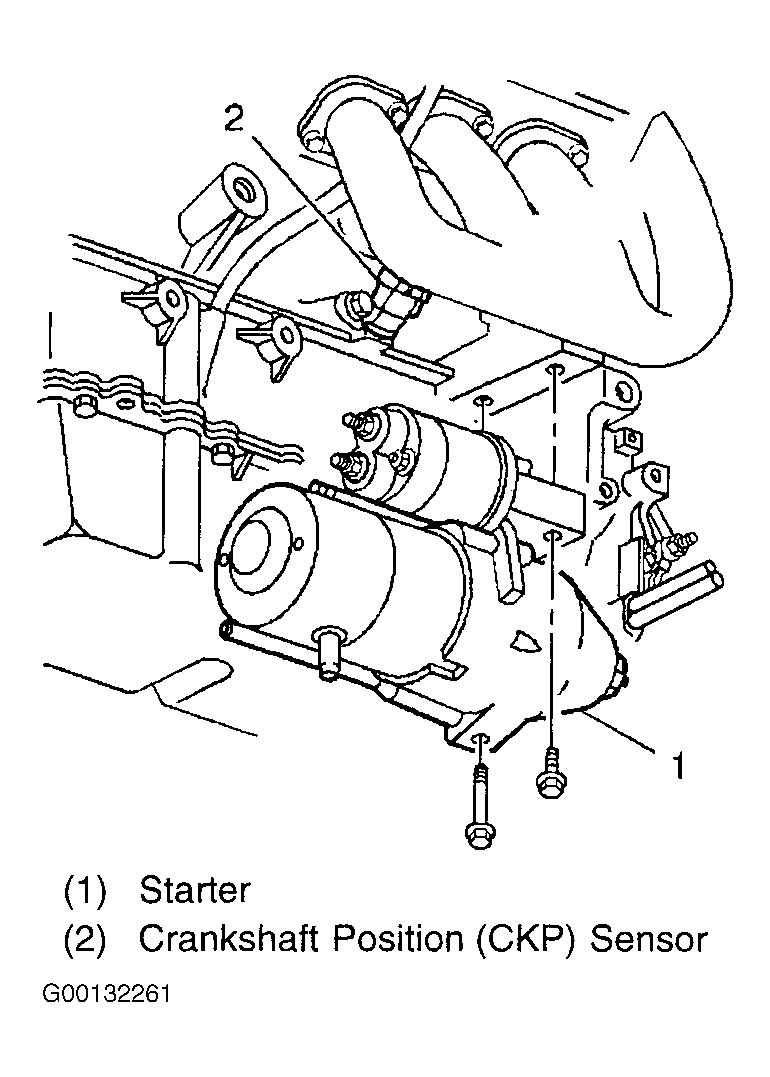

Fig 4: Locating Crankshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

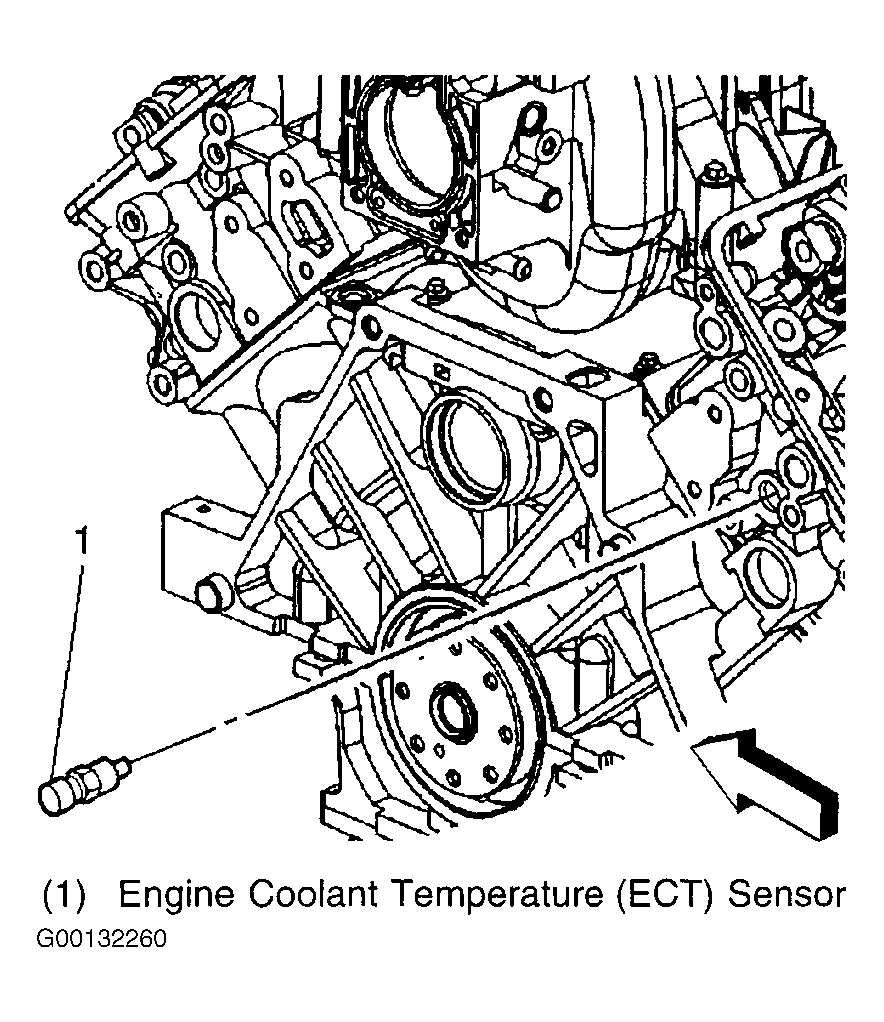

Fig 5: Locating Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

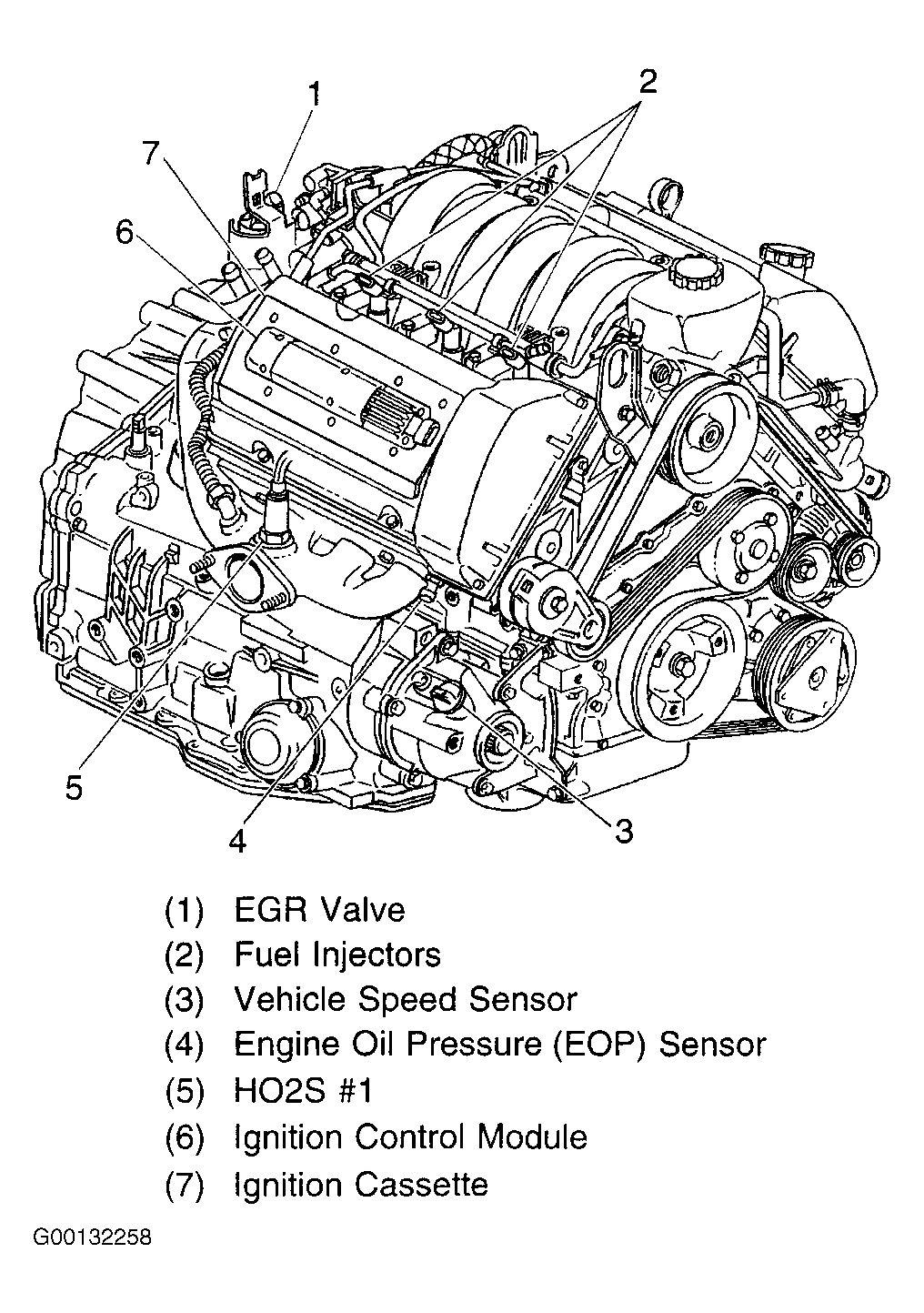

Fig 6: Locating EGR Valve, Engine Oil Pressure Sensor, HO2S 1 & Vehicle Speed Sensor

Courtesy of GENERAL MOTORS CORP.

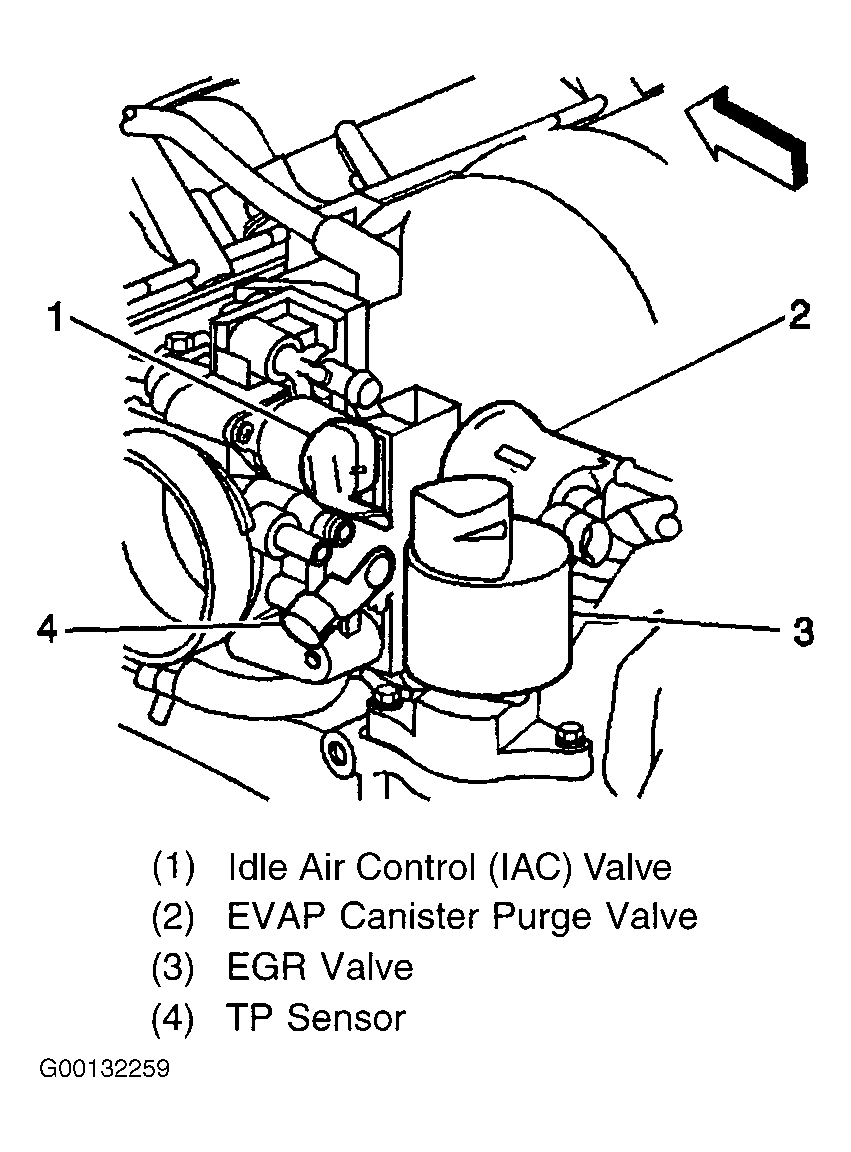

Fig 7: Locating EGR Valve, EVAP Canister Purge Valve, IAC Valve & TP Sensor

Courtesy of GENERAL MOTORS CORP.

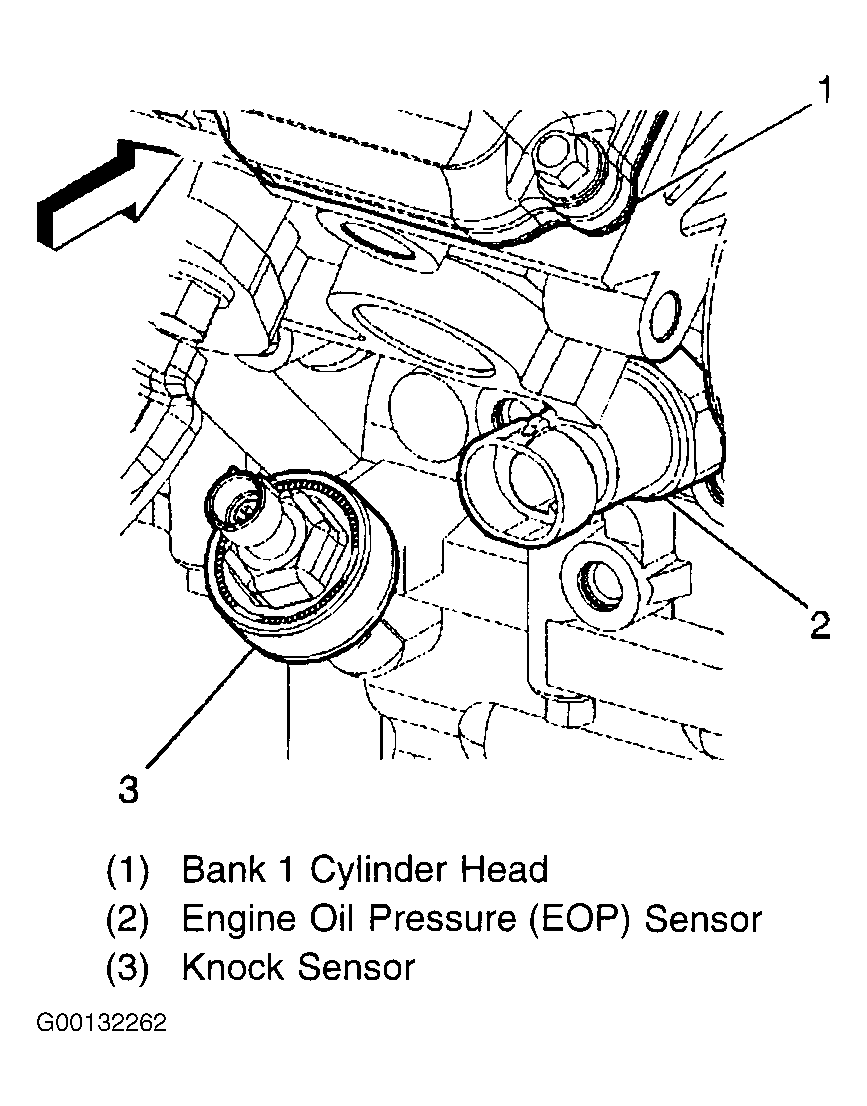

Fig 8: Locating Engine Oil Pressure Sensor & Knock Sensor

Courtesy of GENERAL MOTORS CORP.

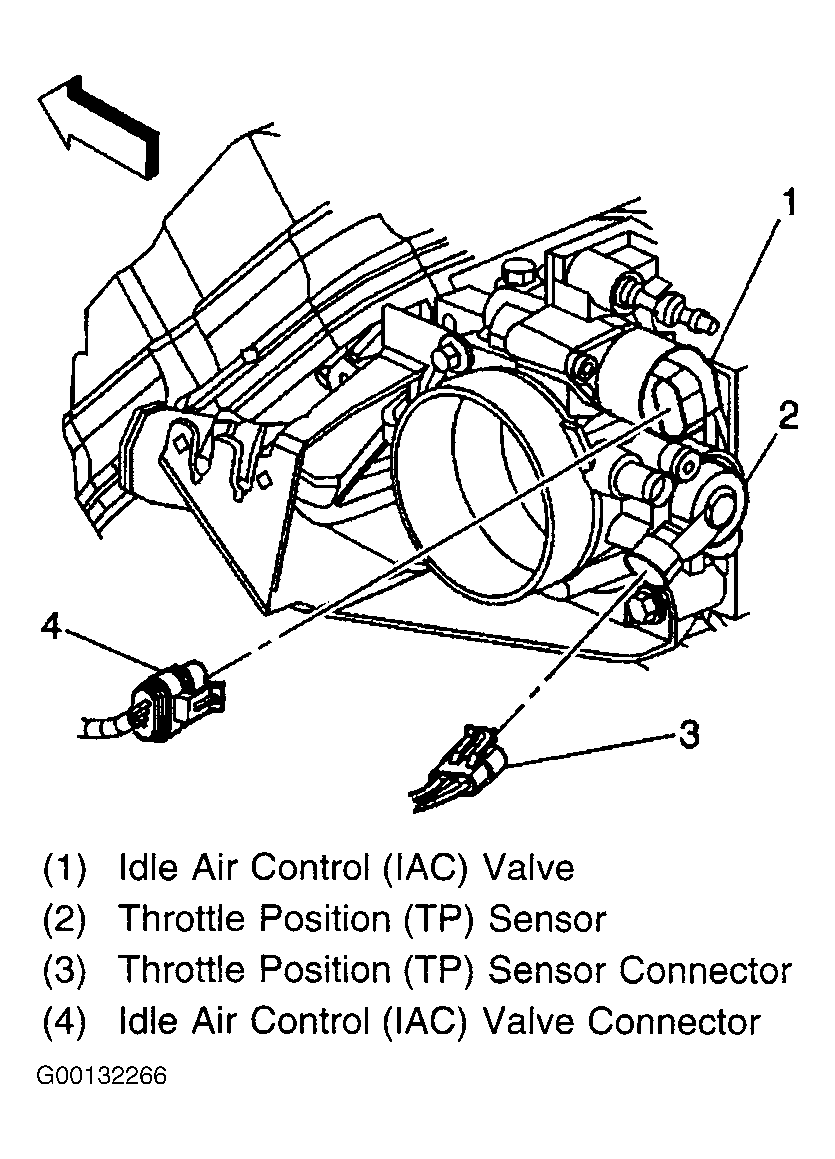

Fig 9: Locating Idle Air Control Valve & Throttle Position Sensor

Courtesy of GENERAL MOTORS CORP.

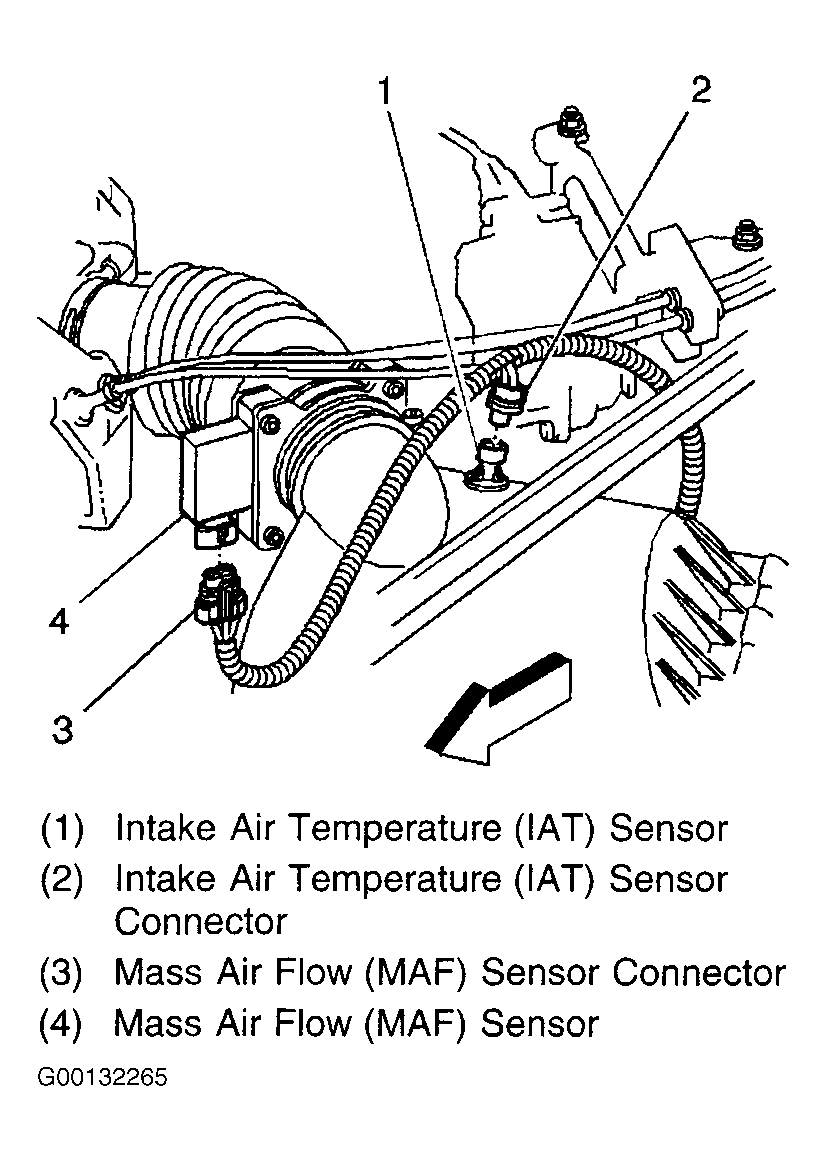

Fig 10: Locating Intake Air Temperature & Mass Airflow Sensors

Courtesy of GENERAL MOTORS CORP.

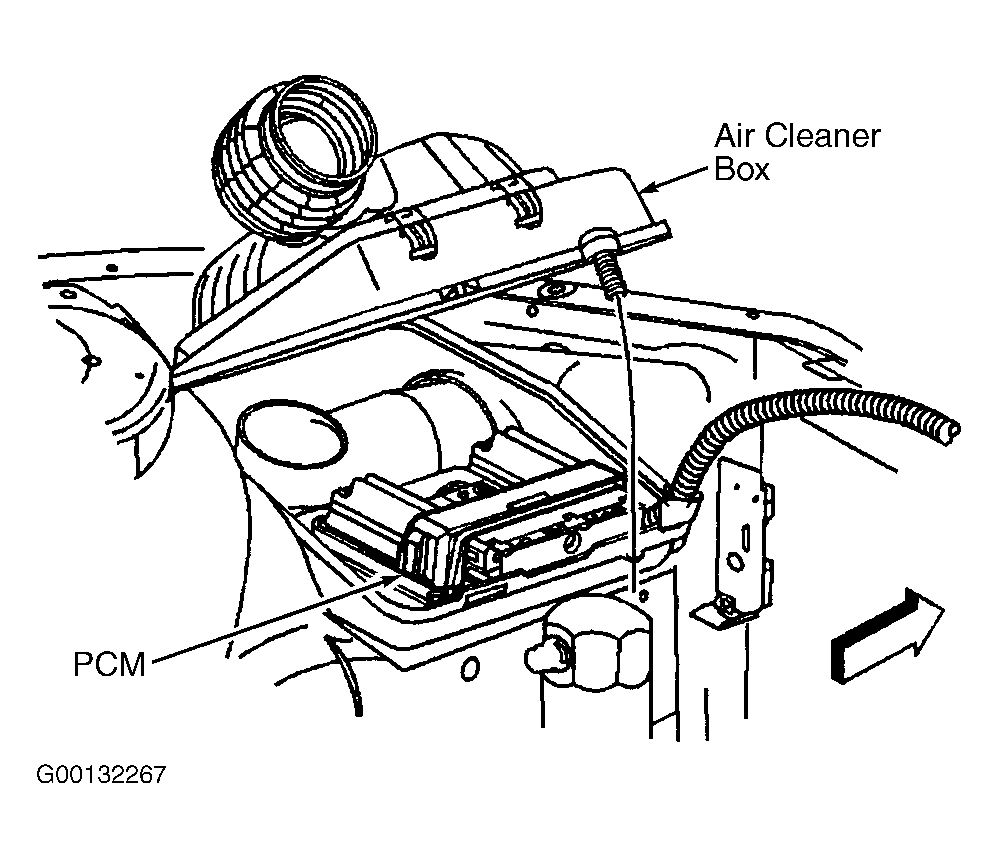

Fig 11: Locating PCM

Courtesy of GENERAL MOTORS CORP.

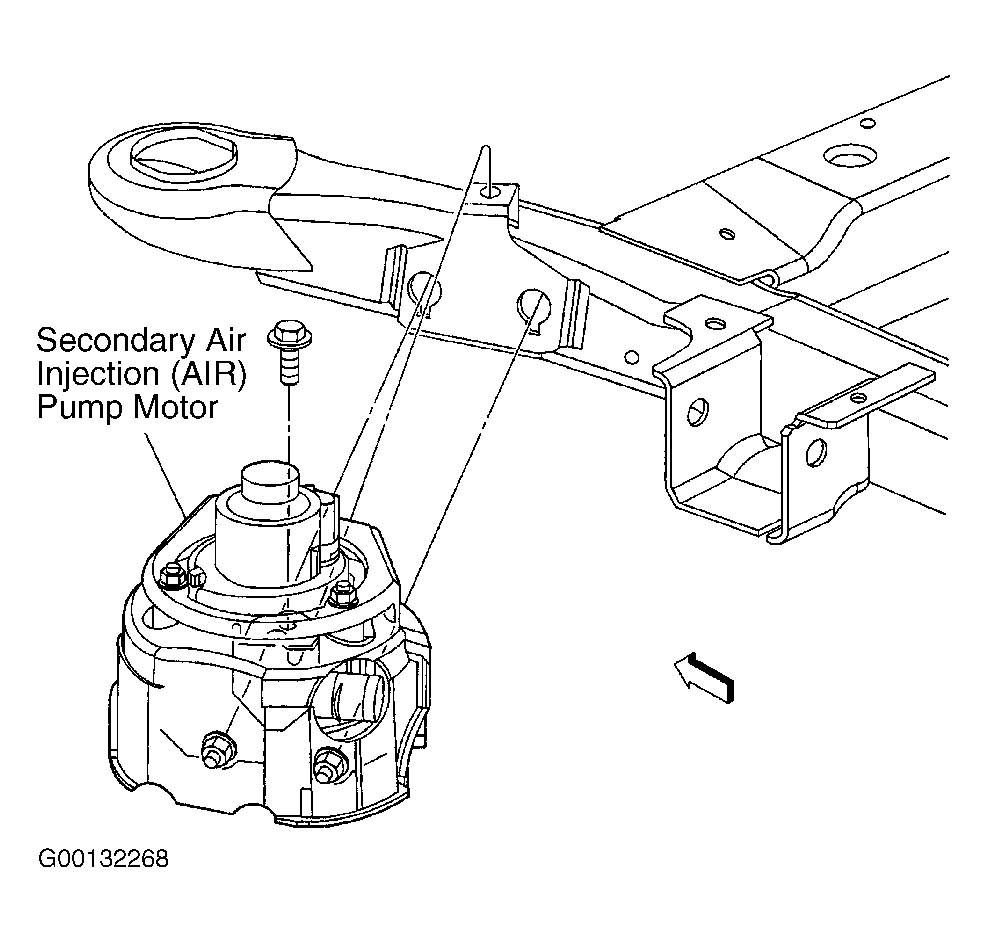

Fig 12: Locating Secondary Air Injection Pump Motor

Courtesy of GENERAL MOTORS CORP.

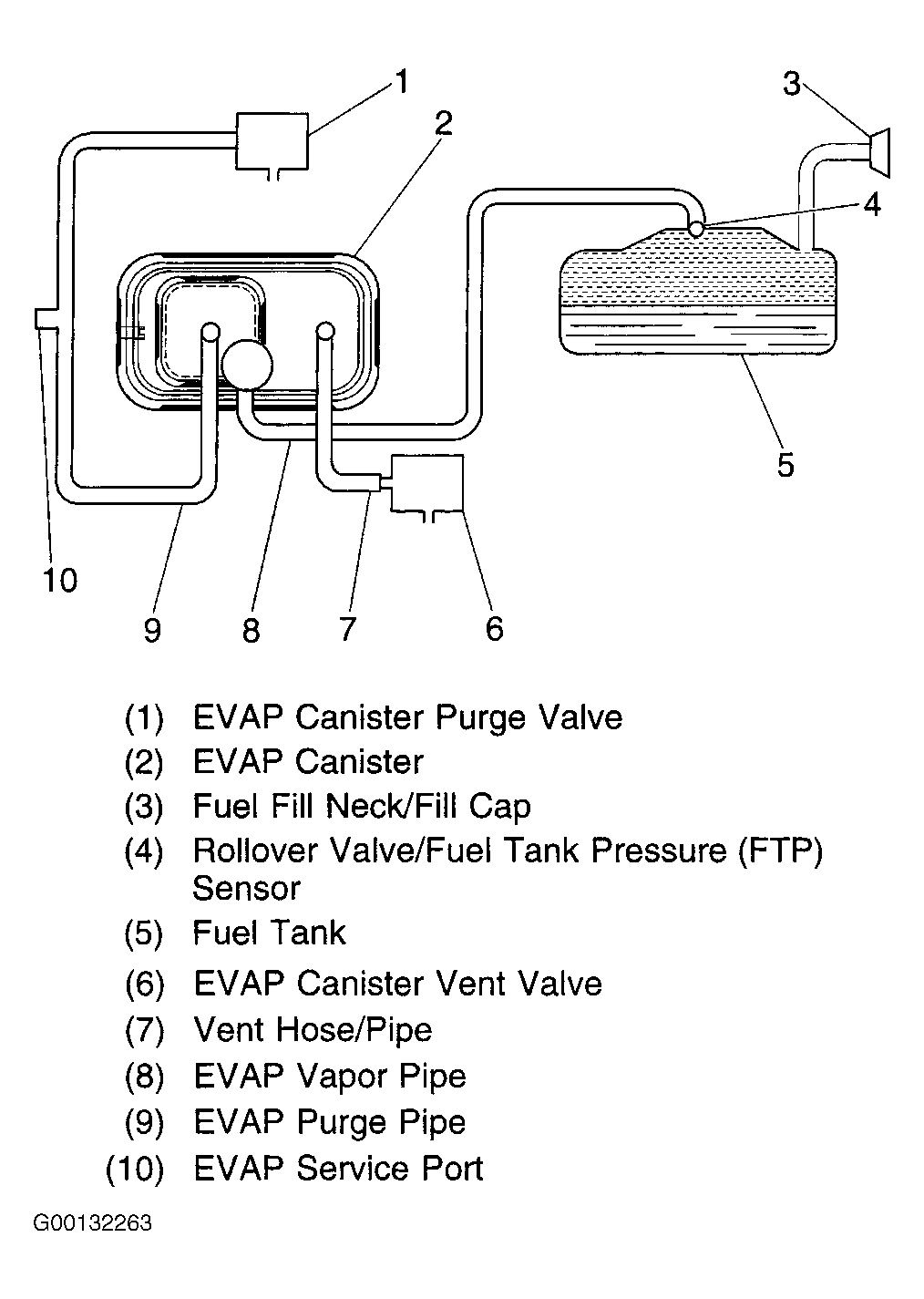

Fig 13: Locating & Identifying EVAP System Components & Hose Routing

Courtesy of GENERAL MOTORS CORP.

Fig 14: Locating & Identifying Fuel Pump & Sender Assembly

Courtesy of GENERAL MOTORS CORP.
