Engine Controls - Self-Diagnostics - 3.5L
>>
Connector Identification
Connector Identification
Fig 1: Identifying Camshaft Position Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

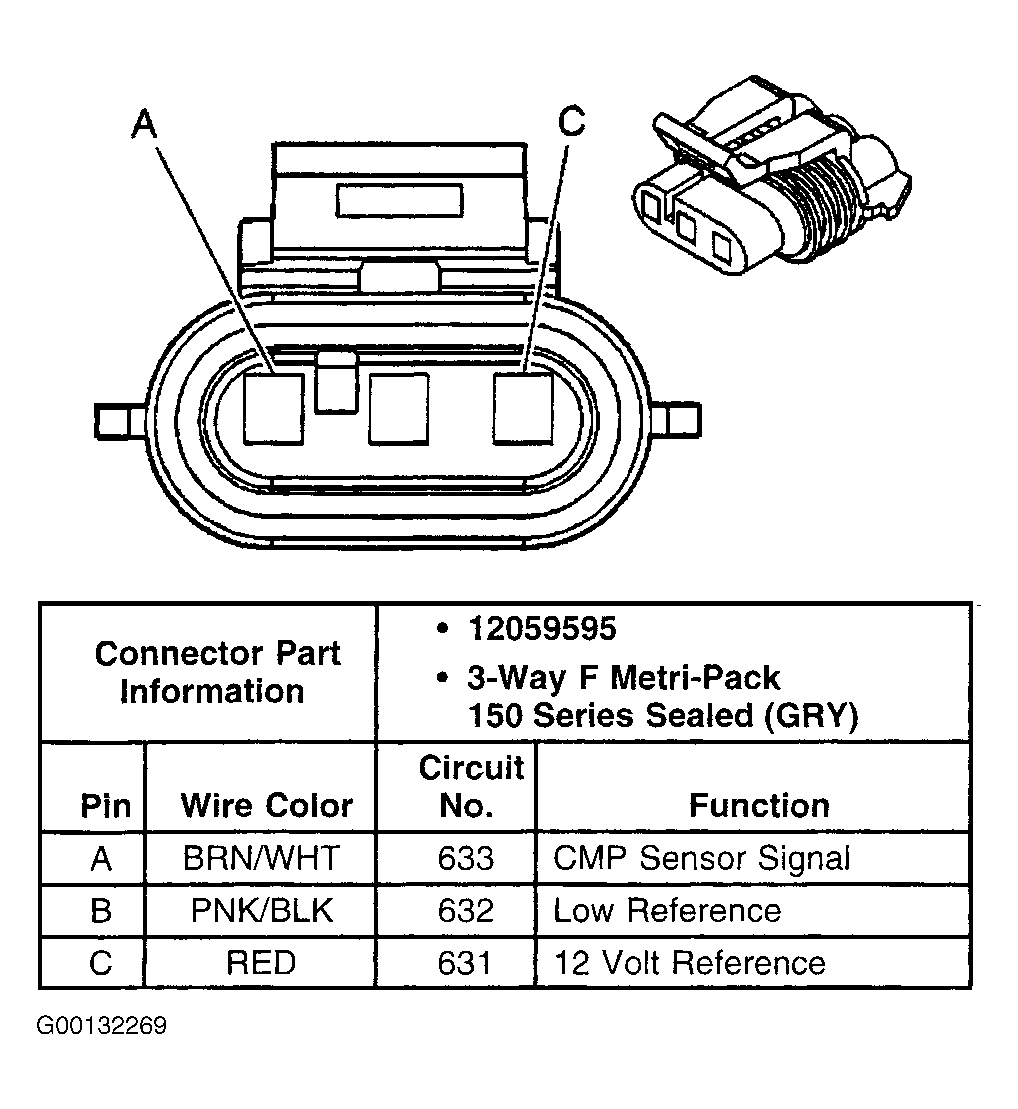

Fig 2: Identifying Camshaft Position Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying Crankshaft Position Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

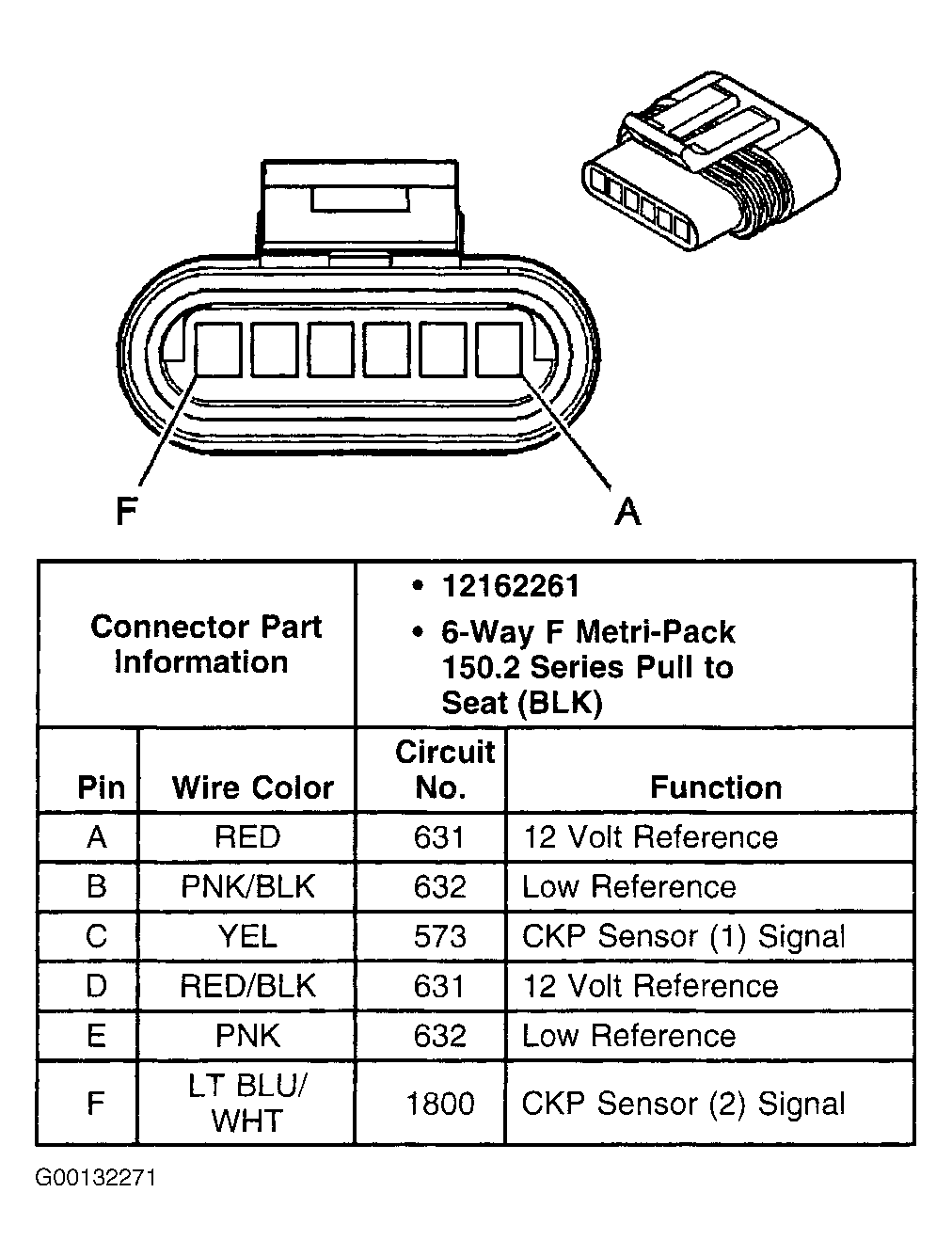

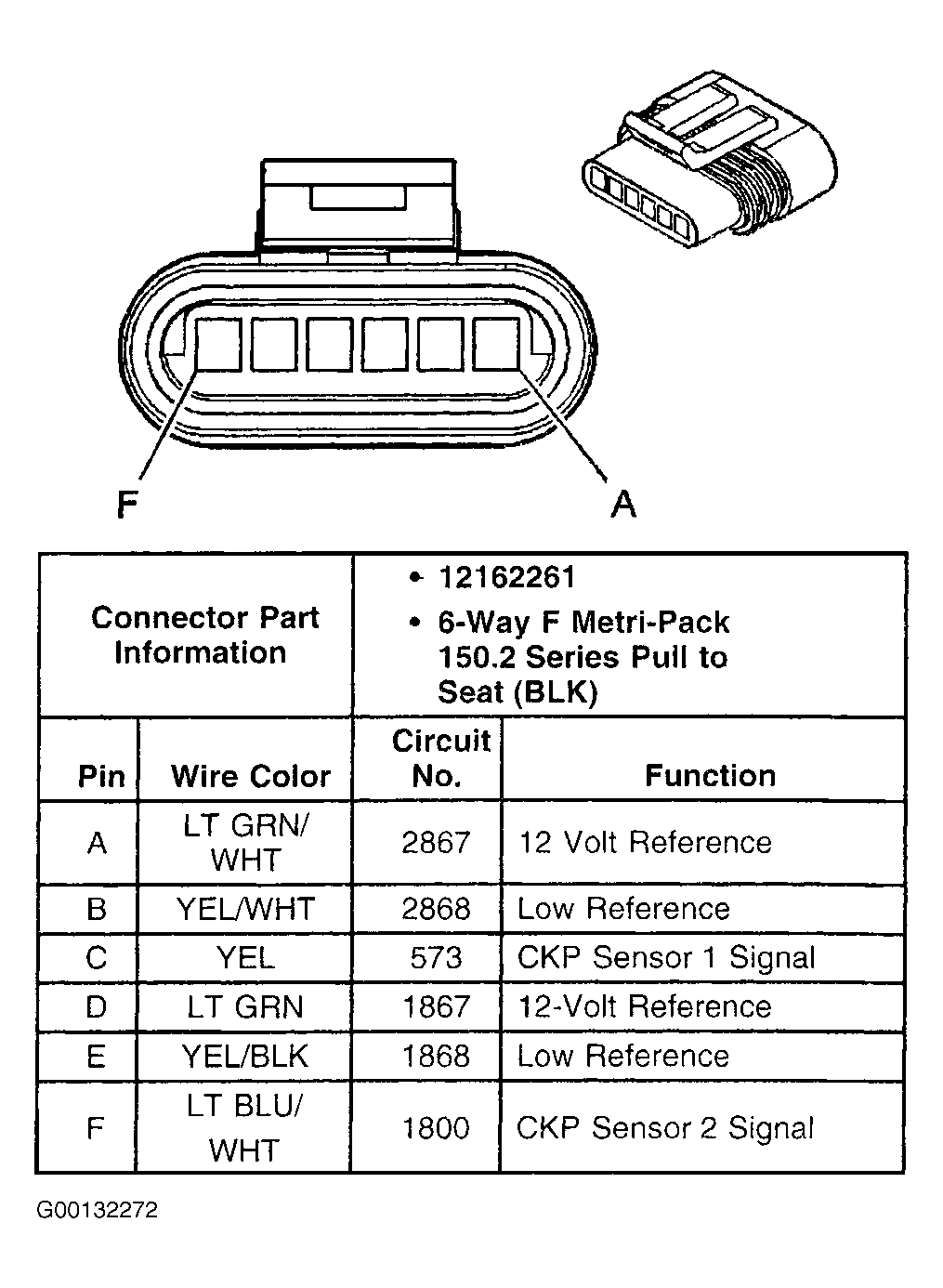

Fig 4: Identifying Crankshaft Position Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

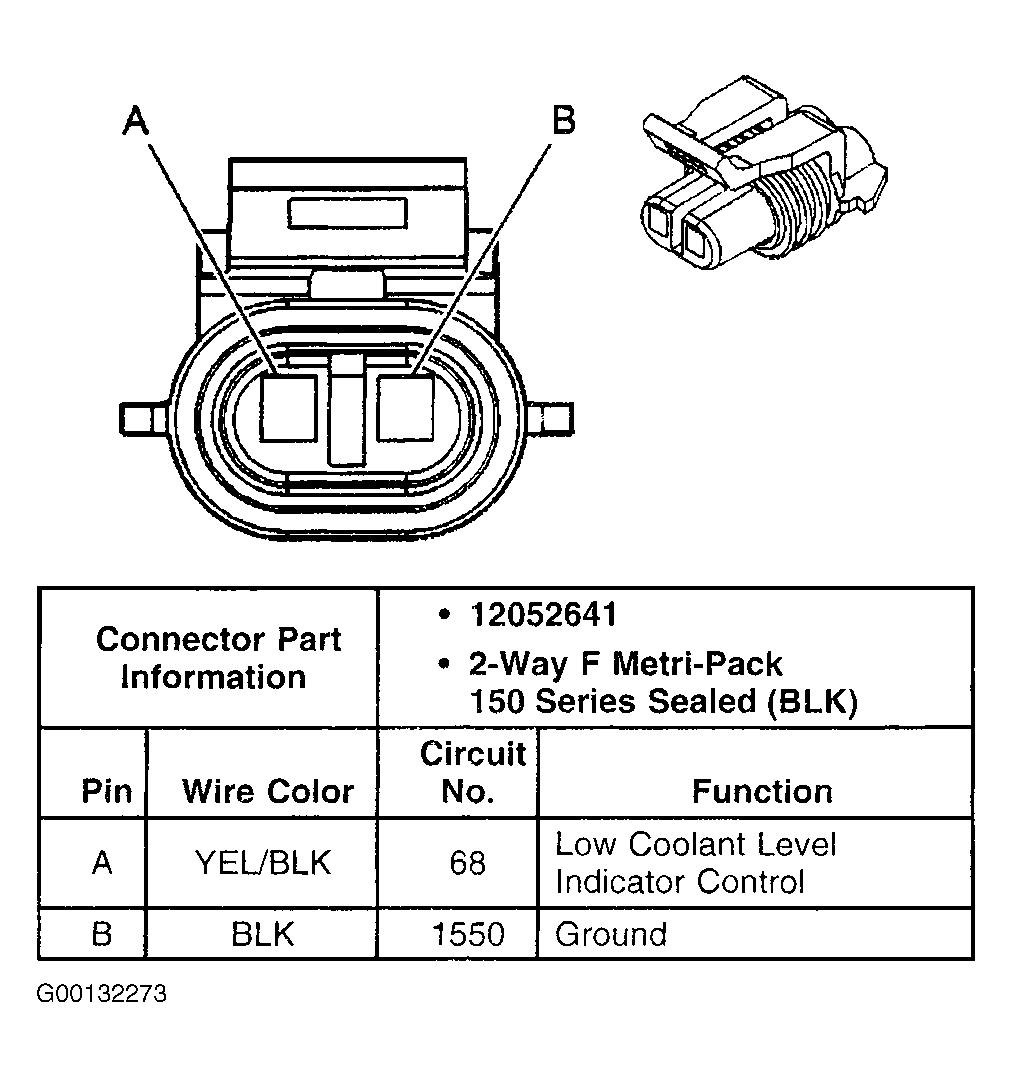

Fig 5: Identifying Engine Coolant Level Module Harness Connector Terminals (Intrigue Only)
Courtesy of GENERAL MOTORS CORP.

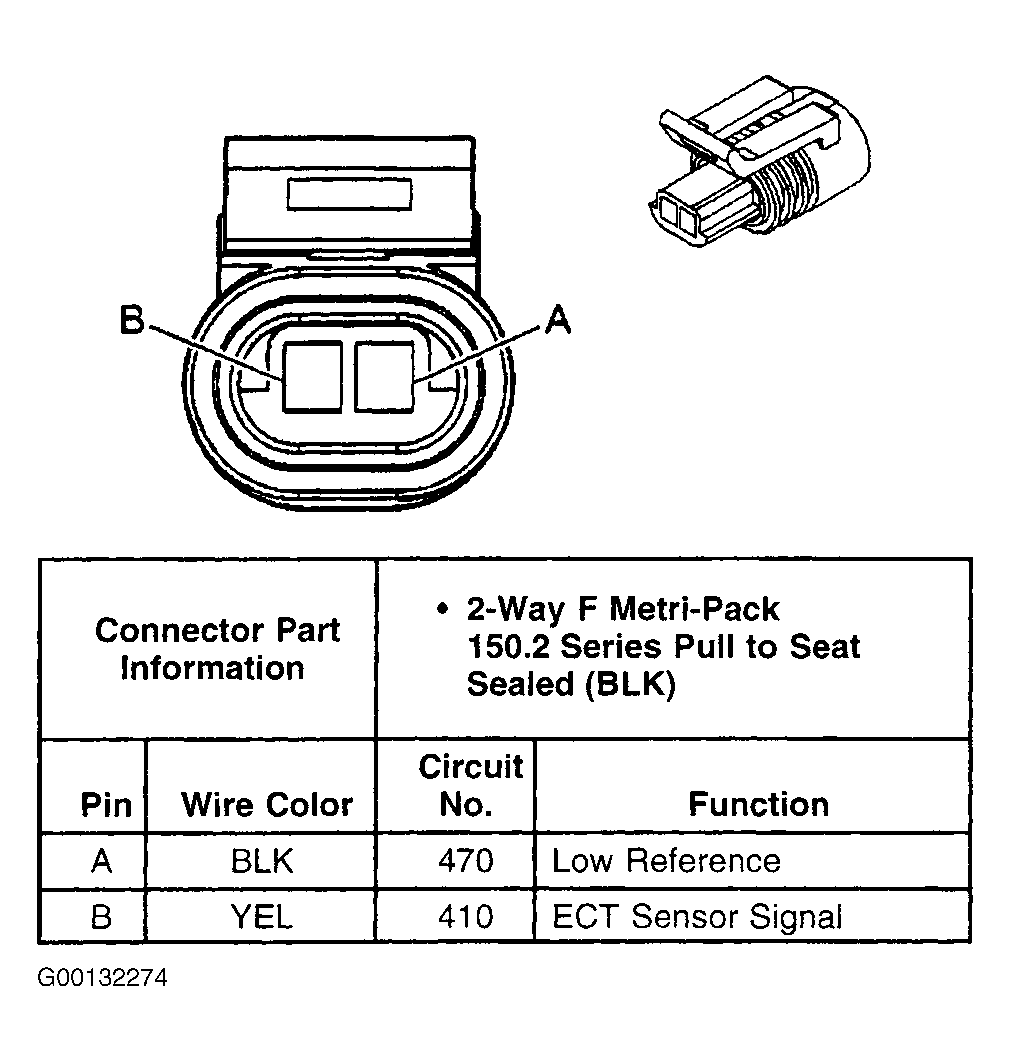

Fig 6: Identifying Engine Coolant Temperature Sensor Harness Connector Terminals (Aurora & Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 7: Identifying EGR Valve Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

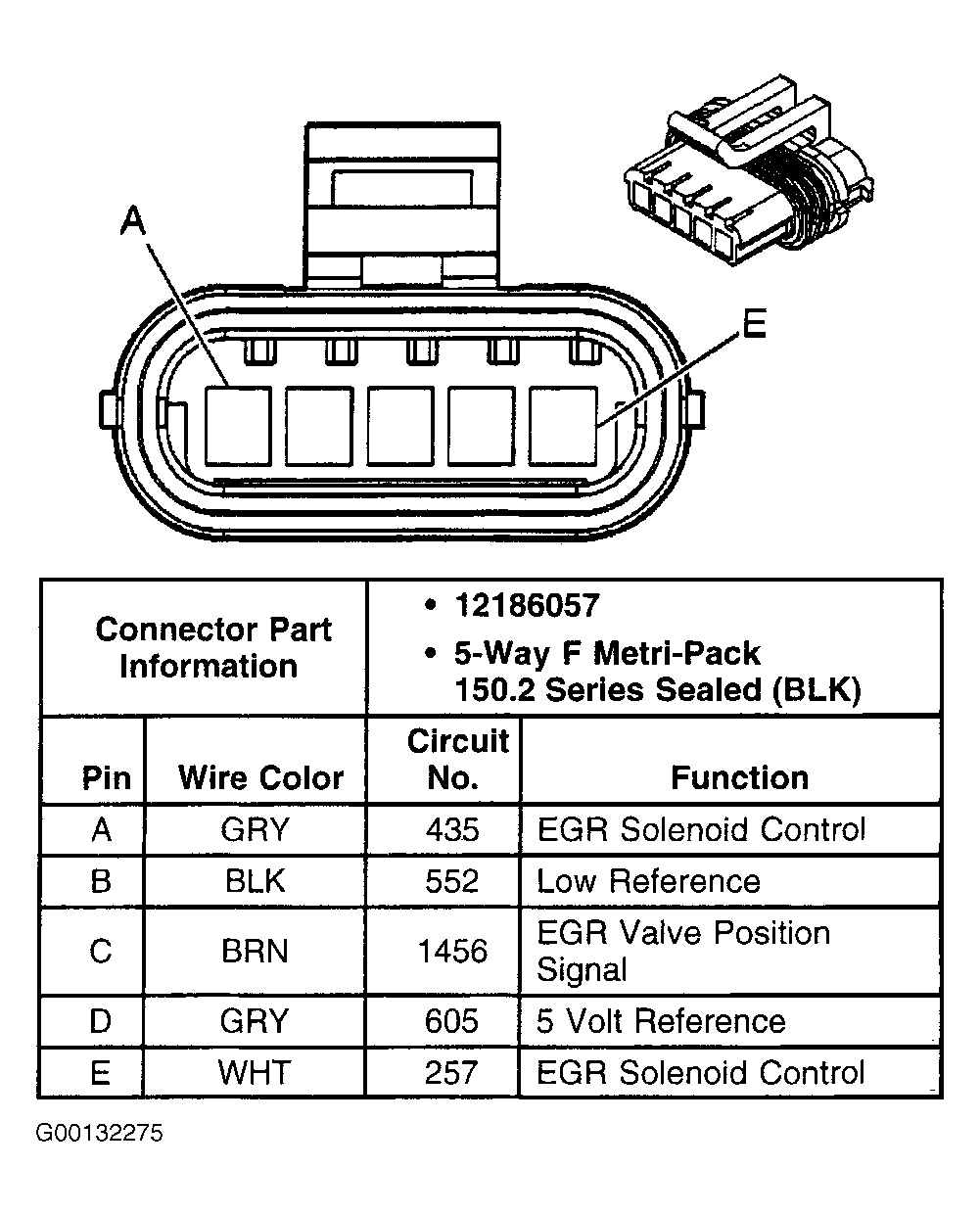

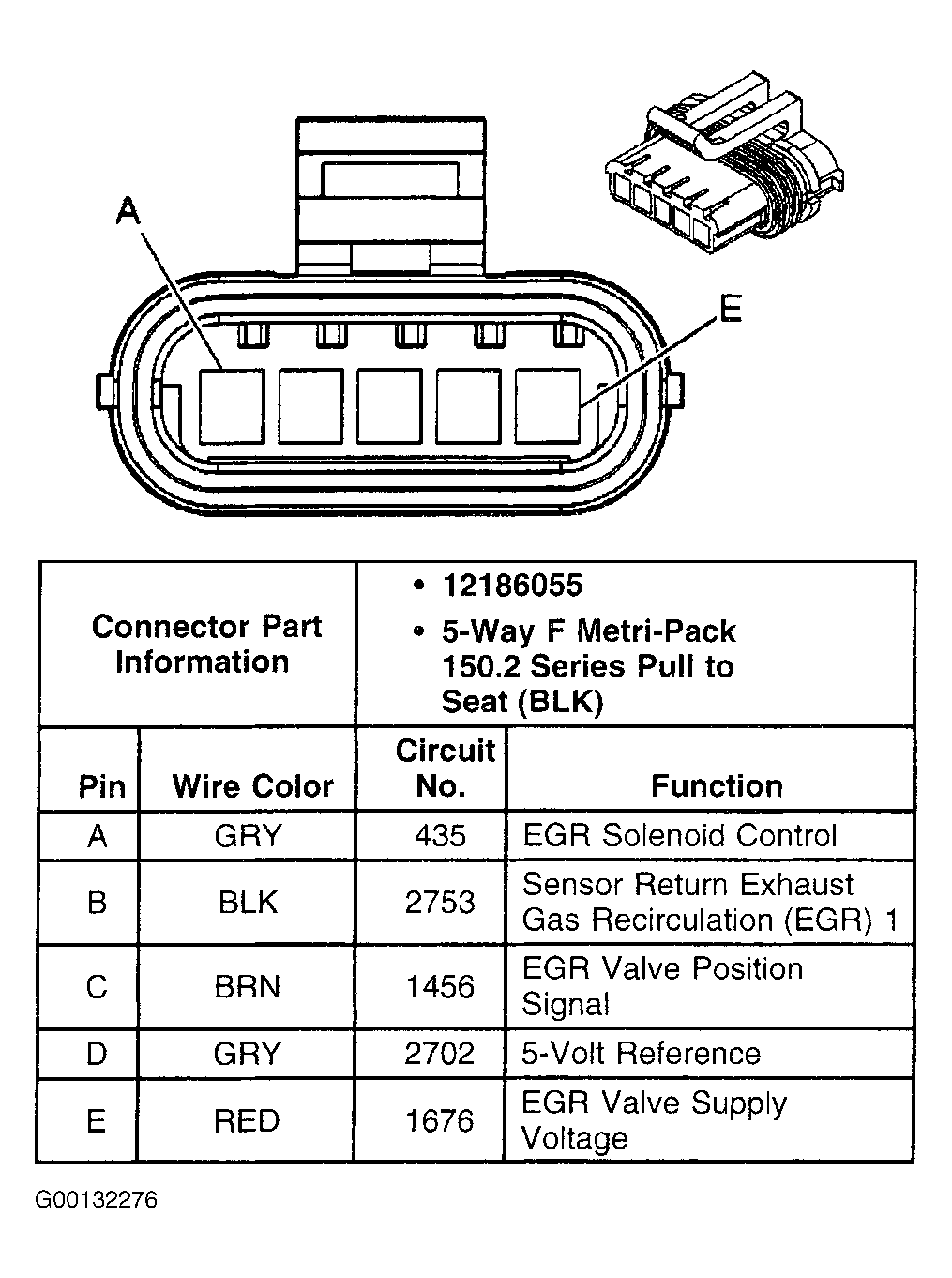

Fig 8: Identifying EGR Valve Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

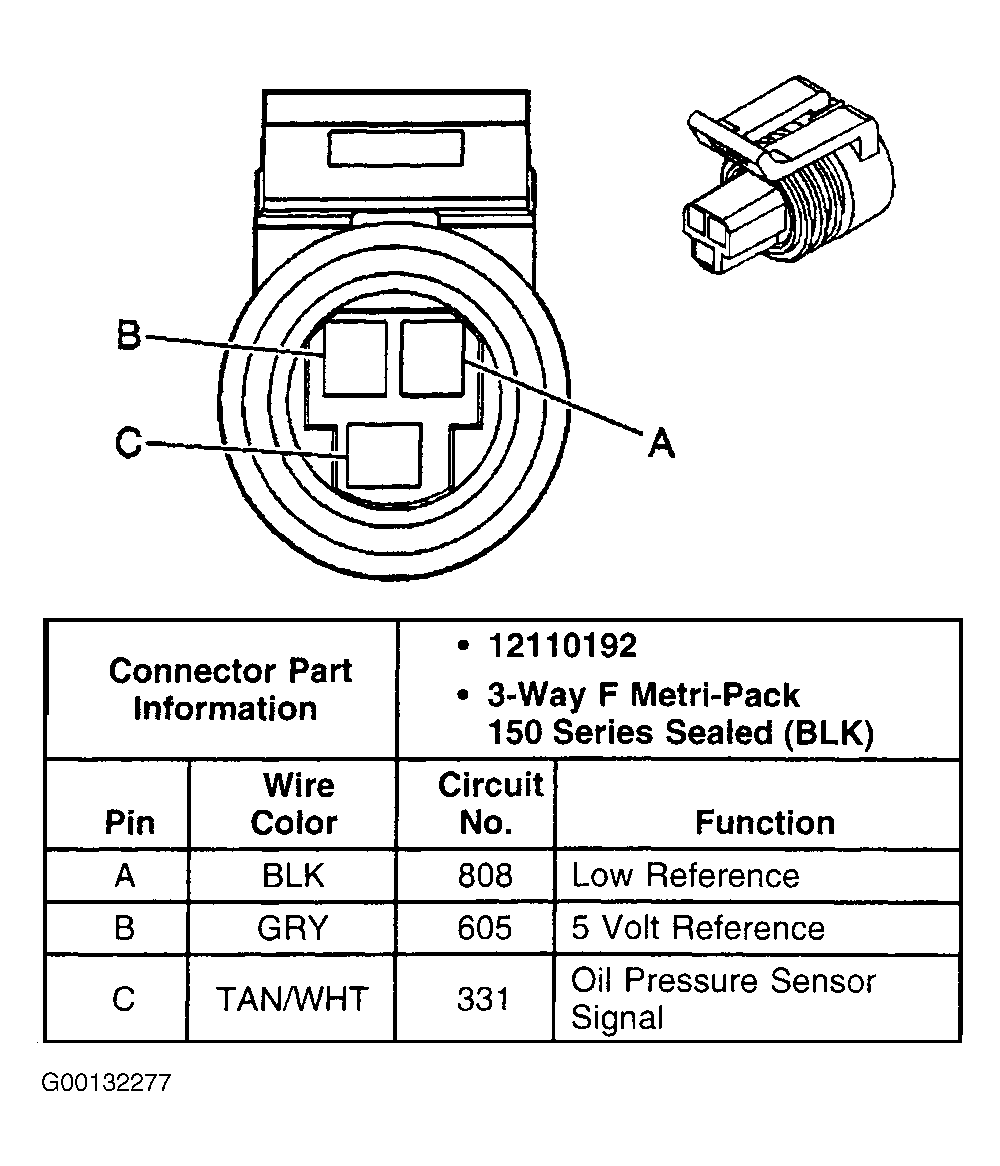

Fig 9: Identifying Engine Oil Pressure Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

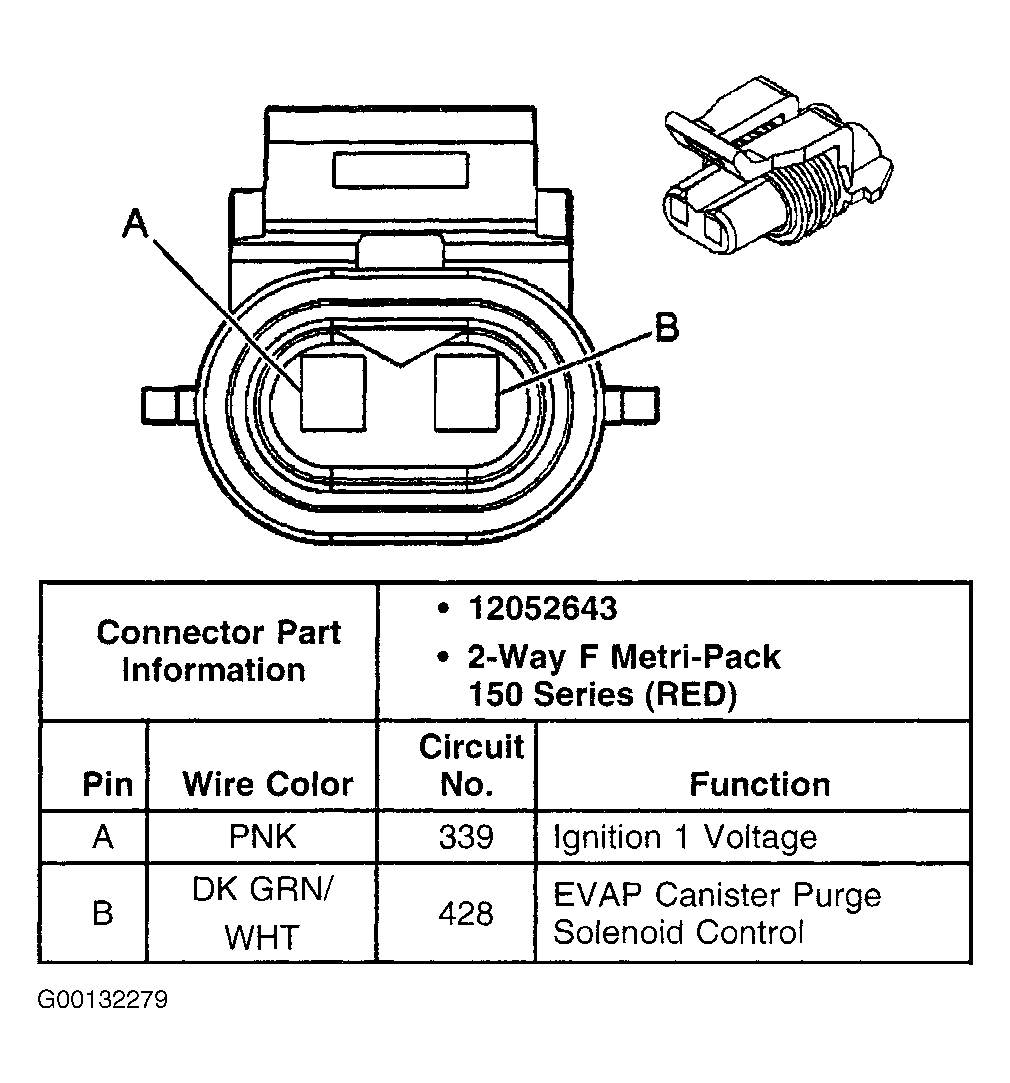

Fig 11: Identifying EVAP Canister Purge Solenoid Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

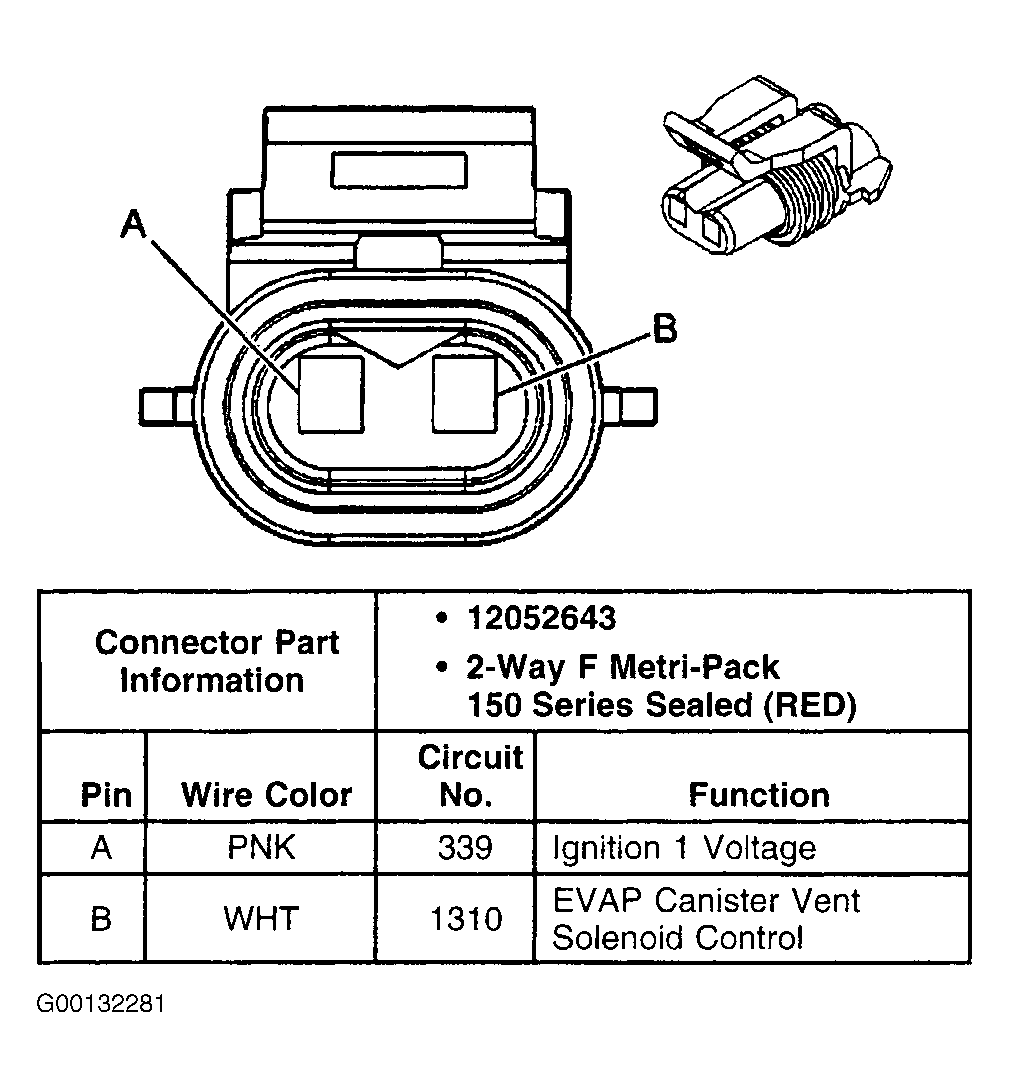

Fig 13: Identifying EVAP Canister Vent Solenoid Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

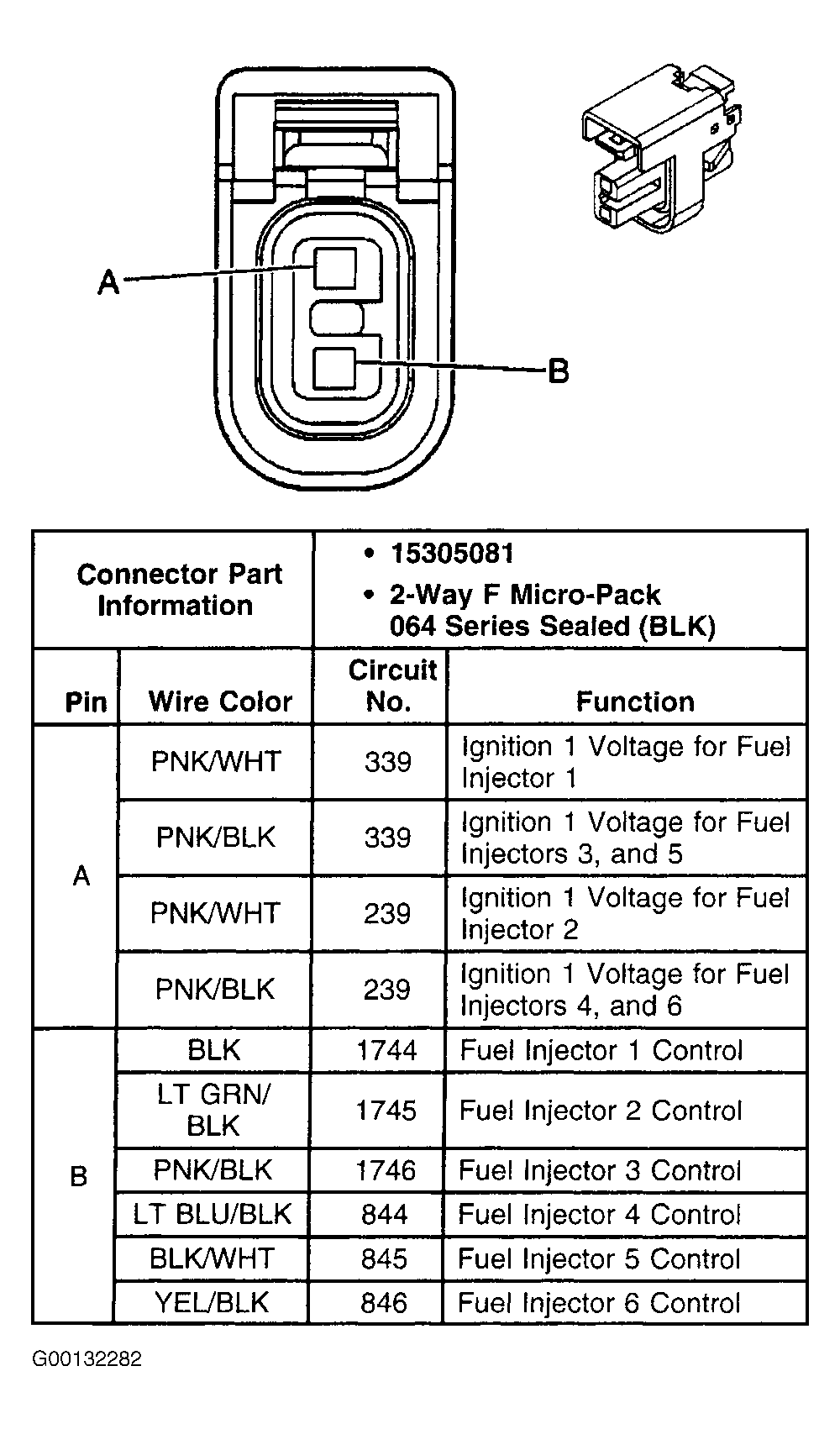

Fig 14: Identifying Fuel Injectors Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

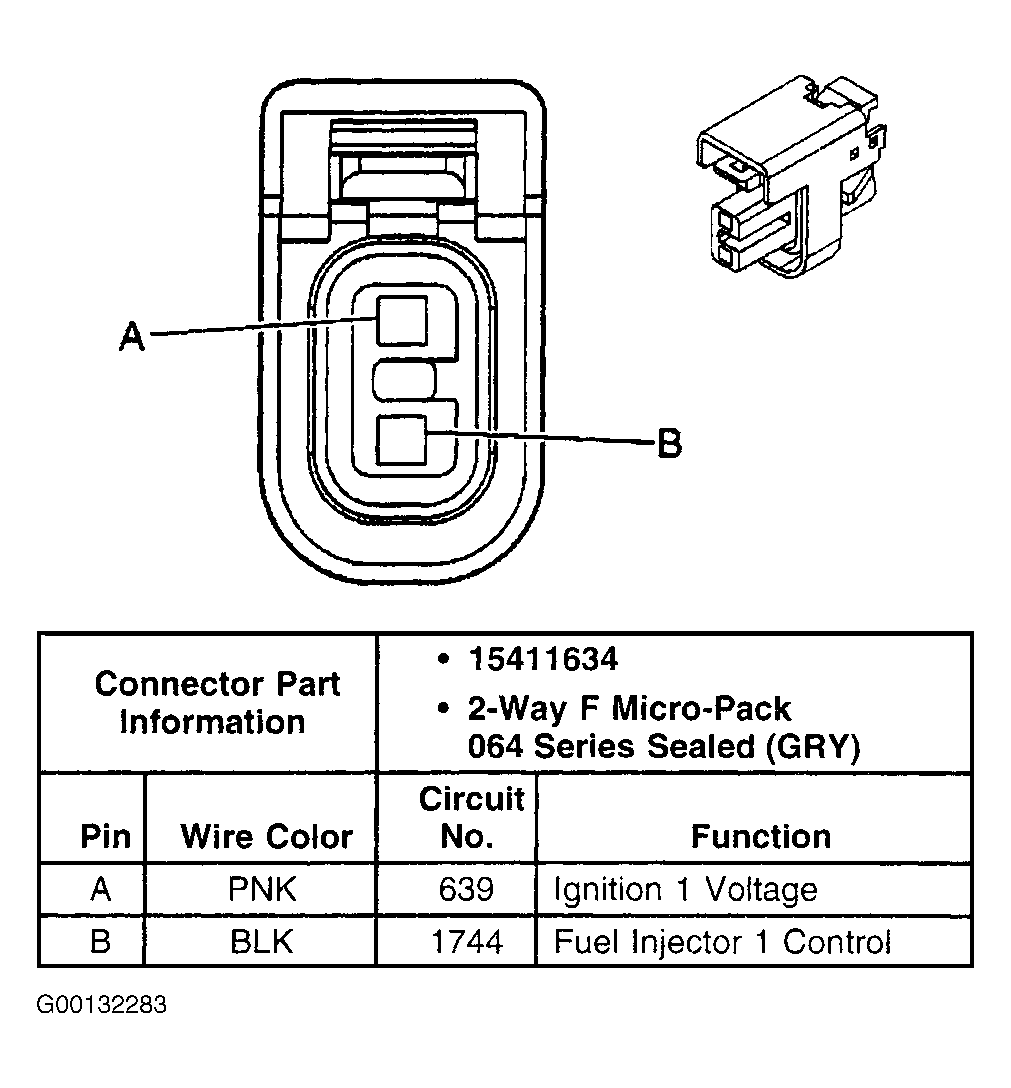

Fig 15: Identifying Fuel Injector No. 1 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

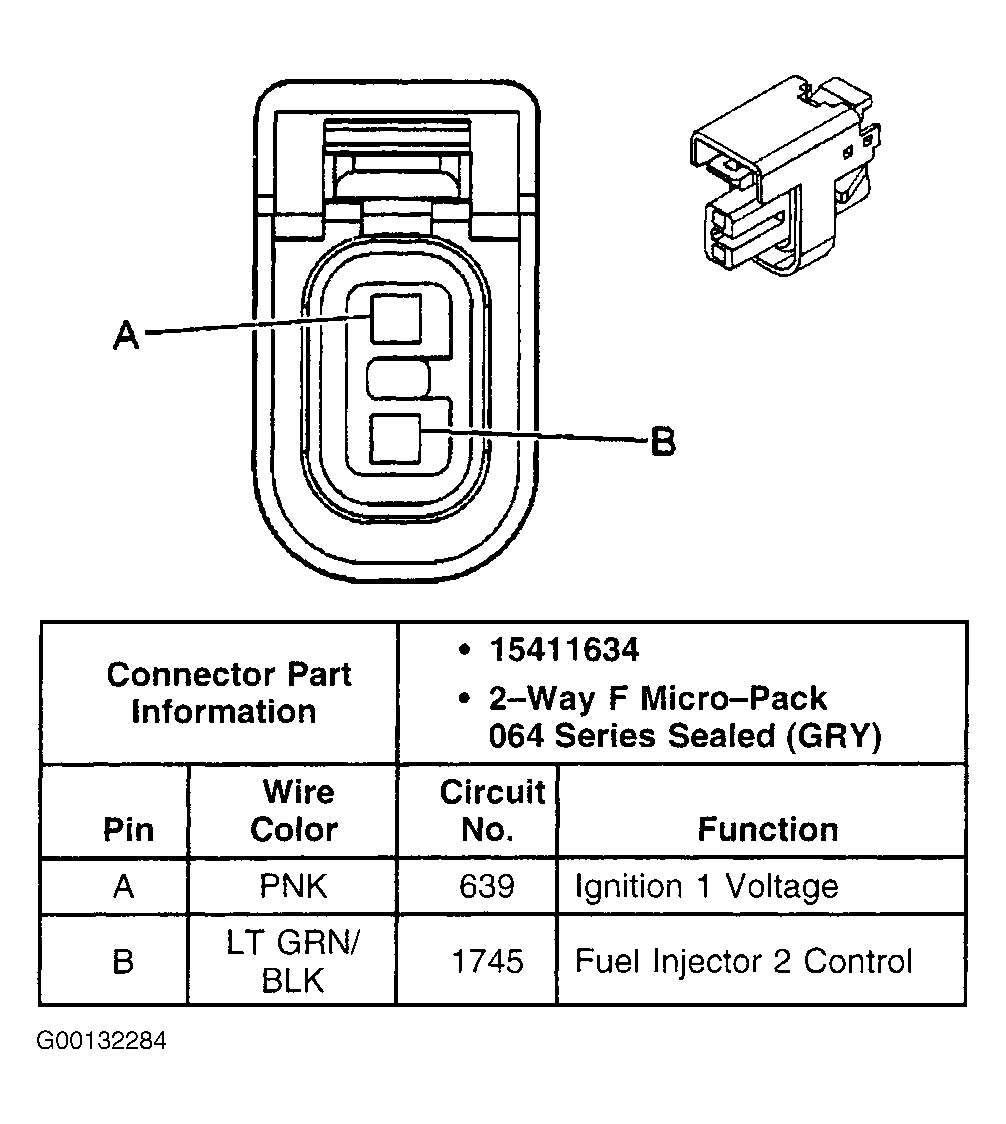

Fig 16: Identifying Fuel Injector No. 2 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

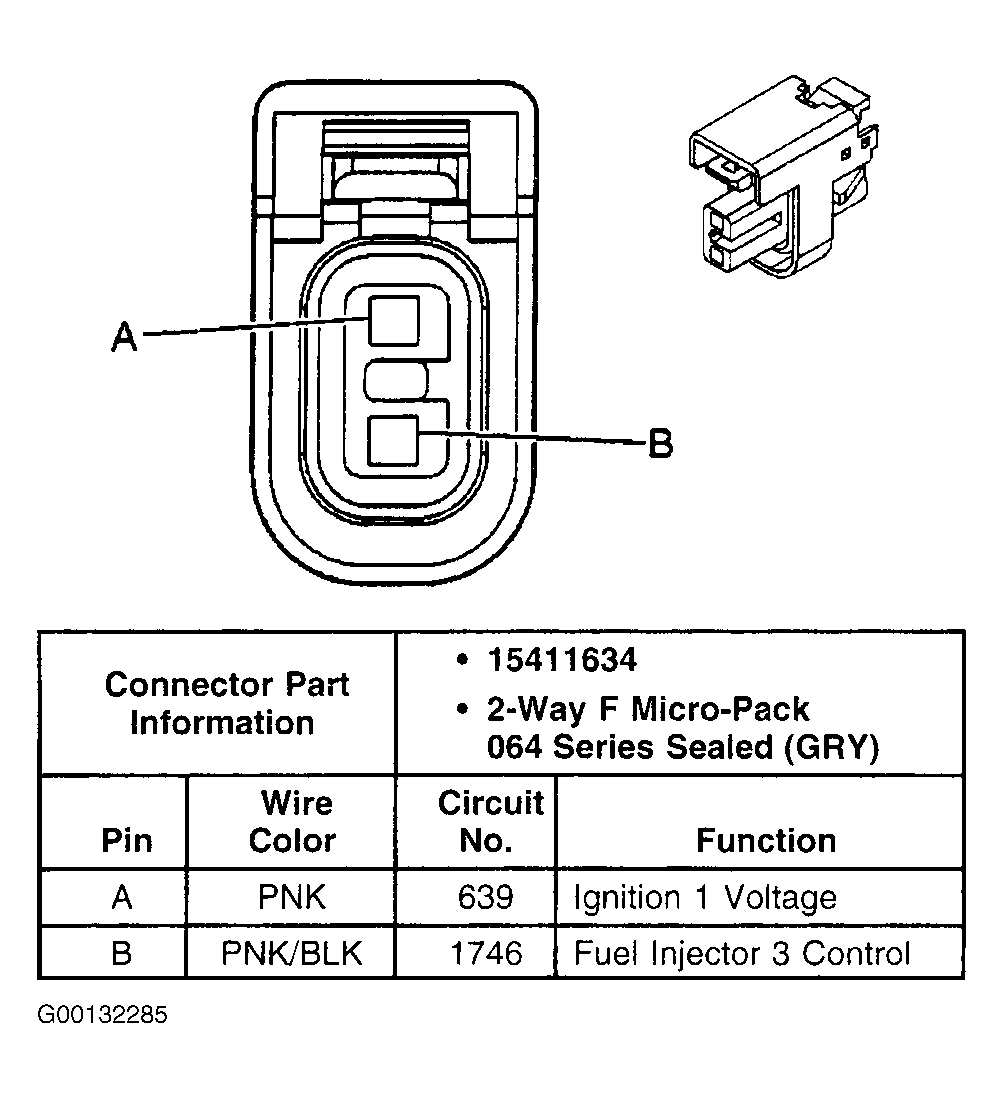

Fig 17: Identifying Fuel Injector No. 3 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

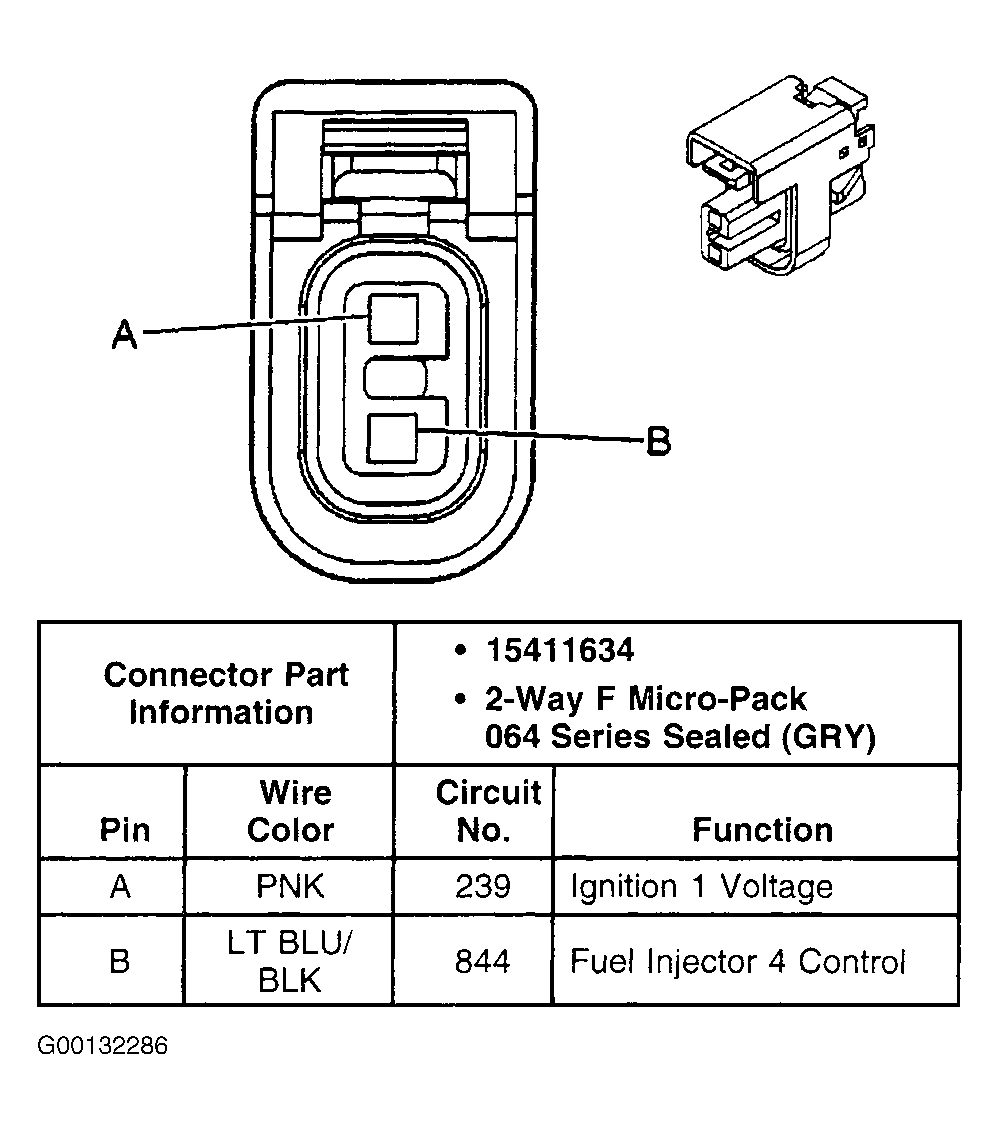

Fig 18: Identifying Fuel Injector No. 4 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

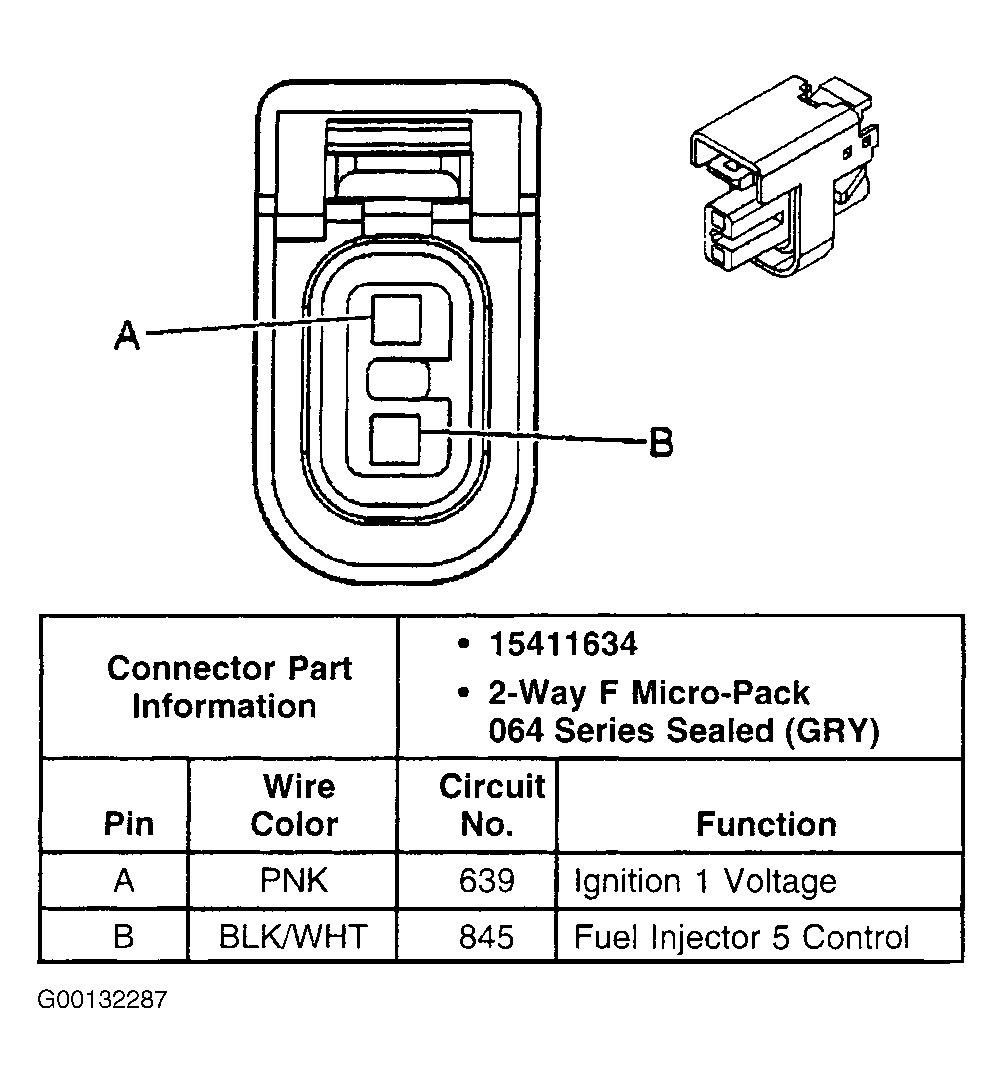

Fig 19: Identifying Fuel Injector No. 5 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

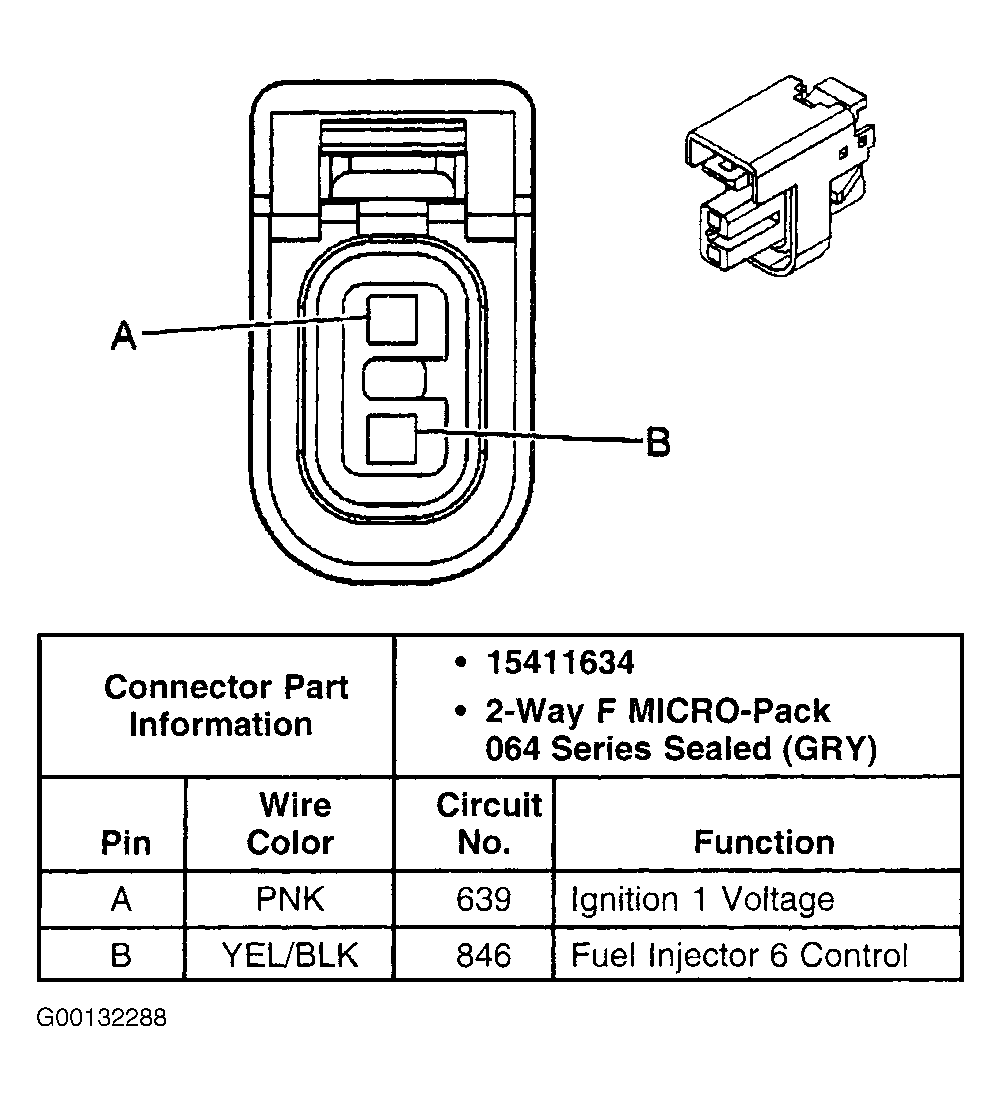

Fig 20: Identifying Fuel Injector No. 6 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

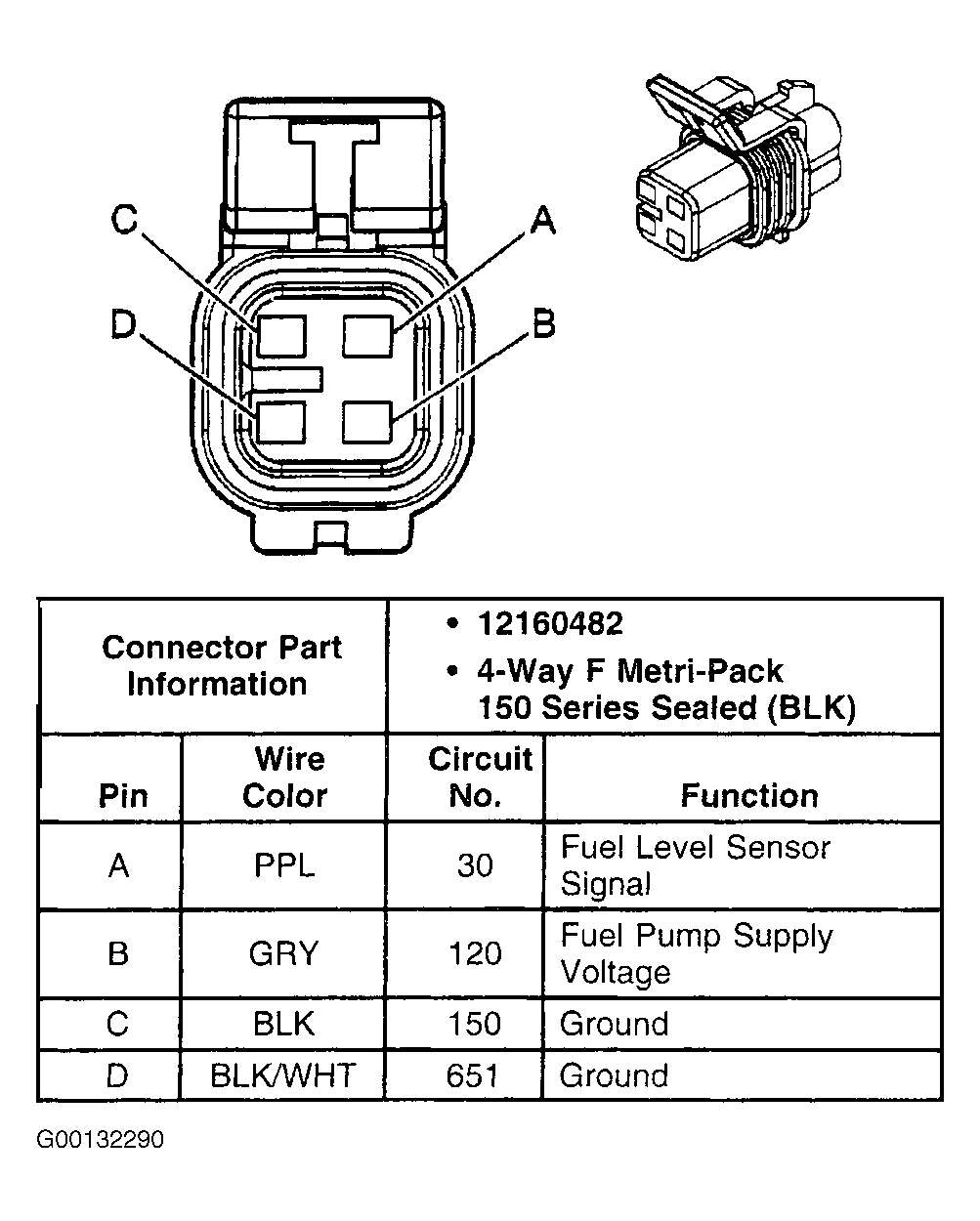

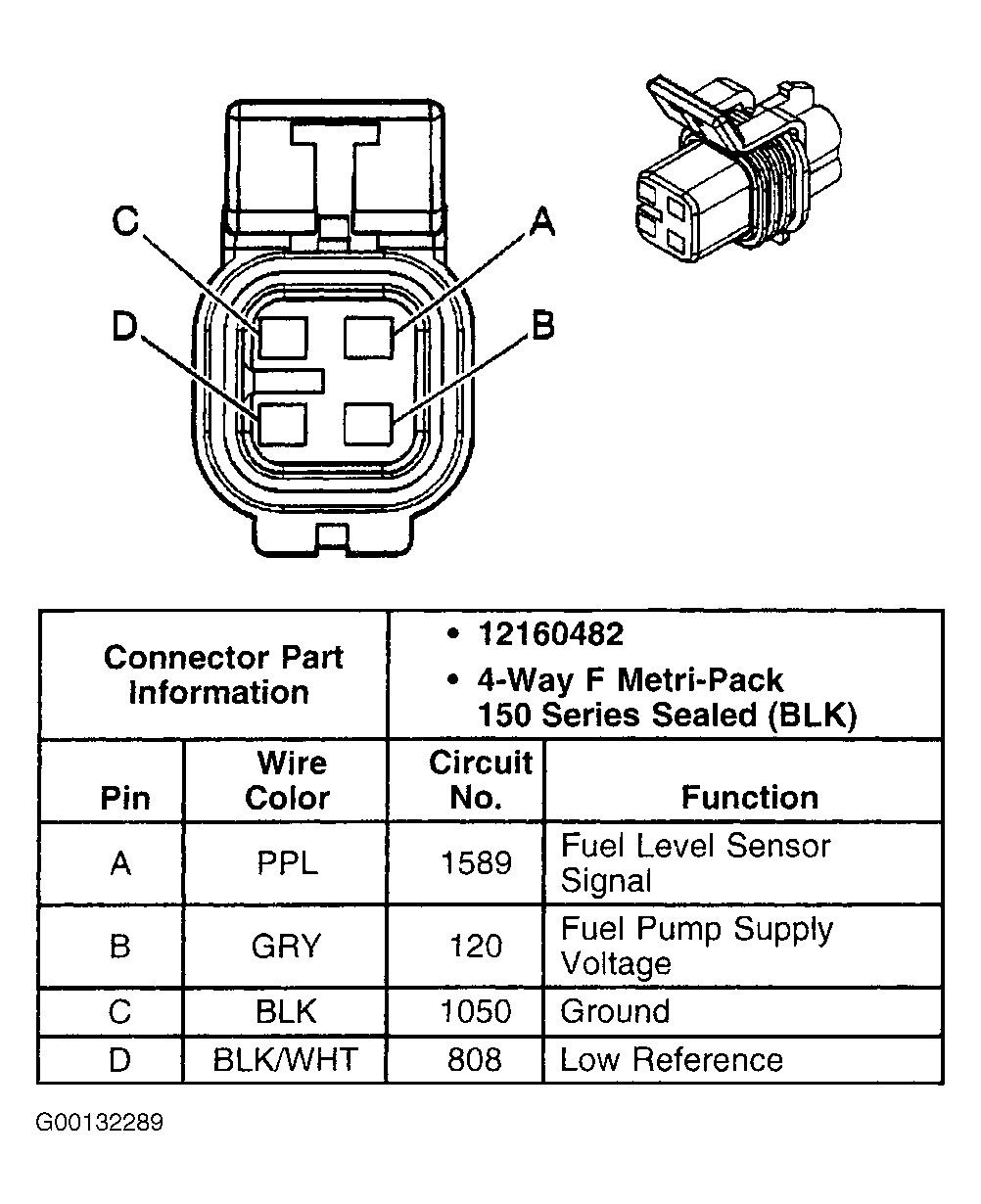

Fig 22: Identifying Fuel Pump & Sender Assembly Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

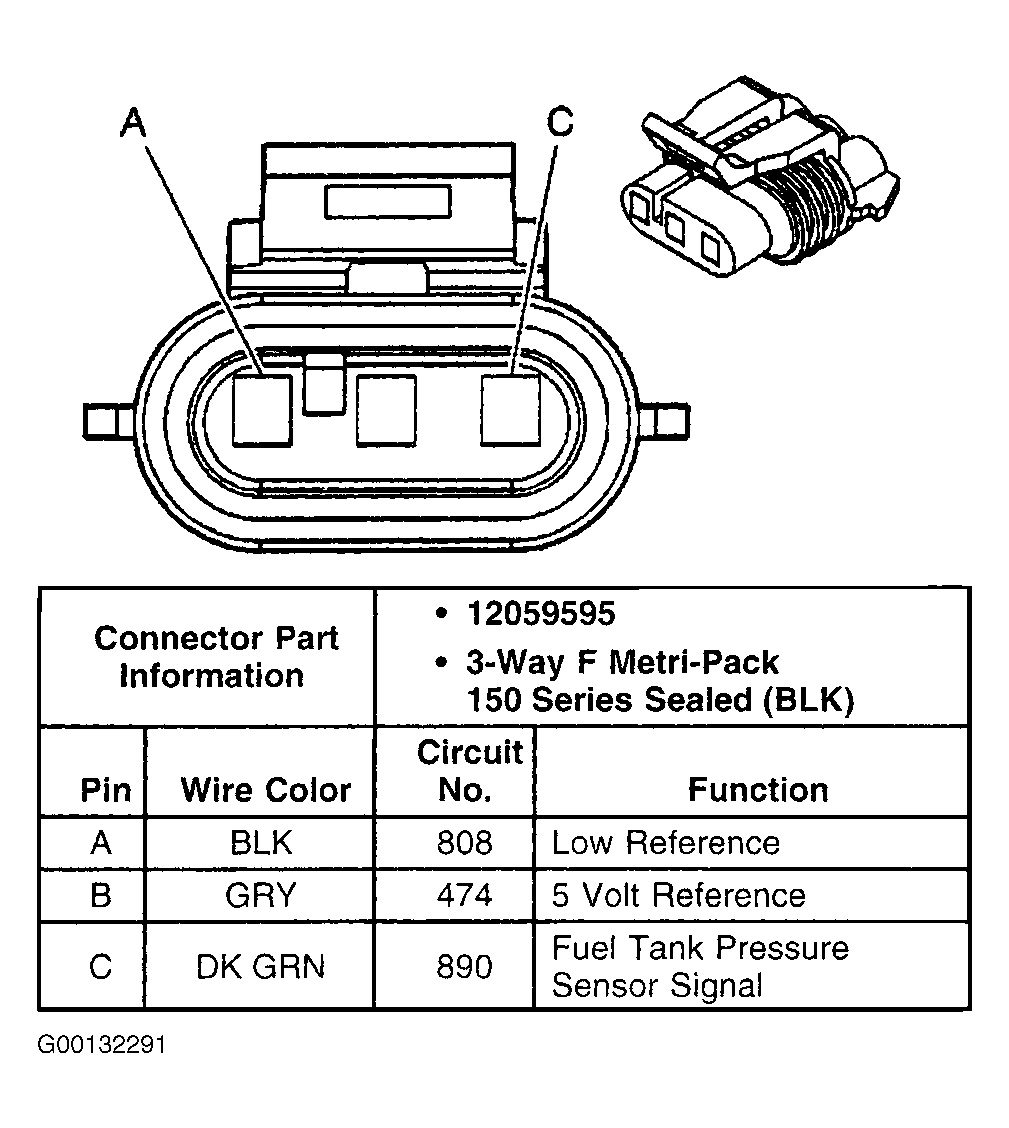

Fig 23: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

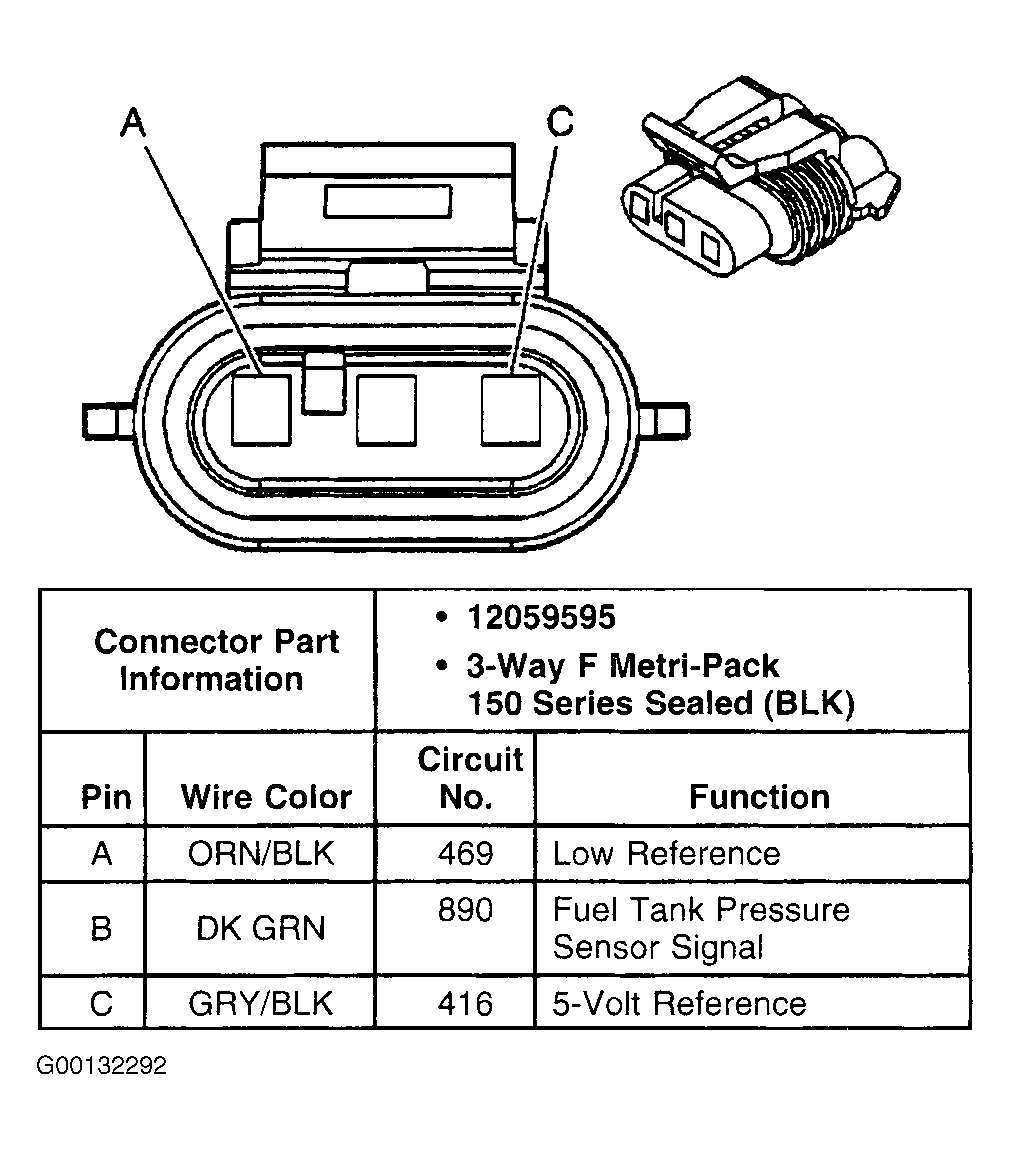

Fig 24: Identifying Fuel Tank Pressure Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 25: Identifying HO2S 1 Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

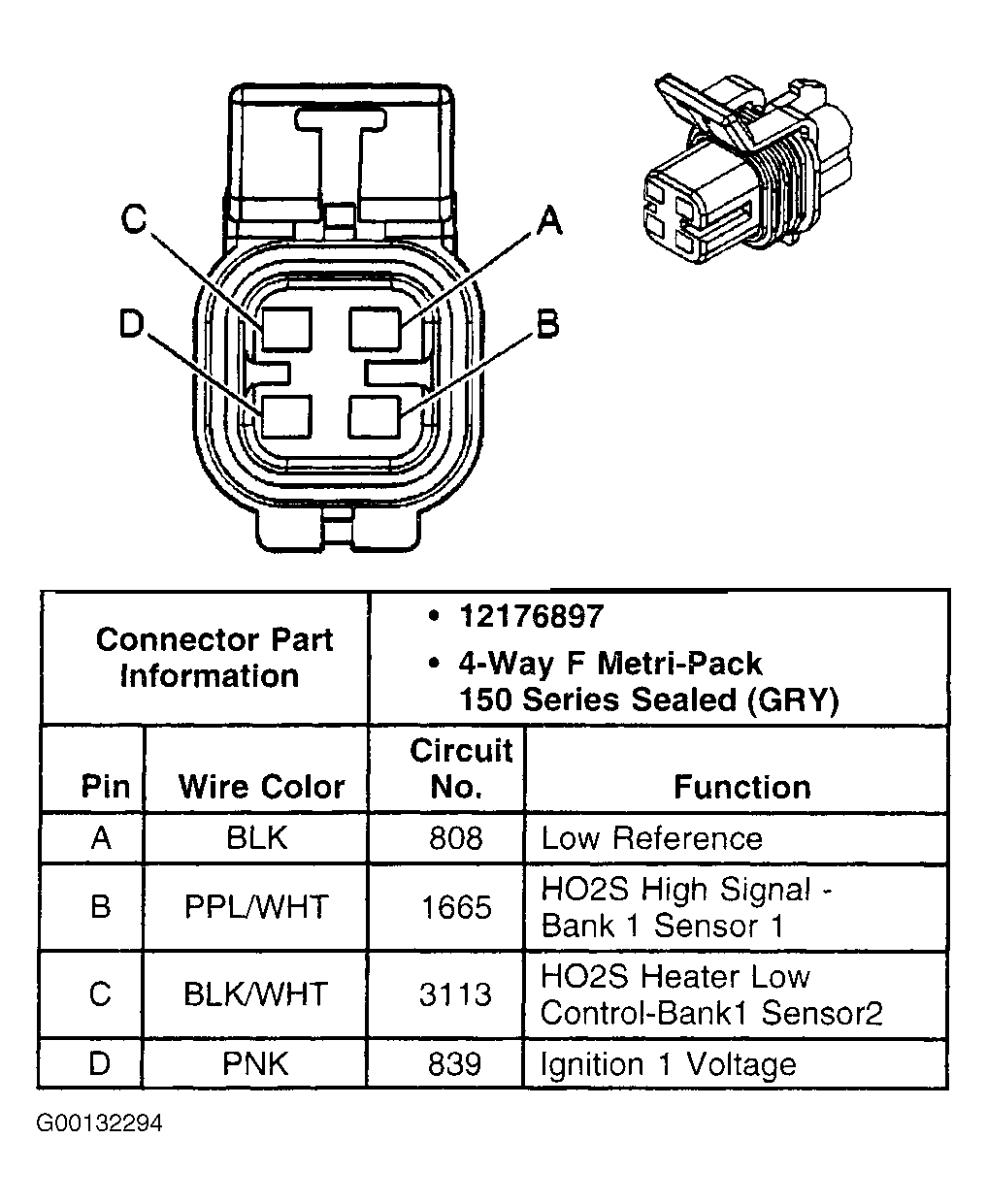

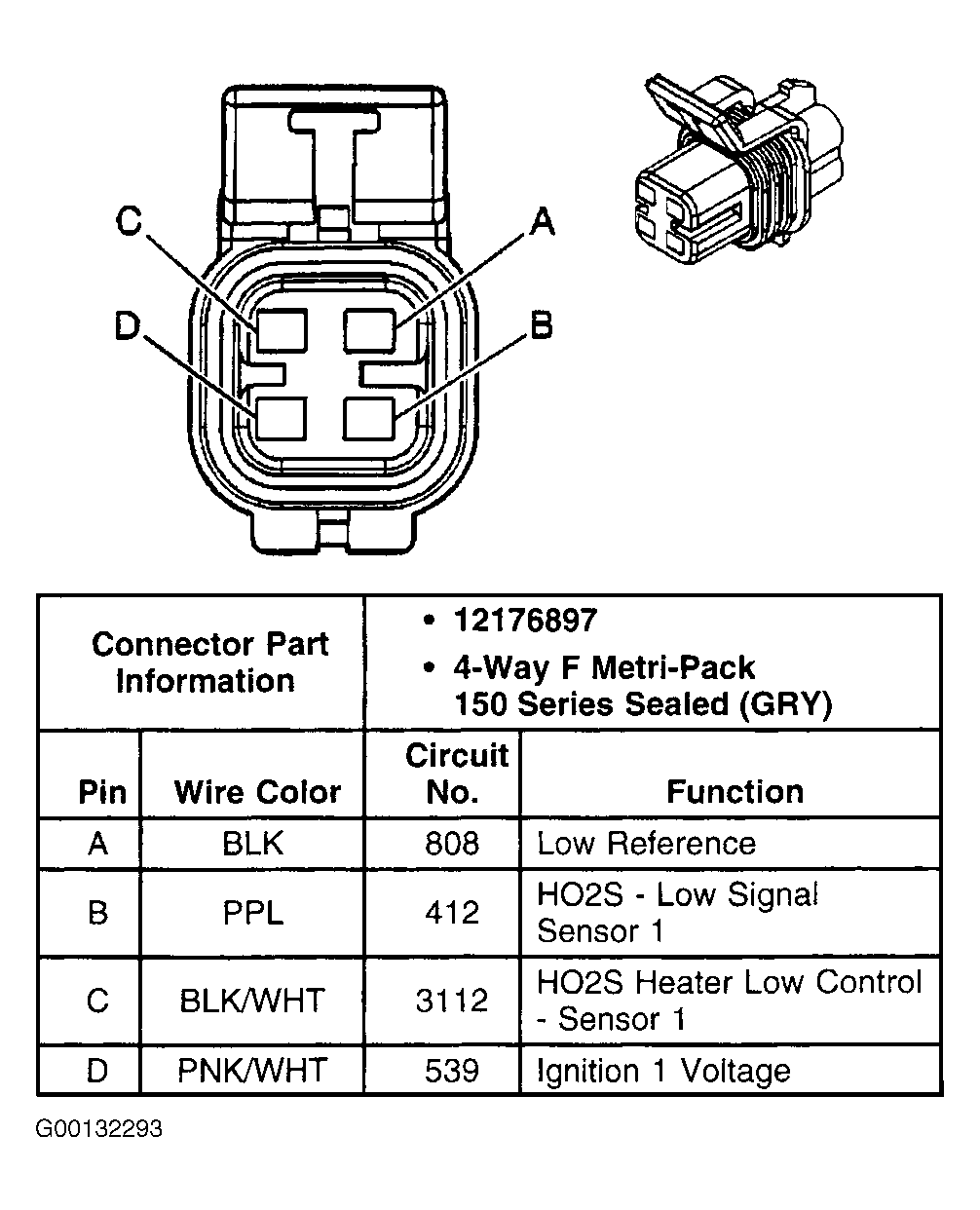

Fig 26: Identifying HO2S 1 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

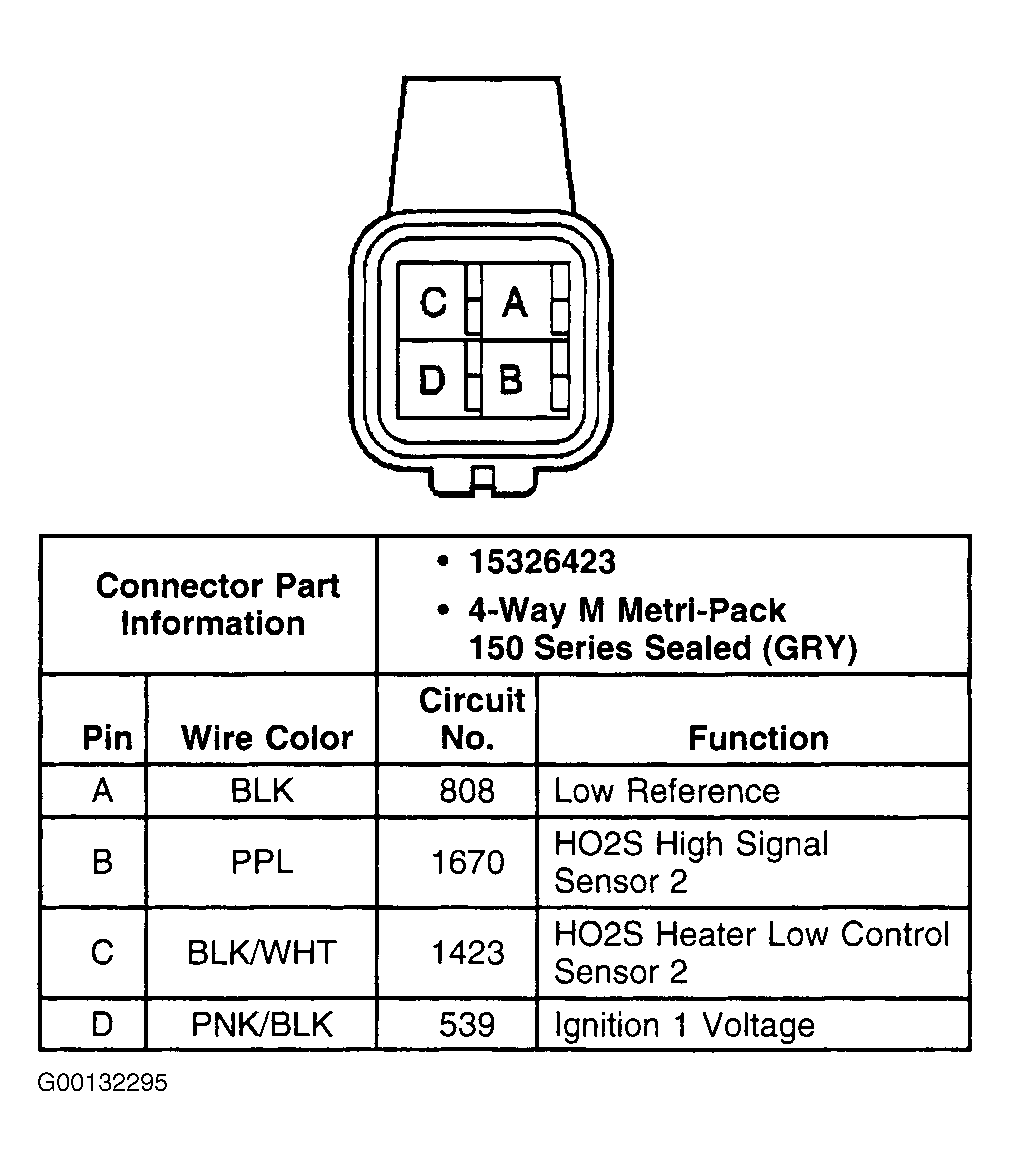

Fig 27: Identifying HO2S 2 Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

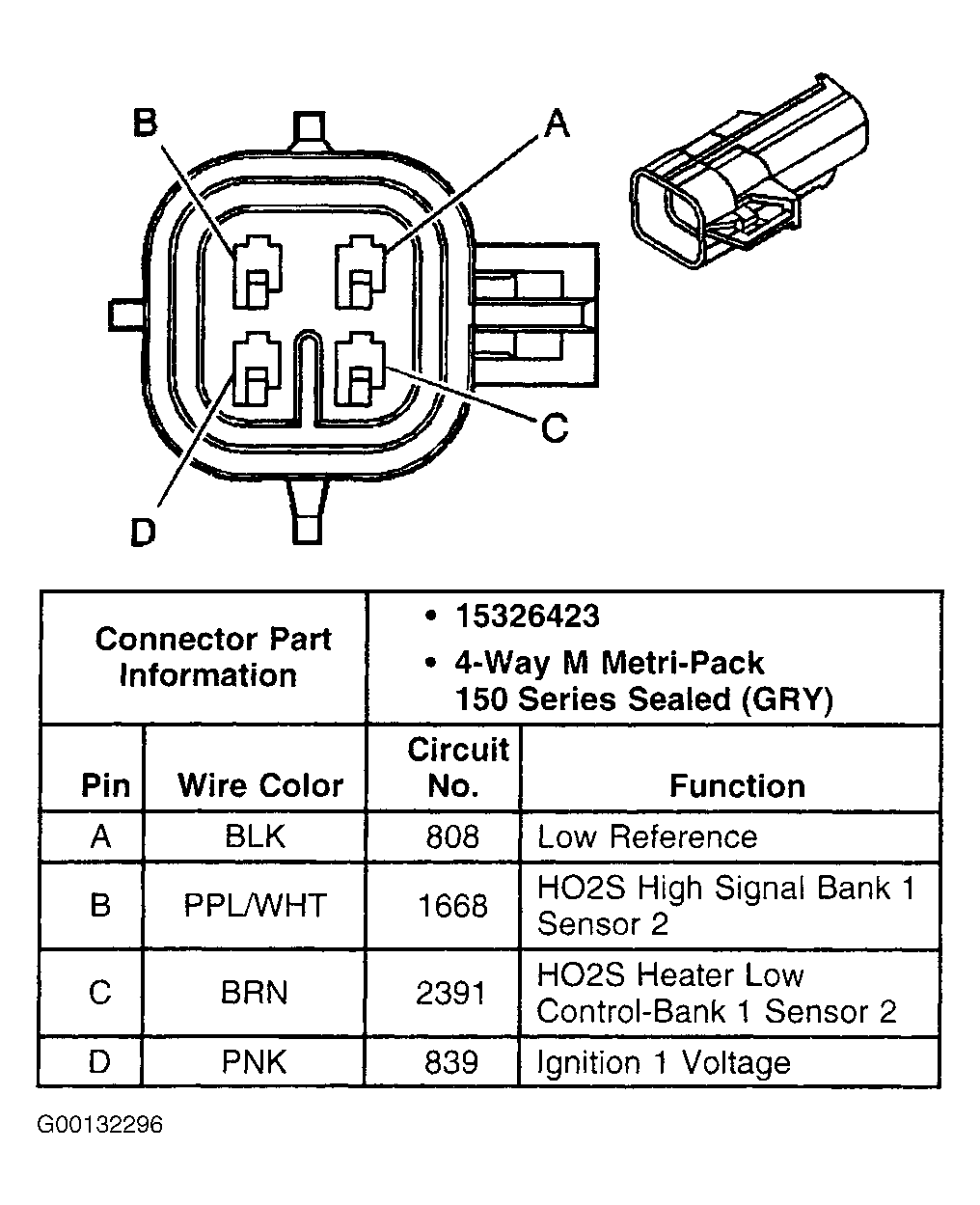

Fig 28: Identifying HO2S 2 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Identifying Idle Air Control Valve Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Identifying Idle Air Control Valve Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Identifying Ignition Control Module - Bank 1 Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

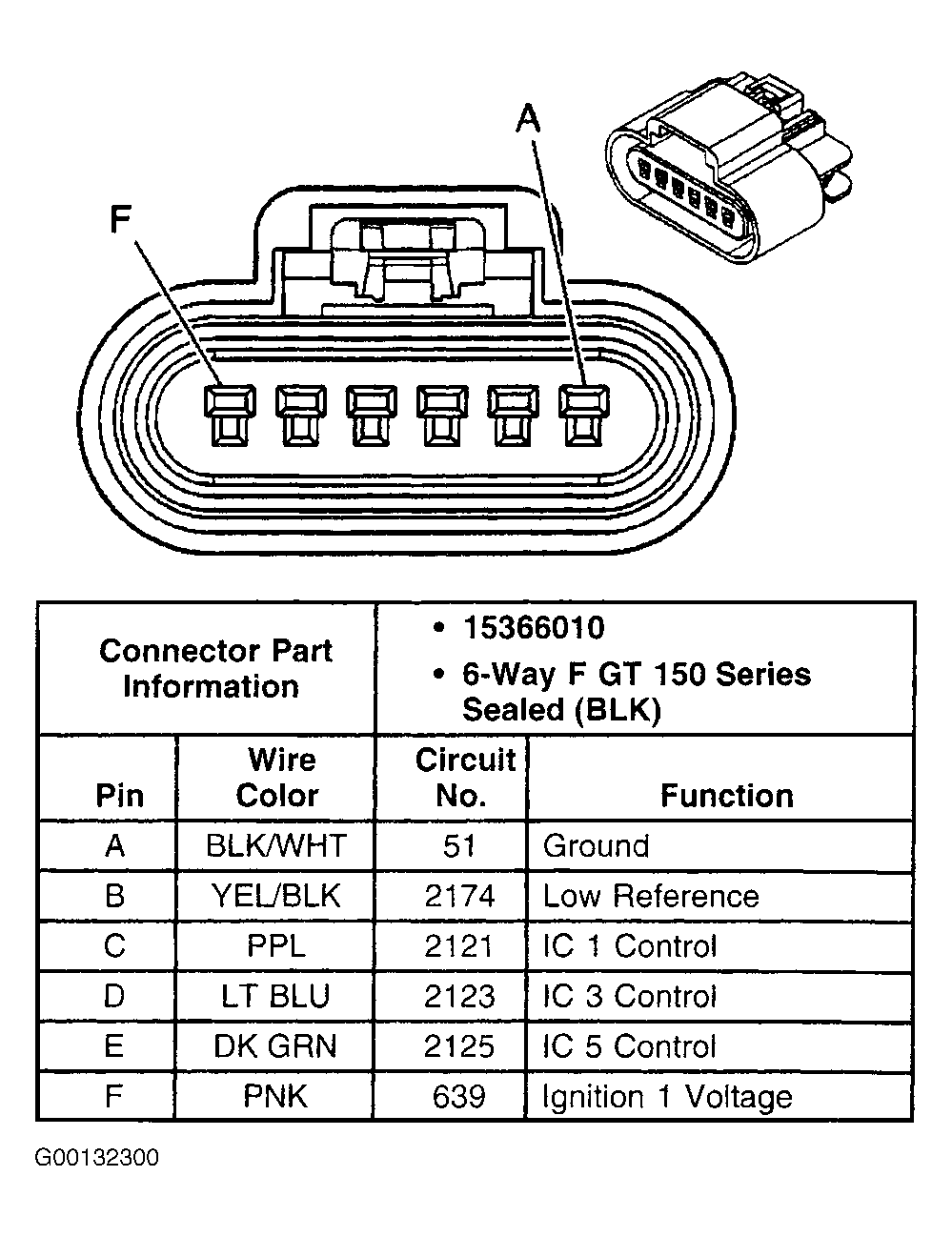

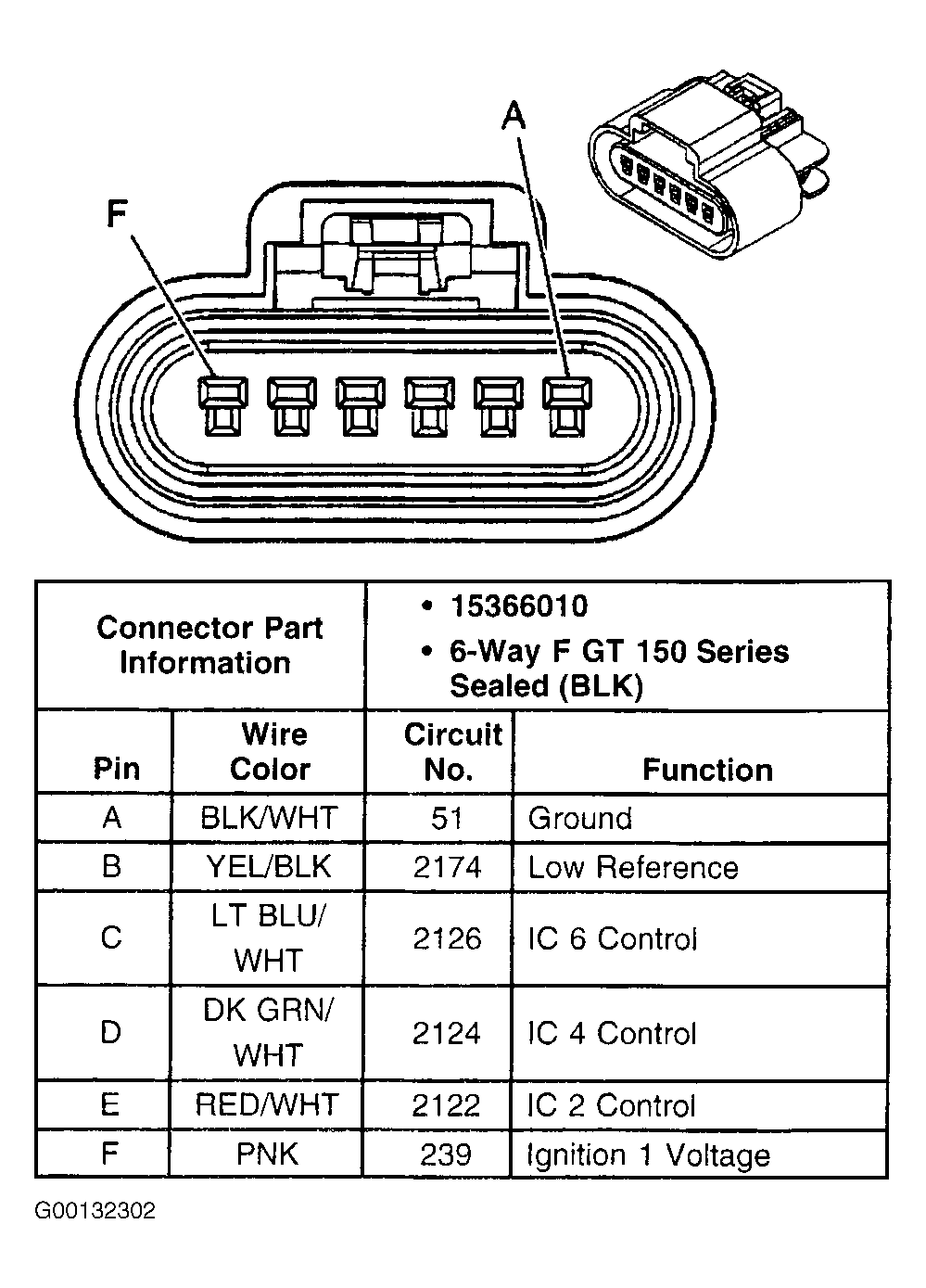

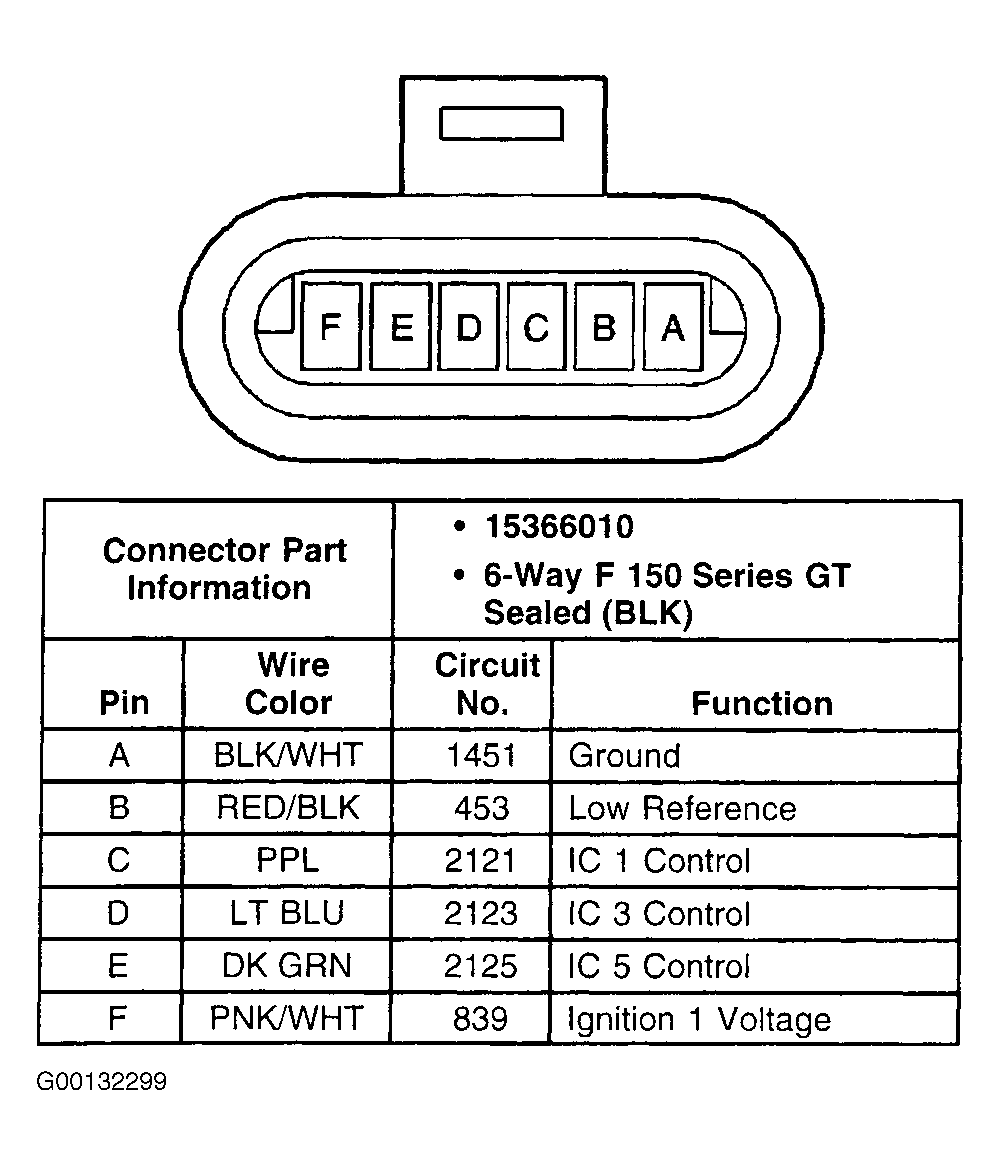

Fig 32: Identifying Ignition Control Module - Bank 1 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Identifying Ignition Control Module - Bank 2 Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

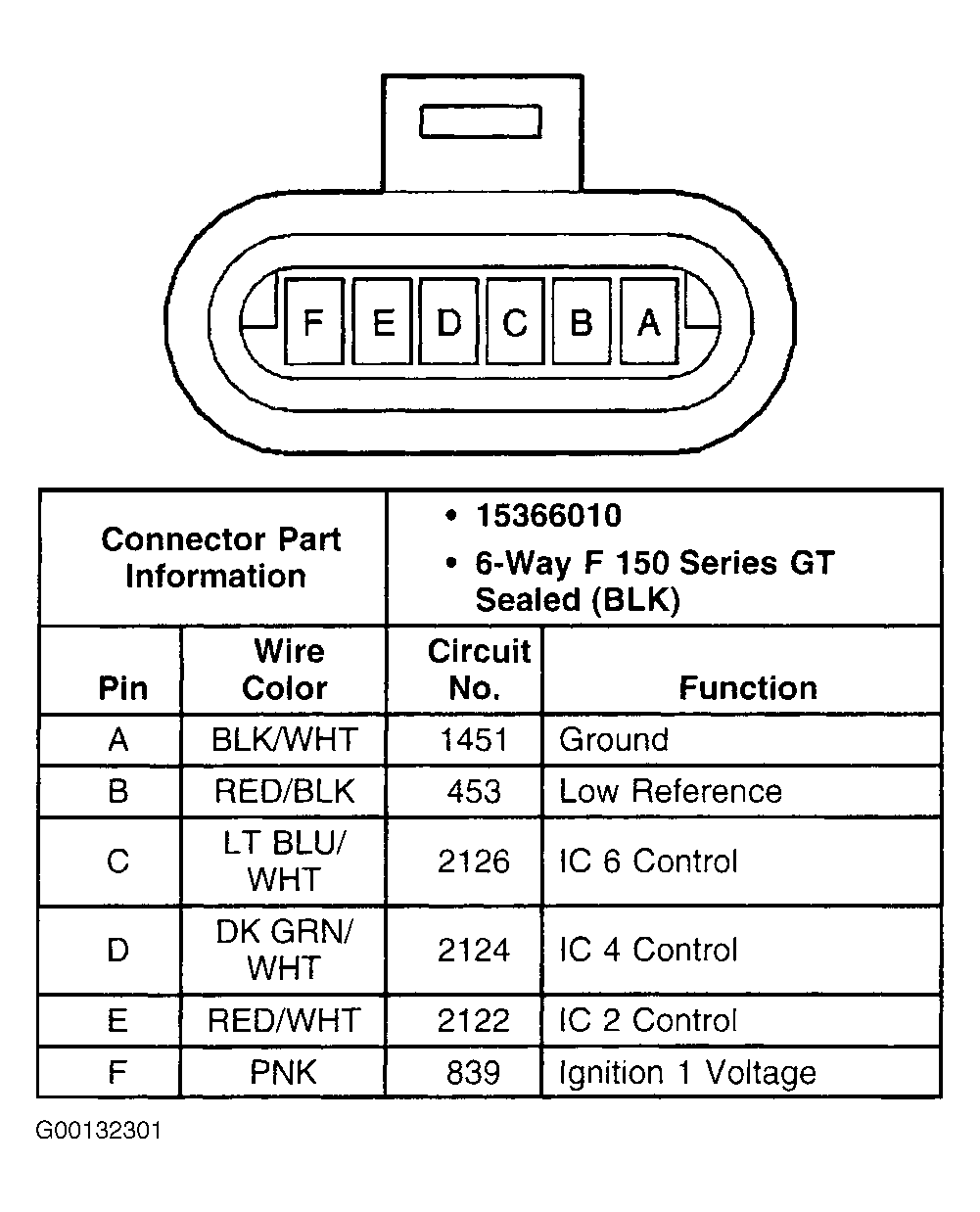

Fig 34: Identifying Ignition Control Module - Bank 2 Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 35: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

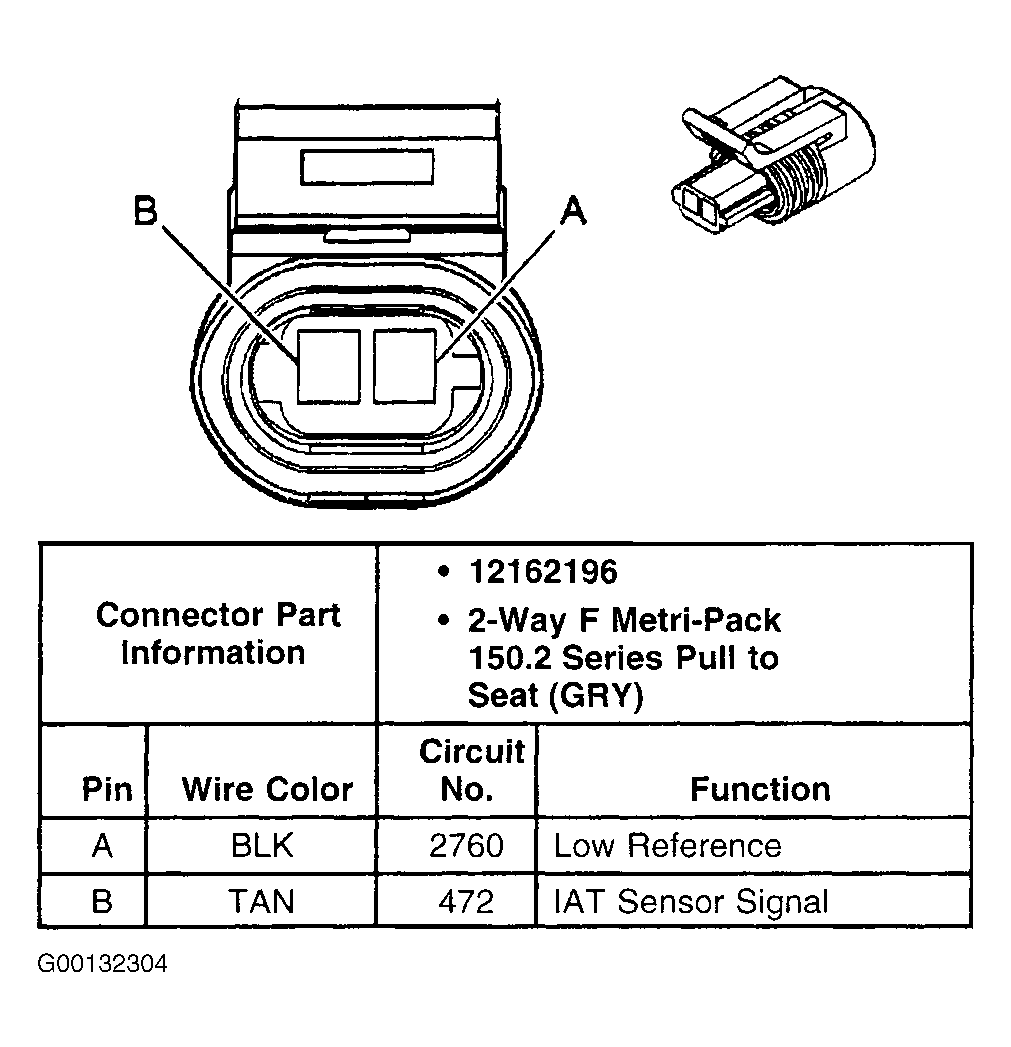

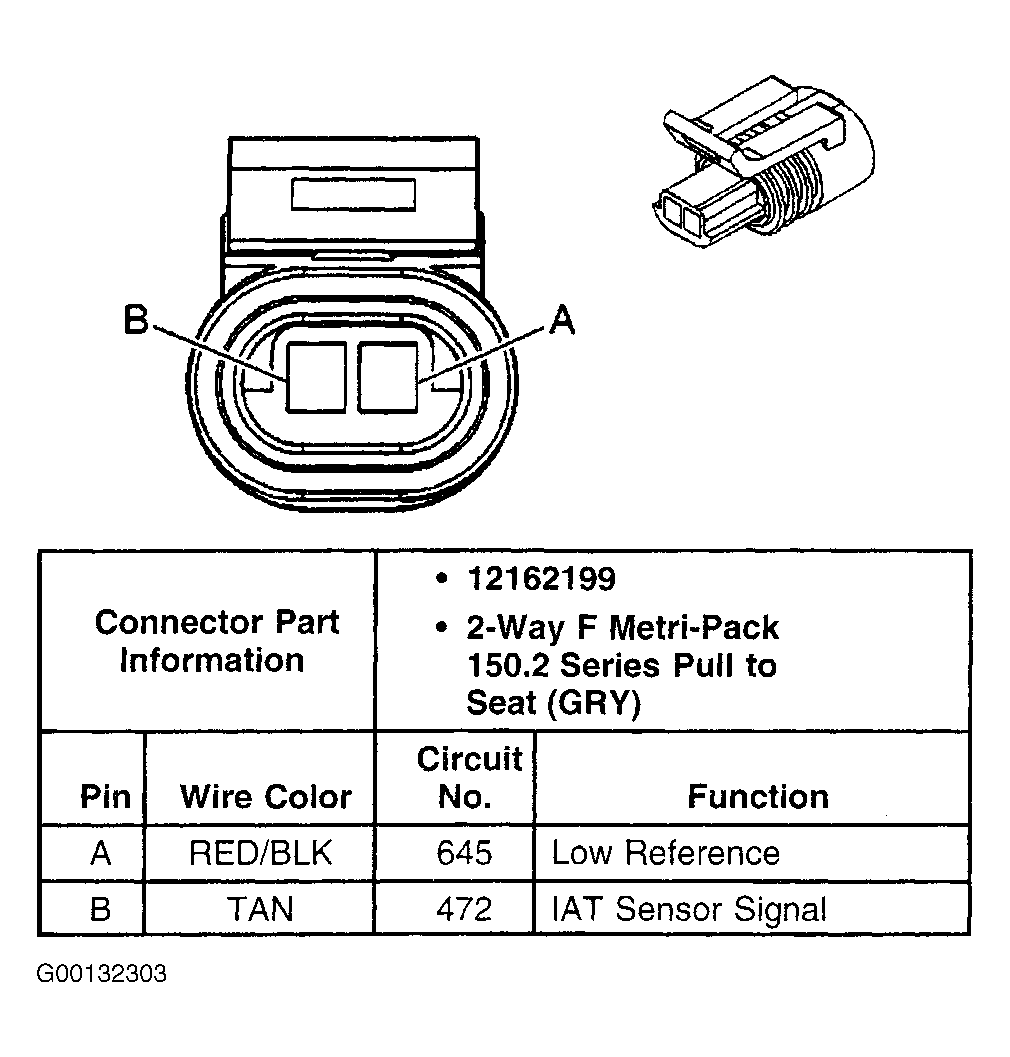

Fig 36: Identifying Intake Air Temperature Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Identifying Instrument Panel Cluster Harness Connector C1 Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Identifying Instrument Panel Cluster Harness Connector C2 Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

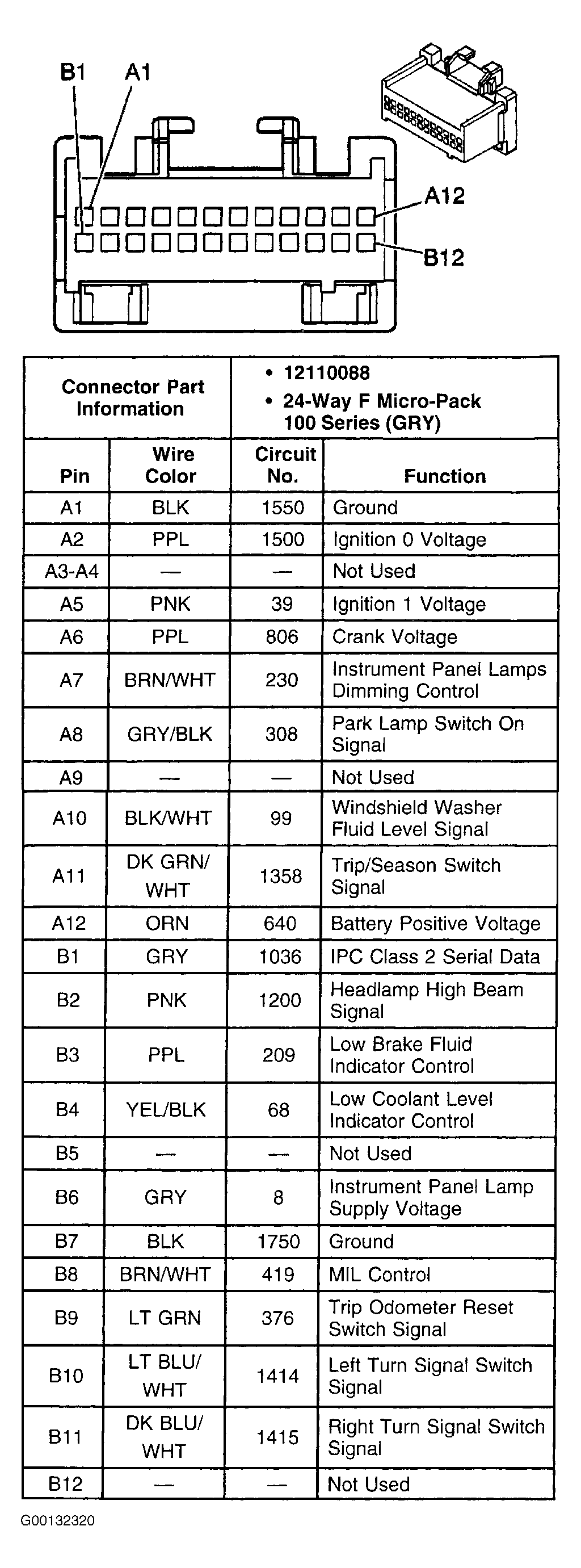

Fig 39: Identifying Instrument Panel Cluster Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

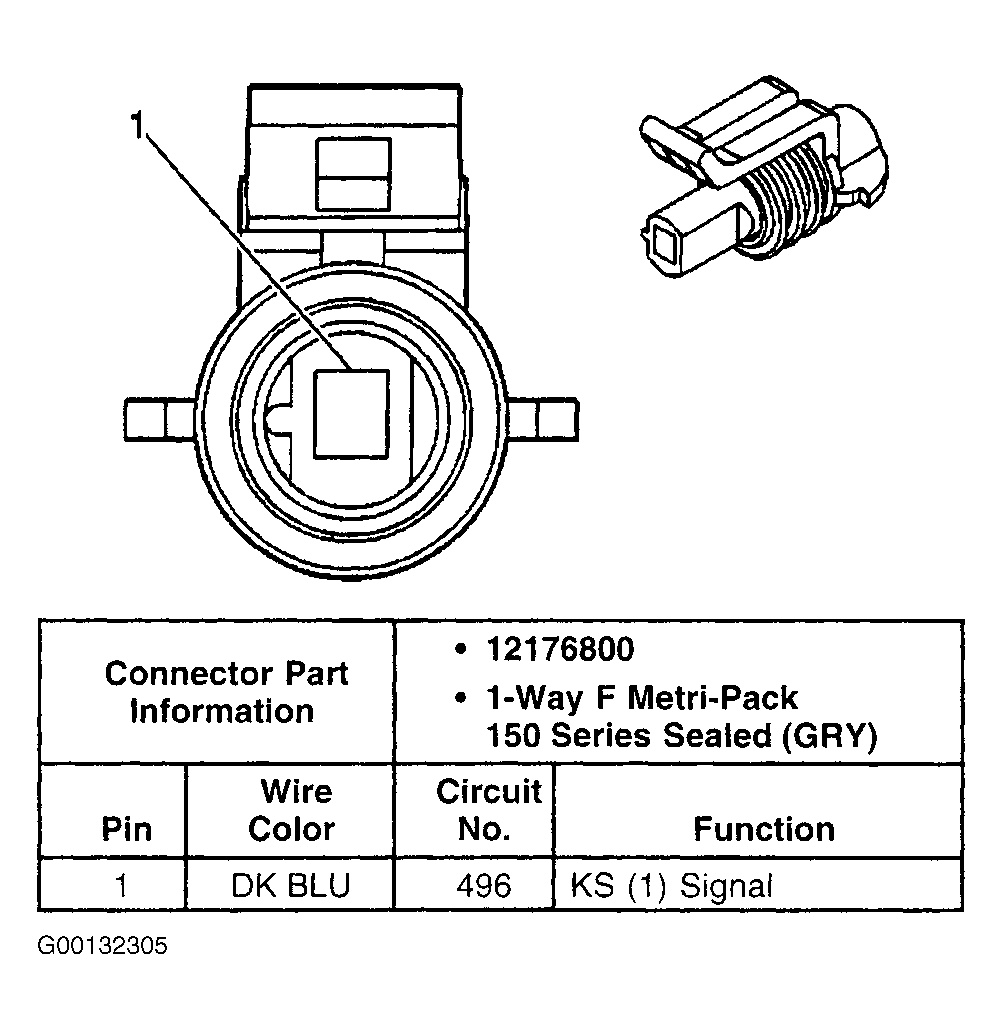

Fig 40: Identifying Knock Sensor Harness Connector Terminals (Aurora & Intrigue)
Courtesy of GENERAL MOTORS CORP.

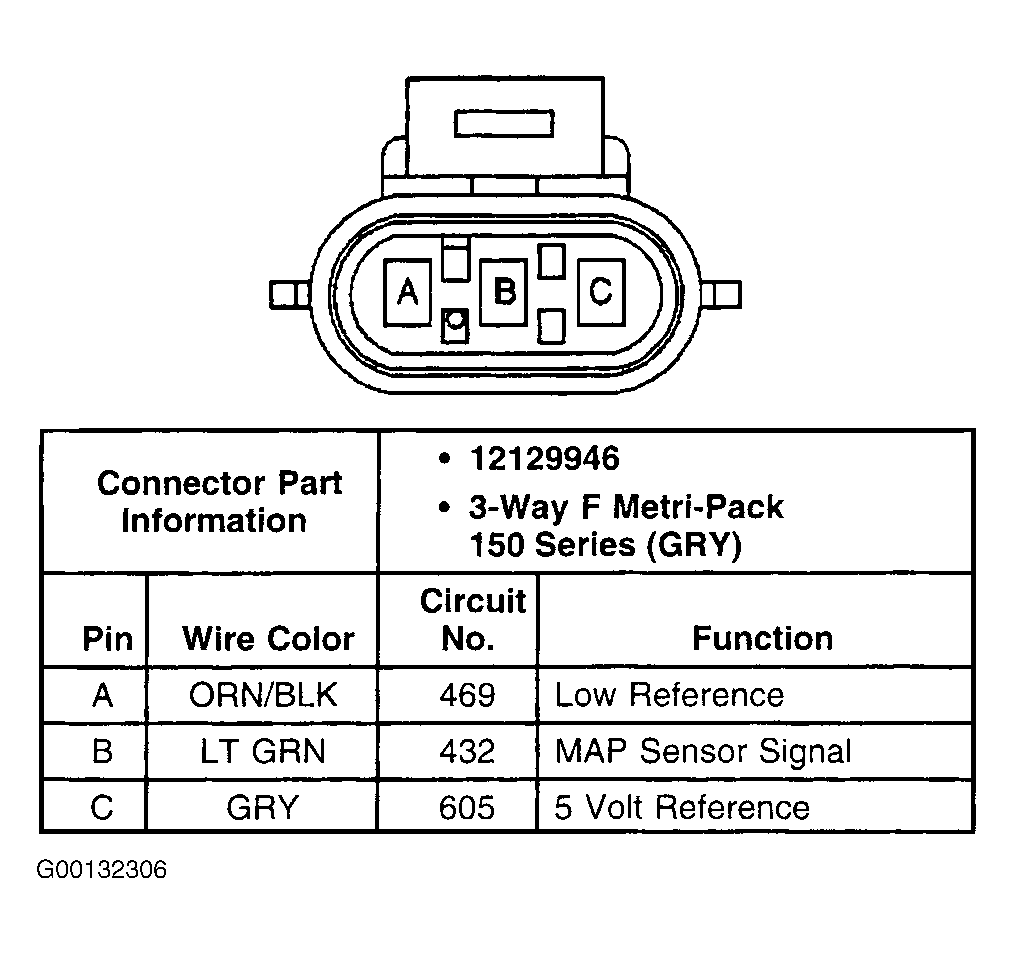

Fig 41: Identifying MAP Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

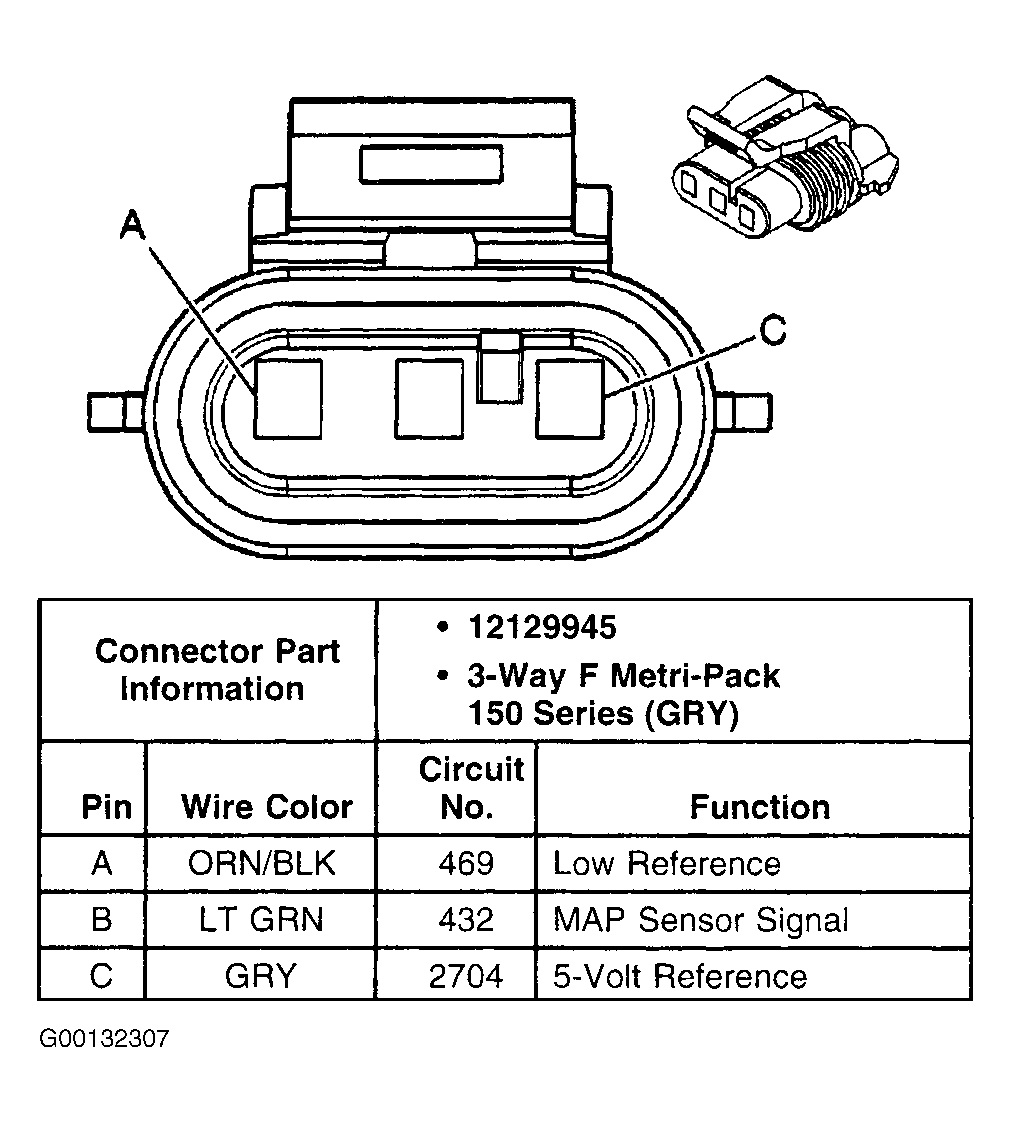

Fig 42: Identifying MAP Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Identifying Mass Airflow Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

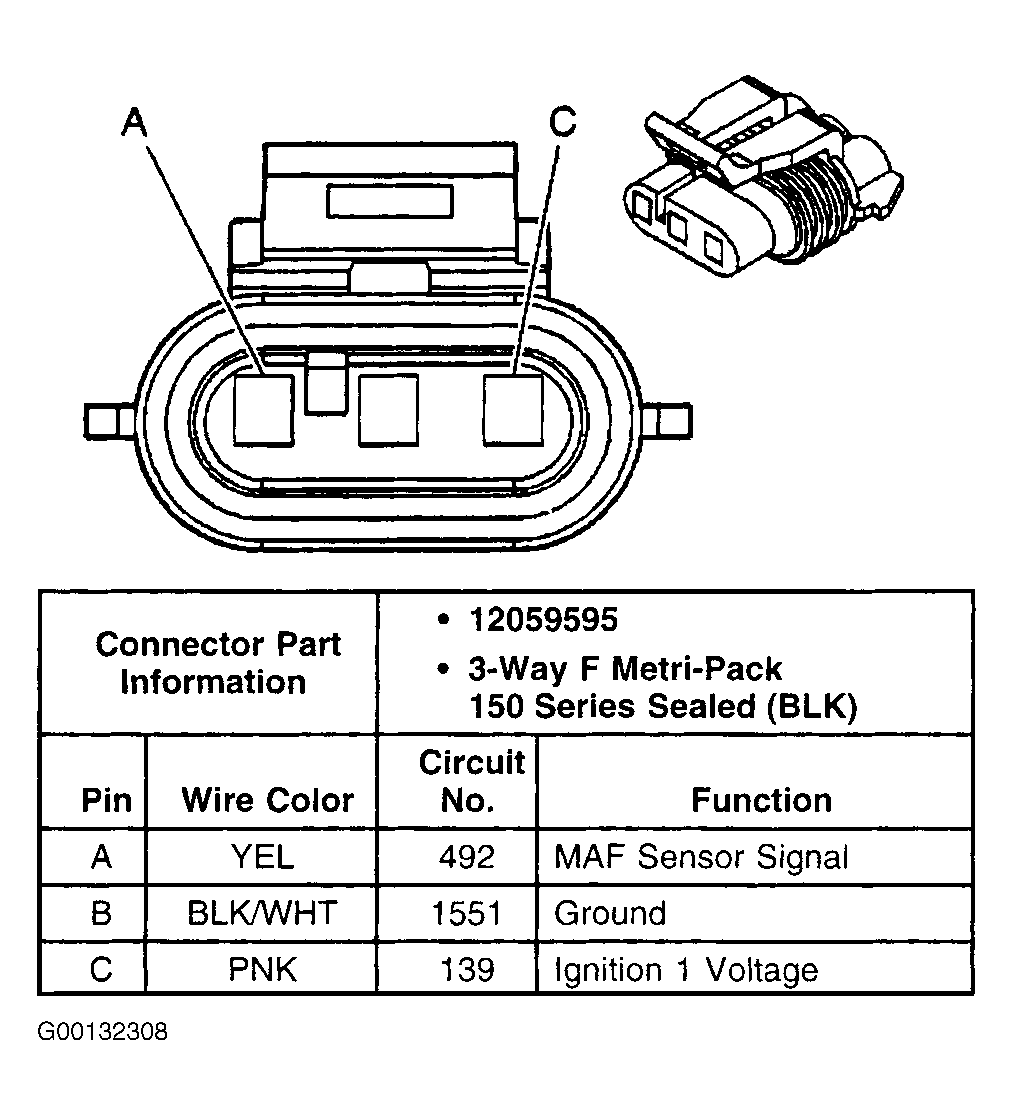

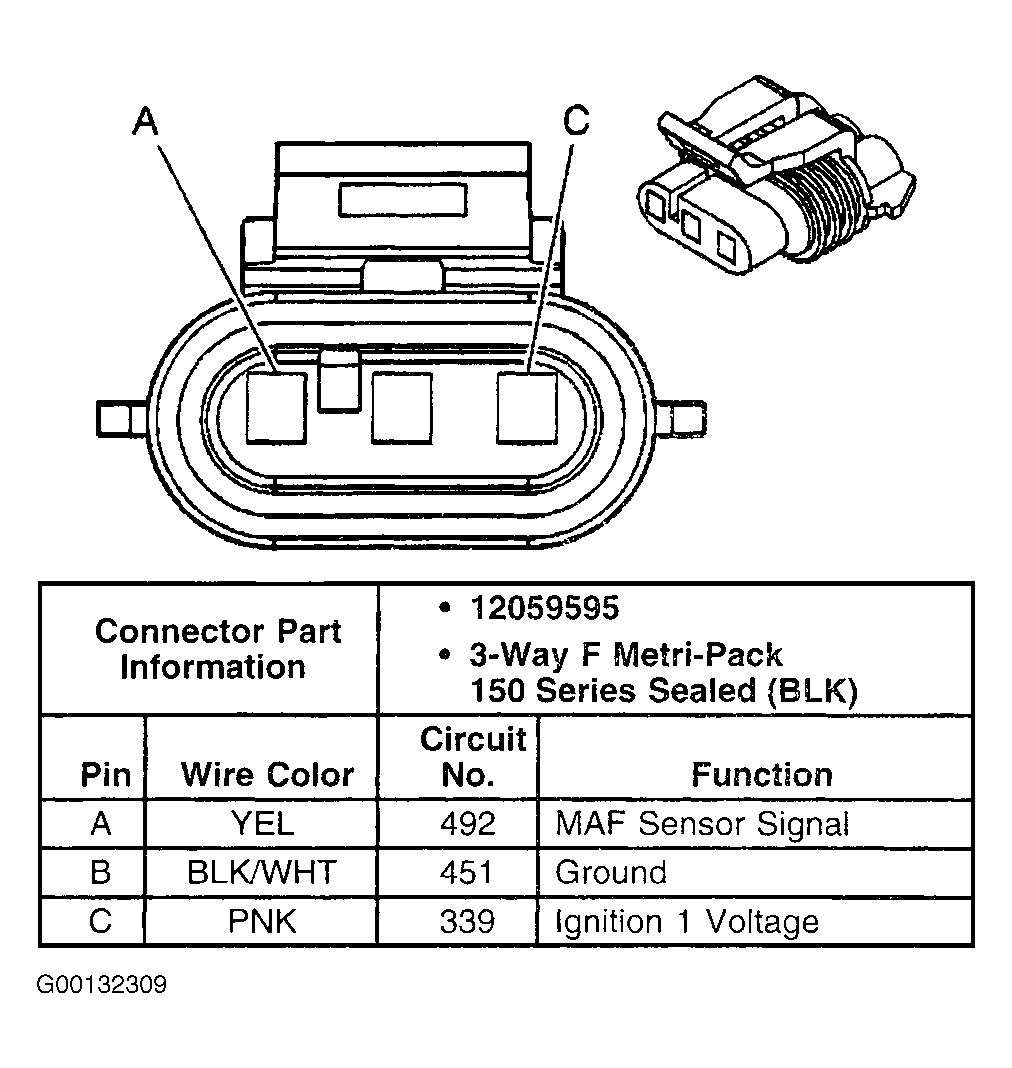

Fig 44: Identifying Mass Airflow Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Identifying PCM Harness Connector C1 Terminals (1 Of 2 - Aurora)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Identifying PCM Harness Connector C1 Terminals (2 Of 2 - Aurora)
Courtesy of GENERAL MOTORS CORP.

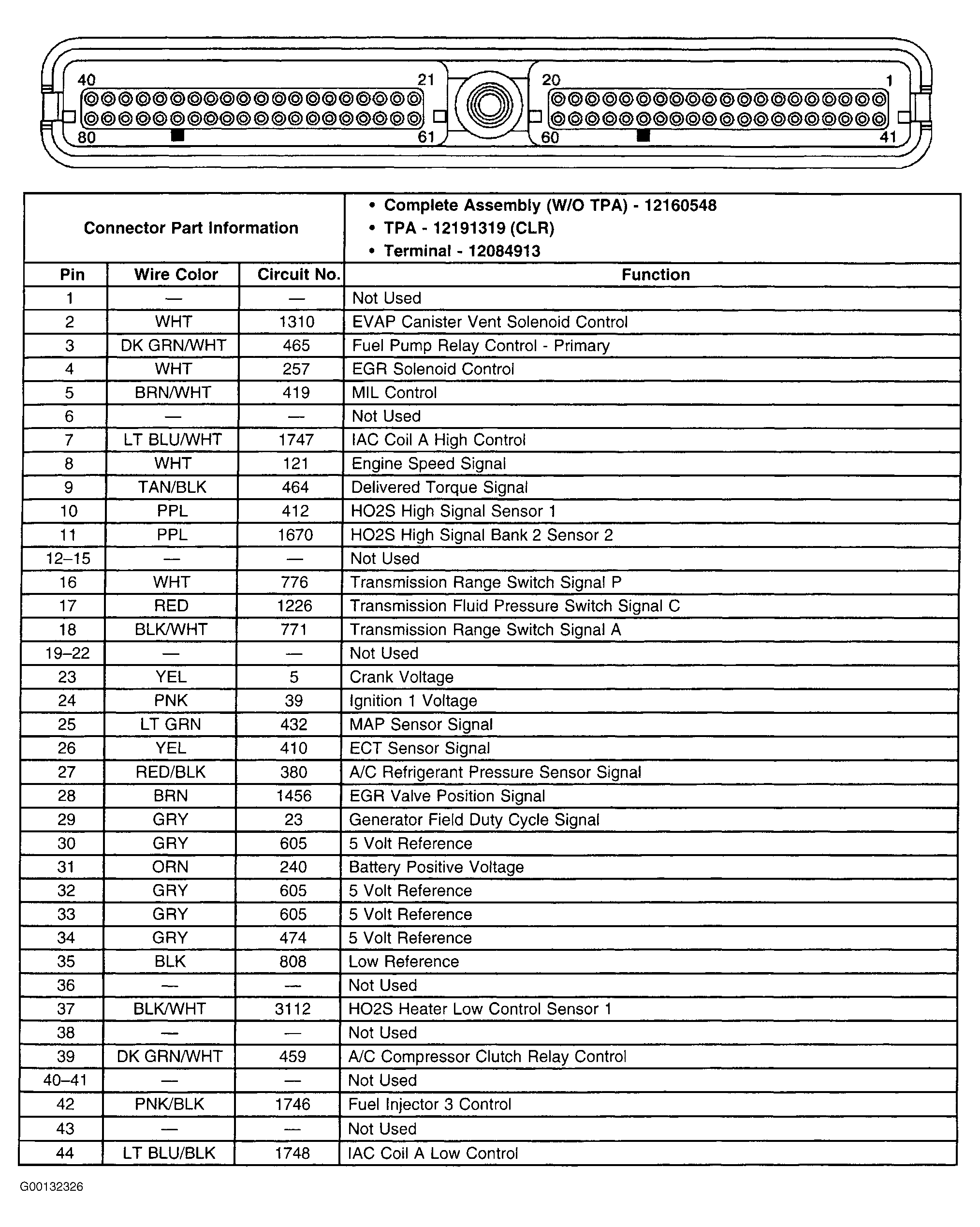

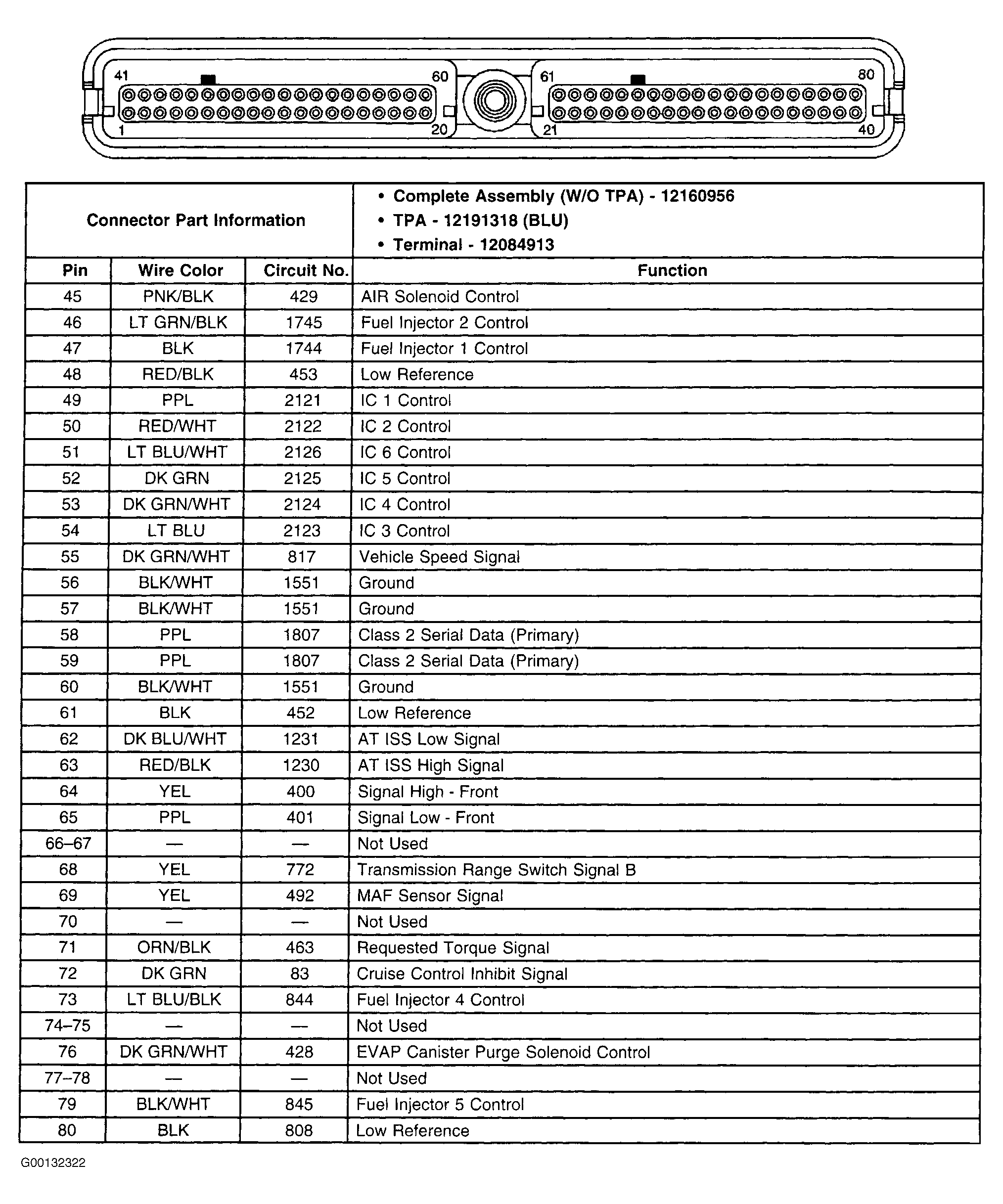

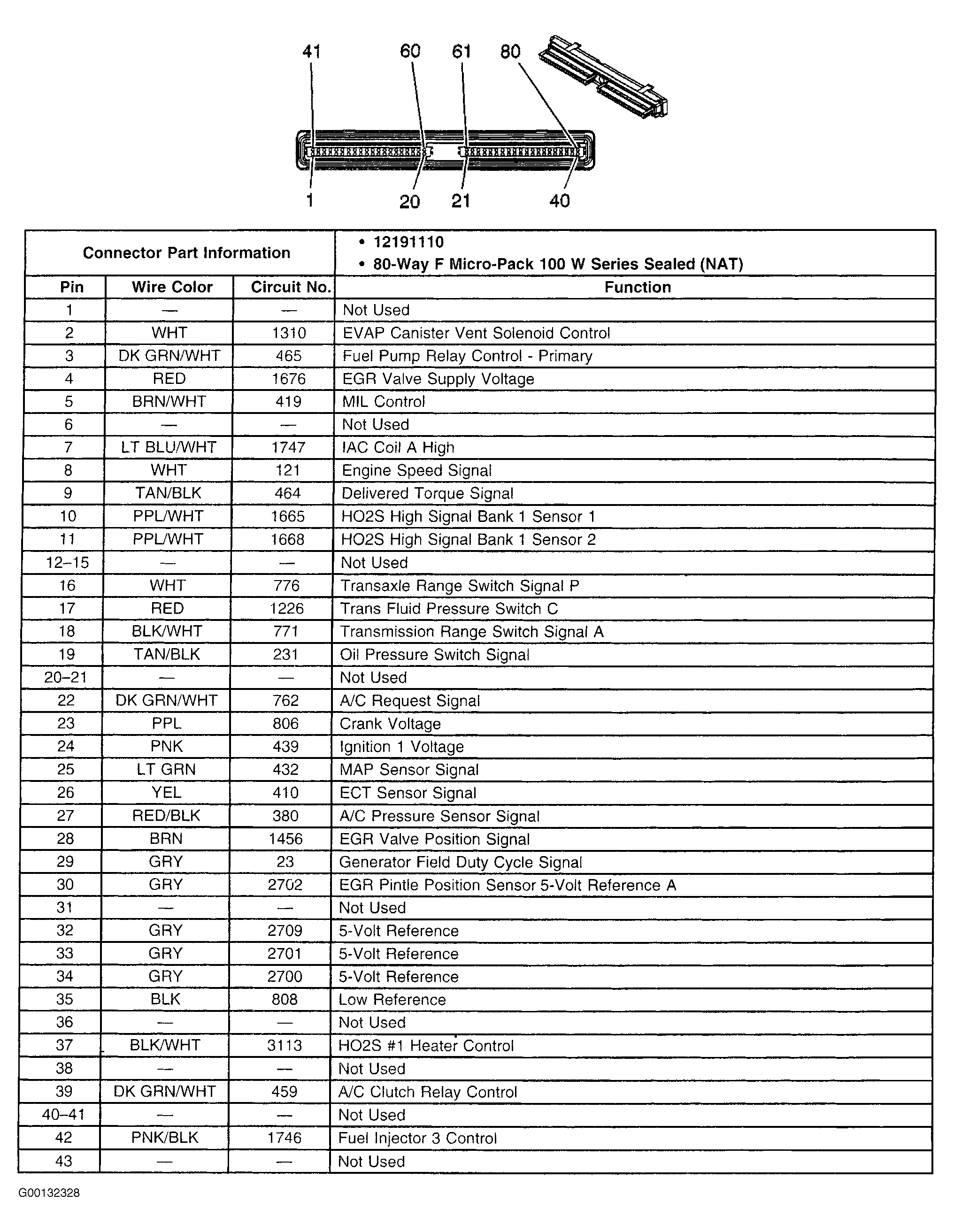

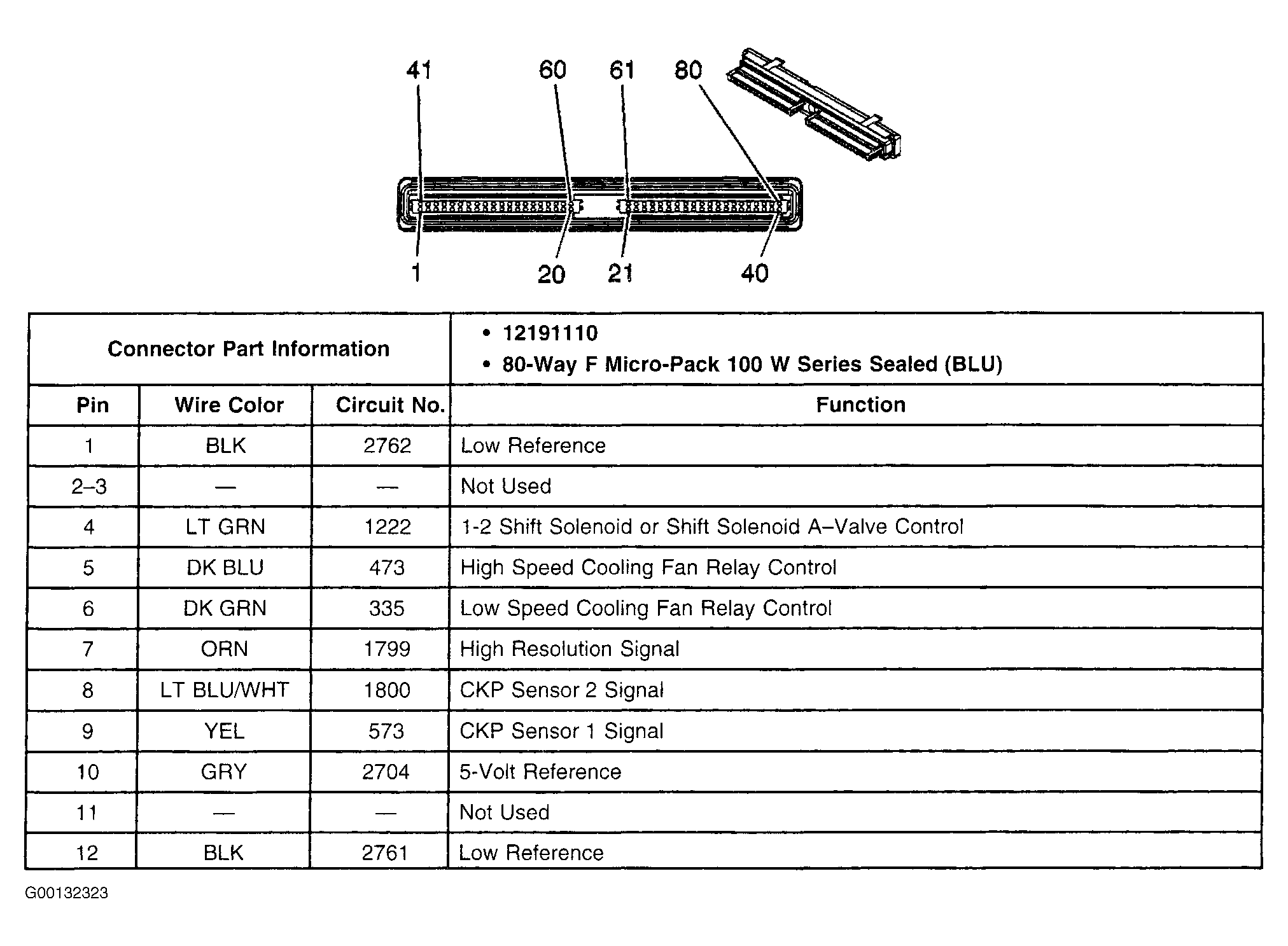

Fig 47: Identifying PCM Harness Connector C1 Terminals (1 Of 3 - Intrigue)
Courtesy of GENERAL MOTORS CORP.

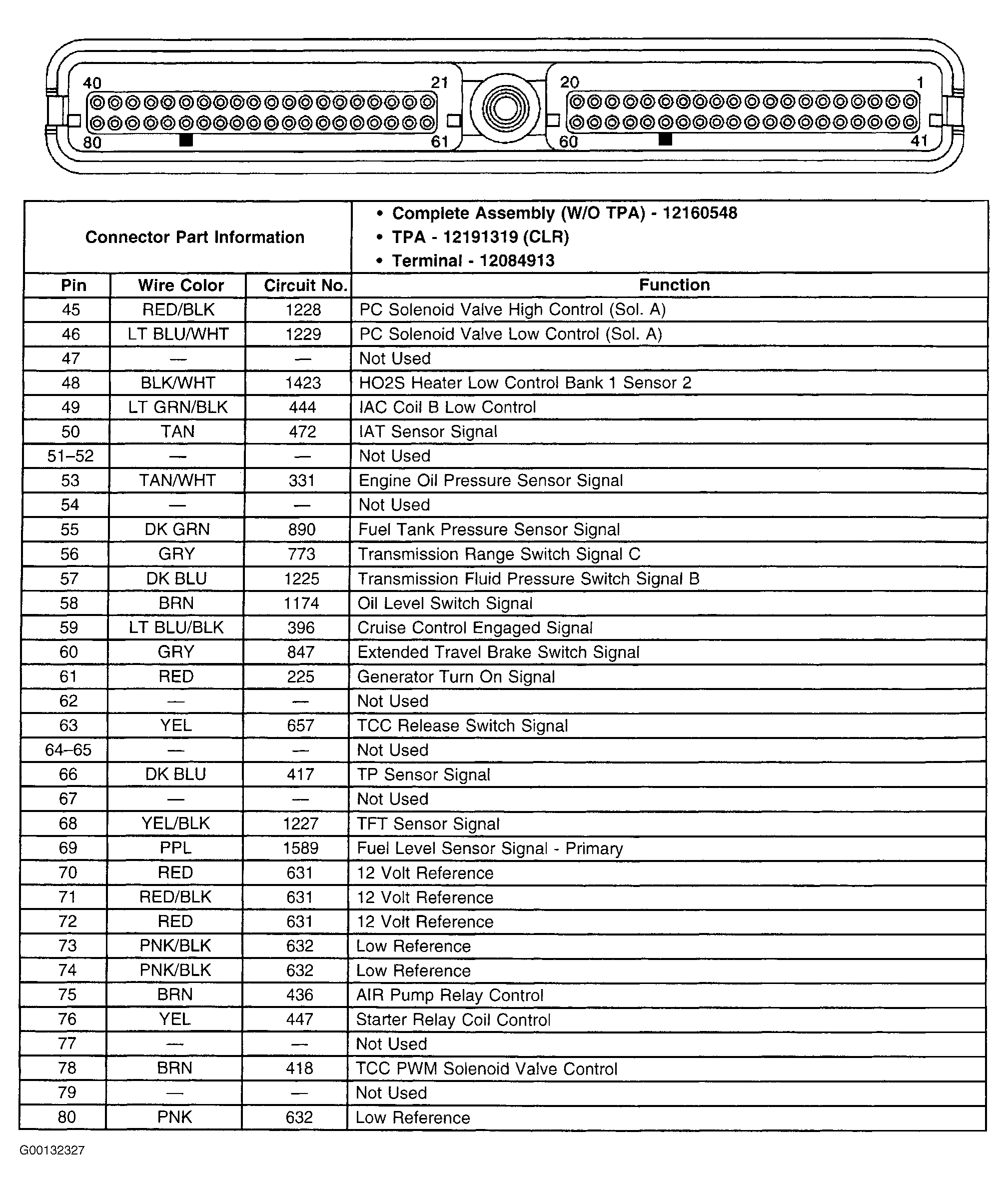

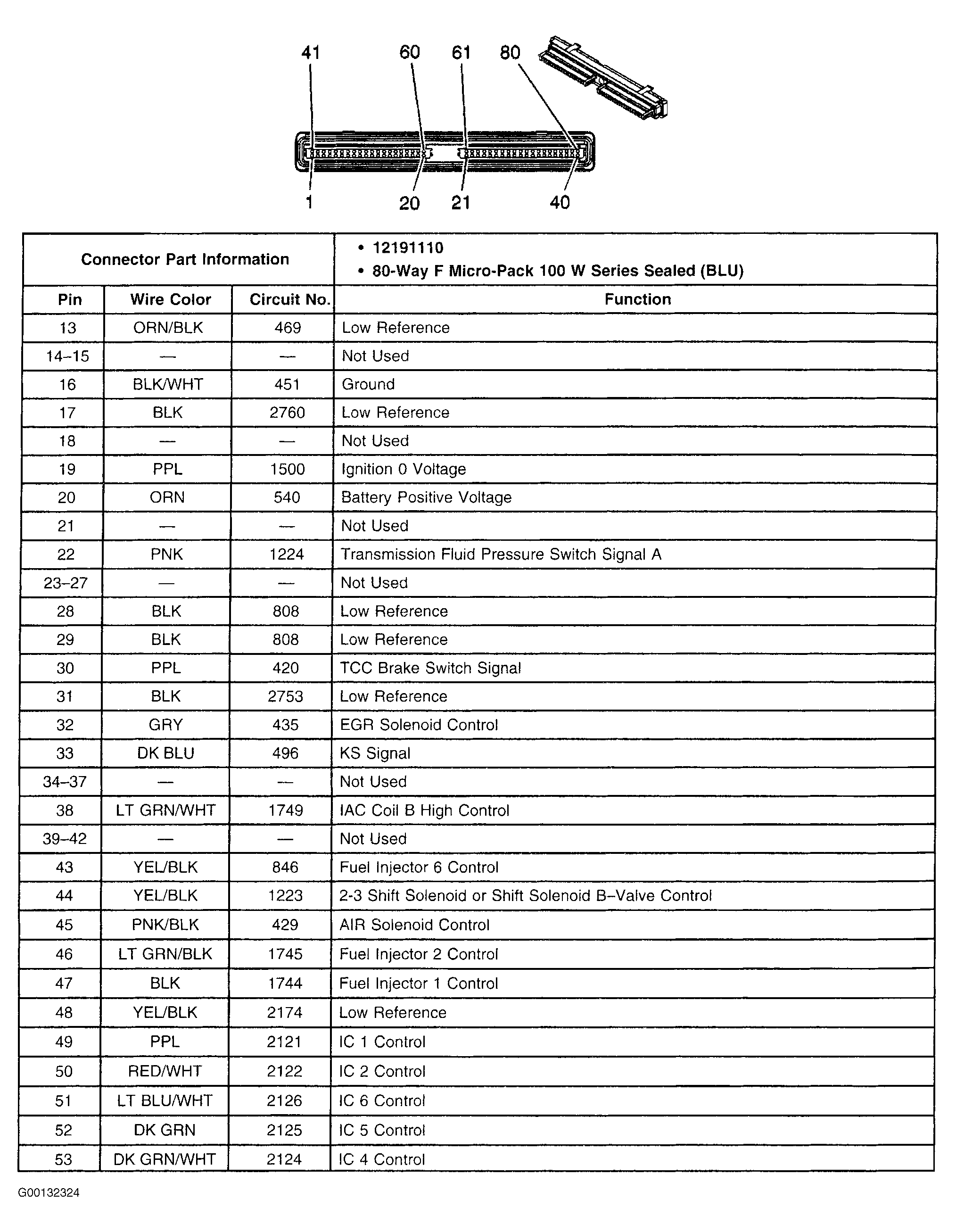

Fig 48: Identifying PCM Harness Connector C1 Terminals (2 Of 3 - Intrigue)
Courtesy of GENERAL MOTORS CORP.

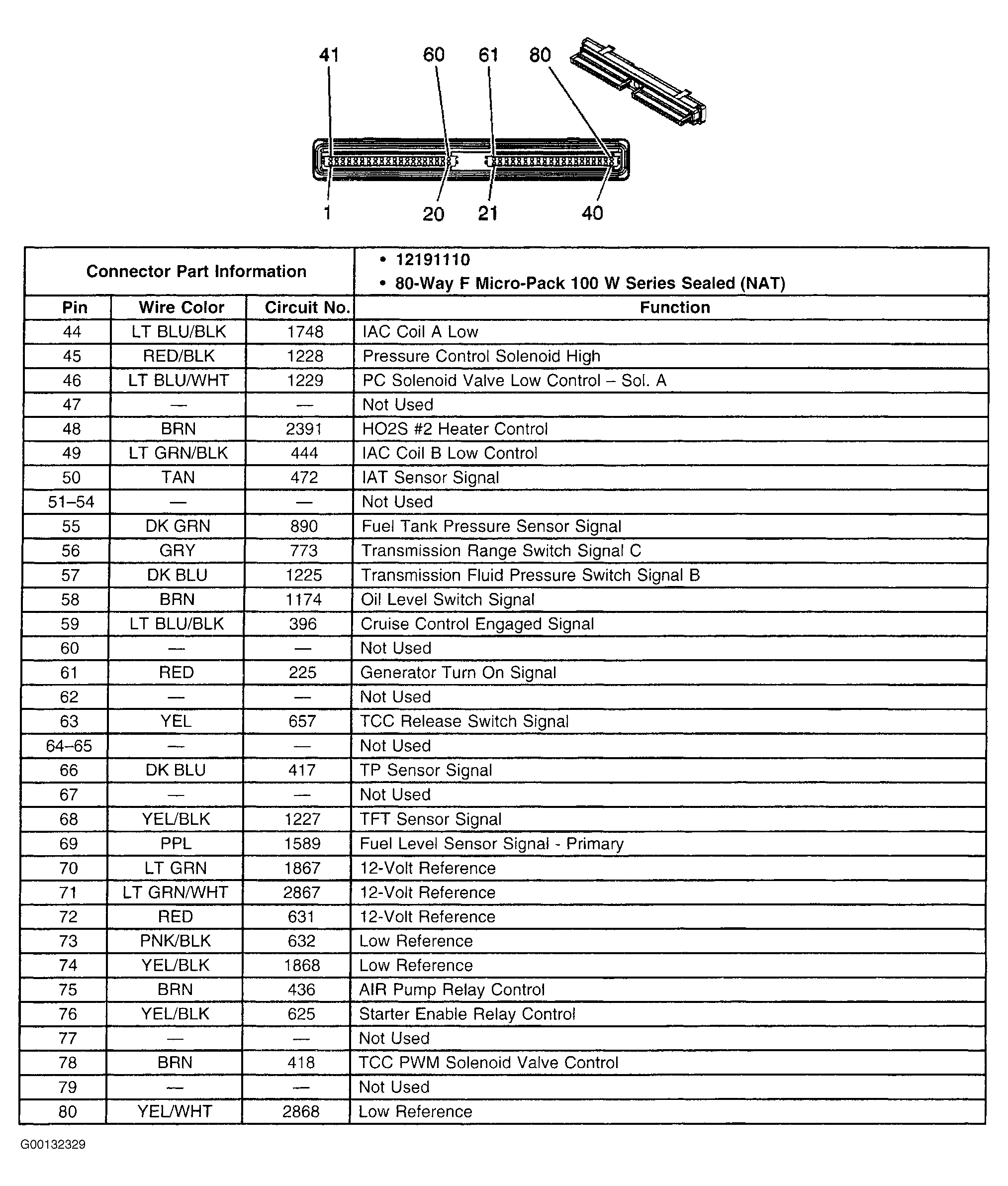

Fig 49: Identifying PCM Harness Connector C1 Terminals (3 Of 3 - Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Identifying PCM Harness Connector C2 Terminals (1 Of 2 - Aurora)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Identifying PCM Harness Connector C2 Terminals (2 Of 2 - Aurora)
Courtesy of GENERAL MOTORS CORP.

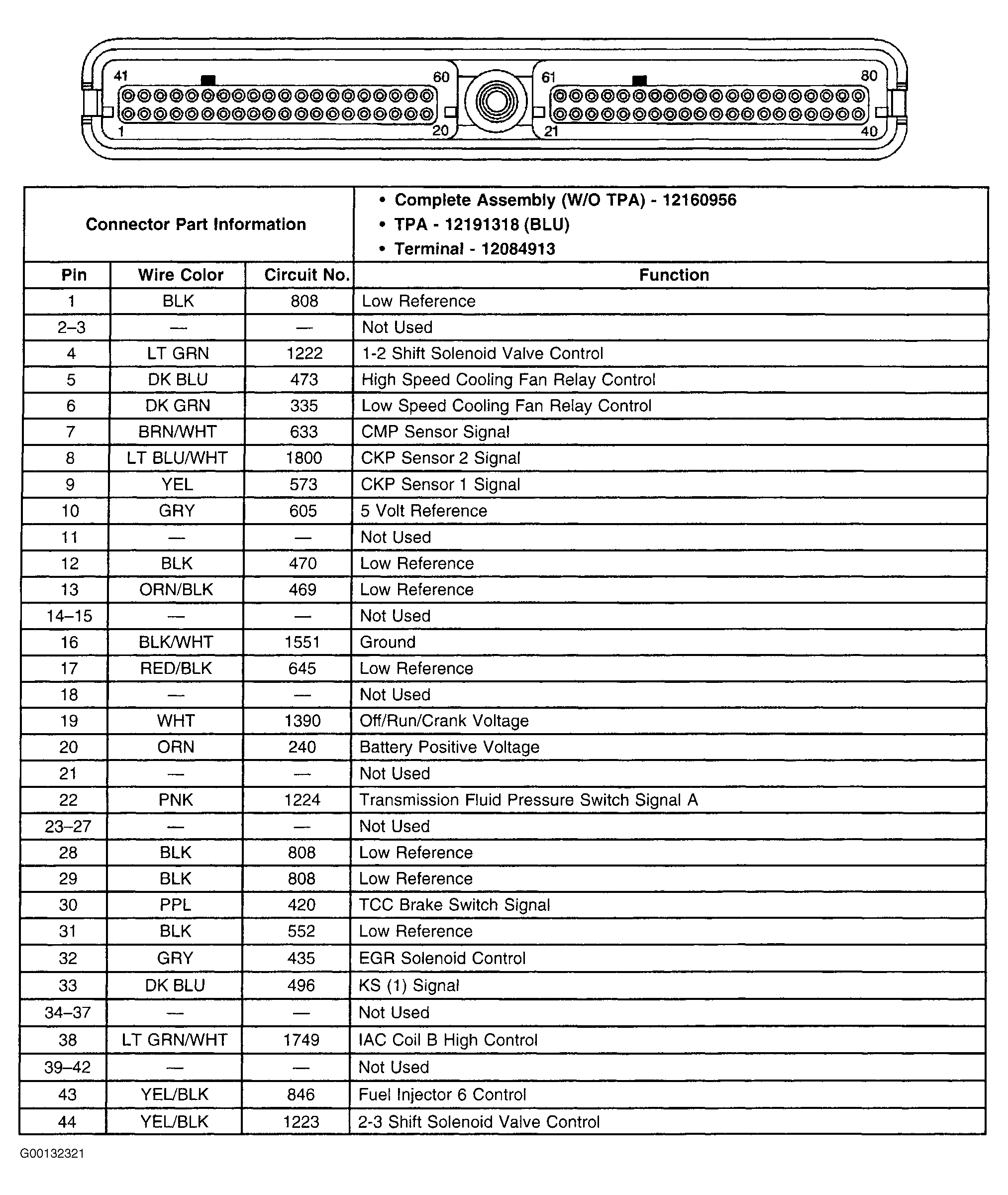

Fig 52: Identifying PCM Harness Connector C2 Terminals (1 Of 2 - Intrigue)
Courtesy of GENERAL MOTORS CORP.

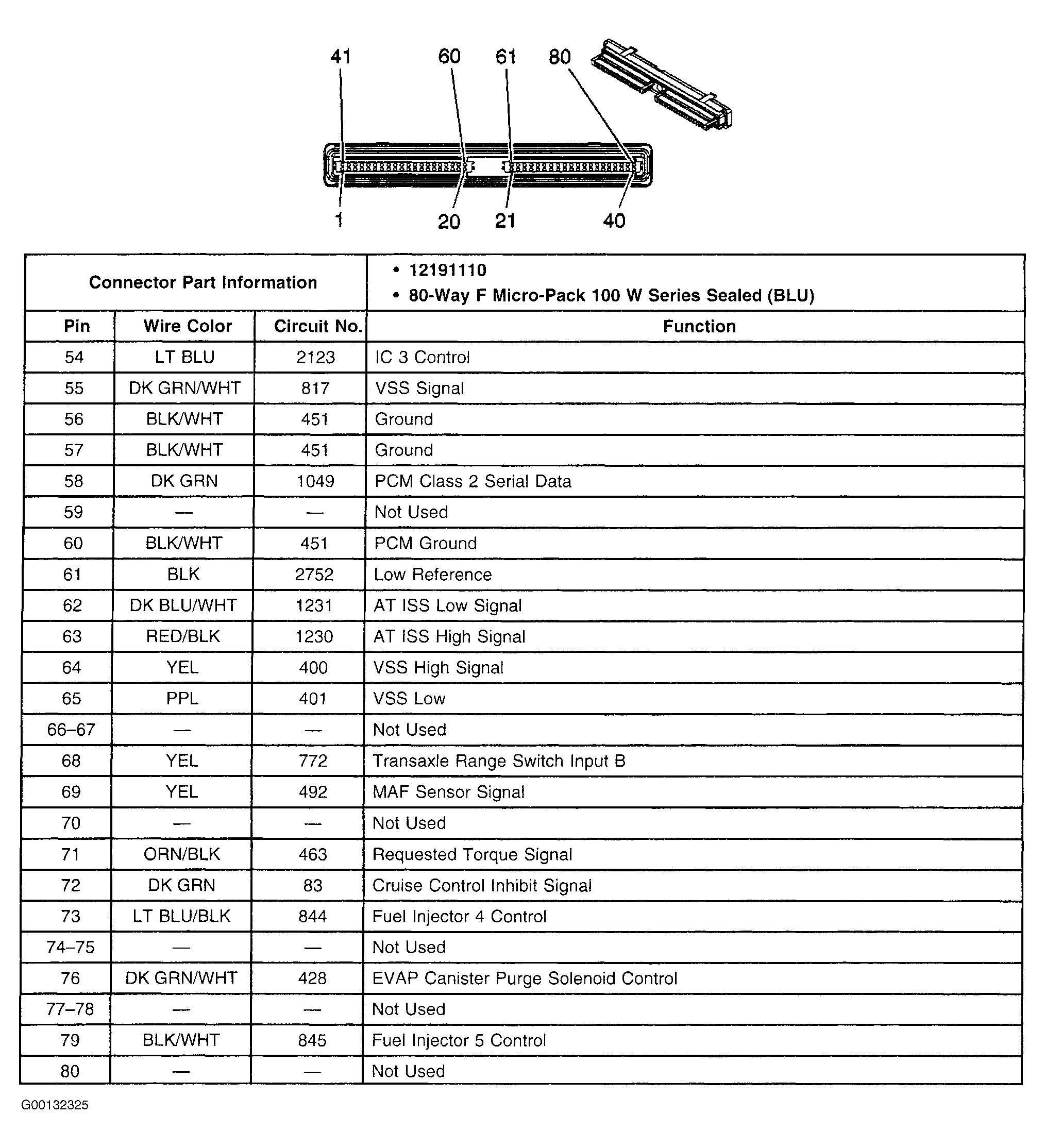

Fig 53: Identifying PCM Harness Connector C2 Terminals (2 Of 2 - Intrigue)
Courtesy of GENERAL MOTORS CORP.

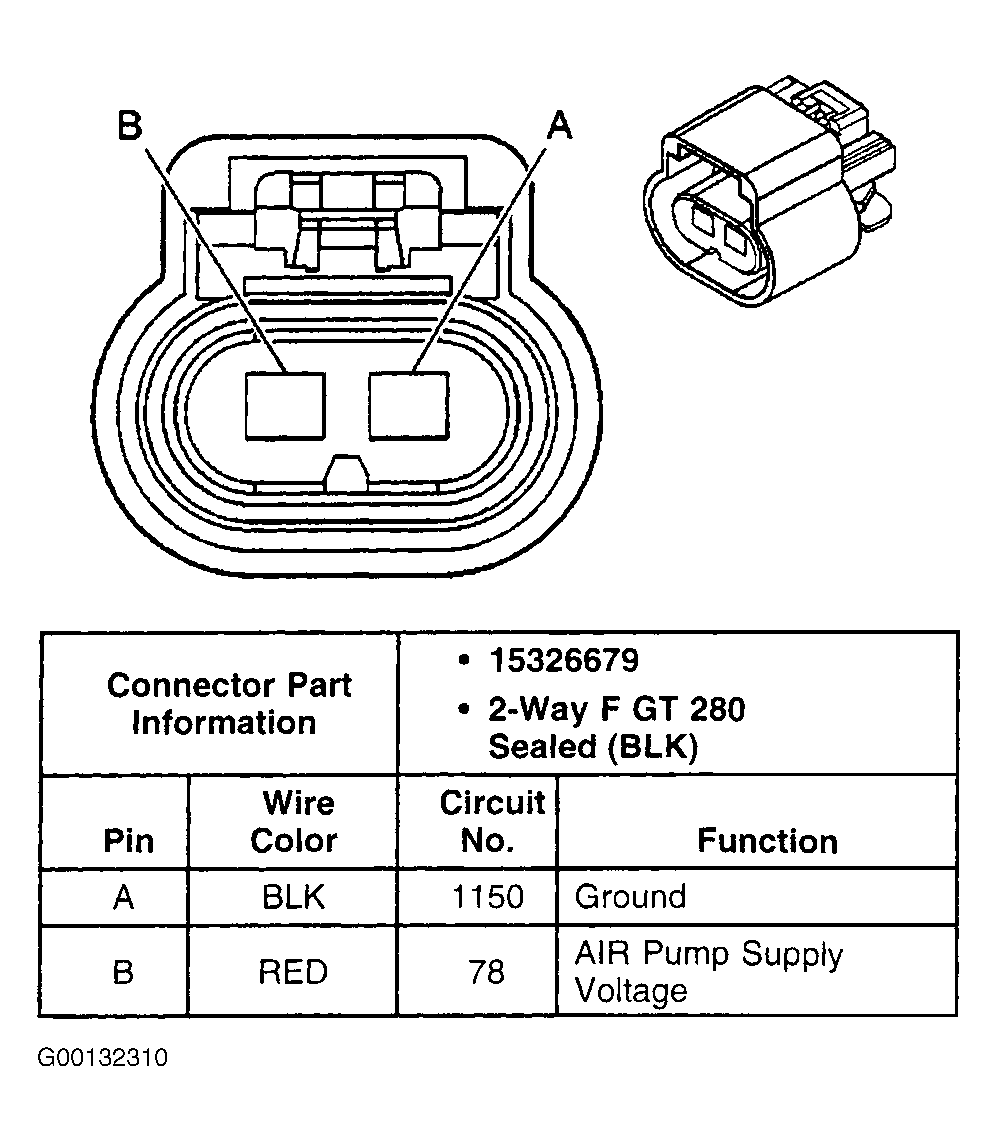

Fig 54: Identifying Secondary Air Injection Pump Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

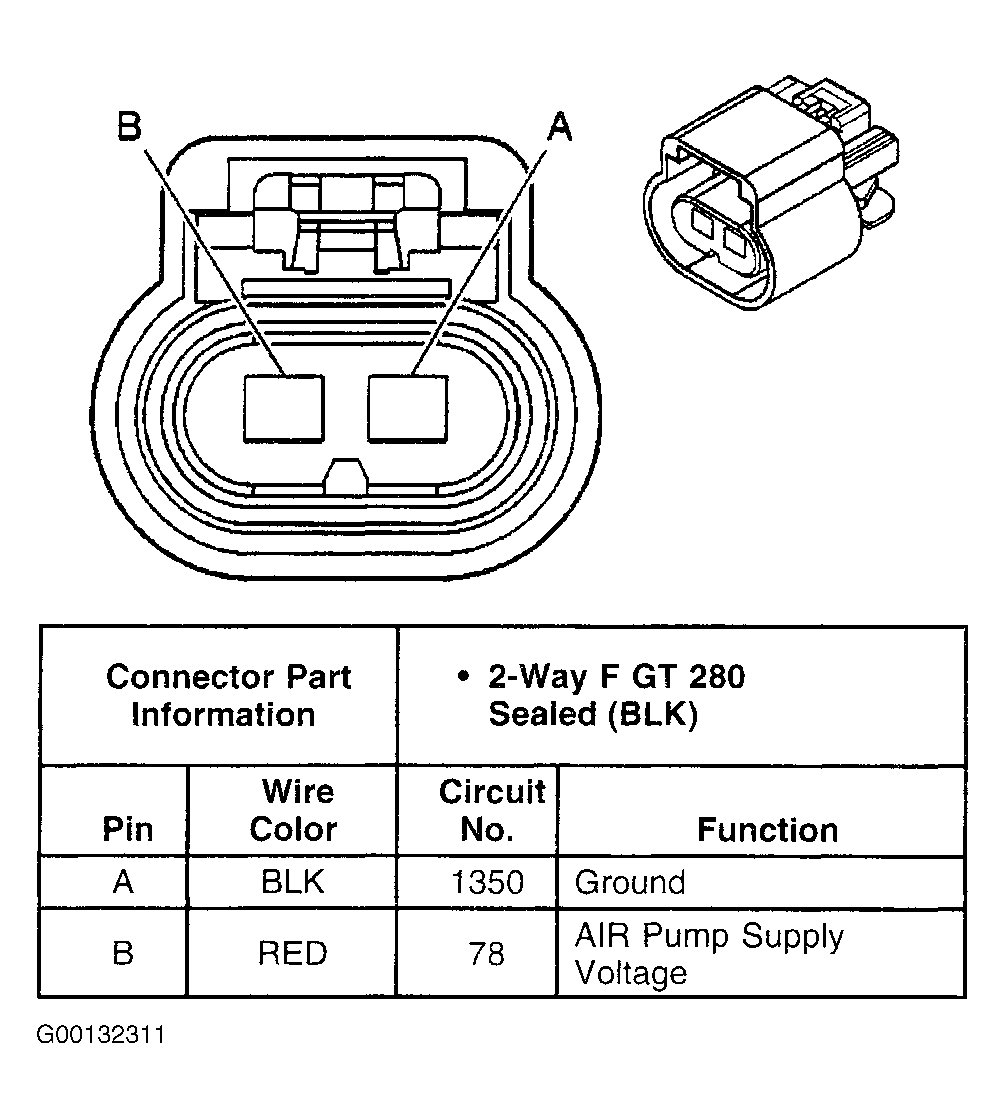

Fig 55: Identifying Secondary Air Injection Pump Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

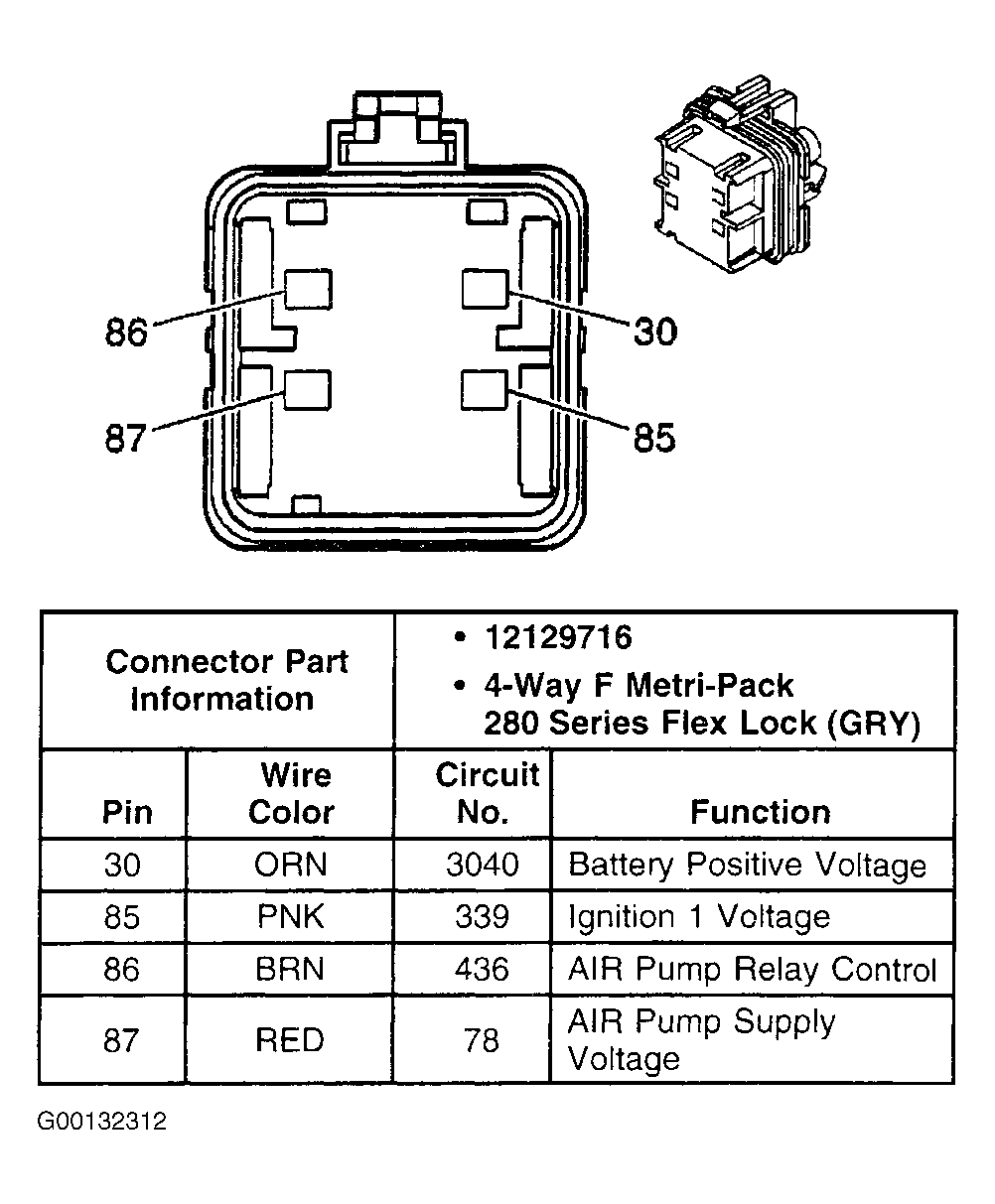

Fig 56: Identifying Secondary Air Injection Pump Relay Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.

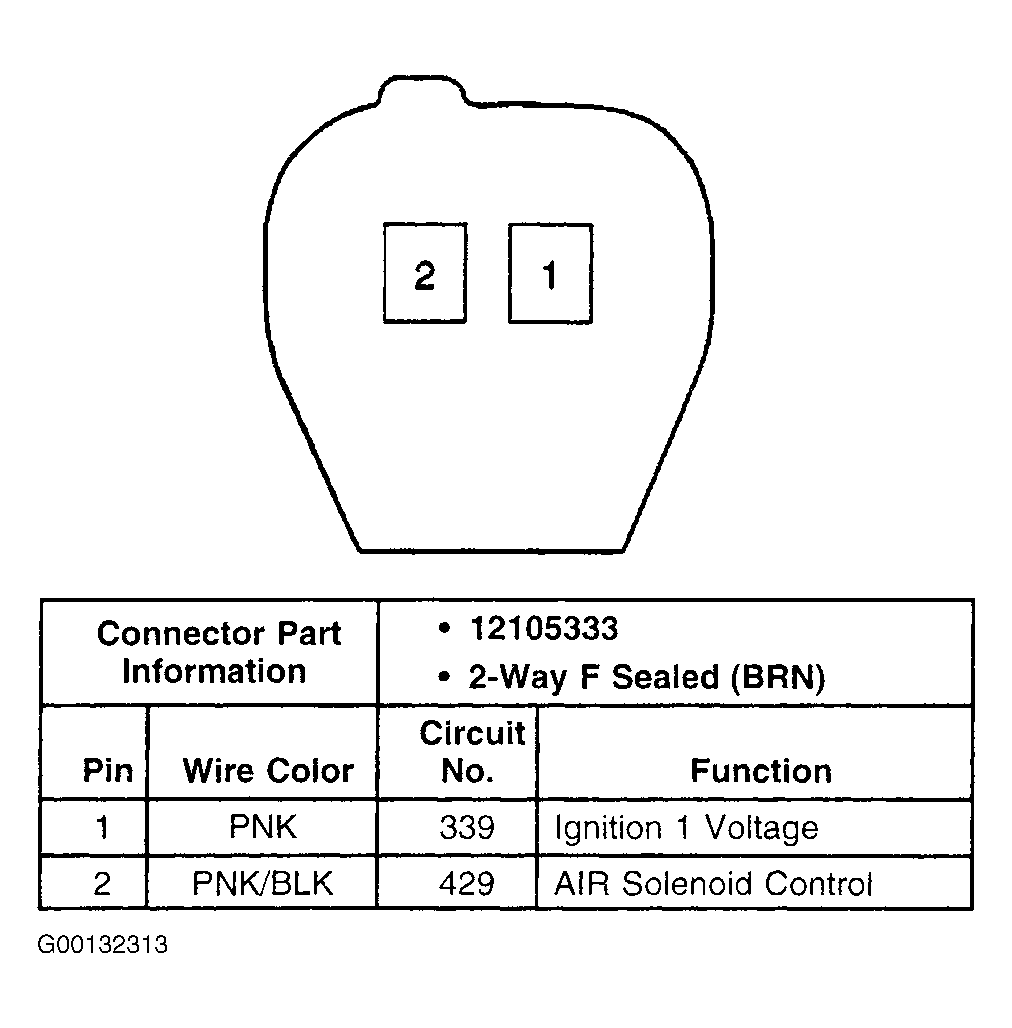

Fig 57: Identifying Secondary Air Injection Valve Solenoid Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 58: Identifying TP Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

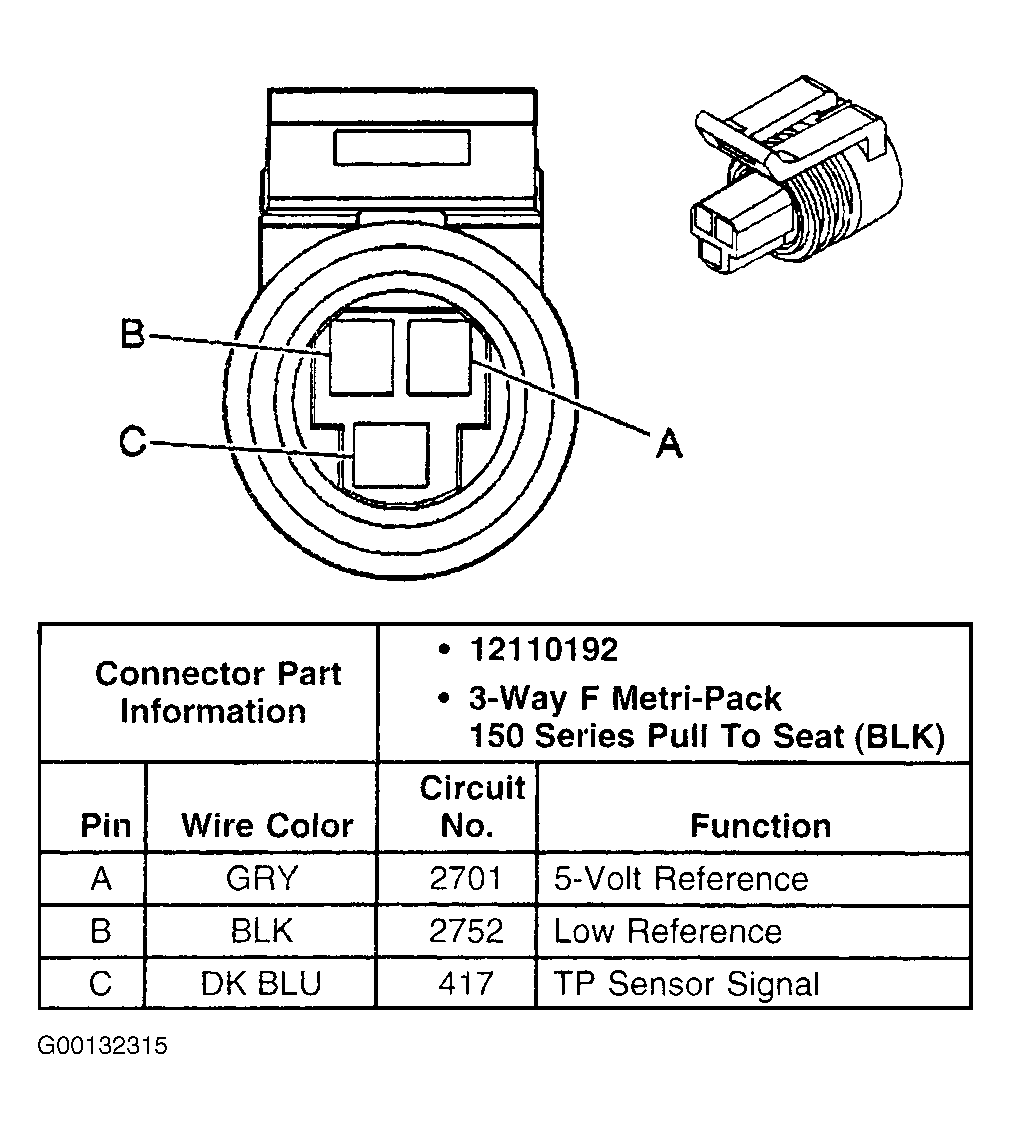

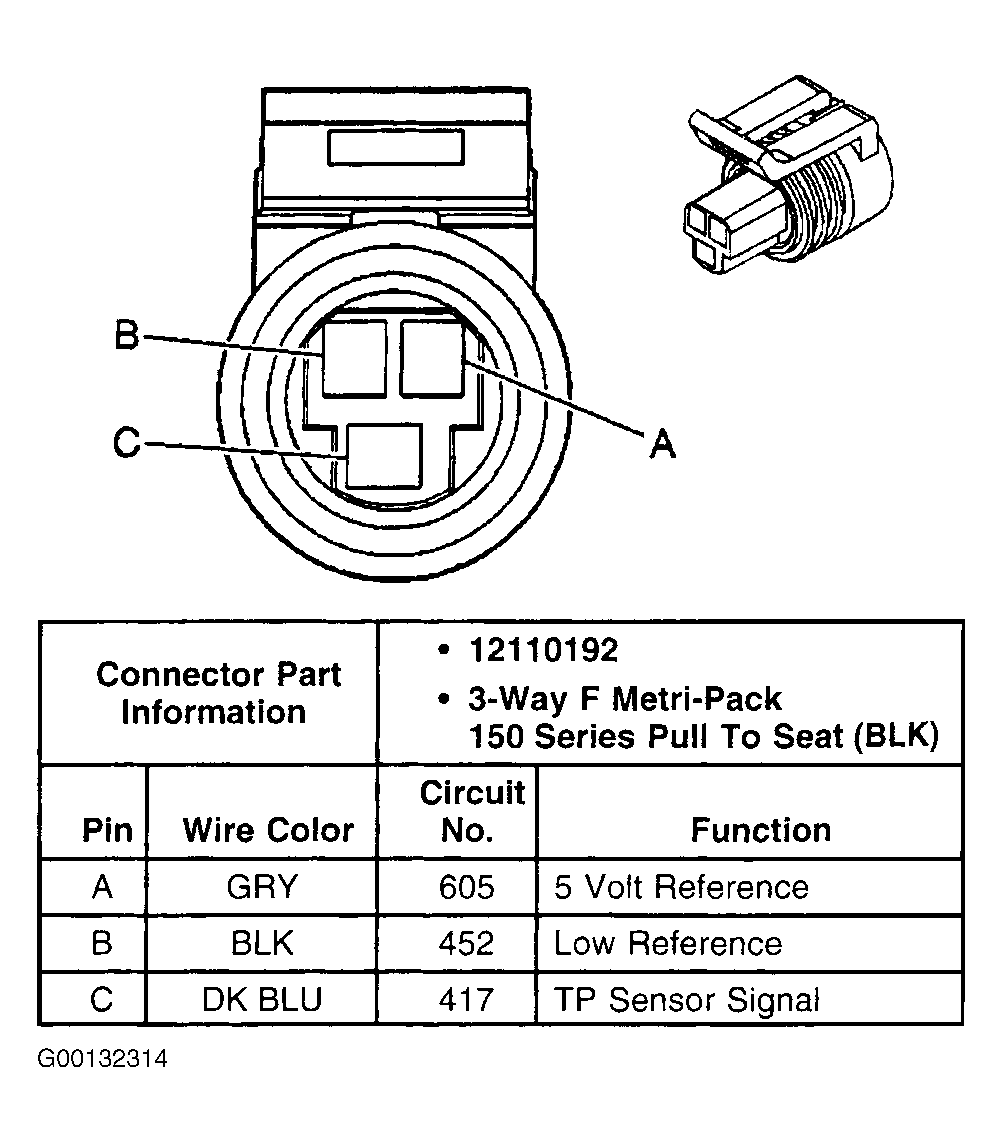

Fig 59: Identifying TP Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
Fig 60: Identifying Vehicle Speed Sensor Harness Connector Terminals (Aurora)
Courtesy of GENERAL MOTORS CORP.

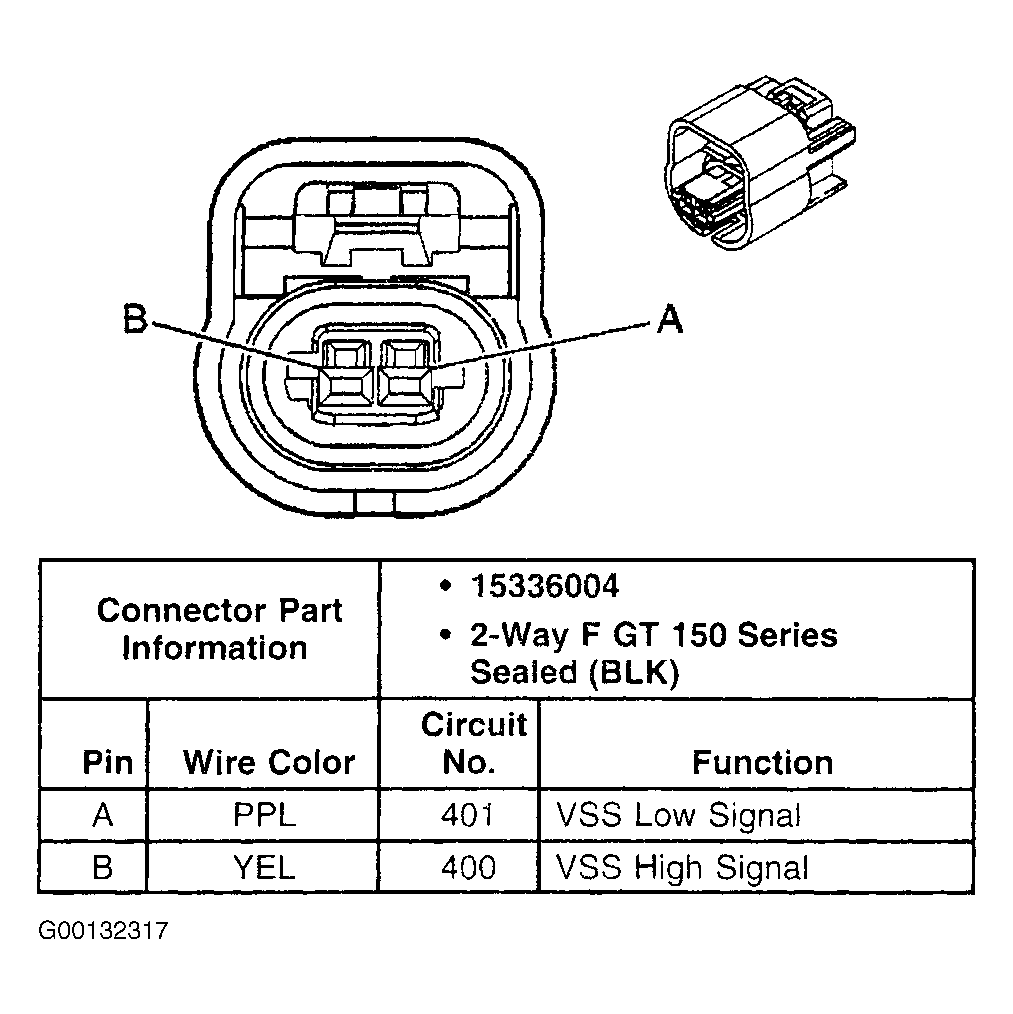

Fig 61: Identifying Vehicle Speed Sensor Harness Connector Terminals (Intrigue)
Courtesy of GENERAL MOTORS CORP.
