Component Locations
Component Locations

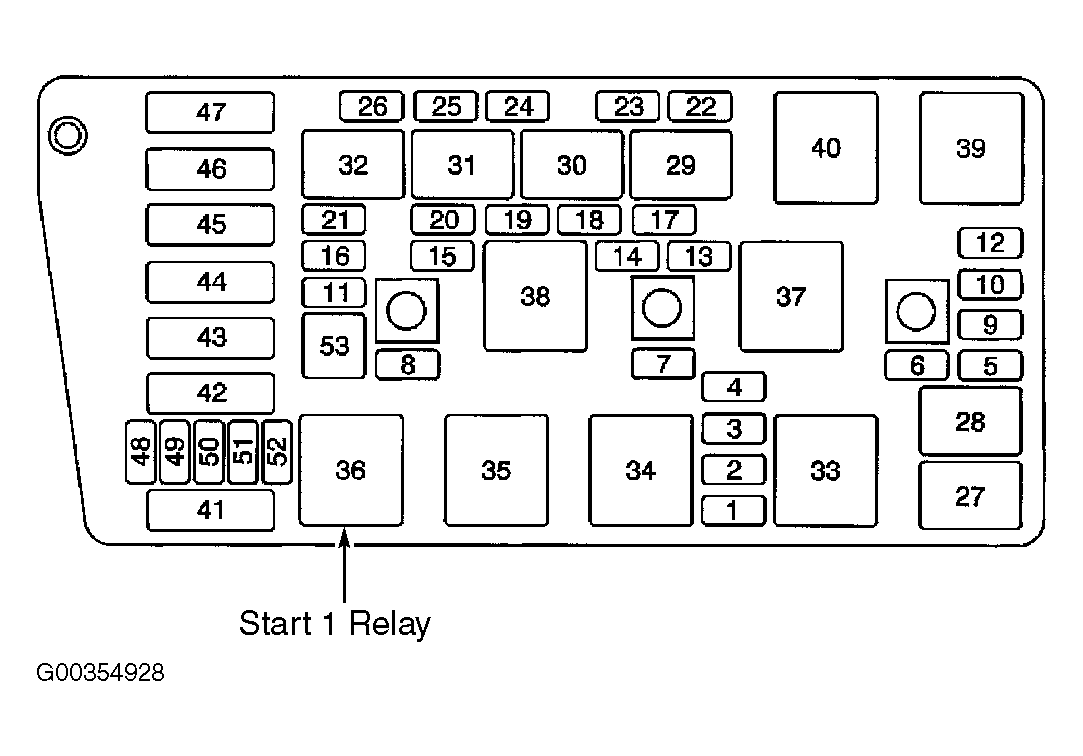

Fig 1: Locating Start 1 Relay In Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

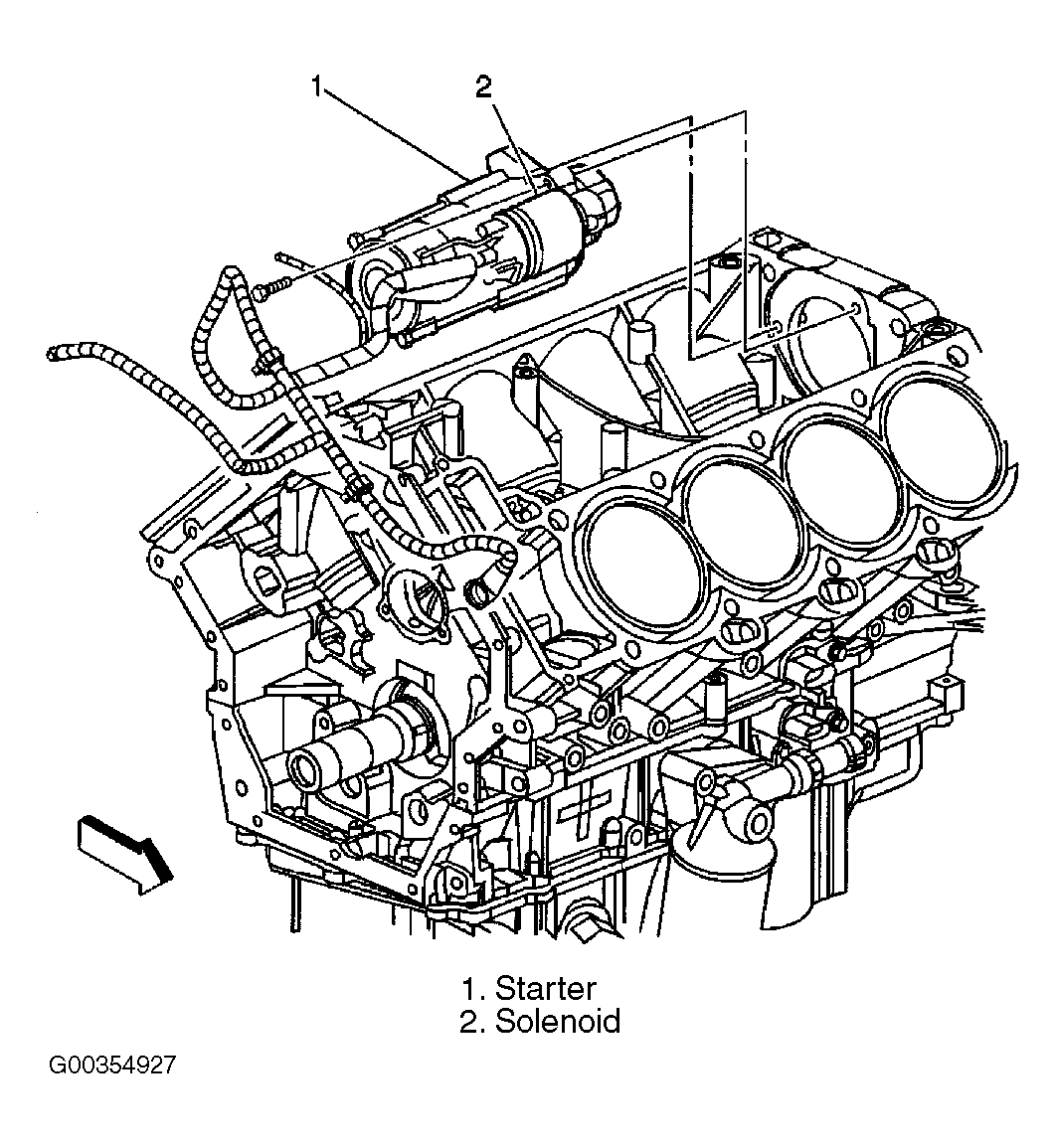

Fig 2: Locating Starter Under Intake Manifold
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
