Automatic Transmission Shift Lock Control Connector End Views

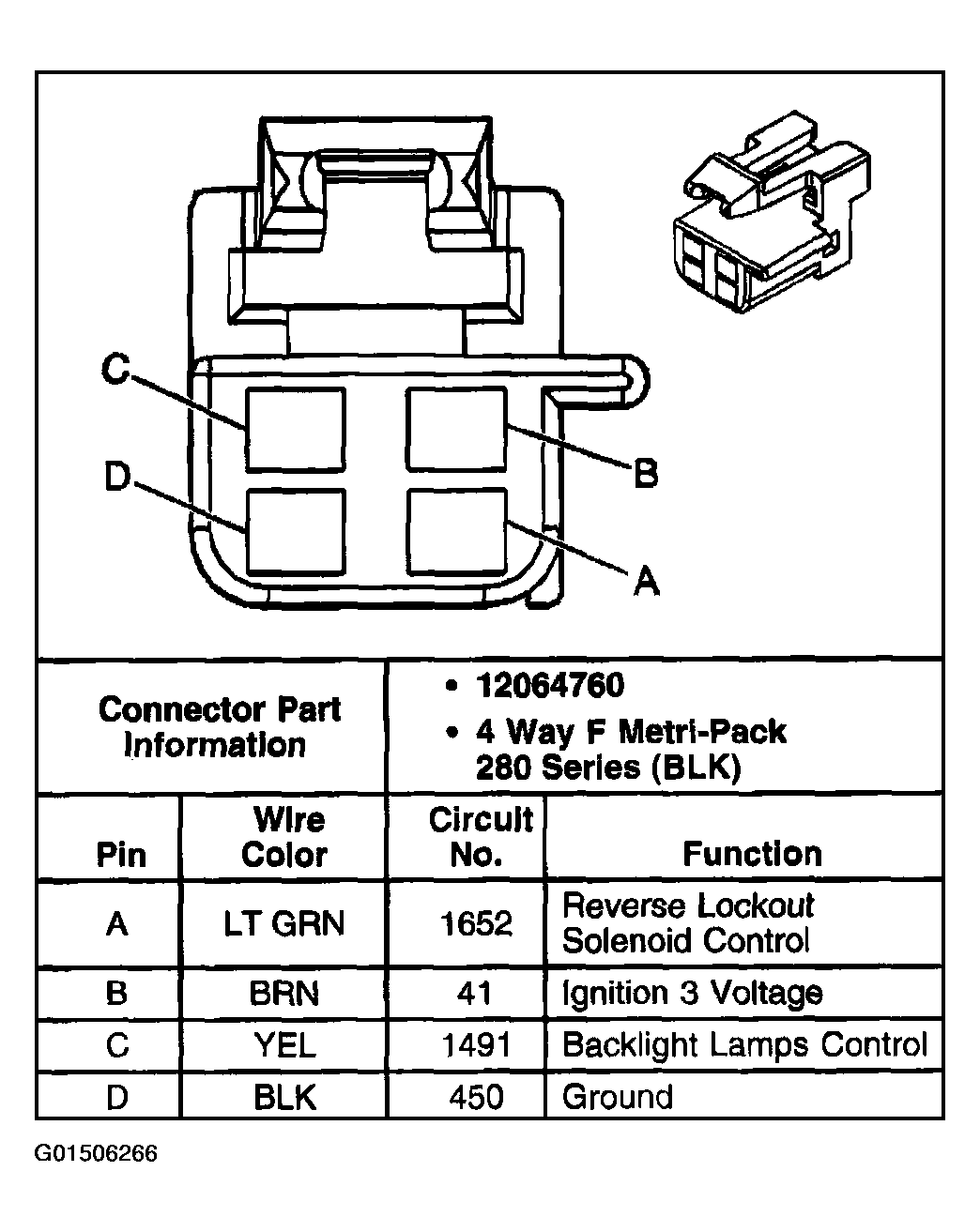

Fig 1: Identifying Shift Control Assembly Connector Terminals

Courtesy of GENERAL MOTORS CORP.

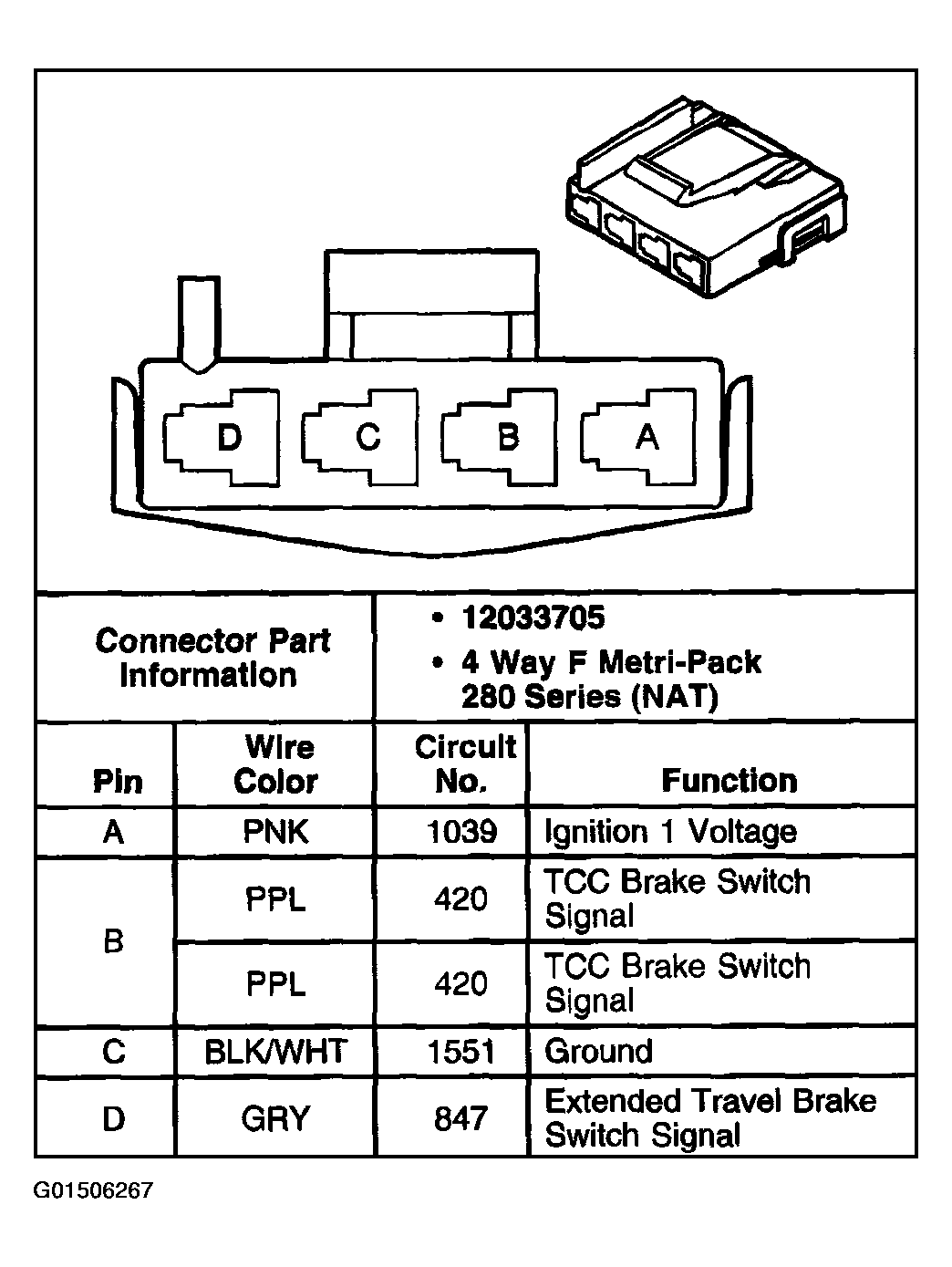

Fig 2: Identifying TCC/Cruise Release Switch Connector Terminals

Courtesy of GENERAL MOTORS CORP.
