NIPPONDENSO Alternators: Application

Model			Amps(1)	Part No.
Honda
	Accord		50	31400-6-671
	Civic		40	38760634811
	CVCC		35	31100634004
Opel			40	(1)
Toyota
	2TC Engine		40	36071
	2F Engine
		Standard	40	60010, 60071
			50	60020
		Heavy Duty	50	60030, 60040
		W/Vac. Pump	50	60080
	4M Engine		45	41032
	20R Engine		40	38010
			45	34030
(1) Rated output at 14 volts at 3000 RPM (Toyota), 2000 RPM (Honda) or 1400 RPM (Opel).

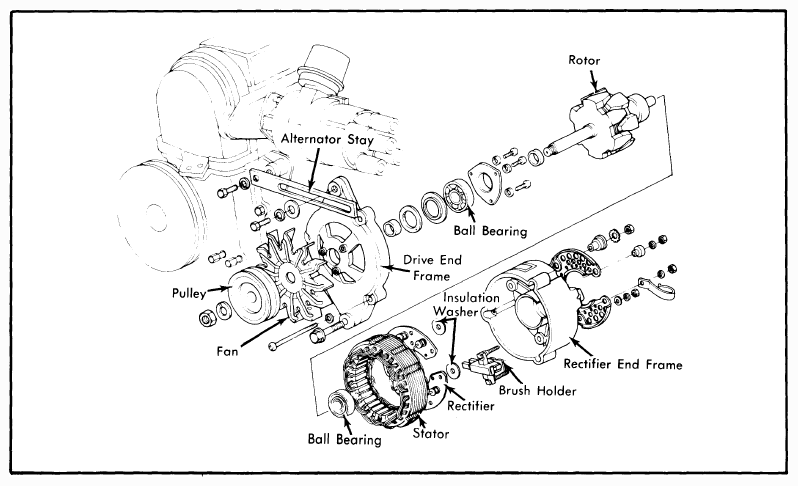

Fig 1: Disassembled View of Nippondenso Alternator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
