Idle Adjustment

Connect tachometer, adjust idle to obtain 820 RPM. Turn mixture adjusting screw until engine speed is stable. Using idle adjusting screw, adjust idle to 870 RPM. Finally, screw in mixture control screw until an idle of 800 RPM is obtained.

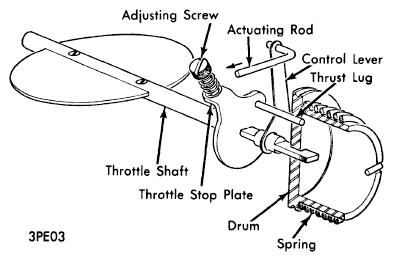

Fig 1: Fast Idle Control (504)

Courtesy of PEUGEOT MOTORS OF AMERICA, INC.

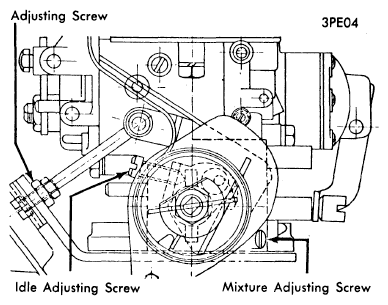

Fig 2: Idling Adjustments

Courtesy of PEUGEOT MOTORS OF AMERICA, INC.
