Accelerator Cable

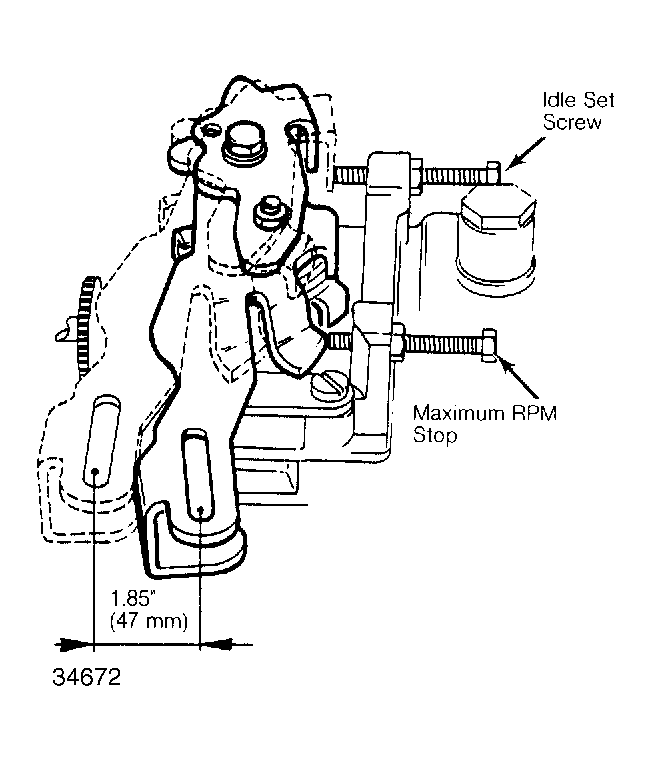

- Warm engine to normal operating temperature. Adjust idle speed, if necessary. Position cable stop with elongated hole in order to obtain total cable travel of 1.77-1.93" (45-49 mm) between idle set screw and maximum RPM stop.
- Place a .20" (5 mm) spacer between accelerator cable and its stop. Using a press (8.0204), depress accelerator pedal. Place throttle lever of pump in full throttle position.
- Install tensioner clip so that play on cable will be taken up without compressing compensator spring on firewall. Remove pedal press and spacer.
- Check to ensure that when at rest, throttle lever rests against idle set screw. Check that in full throttle position, compensator spring is not fully compressed.
