Evaporative Emissions System: Description

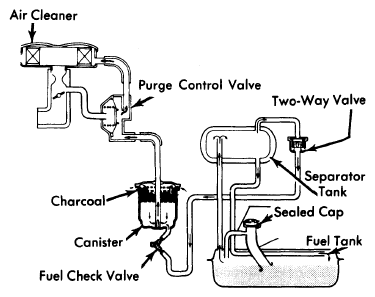

The system consists of a separator tank, a two-way valve, a fuel check valve, a purge control valve, a charcoal canister, sealed filler cap, and tubes and hoses to connect the system. These components are employed to prevent the escape of fuel vapors into the atmosphere.
