Electronic Ignition: Description

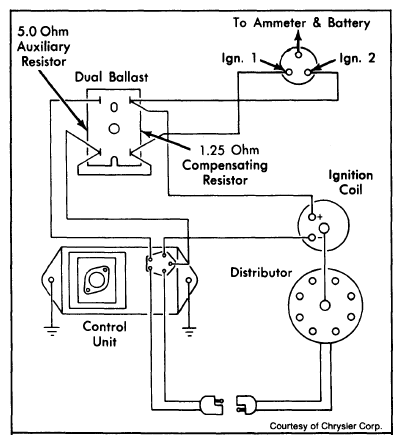

System is composed of a magnetic pick-up distributor, an Electronic Control Unit (ECU), wire harness, coil and a special dual ballast resistor. The primary circuit consists of battery, ignition switch, dual ballast resistor, primary winding of ignition coil and power switching transistor in ECU. The secondary circuit consists of the coil secondary winding, distributor cap and rotor and spark plugs.
