Crankcase Ventilation Systems - Imports: Maintenance

Check and clean entire crankcase ventilation system every 5 years/50, 000 miles.

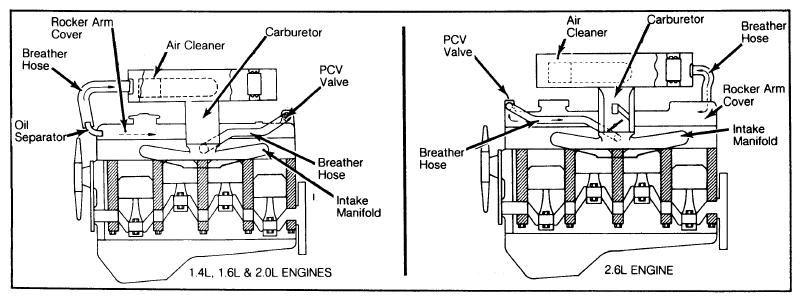

Fig 1: Chrysler Corp. Imports Crankcase Ventilation System

Courtesy of CHRYSLER GROUP, LLC

Note direction of blow-by gas and fresh air flow.
