Sub Switch

Using an ohmmeter, test for continuity between terminals as shown, continuing to press the switch knob either up or down. See Fig 1 .

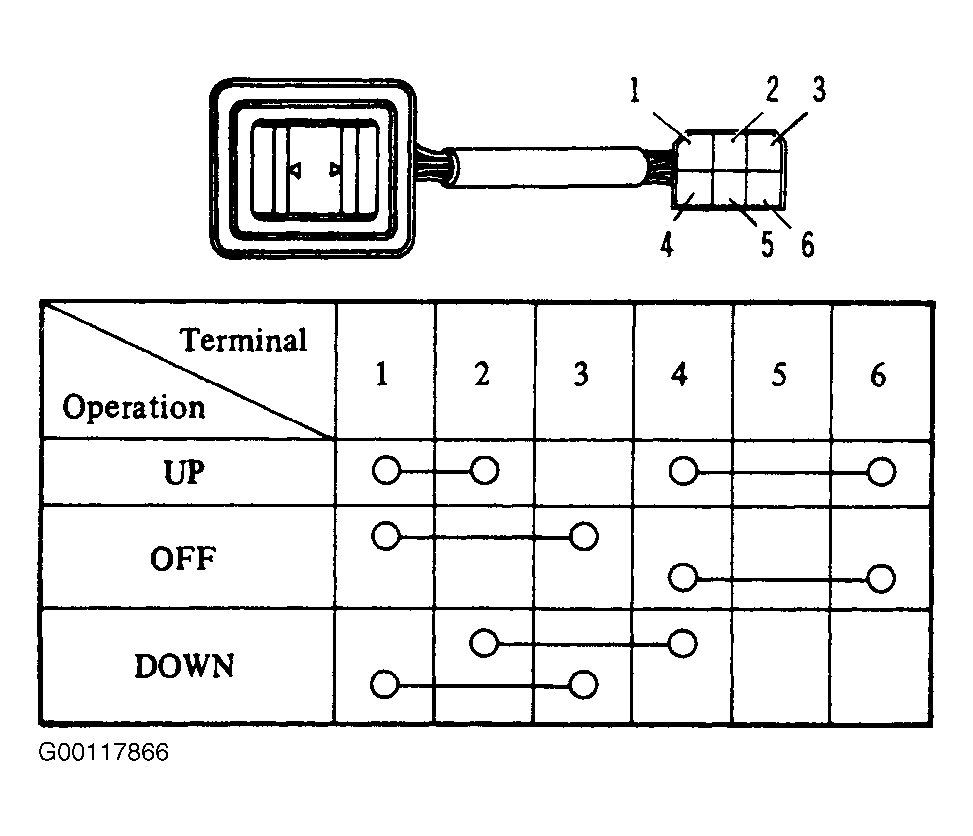

Fig 1: Sub Switch Continuity Test

Courtesy of CHRYSLER CORP.
