Injector Circuit

  1. Unplug connector of the injector harness. Using a volt/ohmmeter, test continuity of each circuit. See Fig 1 .

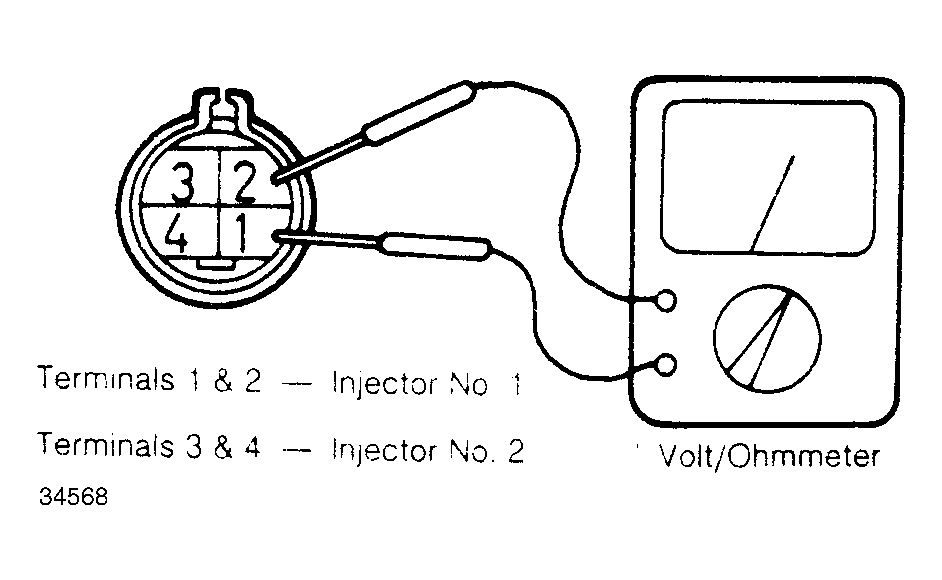

    Fig 1: Testing Injector Circuit Continuity
    G34568
  2. If continuity reading is zero or excessive, check harness for breaks or shorts. Replace harness, if required.
