Closed Loop Mode

Once normal engine operating temperature is reached, the air/fuel ratio is controlled by the computer, based upon information received from the oxygen sensor.

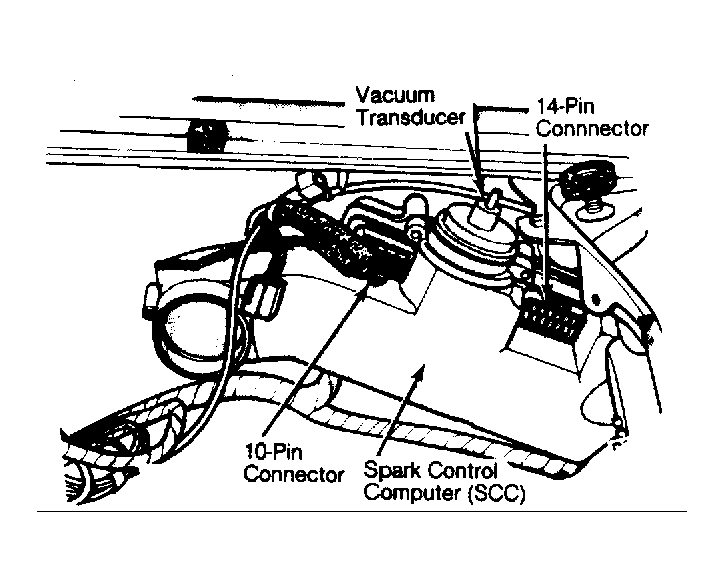

Fig 1: Location of Spark Control Computer
G5735Courtesy of CHRYSLER MOTORS.
