Component Testing & Inspection: Resistor

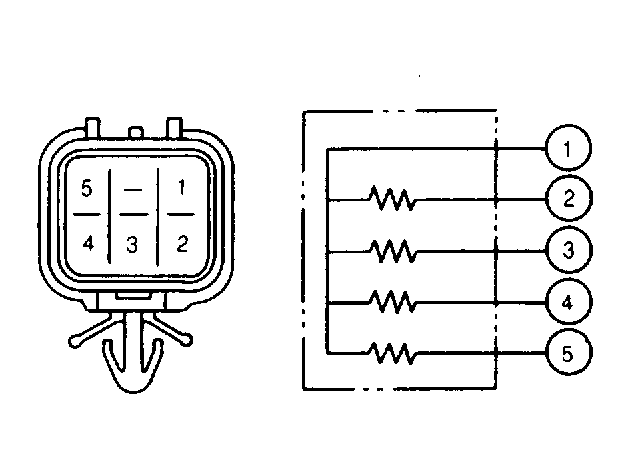

Disconnect resistor harness connector and check resistance between resistor terminal No. 1 and other terminals one at a time. See Fig 1 . If resistance is 5.5-6.5 ohms, resistor is okay. If resistance is zero or abnormally large, resistor is defective.
