Description & Operation: Notes

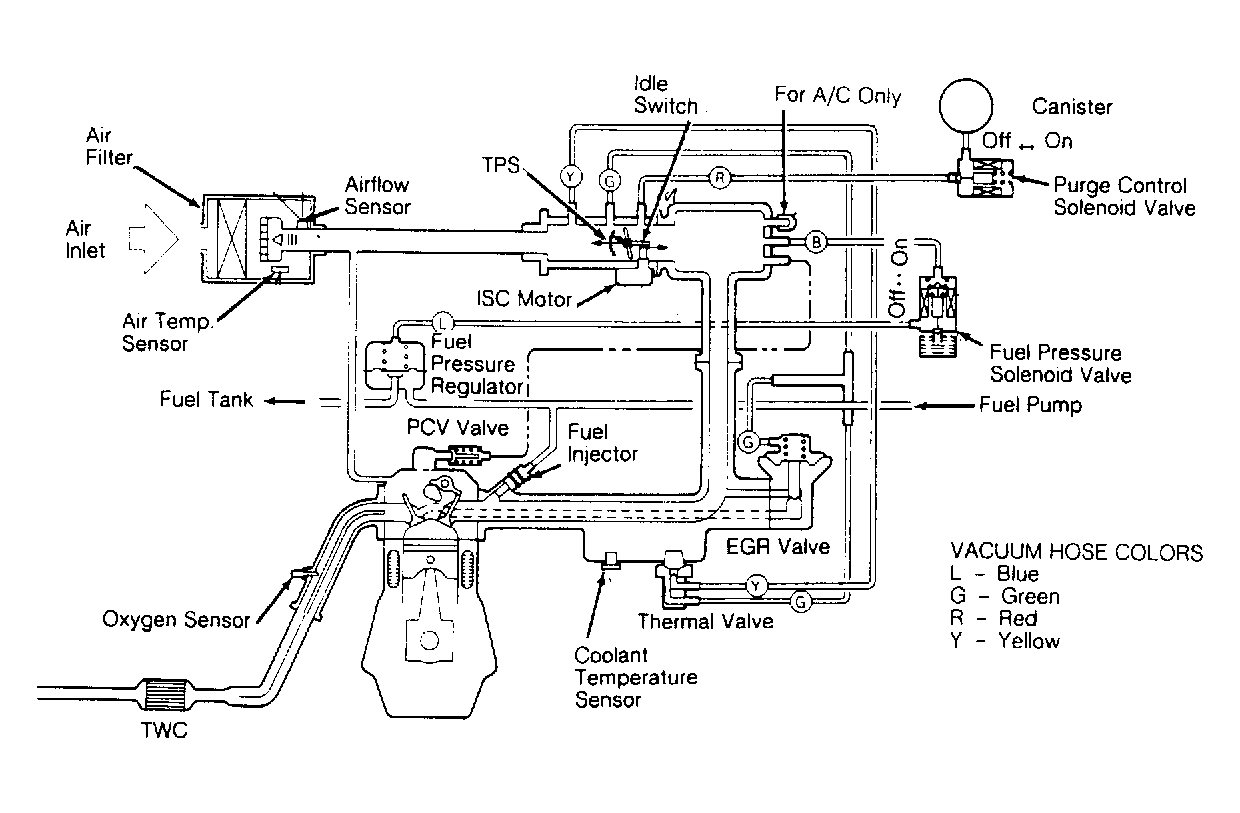

Multi-Point Injection (MPI) is a computerized emission and fuel system which controls fuel, ignition and idle speed. The Electronic Control Unit (ECU), determines at which point each injector supplies fuel. The MPI system controls air/fuel ratio, ignition timing, Idle Speed Control (ISC), fuel pressure and purge control. See Fig 1 .
