DIAGNOSTIC CODE IDENTIFICATION

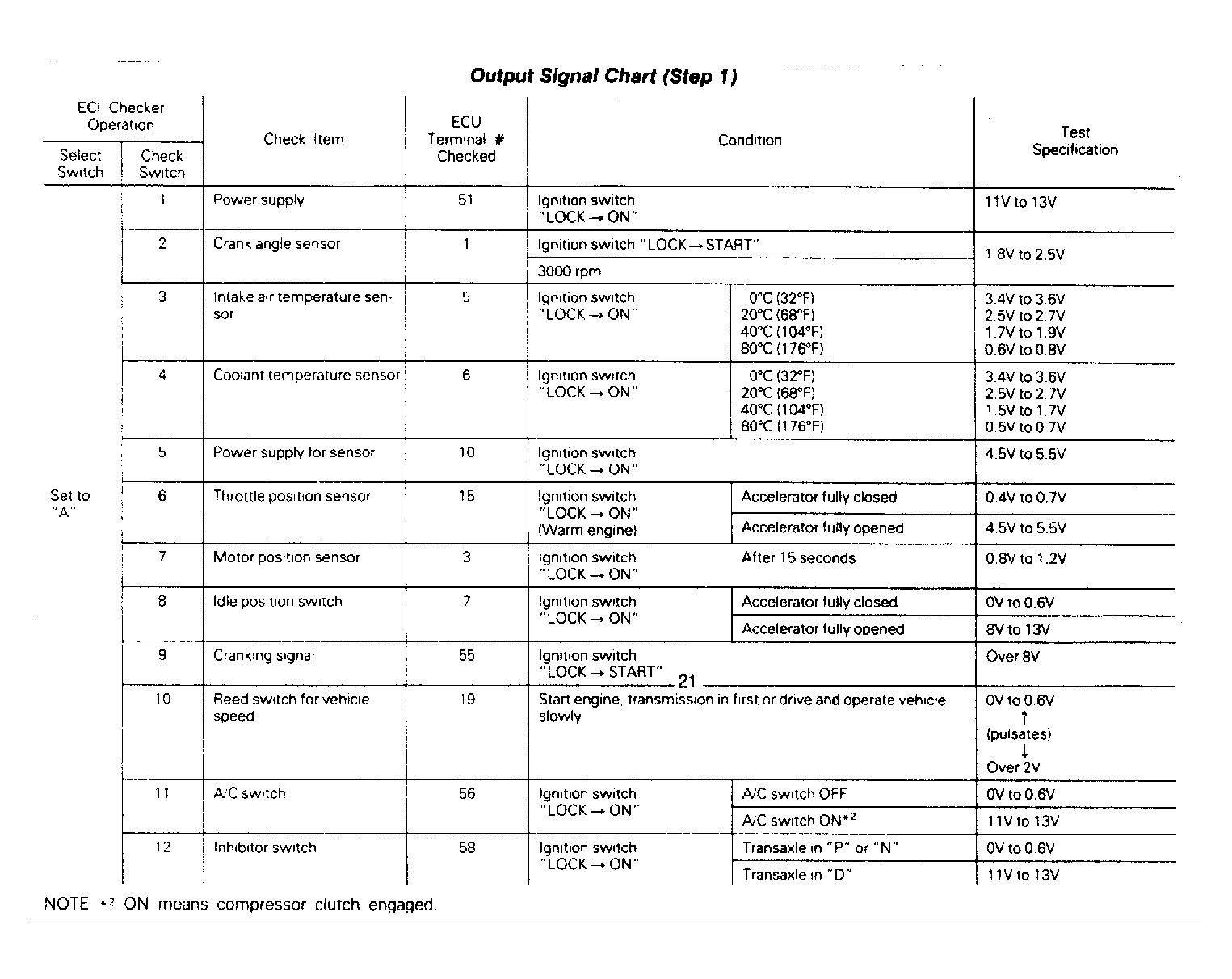

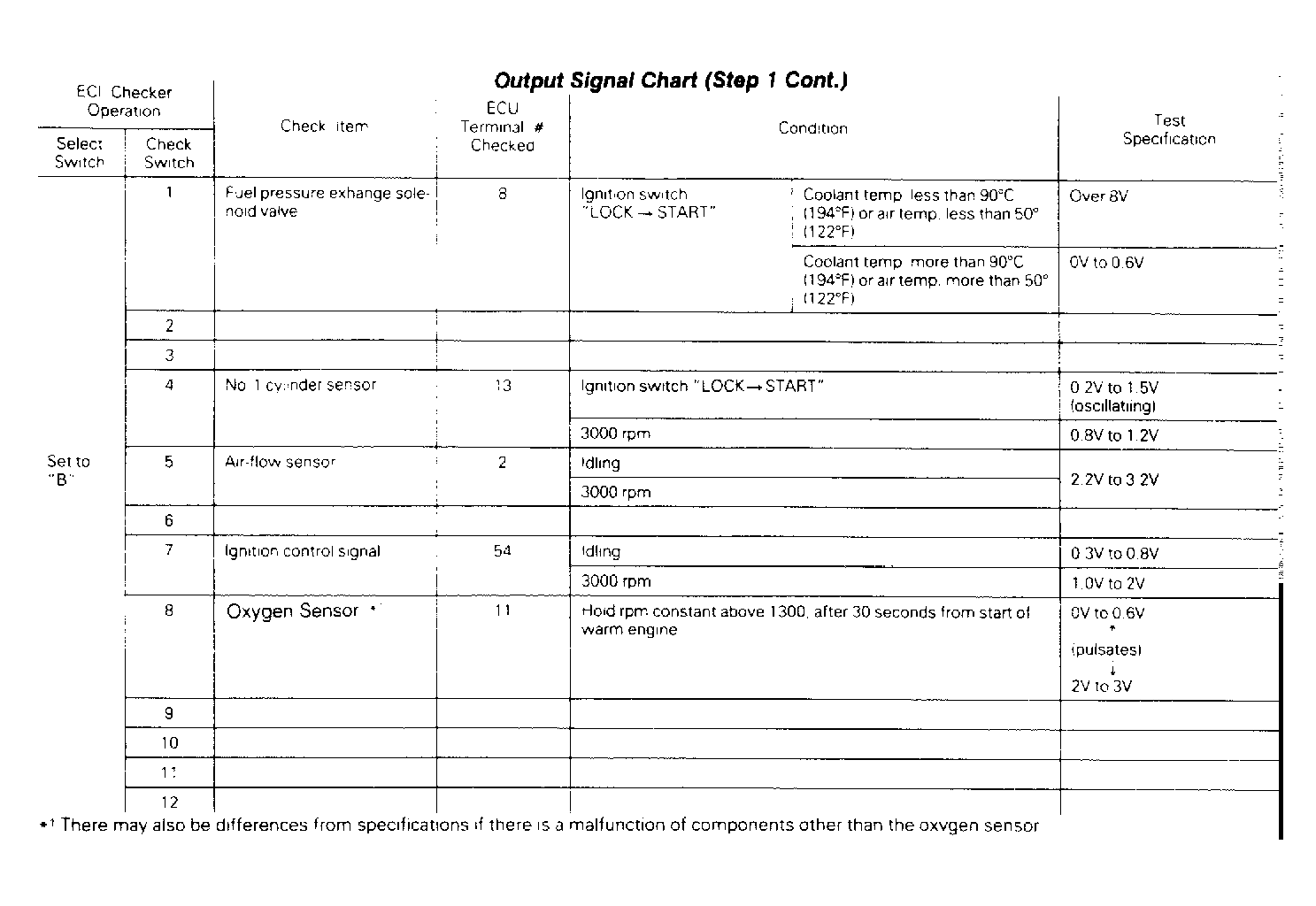

| Code Number | (1) Componet Description | Diagnostic Output Signal Chart | ||
|---|---|---|---|---|
| 1 | Oxygen Sensor | Figure | ||
| 2(1) | Crankshaft Angle Sensor | Figure | ||
| 3 | Airflow Sensor | Figure | ||
| 4(1) | Atmospheric Pressure Sensor | Figure | ||
| 5 | Throttle Position Sensor | Figure | ||
| 6 | Motor Position Sensor | Figure | ||
| 7 | Coolant Temperature Sensor | Figure | ||
| 8(1) | TDC Sensor (No. 1 Cylinder) | Figure | ||
|
||||
