Data Sensors: Notes

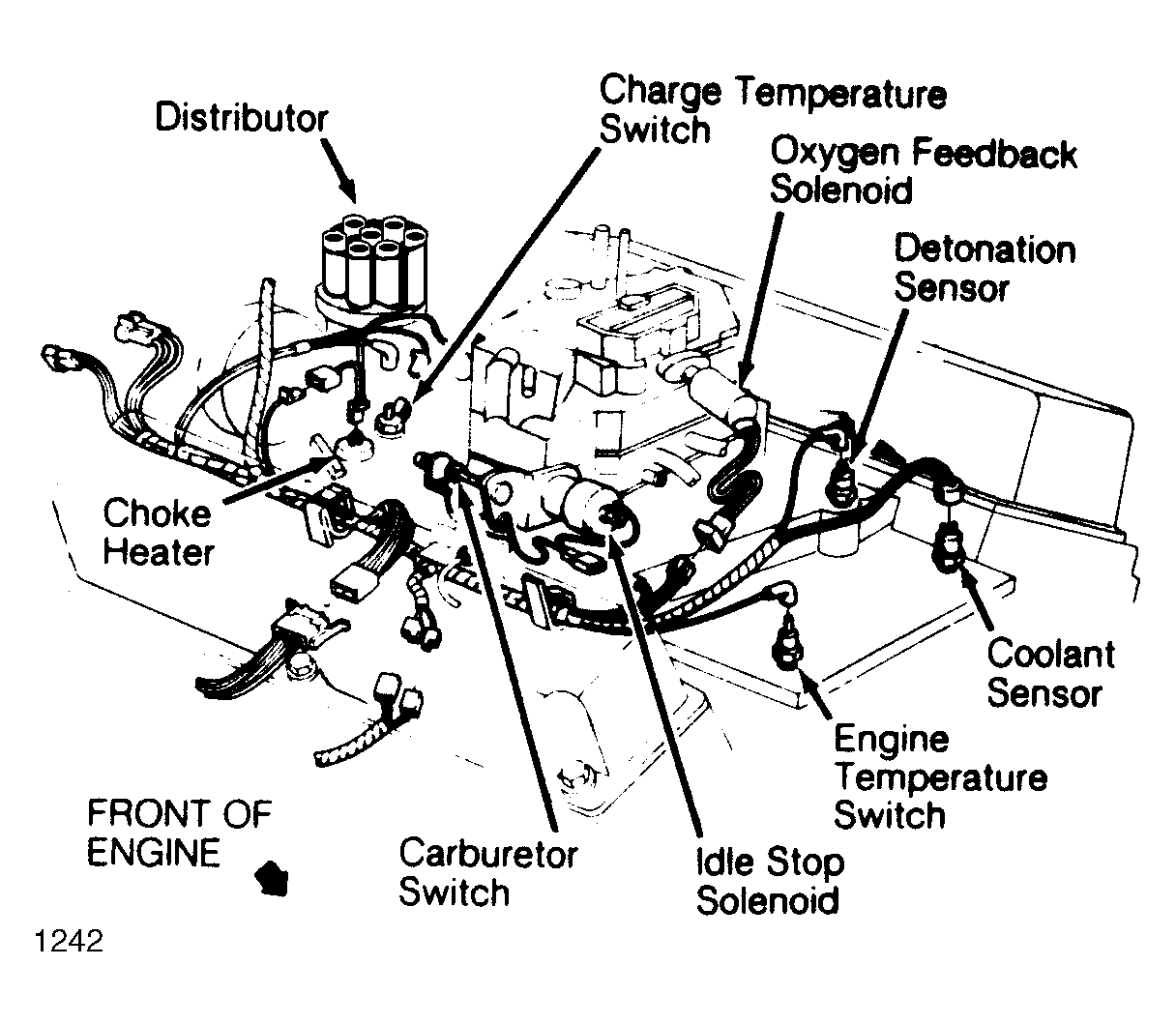

Each sensor furnishes electronic impulses to the SCC. The SCC computes ignition timing and air/fuel mixture ratio necessary to maintain proper engine operation. The function of each sensor is closely related to each of the other sensors. See Fig 1
and Fig 2
for location of the data sensors.
Courtesy of CHRYSLER MOTORS.
Courtesy of CHRYSLER MOTORS.
