Home >> Plymouth >> 1989 >> Horizon Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 2.2L/2.5L SPFI Tests/Code >> Charging System Tests >> Ch-3, Checking For Fault Code 46

Ch-3, Checking For Fault Code 46

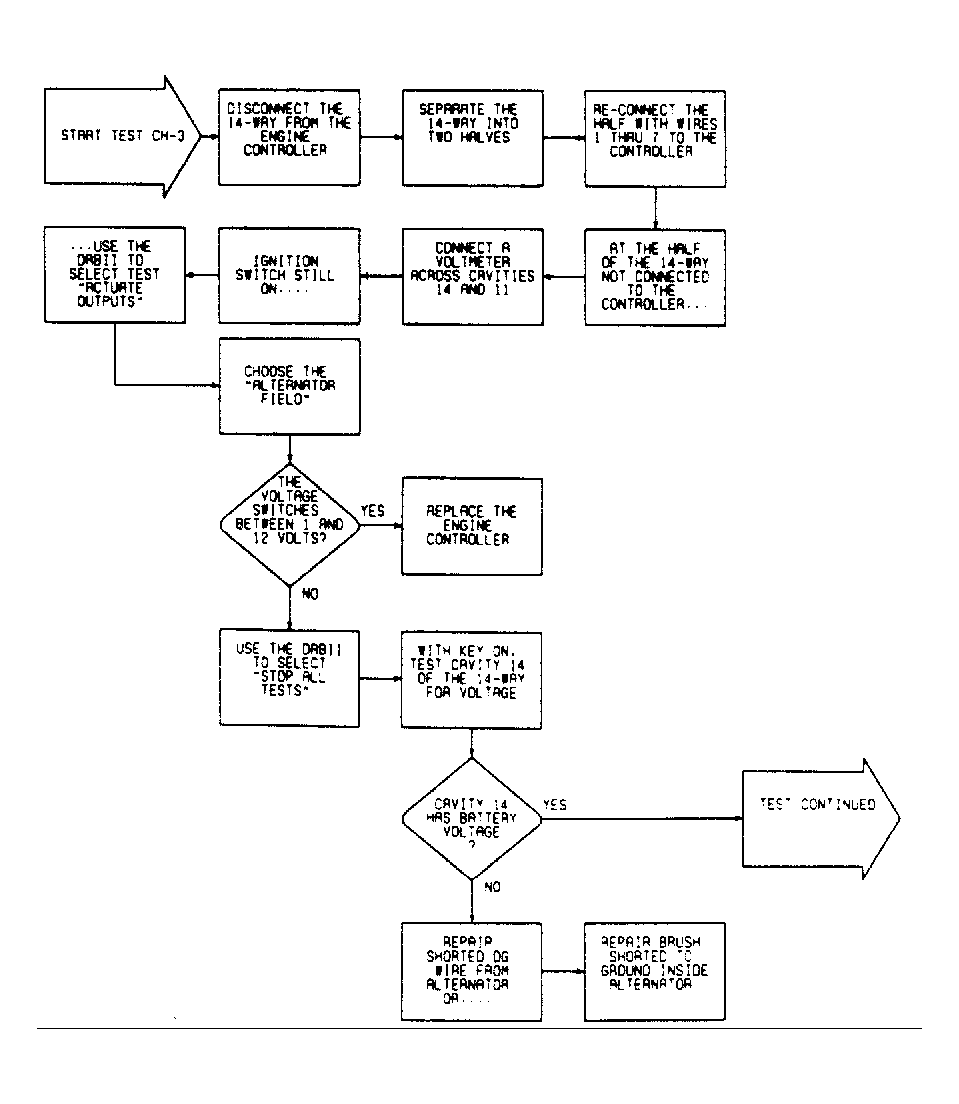

Fig 1: CH-3, Checking For Fault Code 46 (1 of 2)

G107309

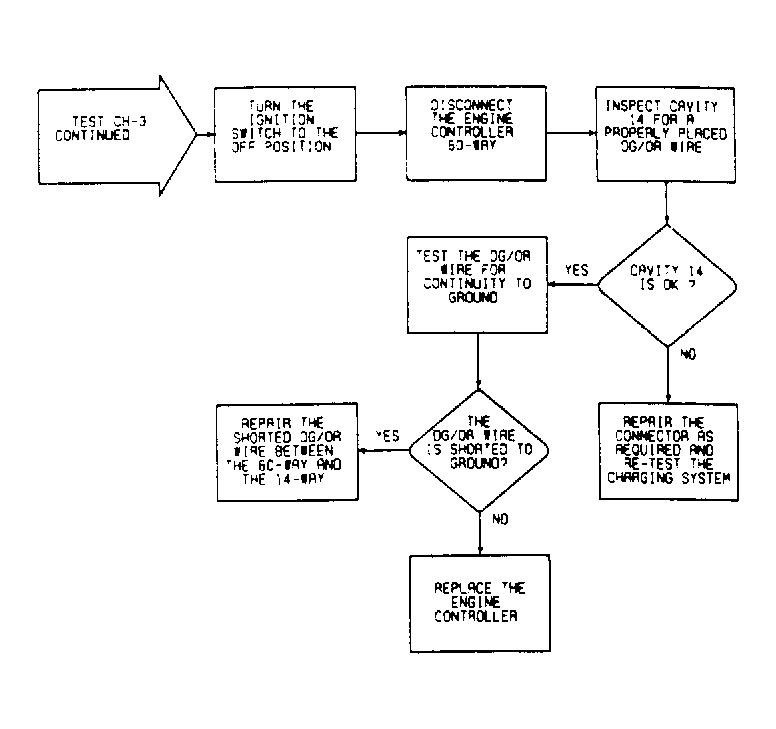

Fig 2: CH-3, Checking For Fault Code 46 (2 of 2)

G107310
