Ch-4, Checking For Fault Code 47

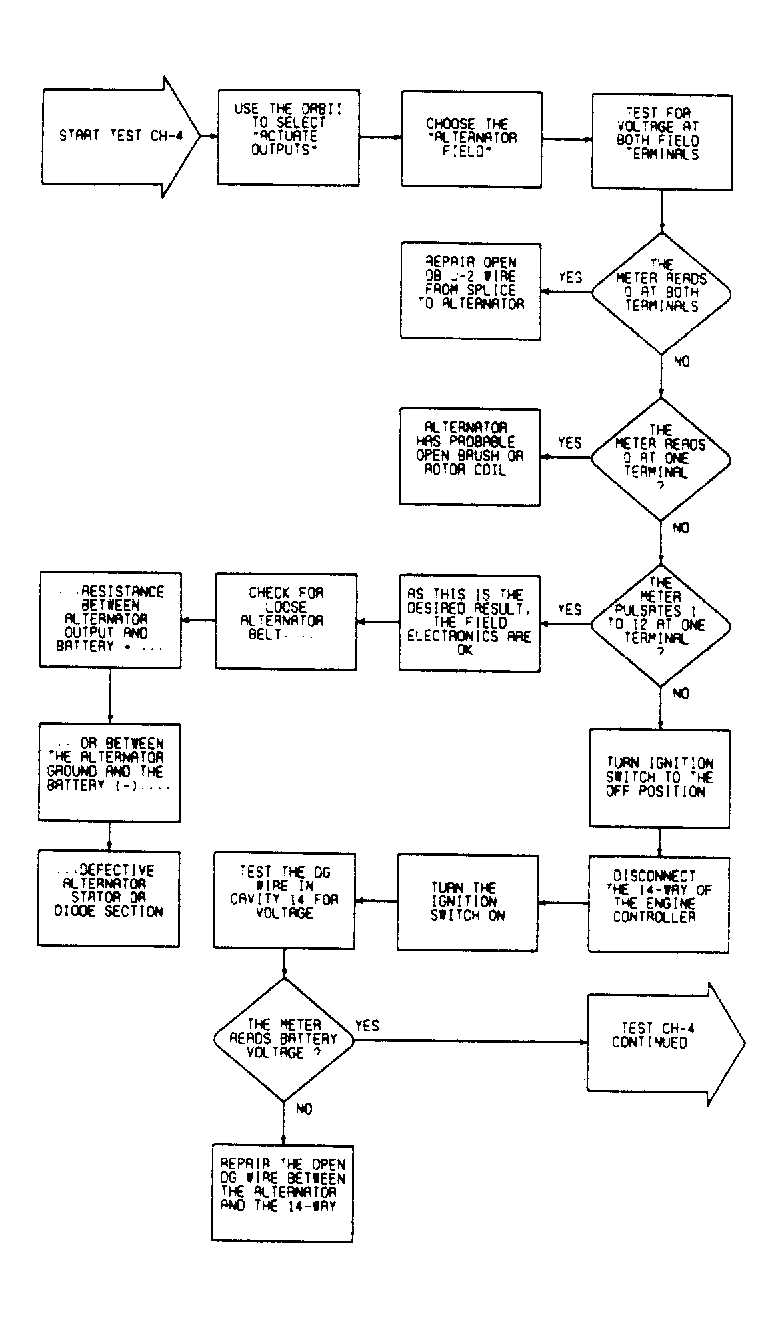

Fig 1: CH-4, Checking For Fault Code 47 (1 of 4)
G107311

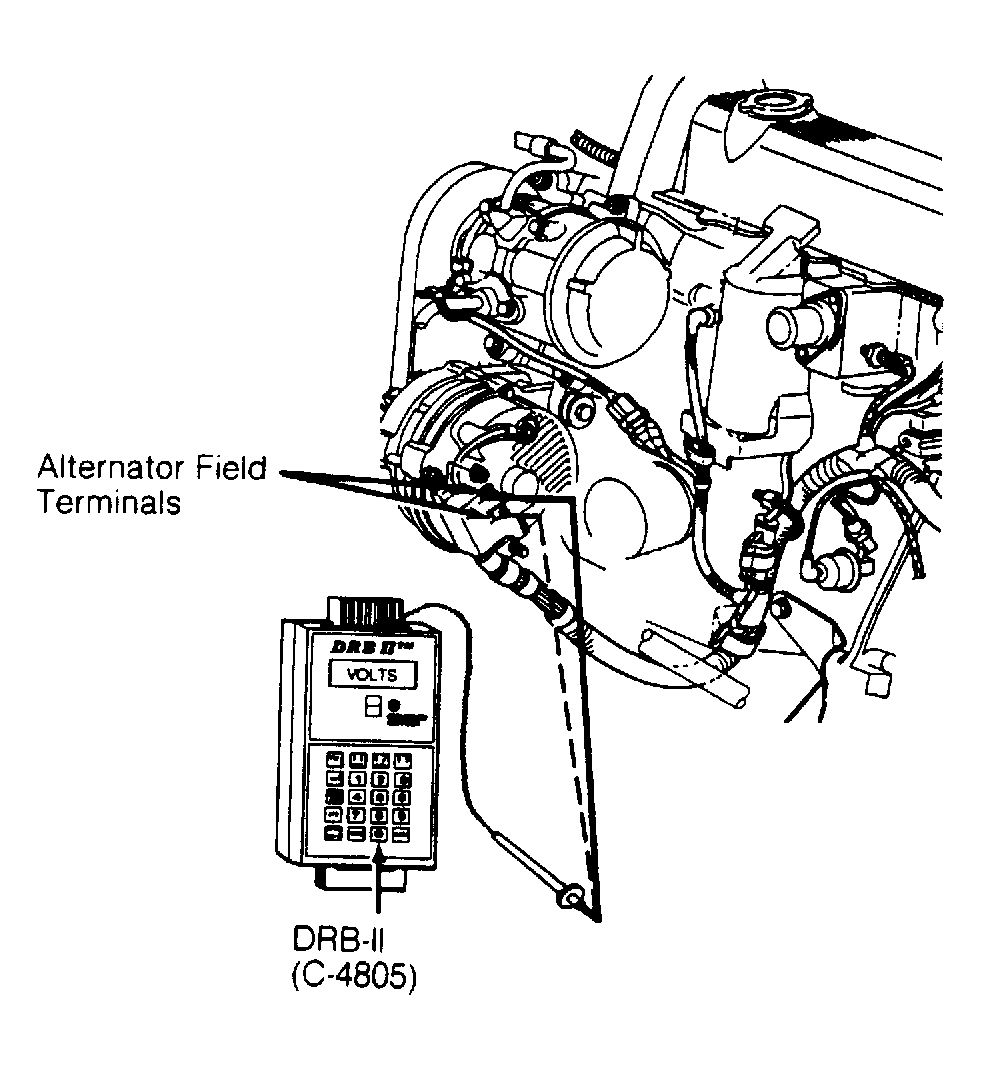

Fig 2: CH-4, Checking For Fault Code 47 (2 of 4)
G107312

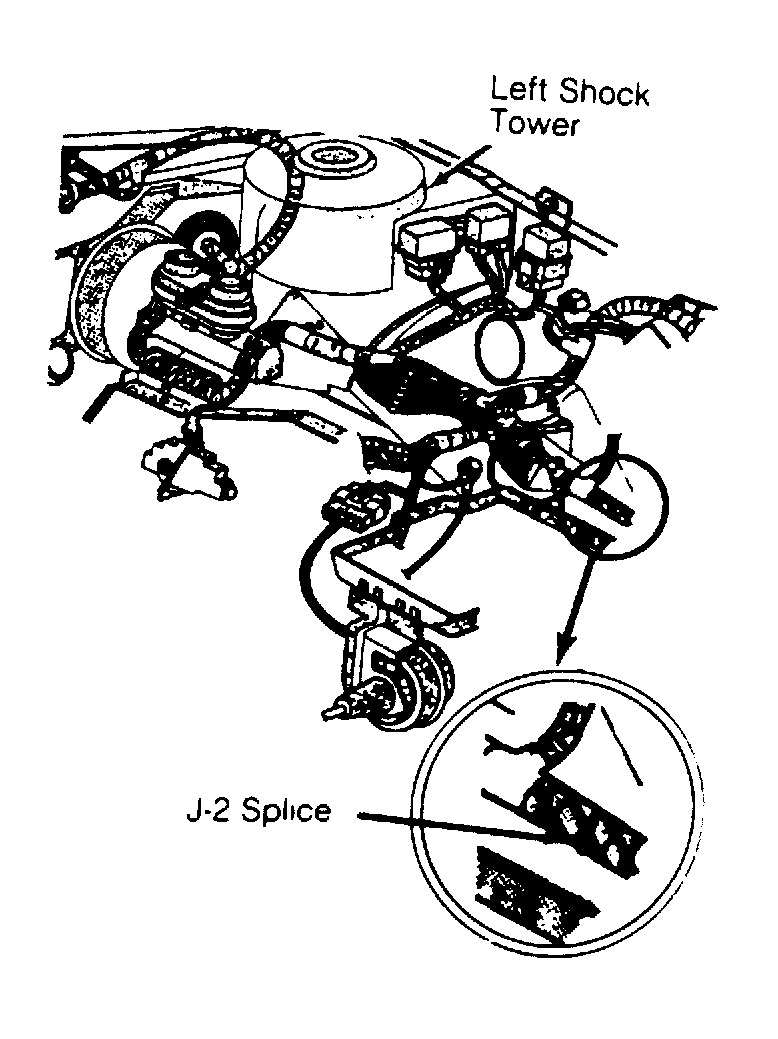

Fig 3: CH-4, Checking For Fault Code 47 (3 of 4)
G107313

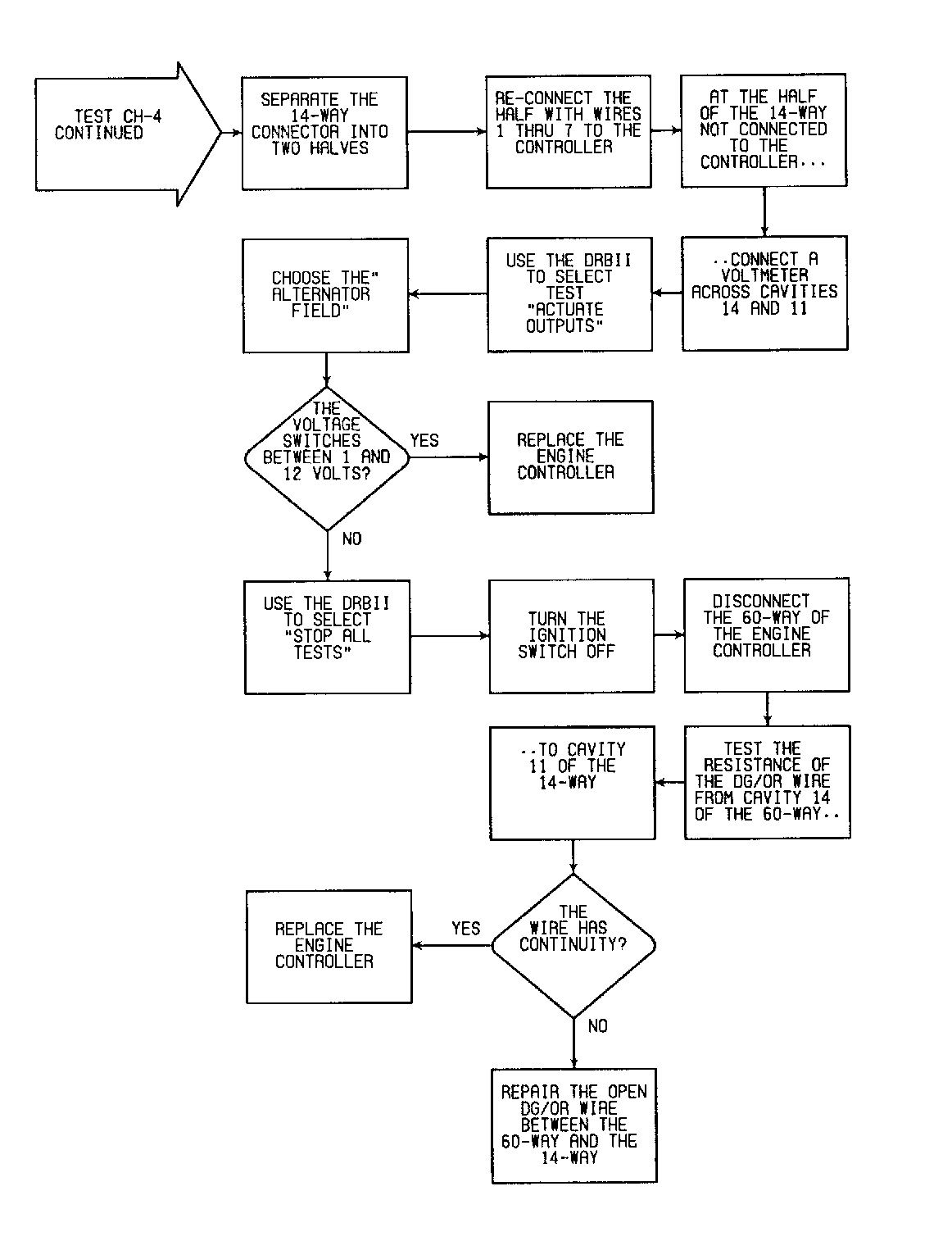

Fig 4: CH-4, Checking For Fault Code 47 (4 of 4)
G107314
