SP-4, Testing Brake Switch Circuit

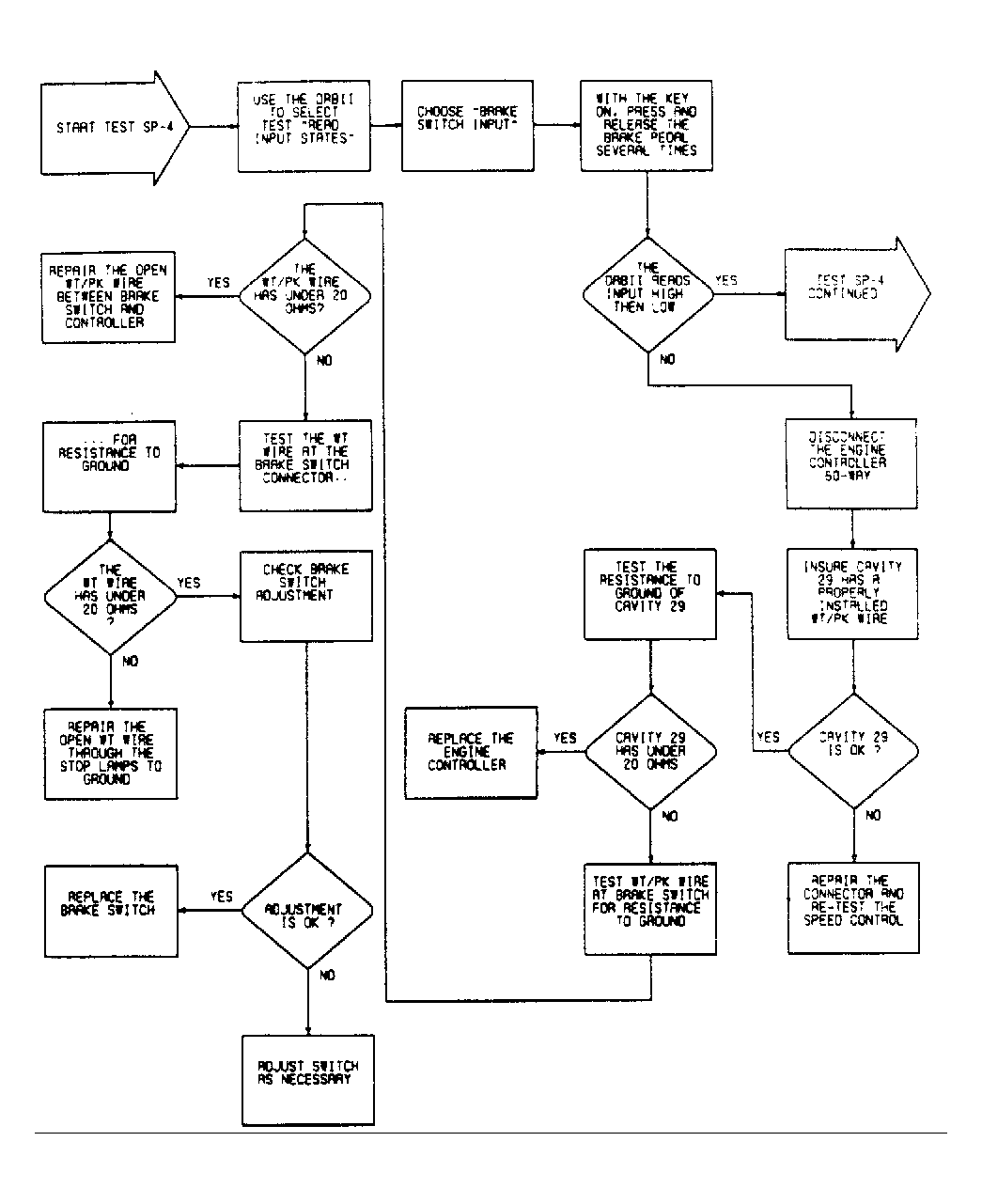

Fig 1: SP-4, Testing Brake Switch Circuit (1 of 4)
G107299
Fig 2: SP-4, Testing Brake Switch Circuit (2 of 4)
G107300

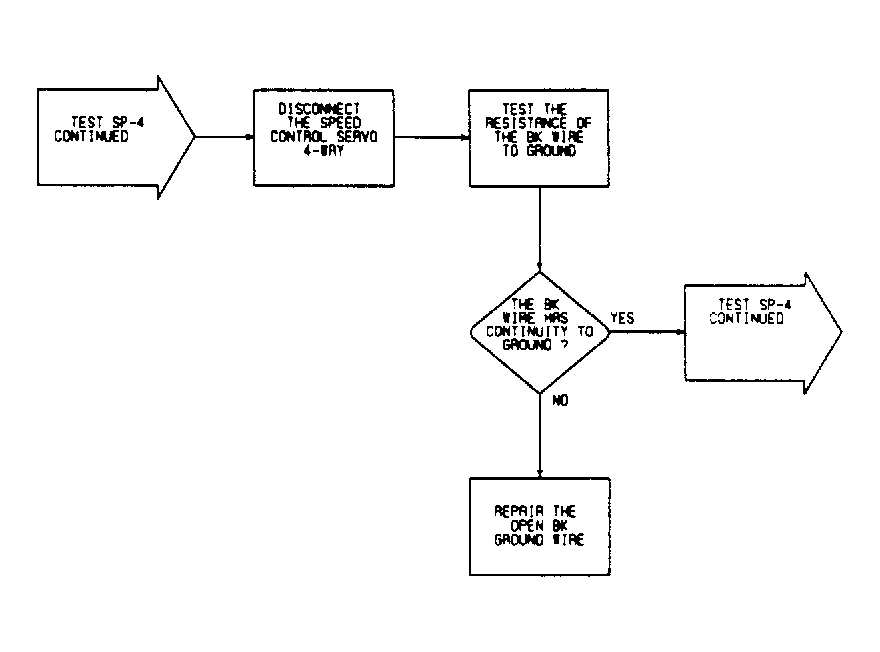

Fig 3: SP-4, Testing Brake Switch Circuit (3 of 4)
G107301
Fig 4: SP-4, Testing Brake Switch Circuit (4 of 4)
G107302
