Engine Cooling Fan
>>
Wire Color Codes
Wire Color Codes
WIRE COLOR CODES
Wire Color
Code
Black
B
Brown
BR
Green
G
Gray
GR
Blue
L
Light Blue
LI
Light Green
LG
Orange
O
Pink
P
Red
R
Sky Blue
SB
Violet
V
White
W
Yellow
Y

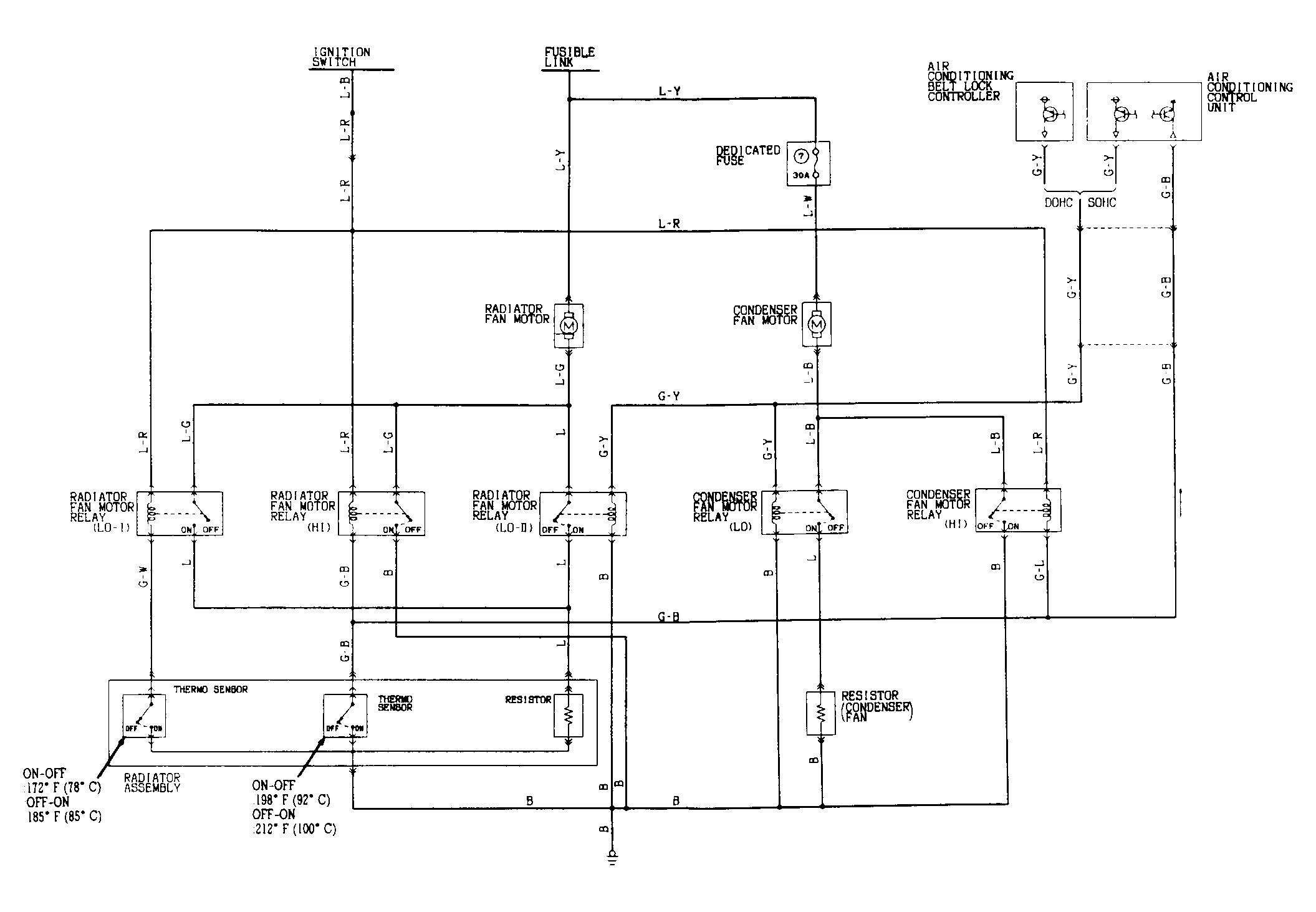

Fig 1: Radiator Cooling Fan Wiring Diagram (Colt/Colt 200, Summit)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

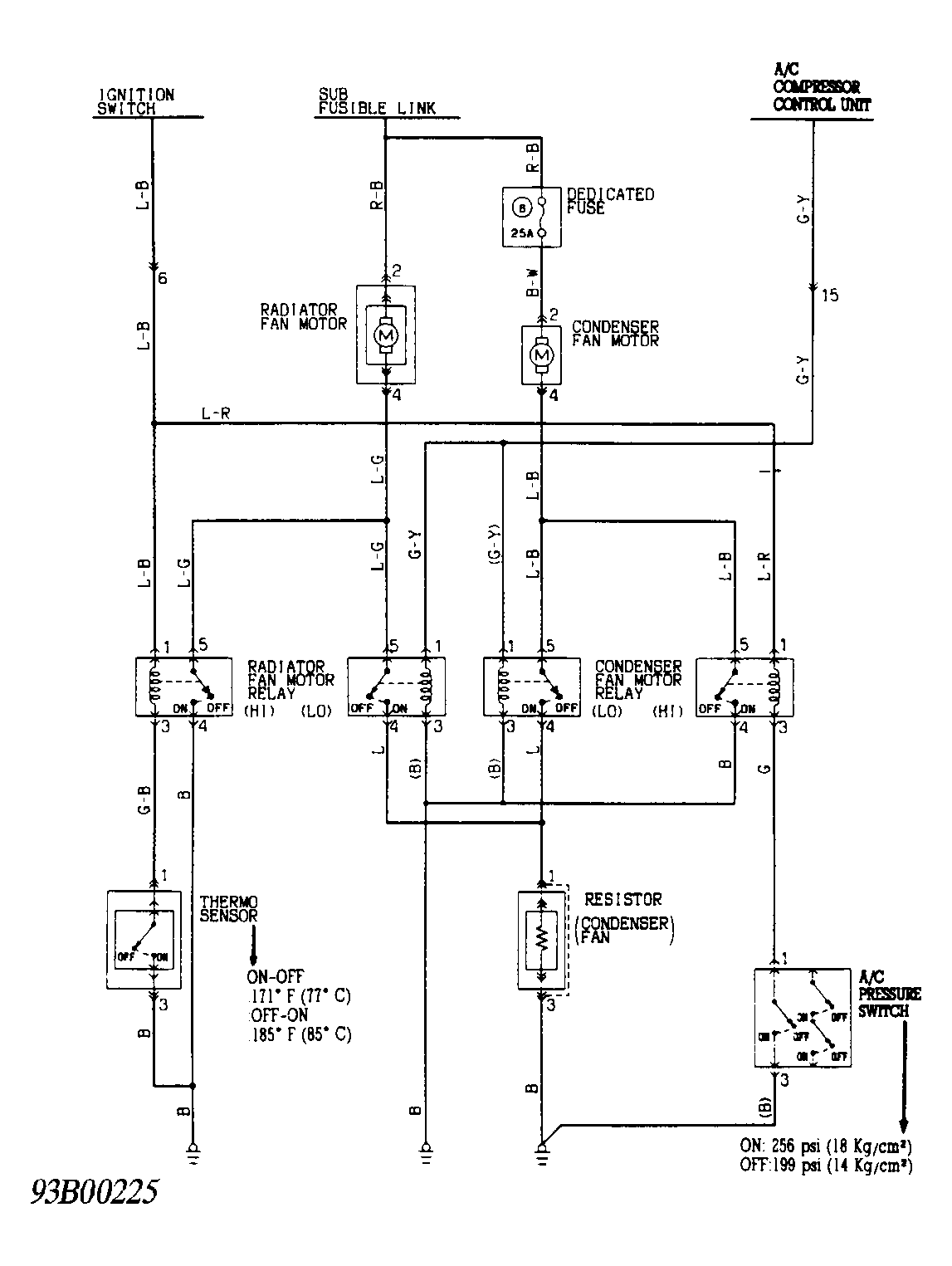

Fig 2: Radiator Cooling Fan Wiring Diagram (Diamante)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

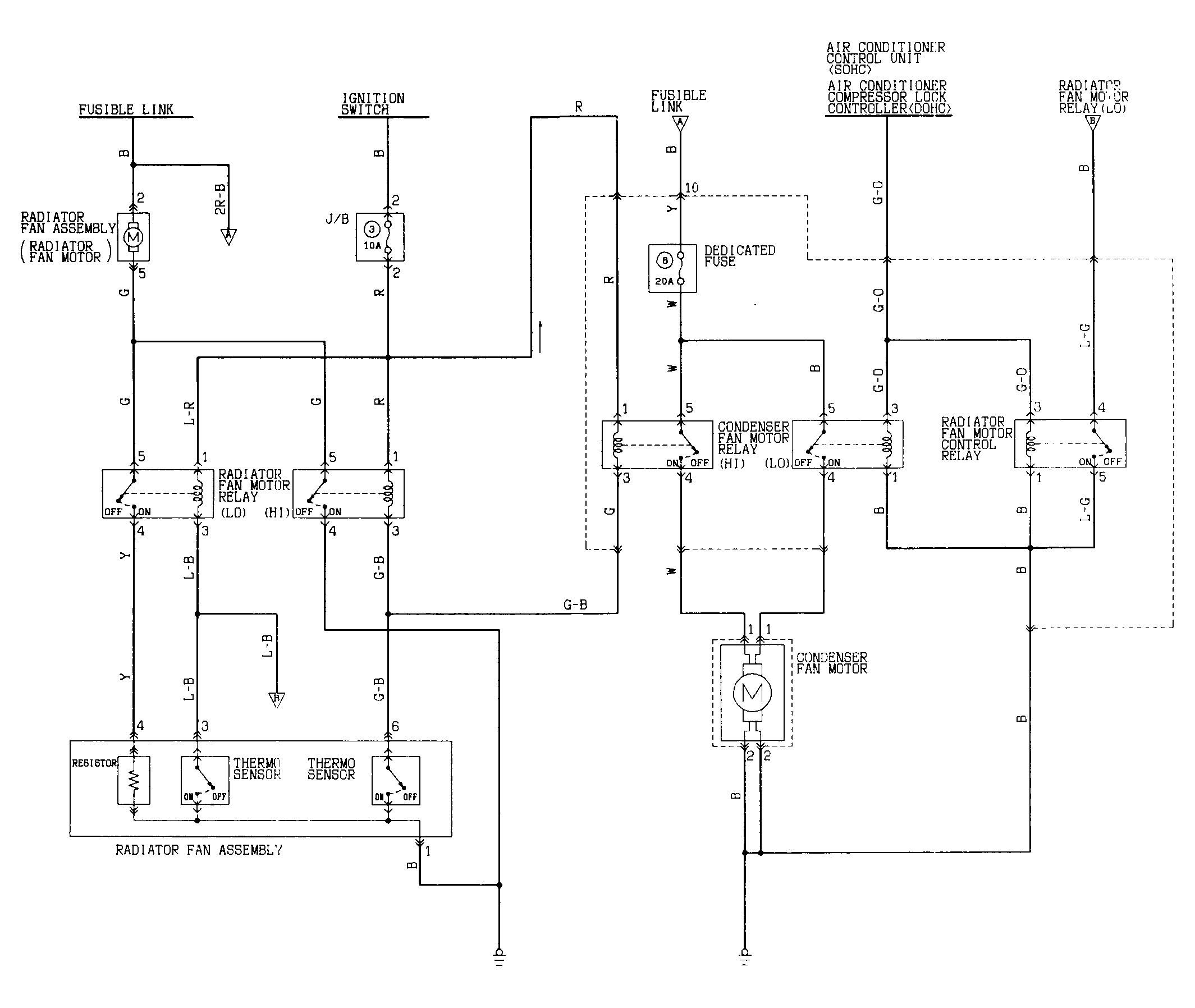

Fig 3: Radiator Cooling Fan Wiring Diagram (Colt Vista & Summit Wagon)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

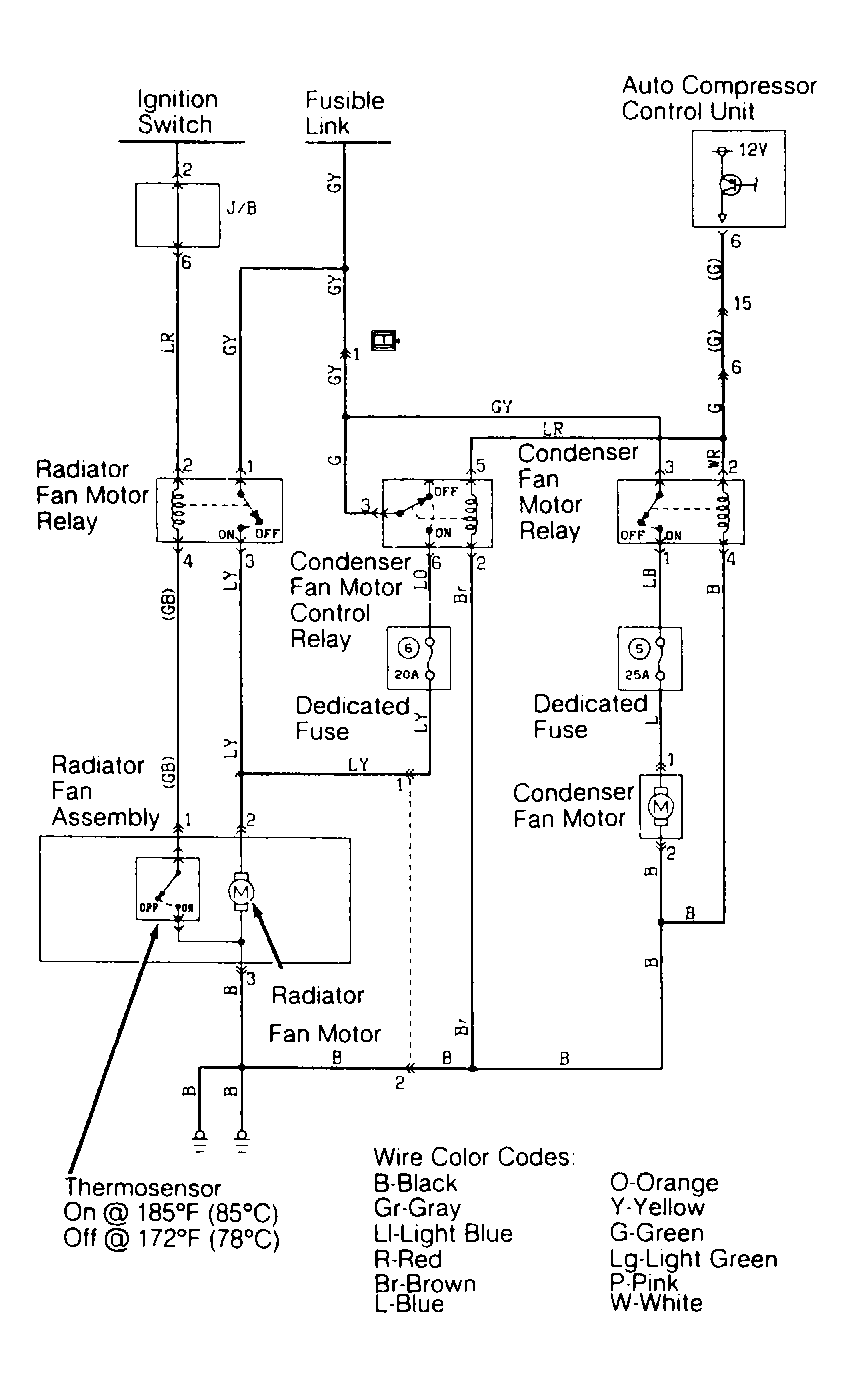

Fig 4: Radiator Cooling Fan Wiring Diagram (Stealth)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
