Dr-15: No Fault Code Testing

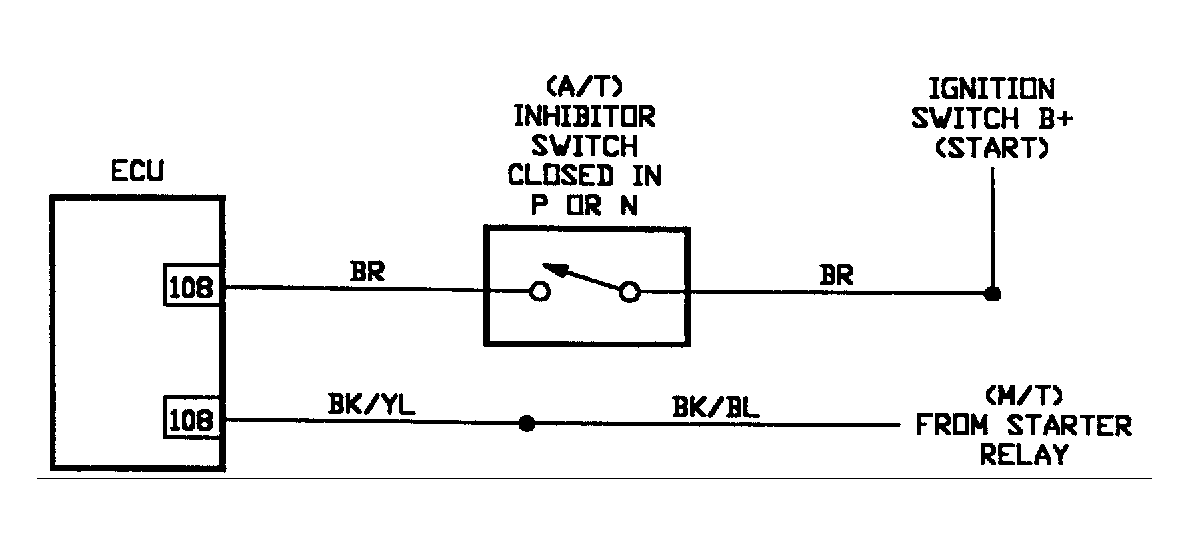

Fig 1: DR-15 Test Schematic (1 Of 2) No Fault Code Testing
G90J15387

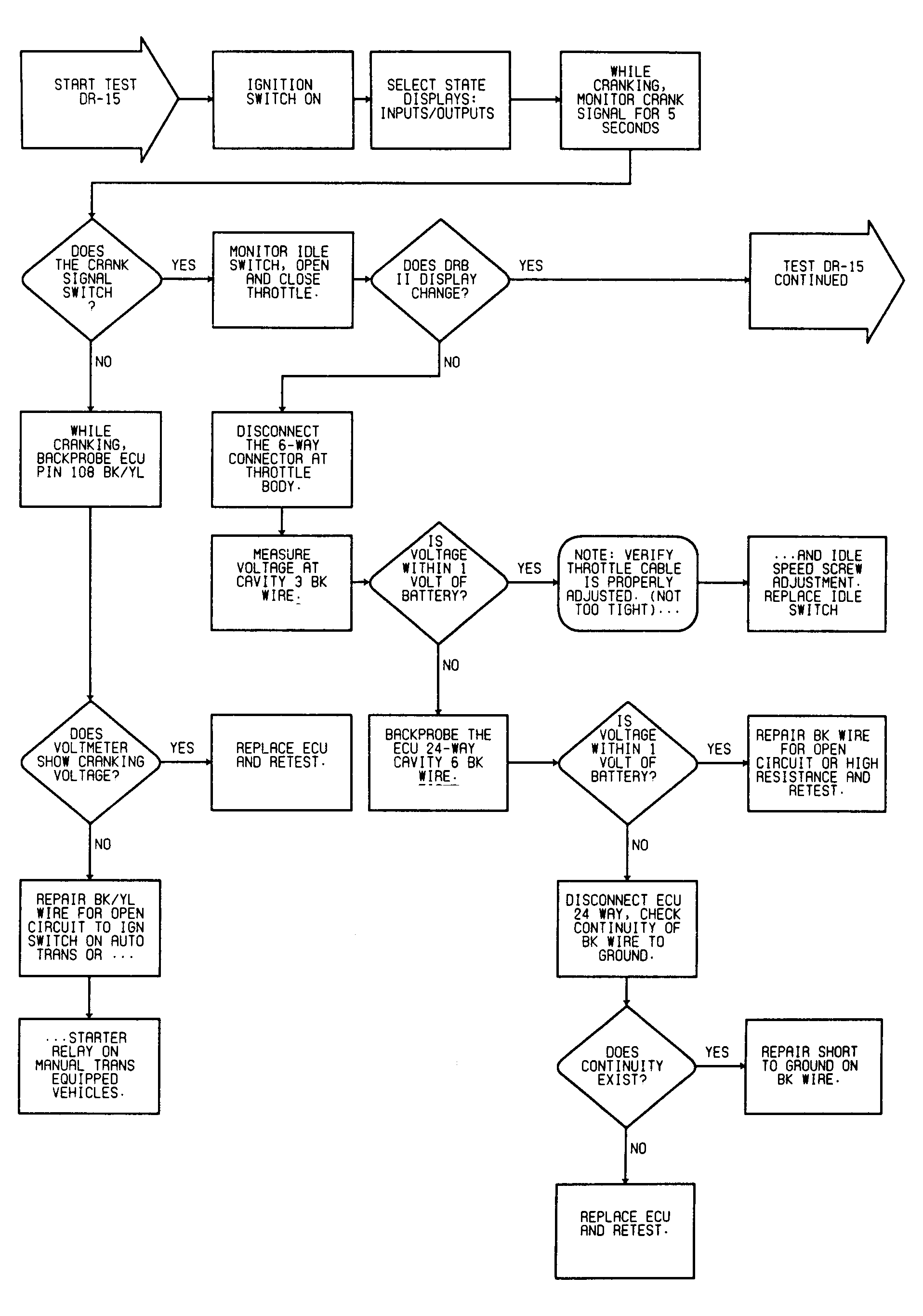

Fig 2: DR-15 Test Flow Chart (1 Of 2) No Fault Code Testing
G91G17257

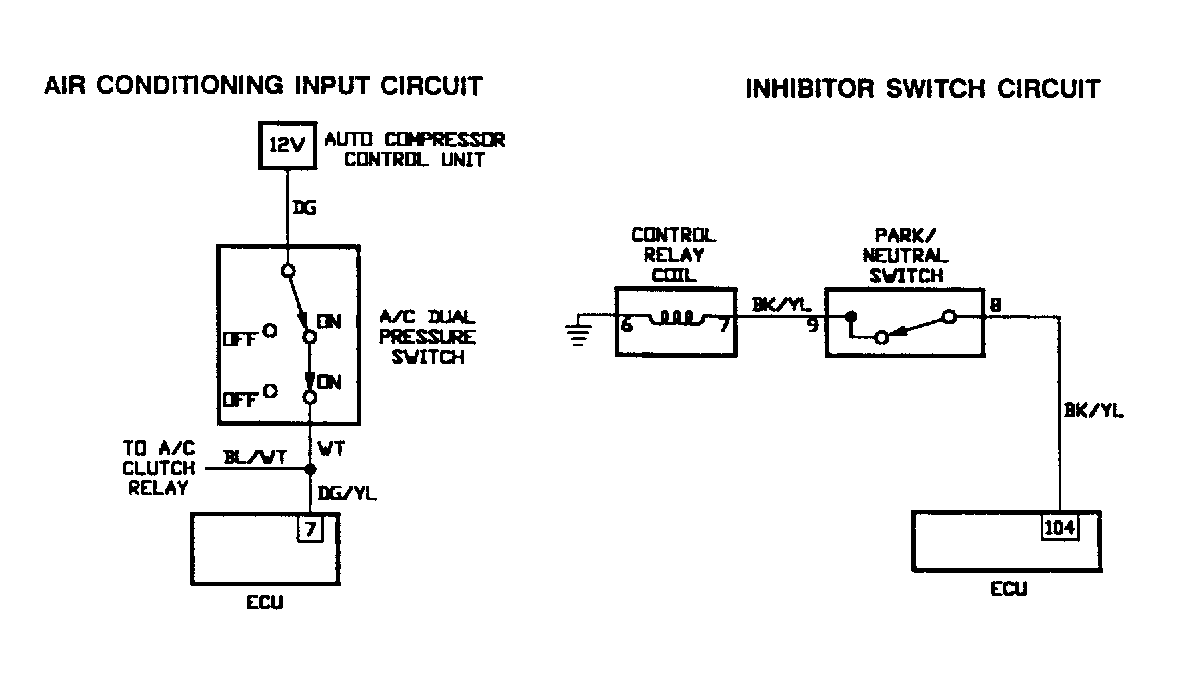

Fig 3: DR-15 Test Schematic (2 Of 2) No Fault Code Testing
G90A15388

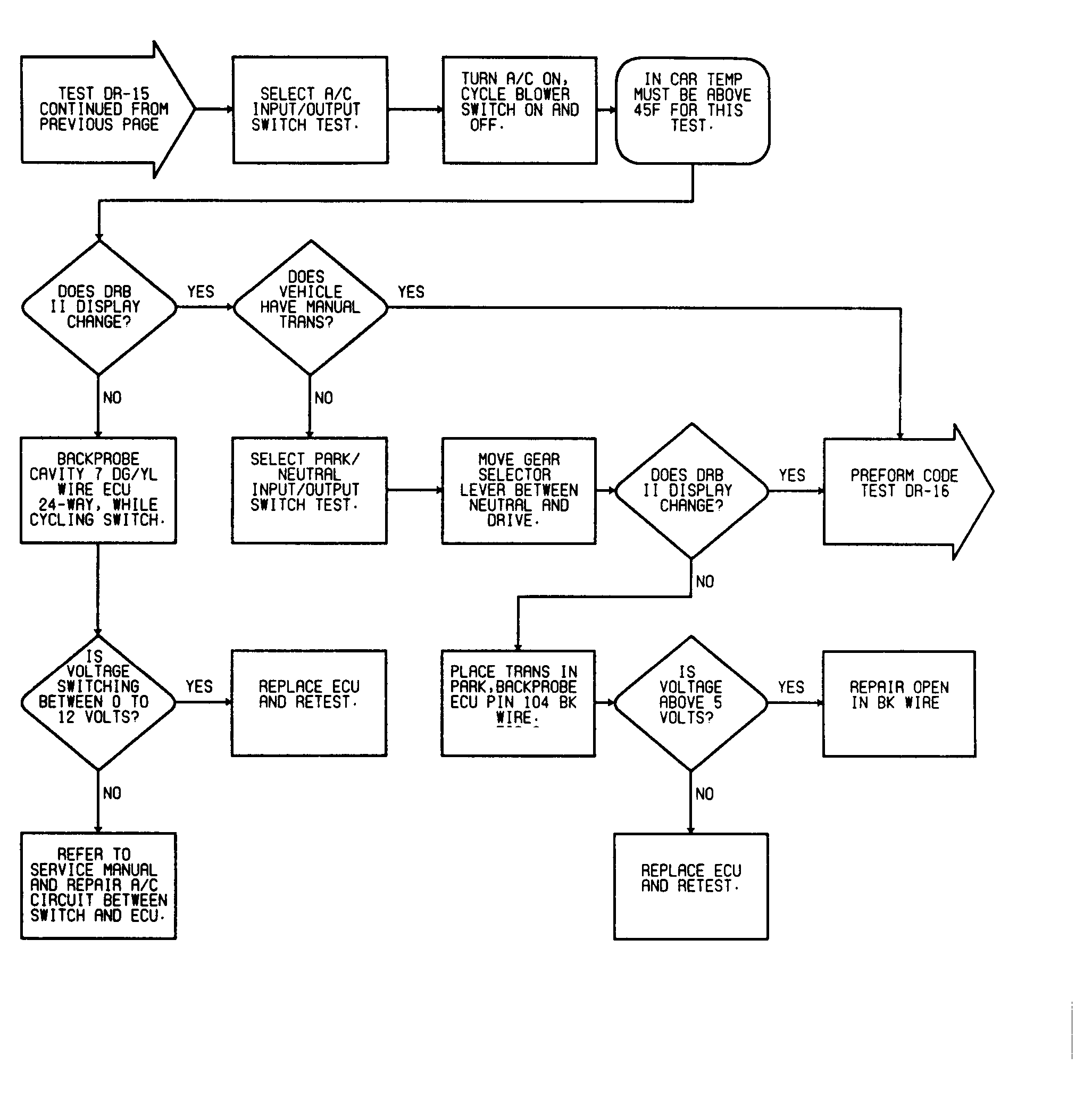

Fig 4: DR-15 Test Flow Chart (2 Of 2) No Fault Code Testing
G91H17258
