Dr-3: Testing Airflow Sensor Circuit

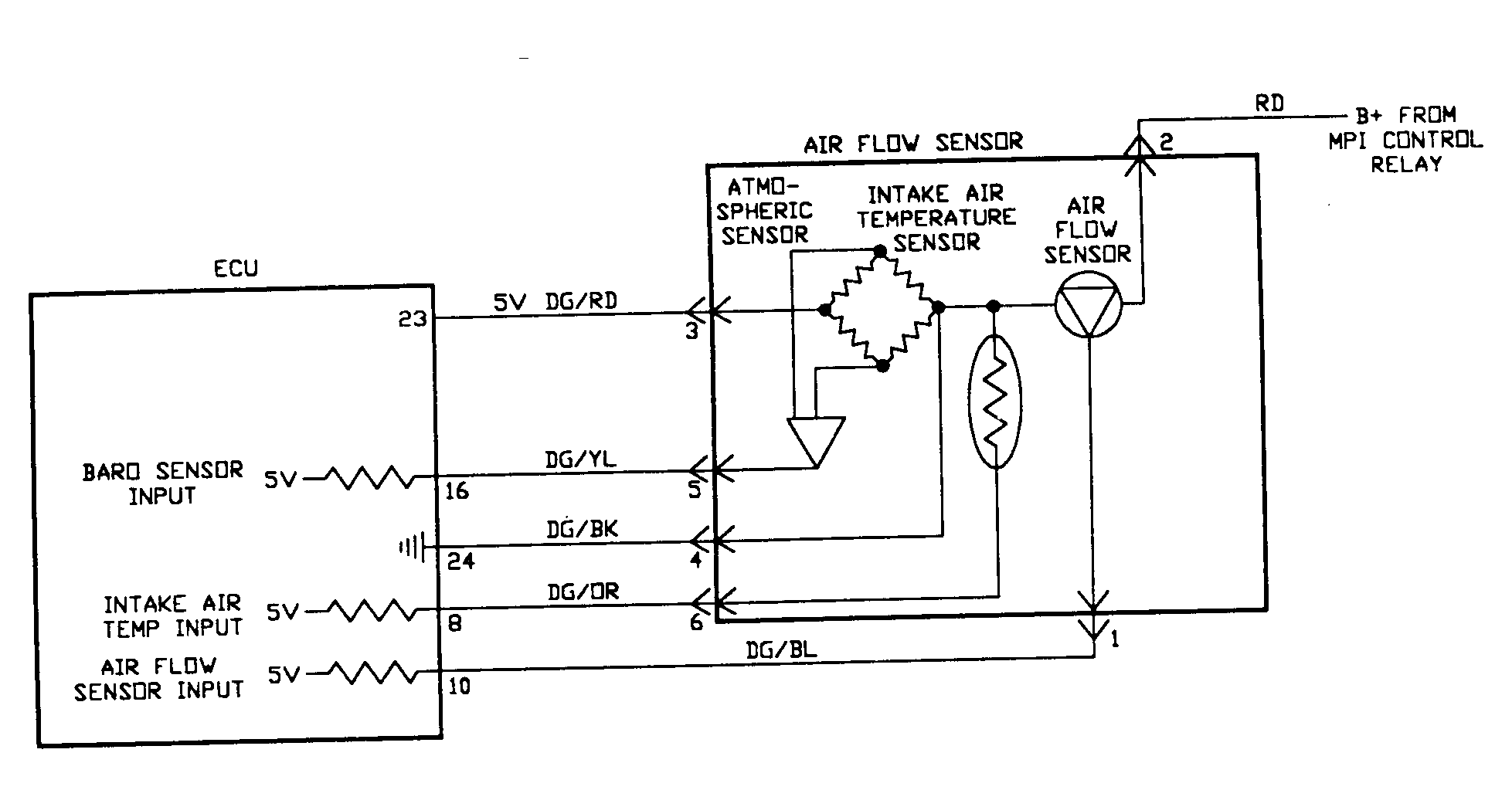

Fig 1: DR-3 Test Schematic Testing Airflow Sensor Circuit

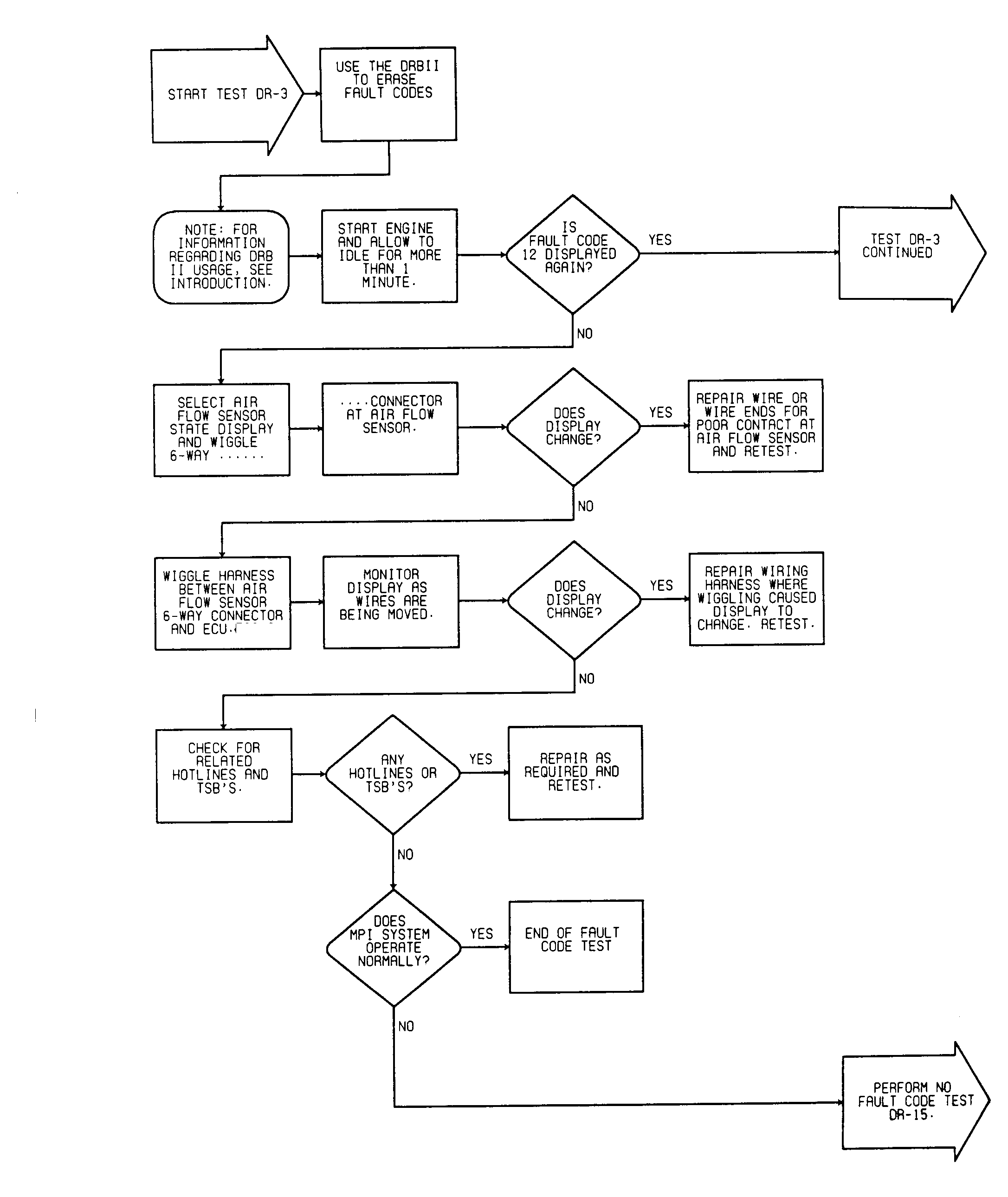

Fig 2: DR-3 Test Flow Chart (1 Of 3) Testing Airflow Sensor Circuit

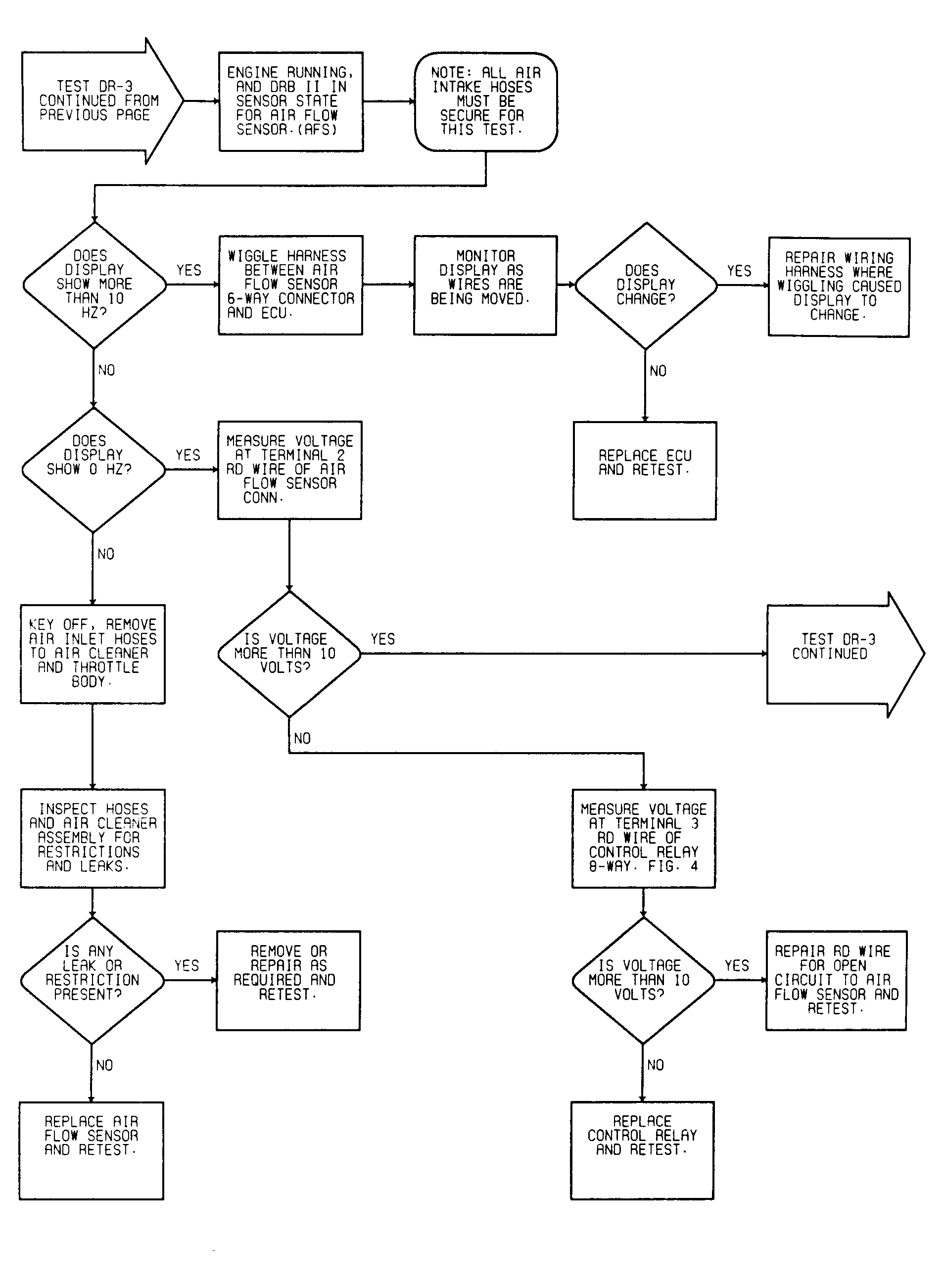

Fig 3: DR-3 Test Flow Chart (2 Of 3) Testing Airflow Sensor Circuit

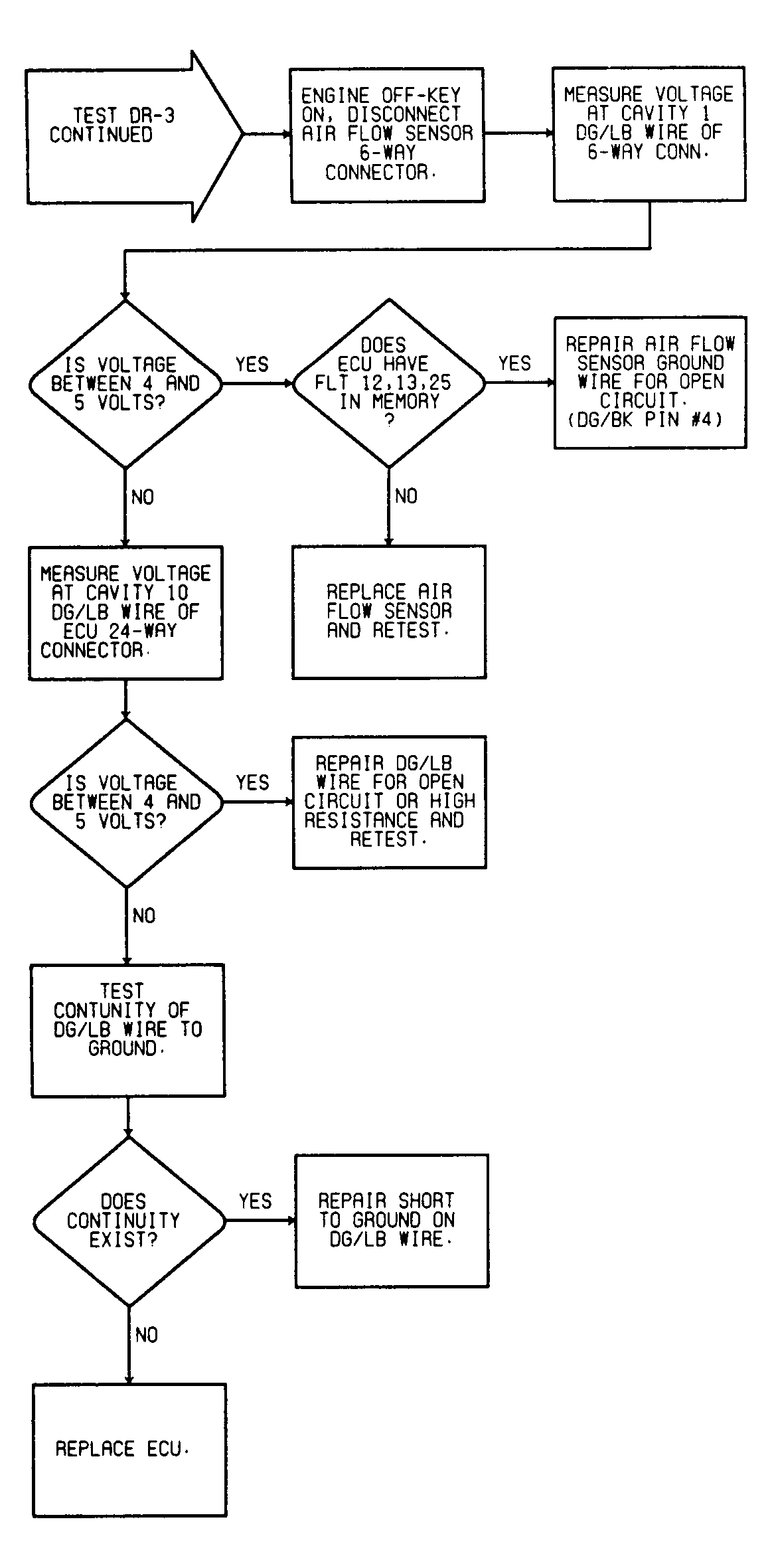

Fig 4: DR-3 Test Flow Chart (3 Of 3) Testing Airflow Sensor Circuit
