Dr-5: Testing Throttle Position Sensor Circuit

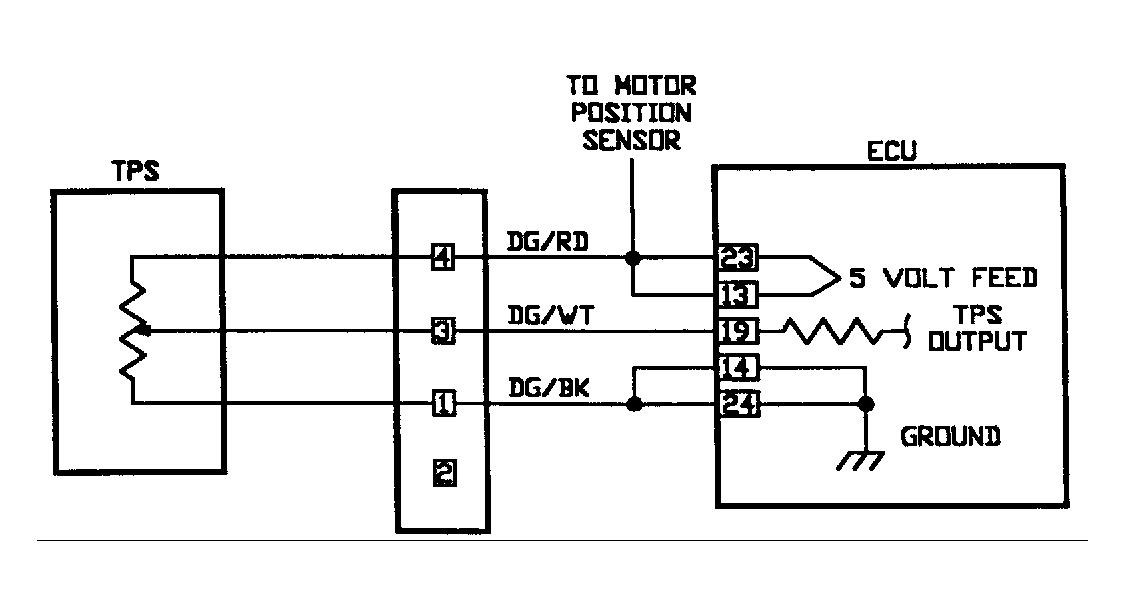

Fig 1: DR-5 Test Schematic Testing Throttle Position Sensor Circuit

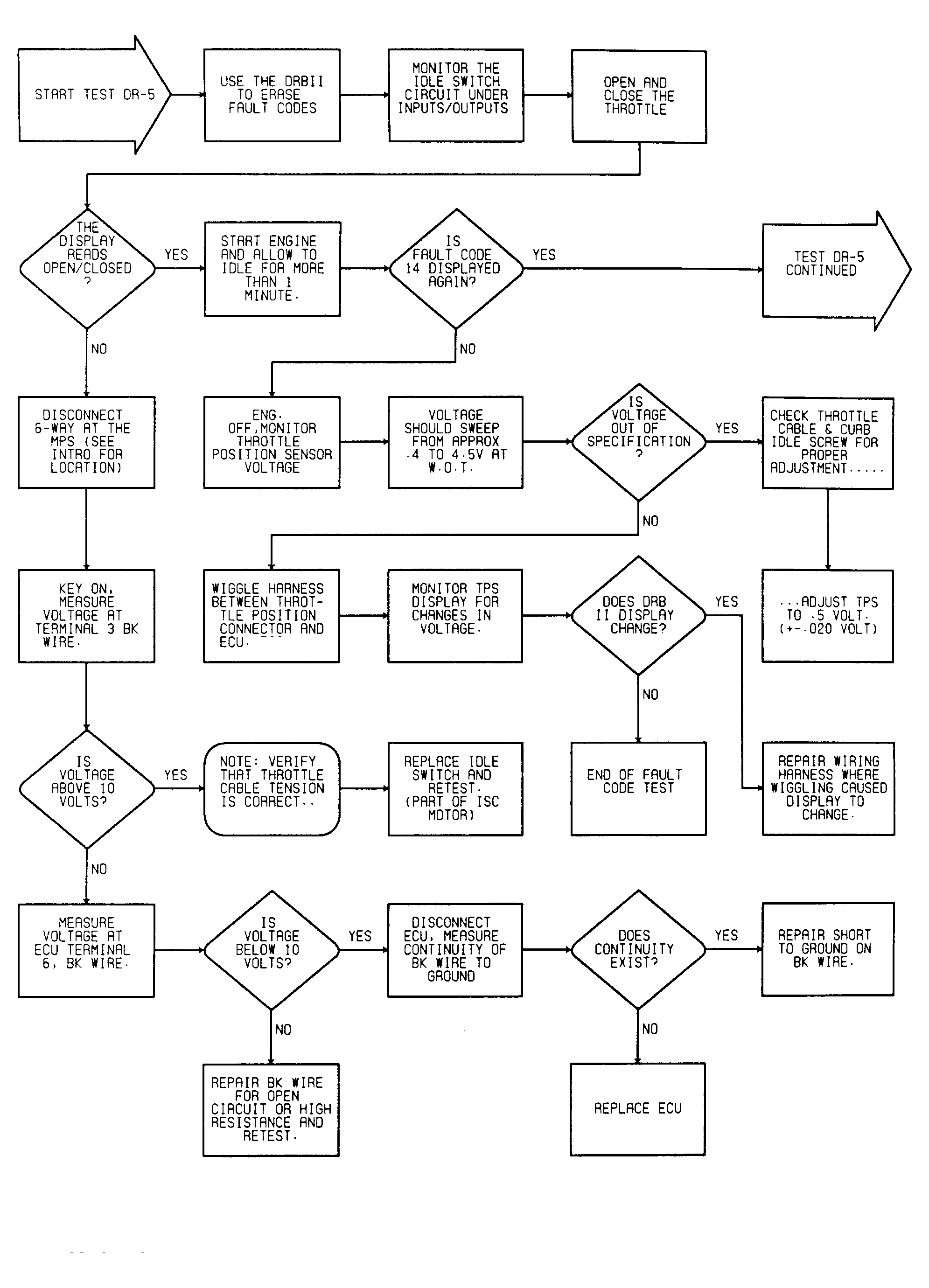

Fig 2: DR-5 Test Flow Chart (1 Of 2) Testing Throttle Position Sensor Circuit

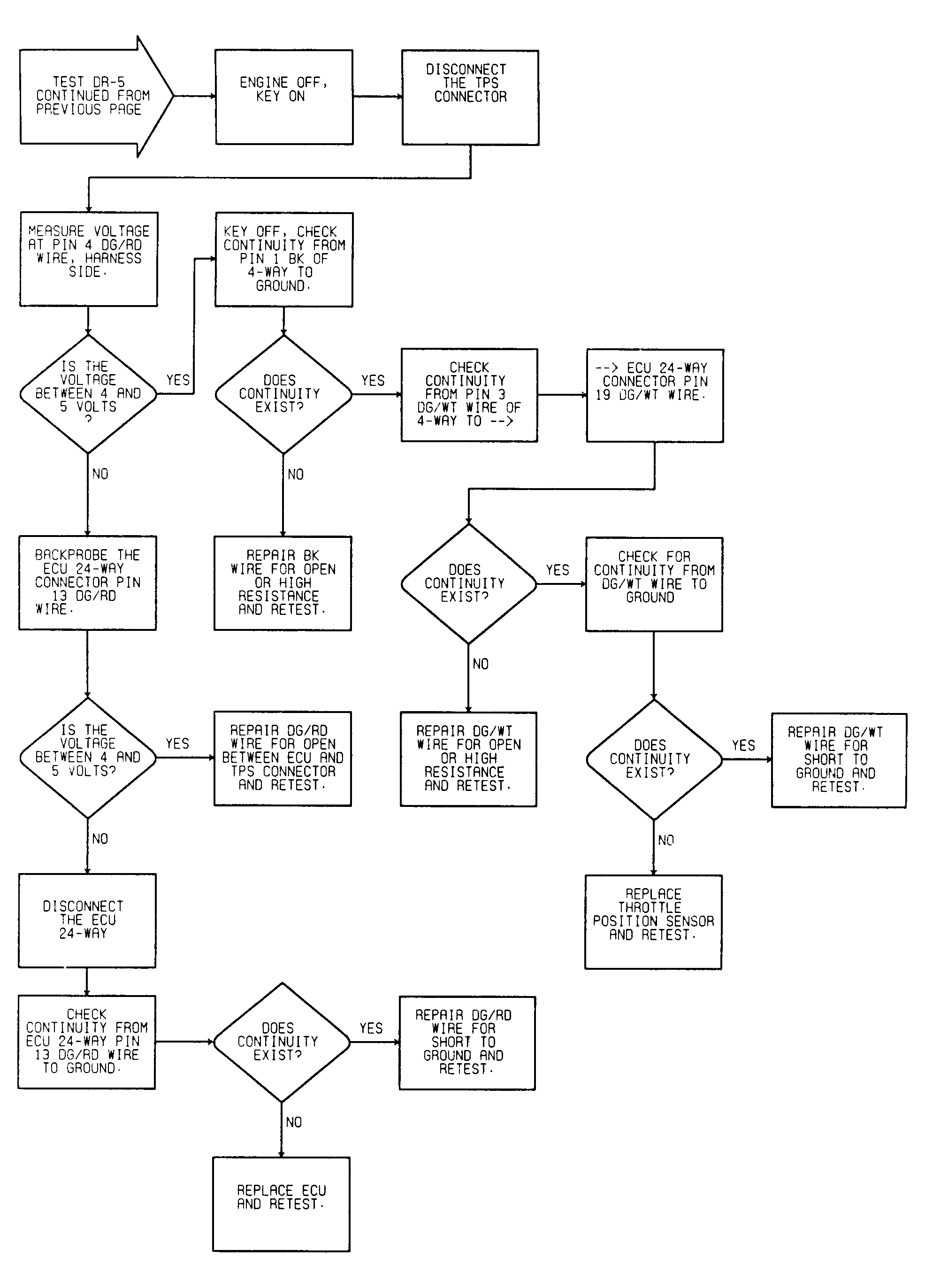

Fig 3: DR-5 Test Flow Chart (2 Of 2) Testing Throttle Position Sensor Circuit
