NS-2: Testing For Fuel Pressure

Fig 1: No Start Test 2 Schematic Testing For Fuel Pressure

G90A15370

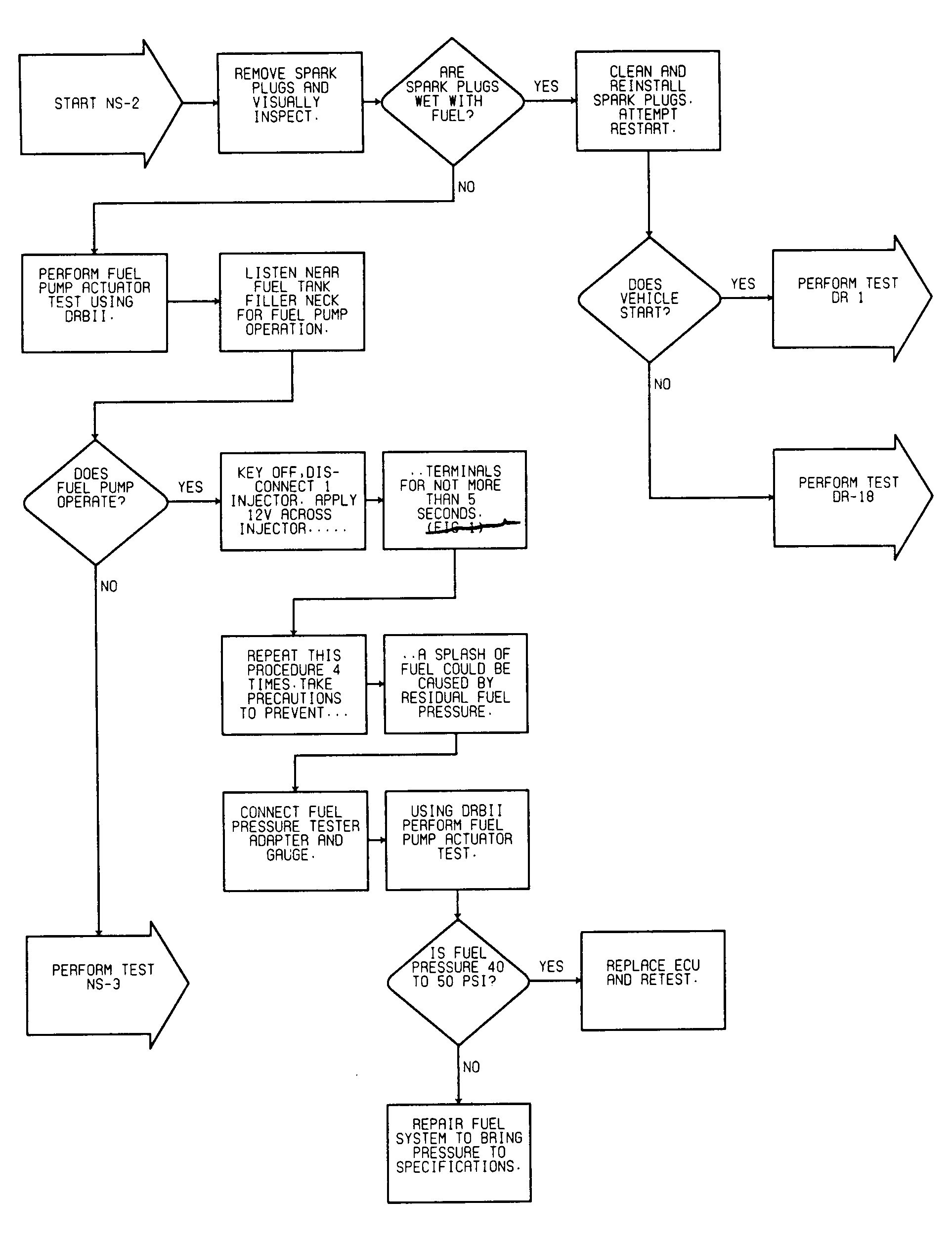

Fig 2: No Start Test 2 Flow Chart Testing For Fuel Pressure

G91J16708
