NS-3: Testing Fuel System
NS-3: Testing Fuel System
Fig 1: No Start Test 3 Schematic Testing Fuel System

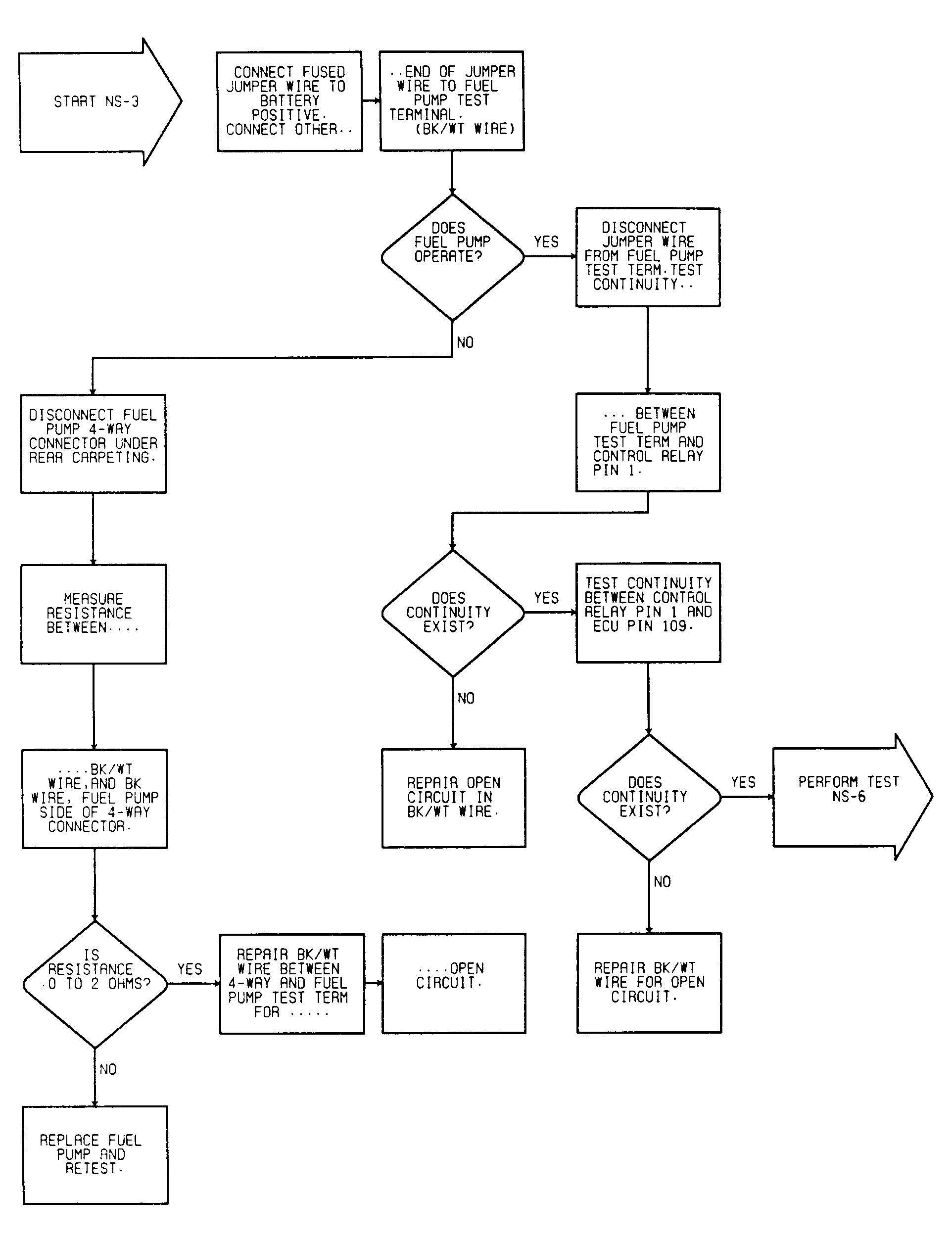

Fig 2: No Start Test 3 Flow Chart Testing Fuel System
