NS-4: Checking Ignition System

Fig 1: No Start Test 4 Schematic Checking Ignition System
G90G15368

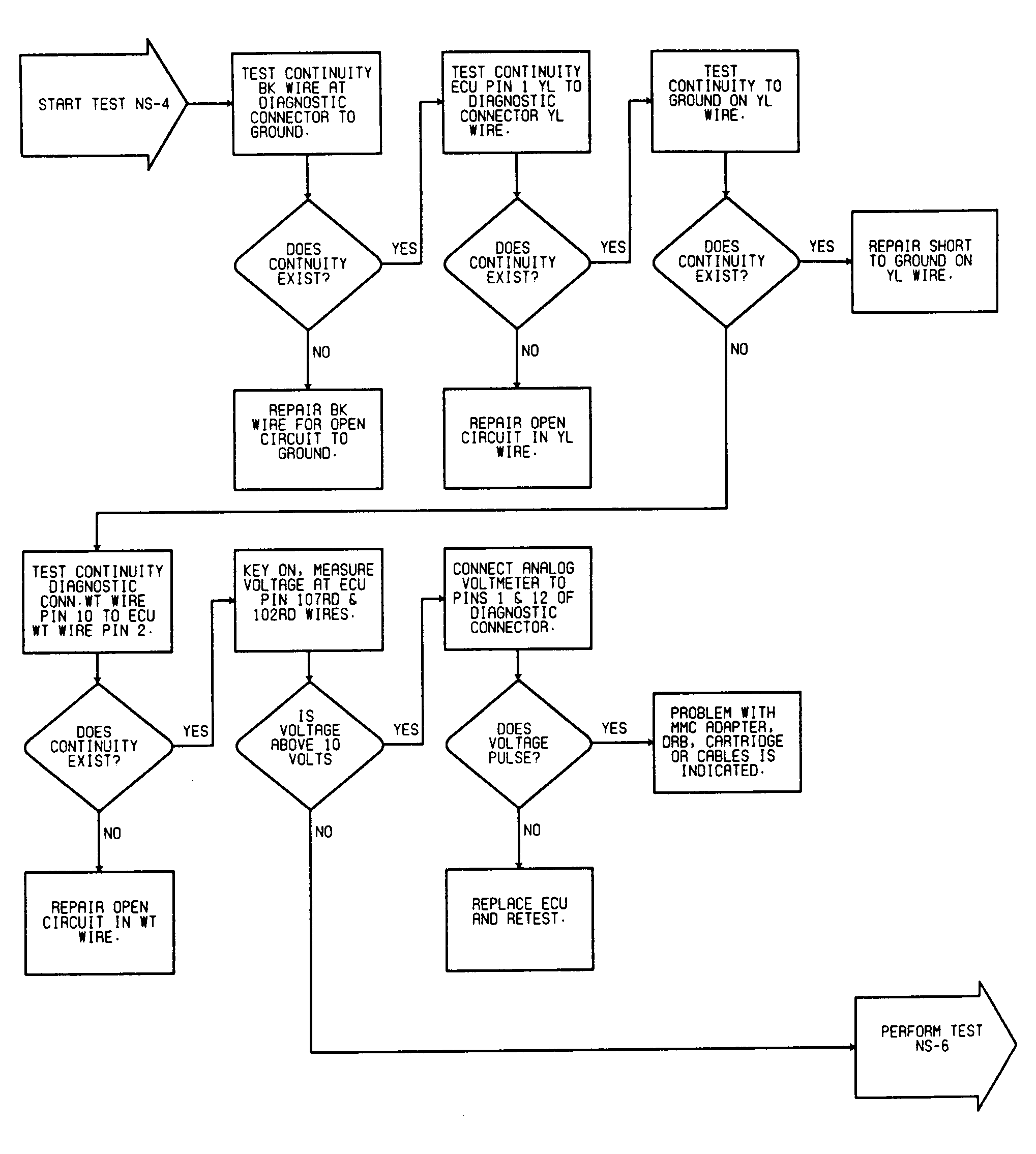

Fig 2: No Start Test 4 Flow Chart Checking Ignition System
G91D16710
