Wiring Diagrams

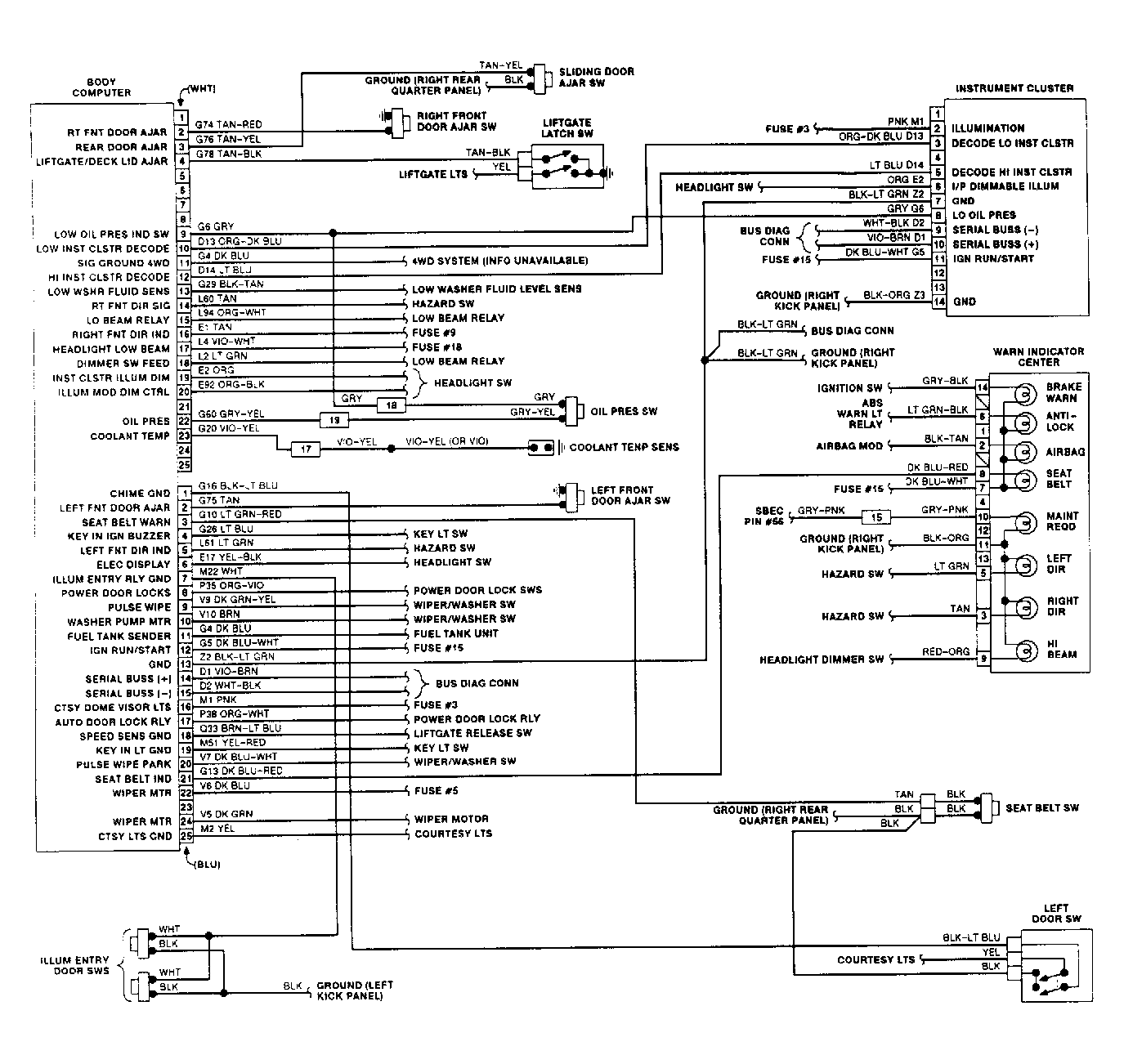

Fig 1: Wiring Diagram (BCM - FWD Van)

G92G21853

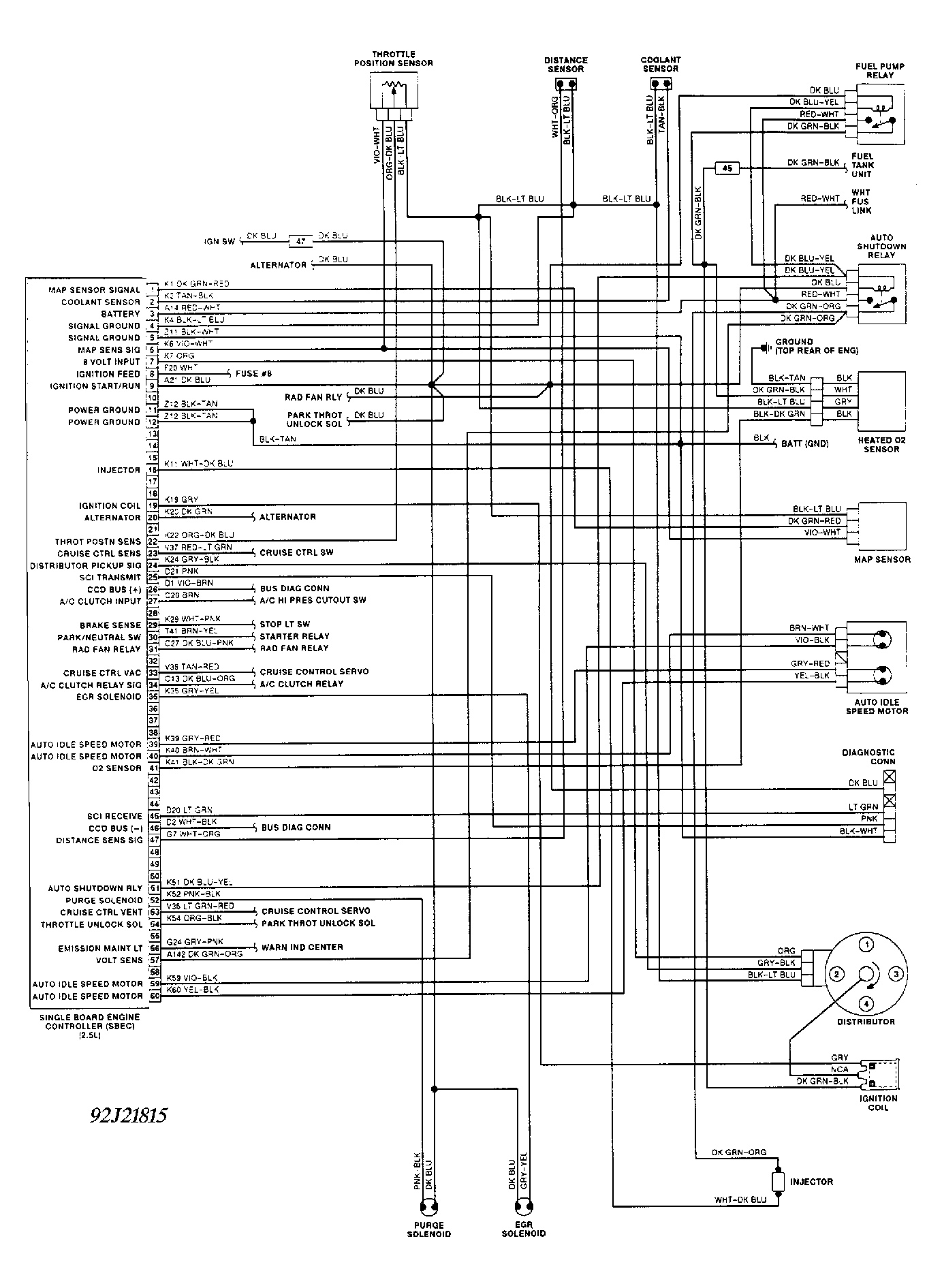

Fig 2: Wiring Diagram (2.5L - FWD Van)

G92J21815

Fig 3: Wiring Diagram (3.0L - FWD Van)

G92B21817

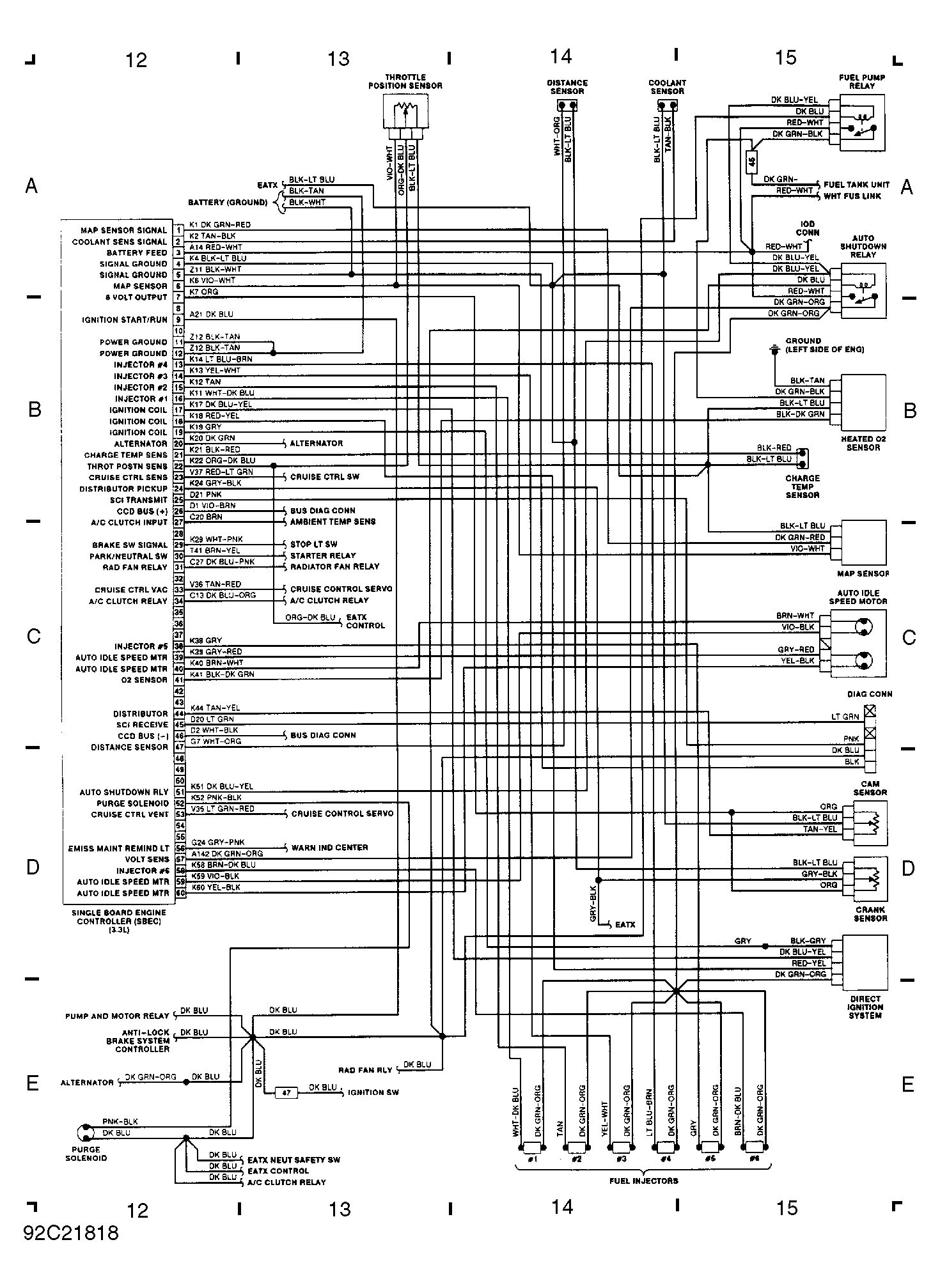

Fig 4: Wiring Diagram (3.3L - FWD Van)

G92C21818
