Service Point Locations

Fig 1: Service Point Locations (Typical 4-Cylinder Engine)
G93J44577Courtesy of CHRYSLER CORP.
Fig 2: Service Point Locations (3.0L V6 Engine)
G93A44578Courtesy of CHRYSLER CORP.

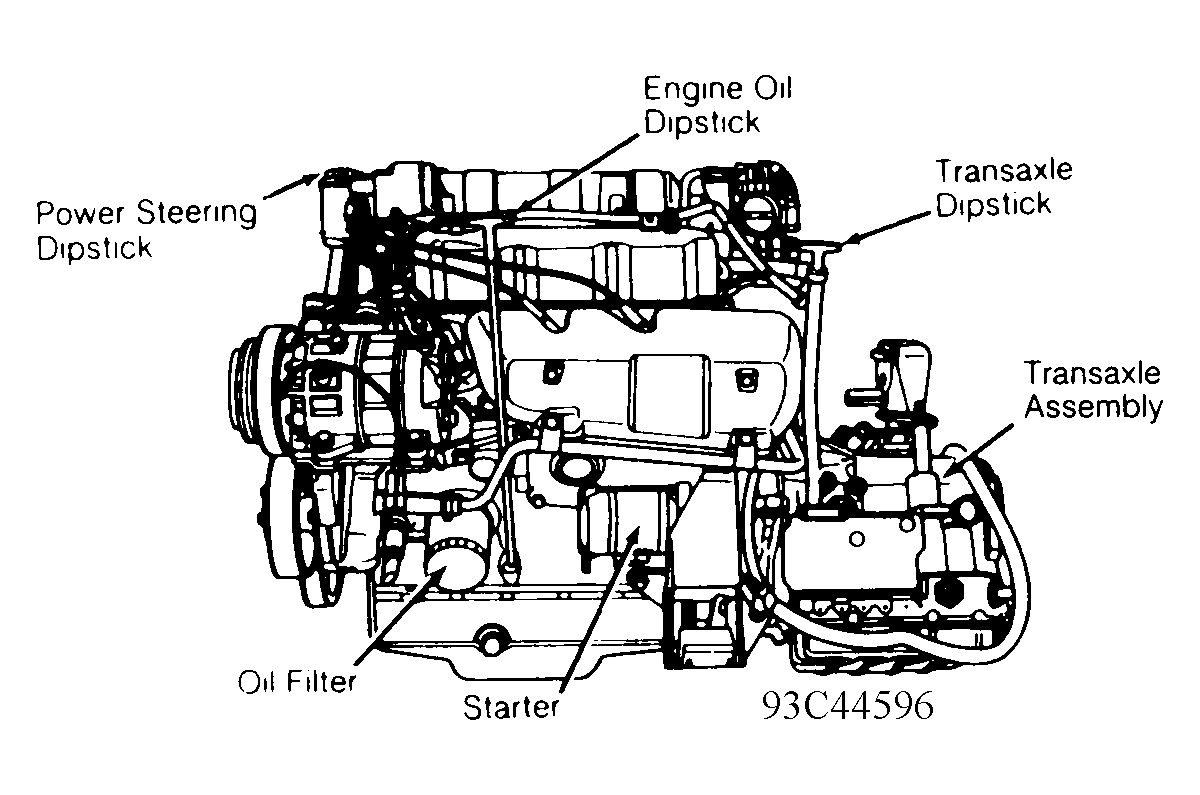

Fig 3: Service Point Locations (3.3L and 3.8L V6 Engines)
G93C44596Courtesy of CHRYSLER CORP.
Fig 4: Service Point Locations (3.3L CNG V6 Engine)
G50J11865Courtesy of CHRYSLER CORP.
NOTE: For more information regarding 3.3L CNG engine service refer to the 3.3L V6 CNG - VIN [J] article. in the ENGINE PERFORMANCE section.

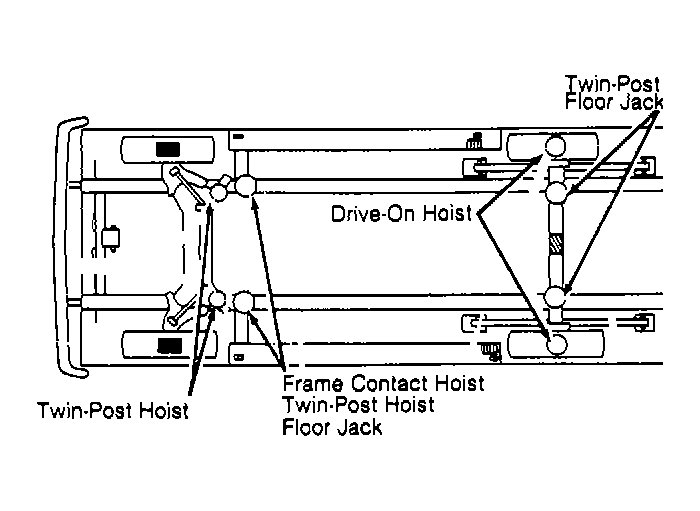

Fig 5: Lift Point Locations
G90G04464Courtesy of CHRYSLER CORP.
NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
