Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

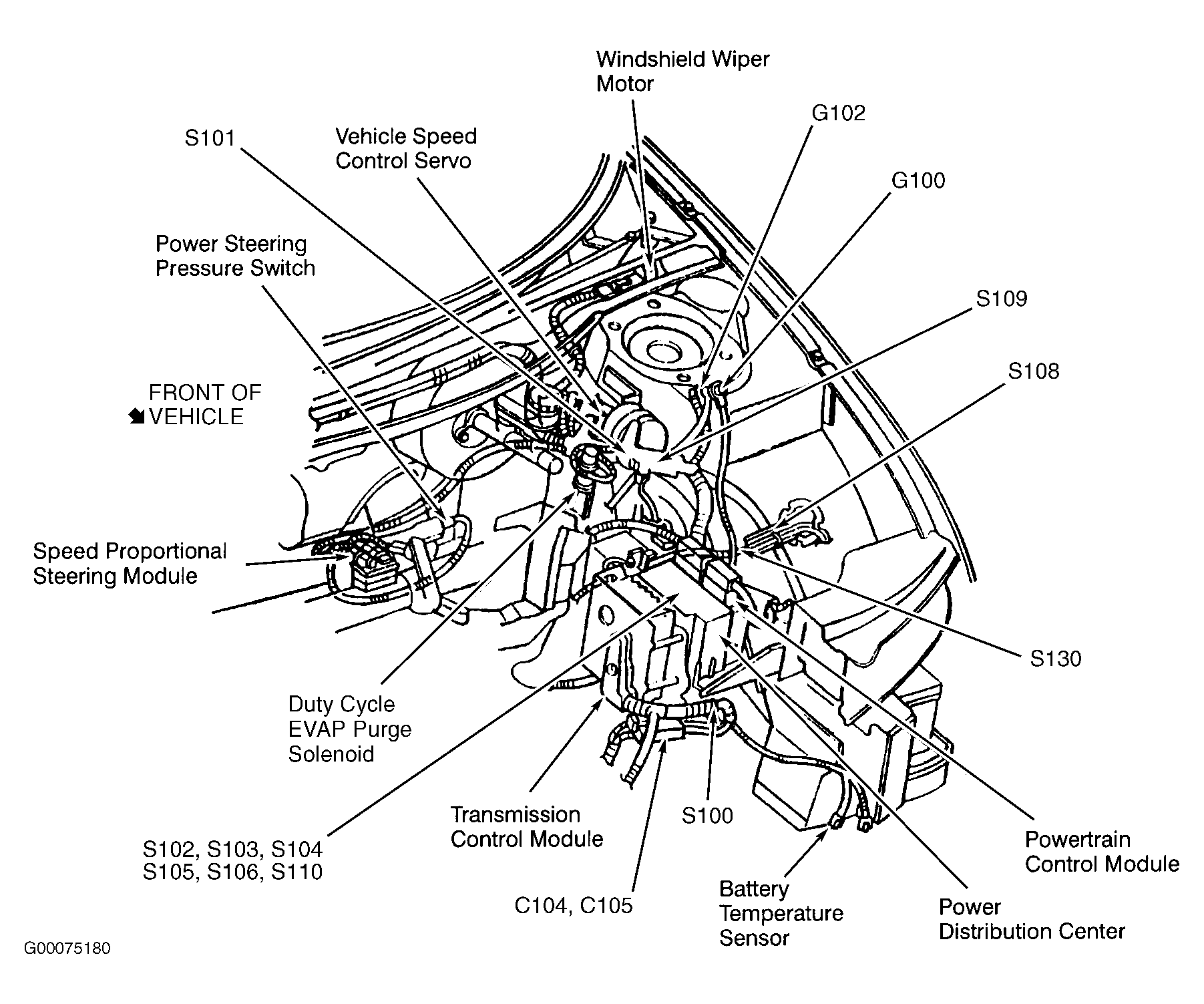

Fig 1: Left Front Side Of Engine Compartment

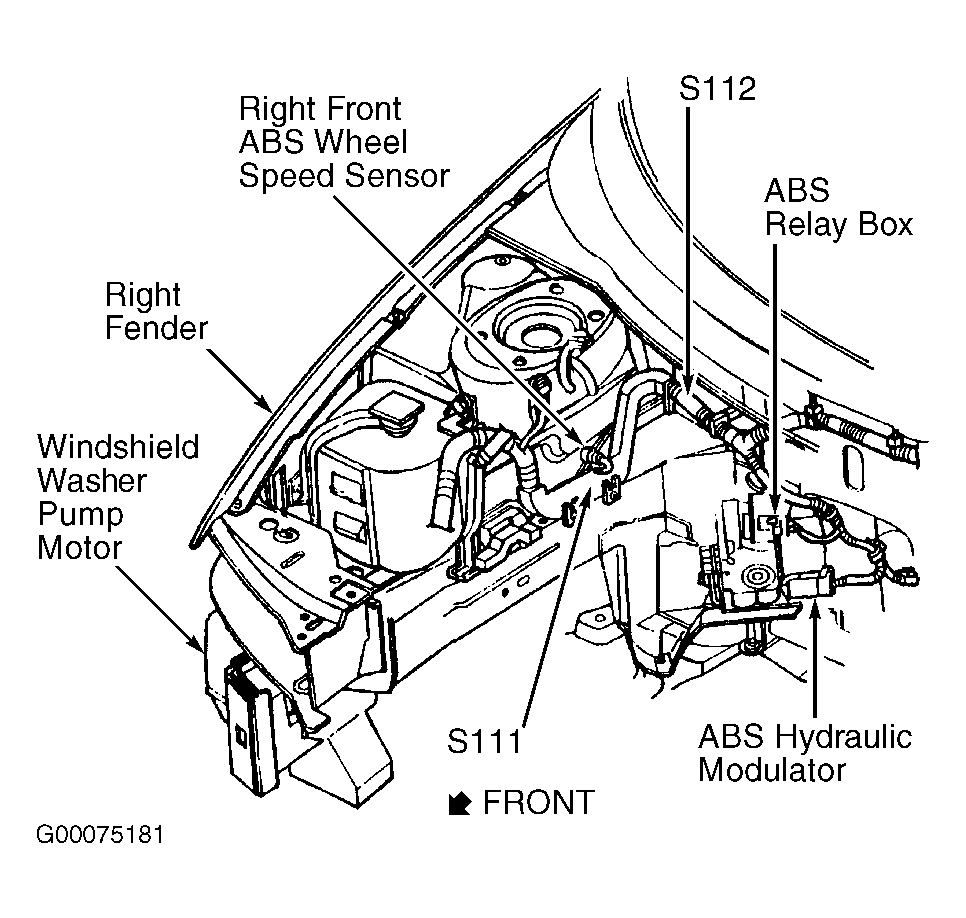

Fig 2: Right Front Side Of Engine Compartment

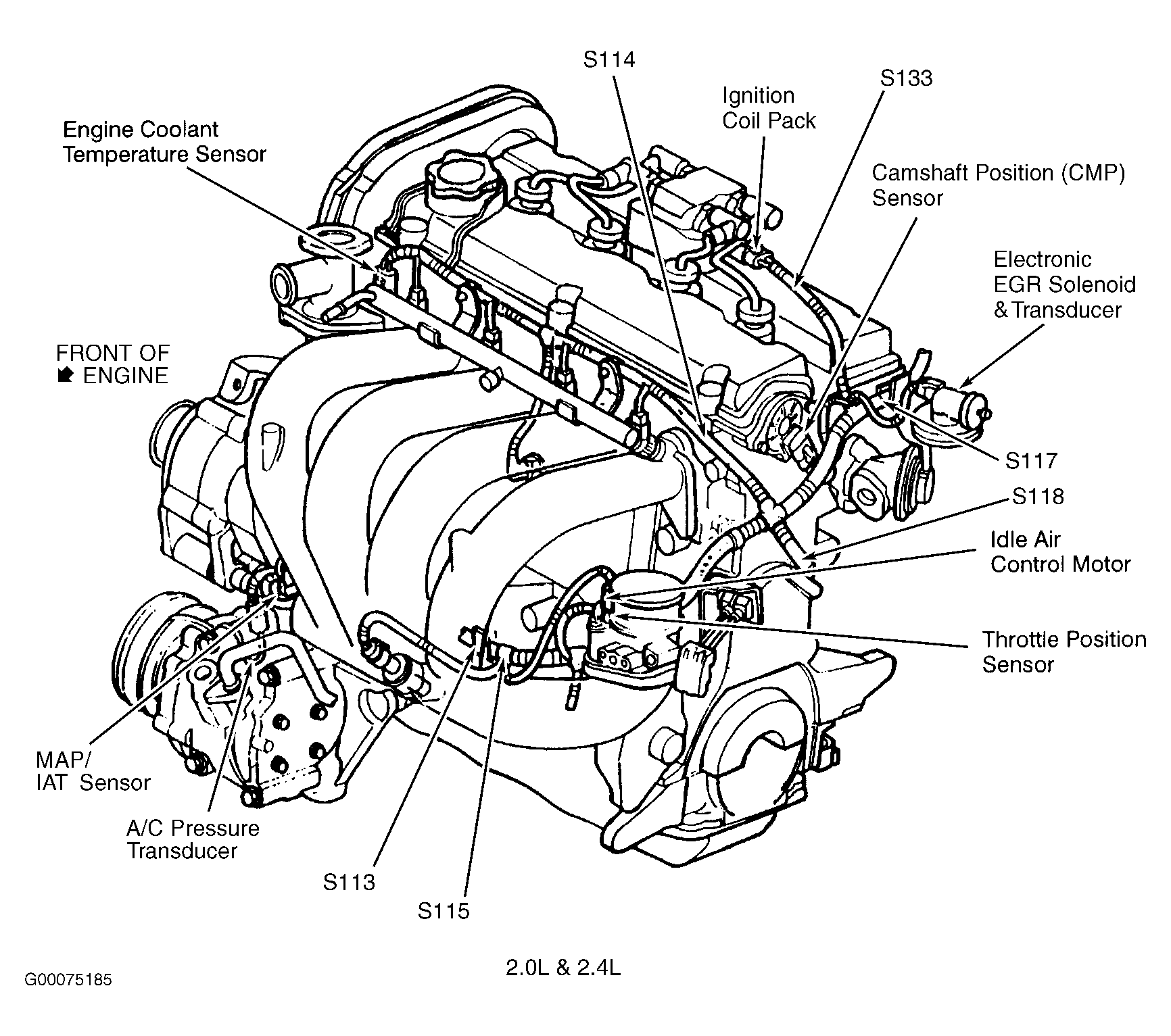

Fig 3: Left Side Of Engine (2.0L & 2.4L)

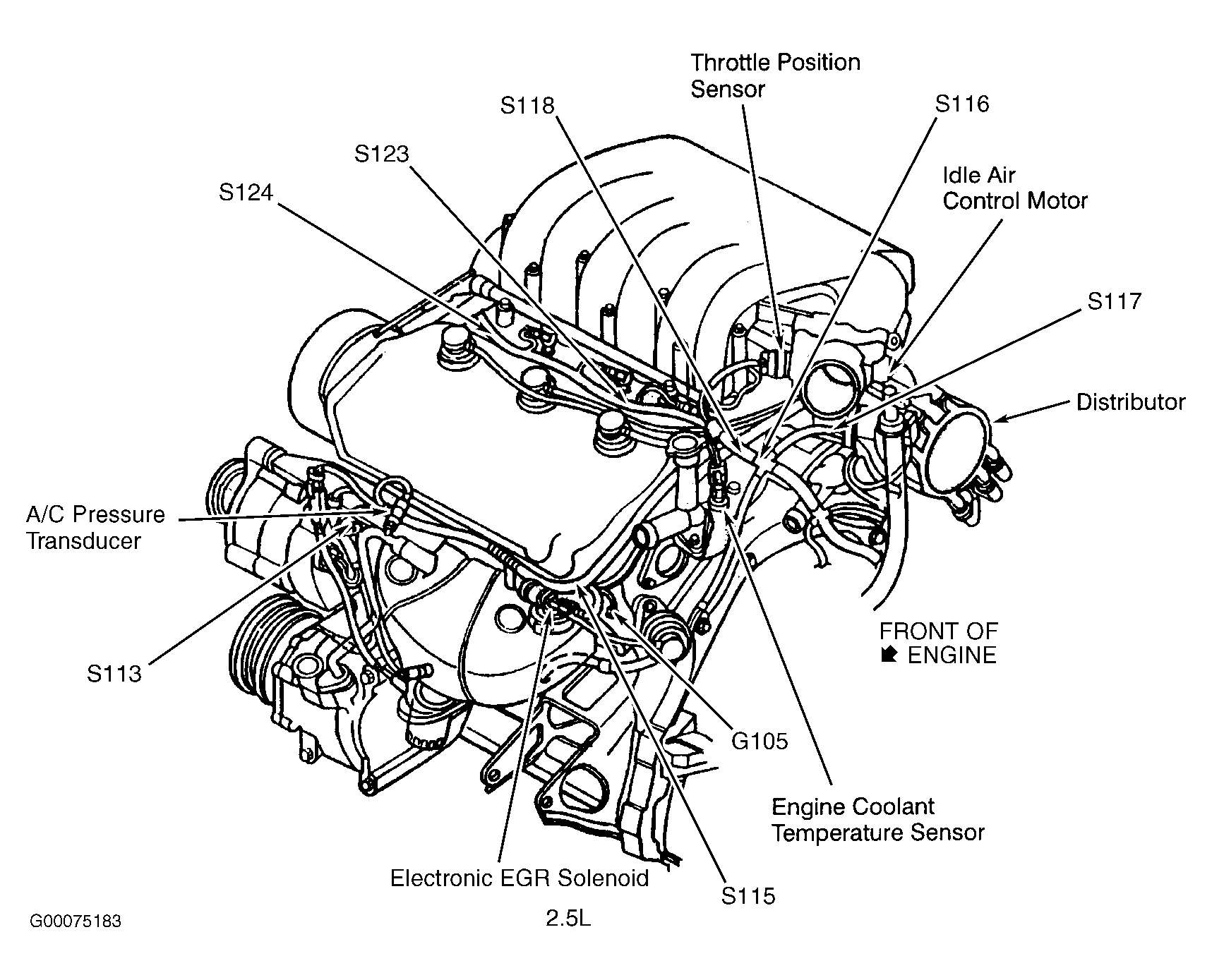

Fig 4: Left Side Of Engine (2.5L)

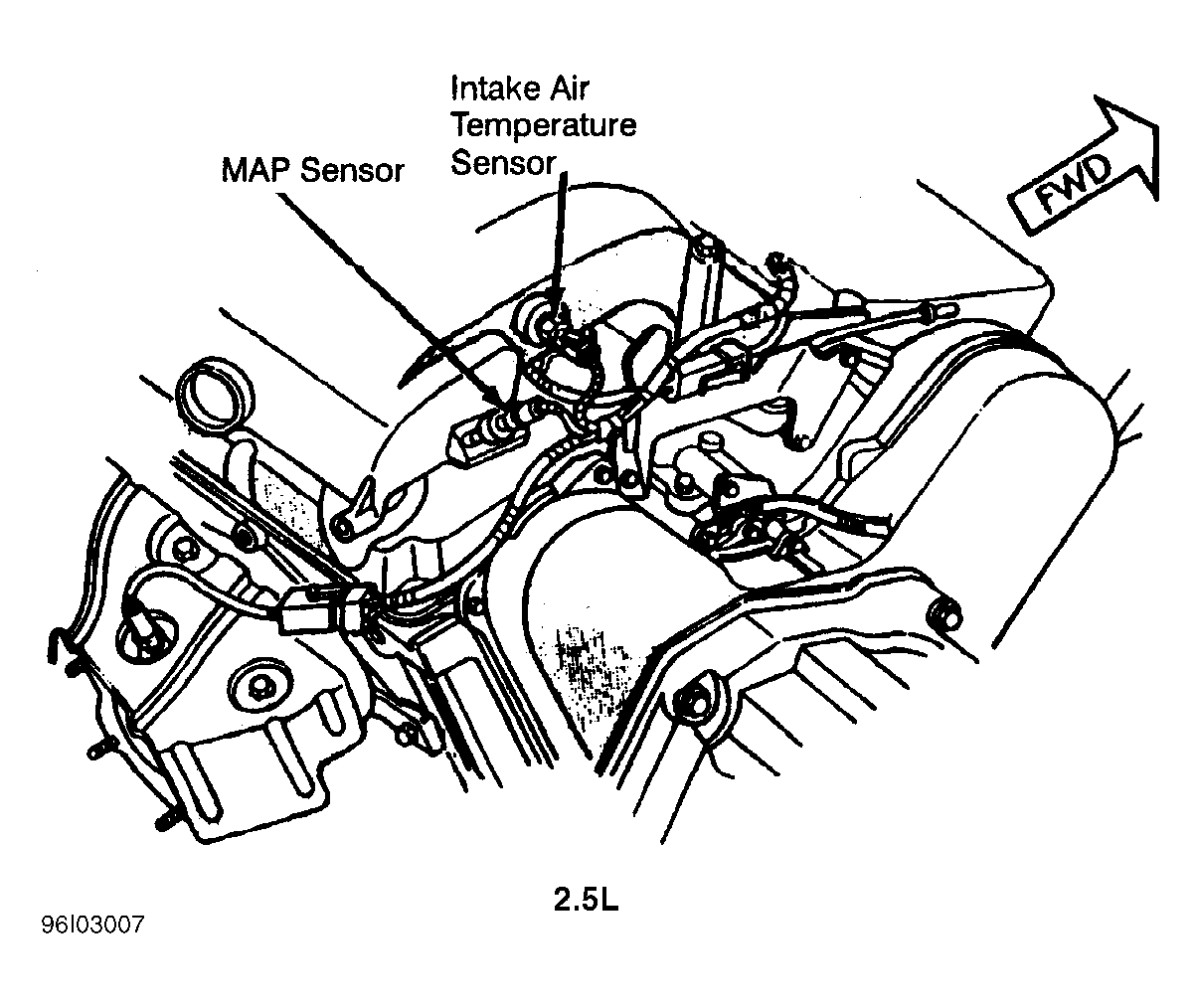

Fig 5: Right Side Of Engine (2.5L)

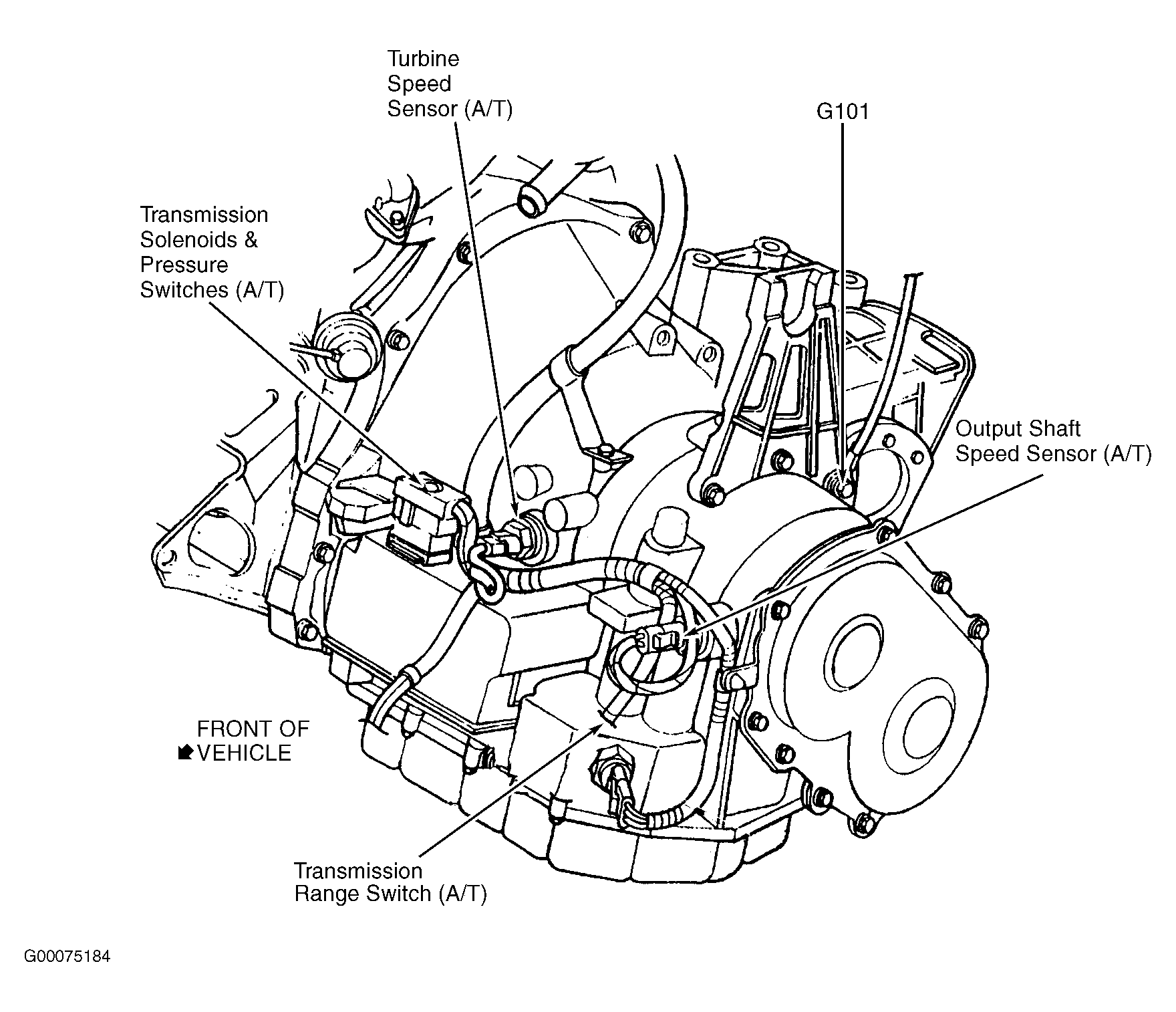

Fig 6: Transmission
