Radiator Fan Control Relay

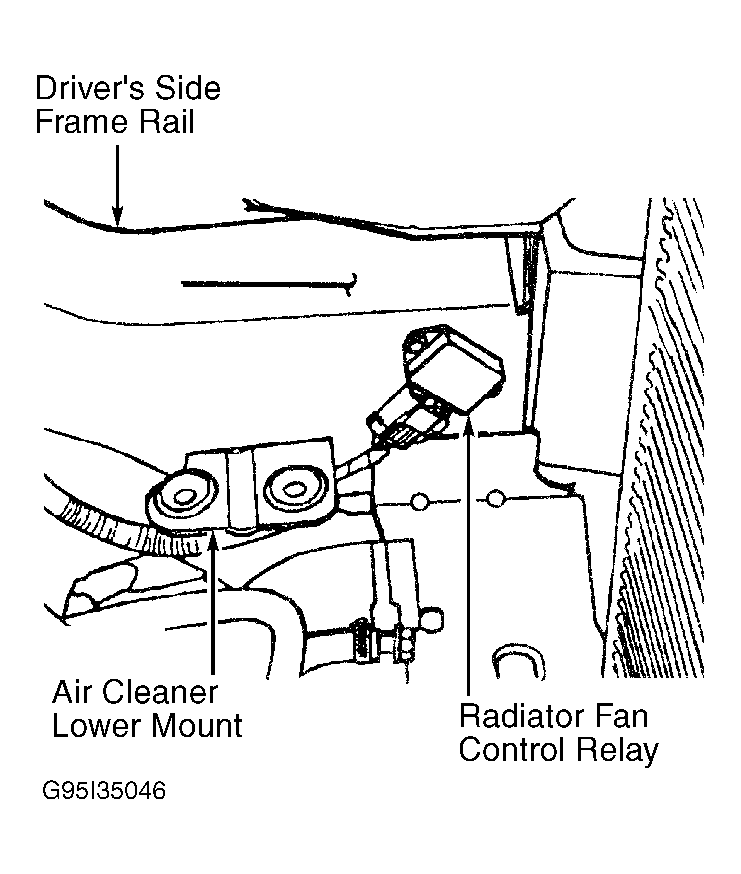

- Radiator fan control relay may be referred to as radiator fan relay. Radiator fan control relay is located near driver's side frame rail and air cleaner lower mount. See Fig 1
. Individual component testing not available from manufacturer.
- If radiator fan control relay or wiring circuit failure exists, a Diagnostic Trouble Code (DTC) will be stored in Powertrain Control Module (PCM). See SELF-DIAGNOSTICS - CARAVAN, TOWN & COUNTRY, & VOYAGER article.
Courtesy of CHRYSLER CORP.
