Starter Controls - DELCO-REMY: Specifications

Solenoid Number	Pull-in Winding (1)Amperes	Hold-In Winding (2)Amperes
1114336 thru 382	13-15.5	14.4-16.5
(1) At 5 volts. (2) At 10 volts.

Fig 1: Solenoid Winding Test Connections (Terminal Locations May Vary)

Courtesy of GENERAL MOTORS COMPANY

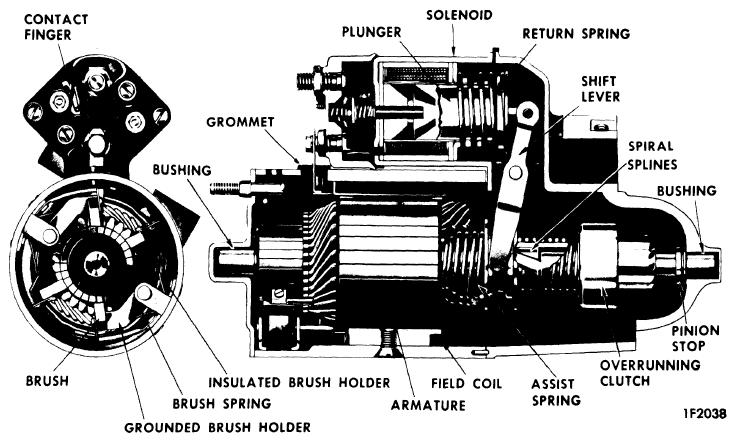

Fig 2: Delco-Remy Enclosed Housing Solenoid Pinion Shift Assembly

Courtesy of GENERAL MOTORS COMPANY
