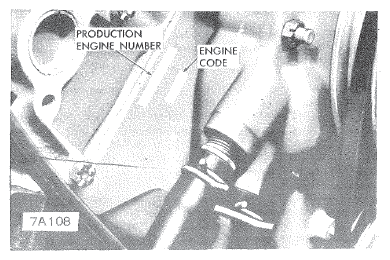

Engine Number
See TUNE-UP .
CAPACITIES
| Crankcase | (1) 5 qts. | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Water 350" | (2) 18 1/2 qts. | ||||||||
| 400", Except Grand Prix | (2) 18 qts. | ||||||||
| 428", Except Grand Prix | 17 qts. | ||||||||
| 400", 428" Grand Prix | .18 1/2 qts. | ||||||||
| 3-Speed Synchro-mesh | 3 1/2 pts. | ||||||||
| Heavy Duty | 2 3/4 pts. | ||||||||
| 4-Speed Synchro-mesh | 254 pts. | ||||||||
| Turbo Hydra-Matic, Oil Pan Removed | 7 1/2 pts. | ||||||||
| Dry | 19 pts. | ||||||||
| Super Turbine 300, Oil Pan Removed | 5 pts. | ||||||||
| Dry | 19 pts. | ||||||||
| Rear Axle, Pontiac | 4 1/2 pts. | ||||||||
| Tempest & Firebird | 3 pts. | ||||||||
| Fuel Tank, Firebird | 18 1/2 gal. | ||||||||
| Tempest | 20 gal. | ||||||||
| Pontiac, Except Station Wagon | 26 gal. | ||||||||
| Station Wagon | 25 gal. | ||||||||
|
|||||||||
