Collapsible Steering Columns: Alignment

Loosen, but do not remove all column attaching screws and bolts. Column will align when screws are loose. Check flexible coupling for alignment and tighten column bracket-to-instrument panel bolts to specifications. Insert wedge shim in far enough to fill gap and tighten.

JACKET TUBE, STEERING SHAFT ASSEMBLY, BEARING ADAPTER AND BEARING HOUSING REPLACEMENT NOTE  : If the jacket tube, steering shaft assembly, bearing adapter and bearing housing are replaced, clearances at lower end of column will be changed. Install a service kit adjuster assembly. Installation procedures are included in the kit.

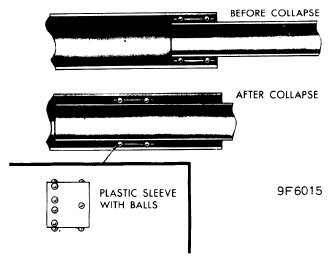

Fig 1: General Motors Collapsible Steering Column

Courtesy of GENERAL MOTORS COMPANY

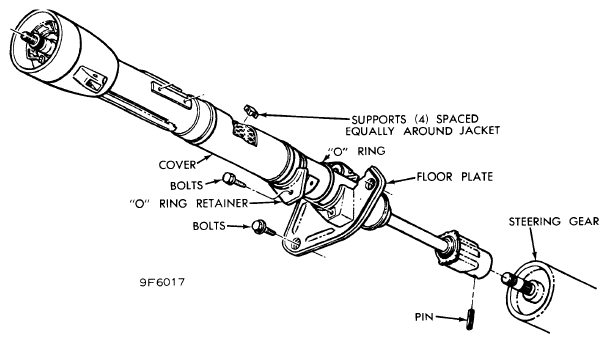

Fig 2: Ford Motor Co. Collapsible Steering Column

Courtesy of GENERAL MOTORS COMPANY

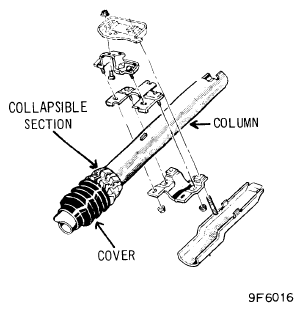

Fig 3: American Motors & Chrysler Corp. Collapsible Steering Column (Typical)

Courtesy of GENERAL MOTORS COMPANY

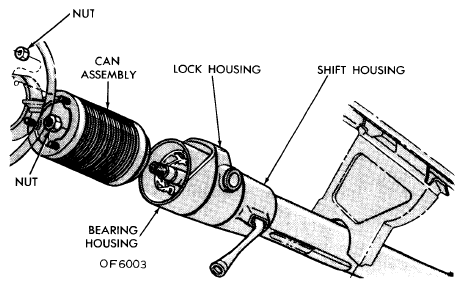

Fig 4: Challenger & Barracuda Impact Absorbing Cannister

Courtesy of GENERAL MOTORS COMPANY
