Home >> Pontiac >> 1984 >> Phoenix SE, Automatic >> Repair and Diagnosis >> Electrical >> Component Locations >> Electrical Component Locator >> Control Units

Control Units

CONTROL UNITS LOCATION

Component Location

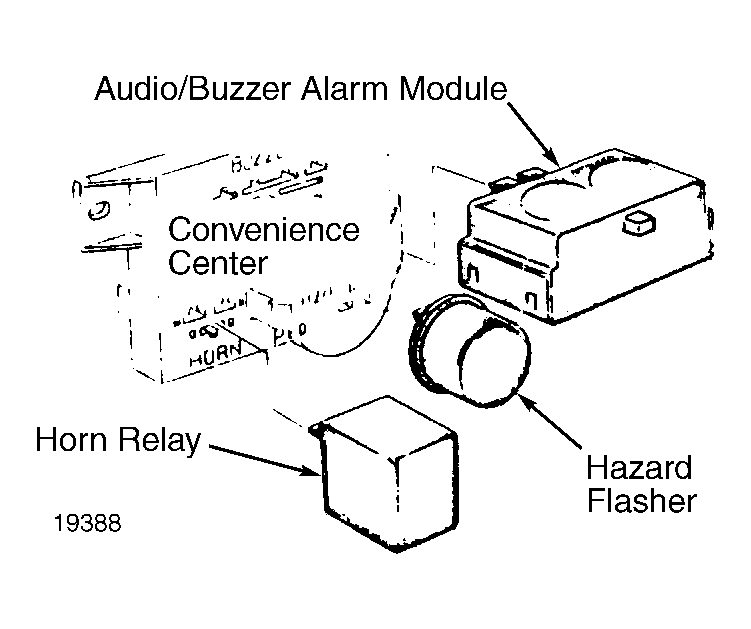

Audio/Buzzer Alarm Module On convenience center. See Figure.

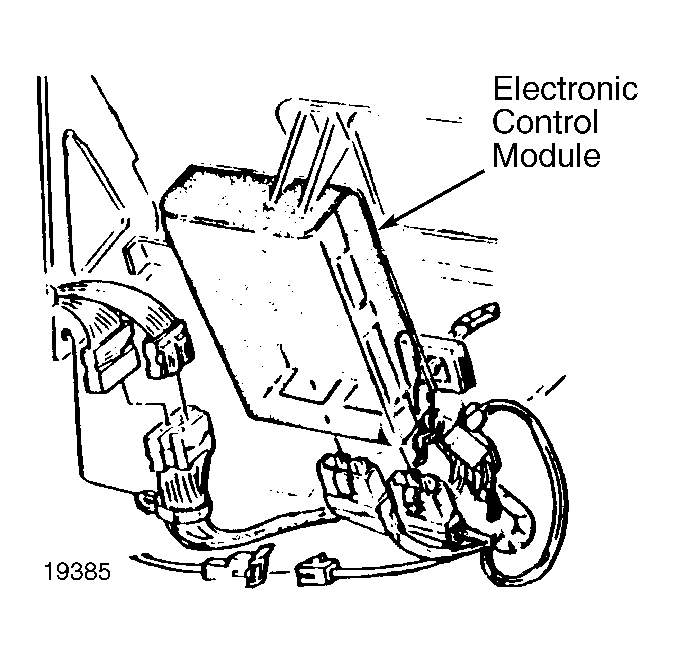

Electronic Control Module (ECM) Behind instrument panel. See Figure.

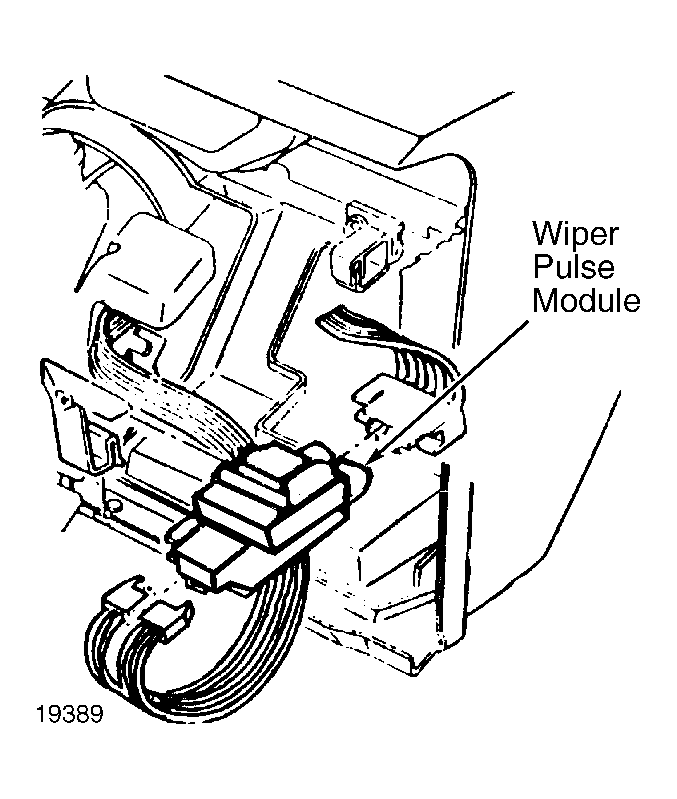

Wiper Pulse Module Behind left side of instrument panel. See Figure.
