Trouble Shooting

Fig 1: Chart A-3, Engine Cranks But Will Not Run (1.8L)

Fig 2: Chart A-4, Engine Cranks But Will Not Run (1.8L) (Cont.)

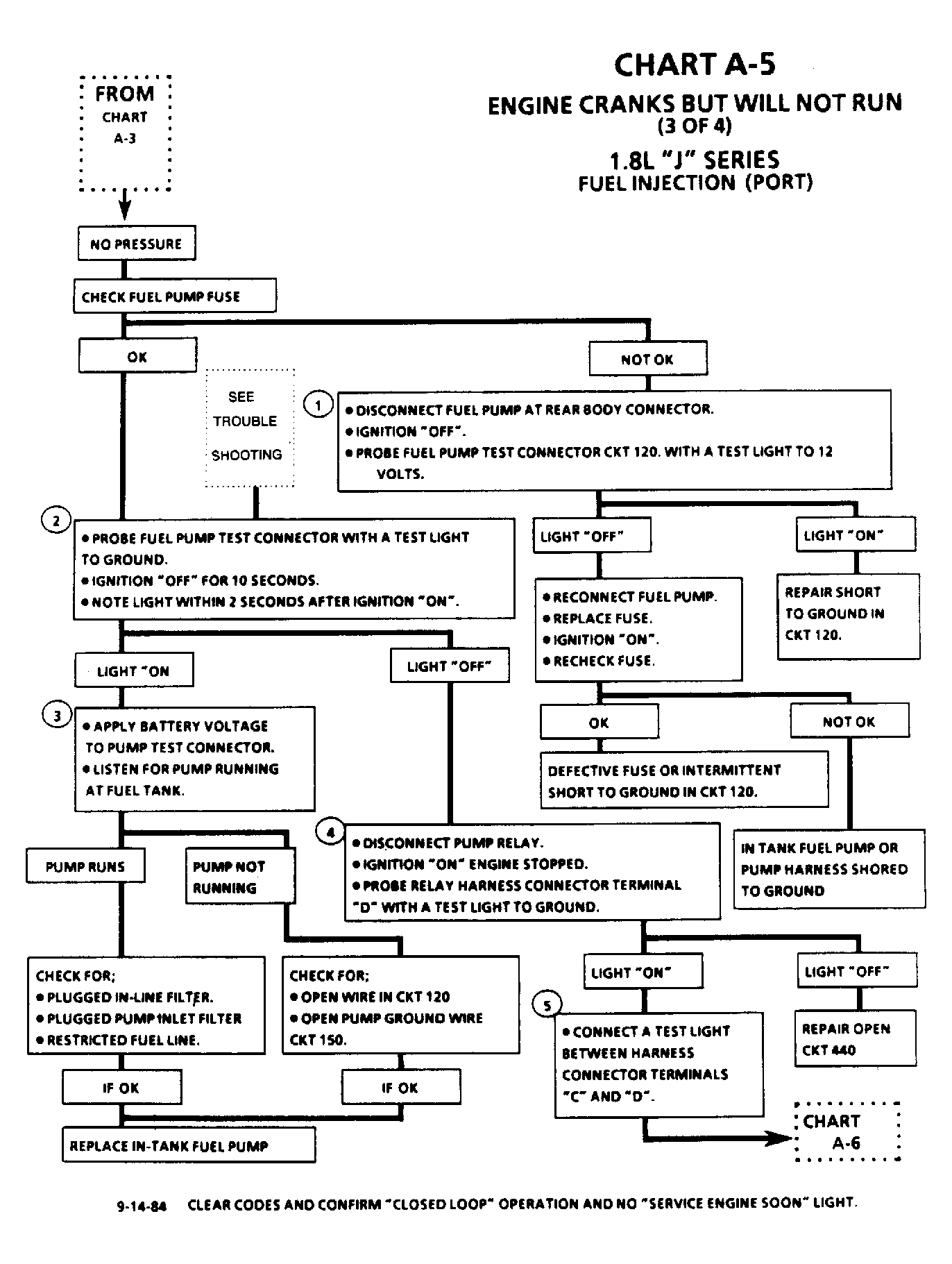

Fig 3: Chart A-5, Engine Cranks But Will Not Run (1.8L) (Cont.)

Fig 4: Chart A-6, Engine Cranks But Will Not Run (1.8L) (Cont.)

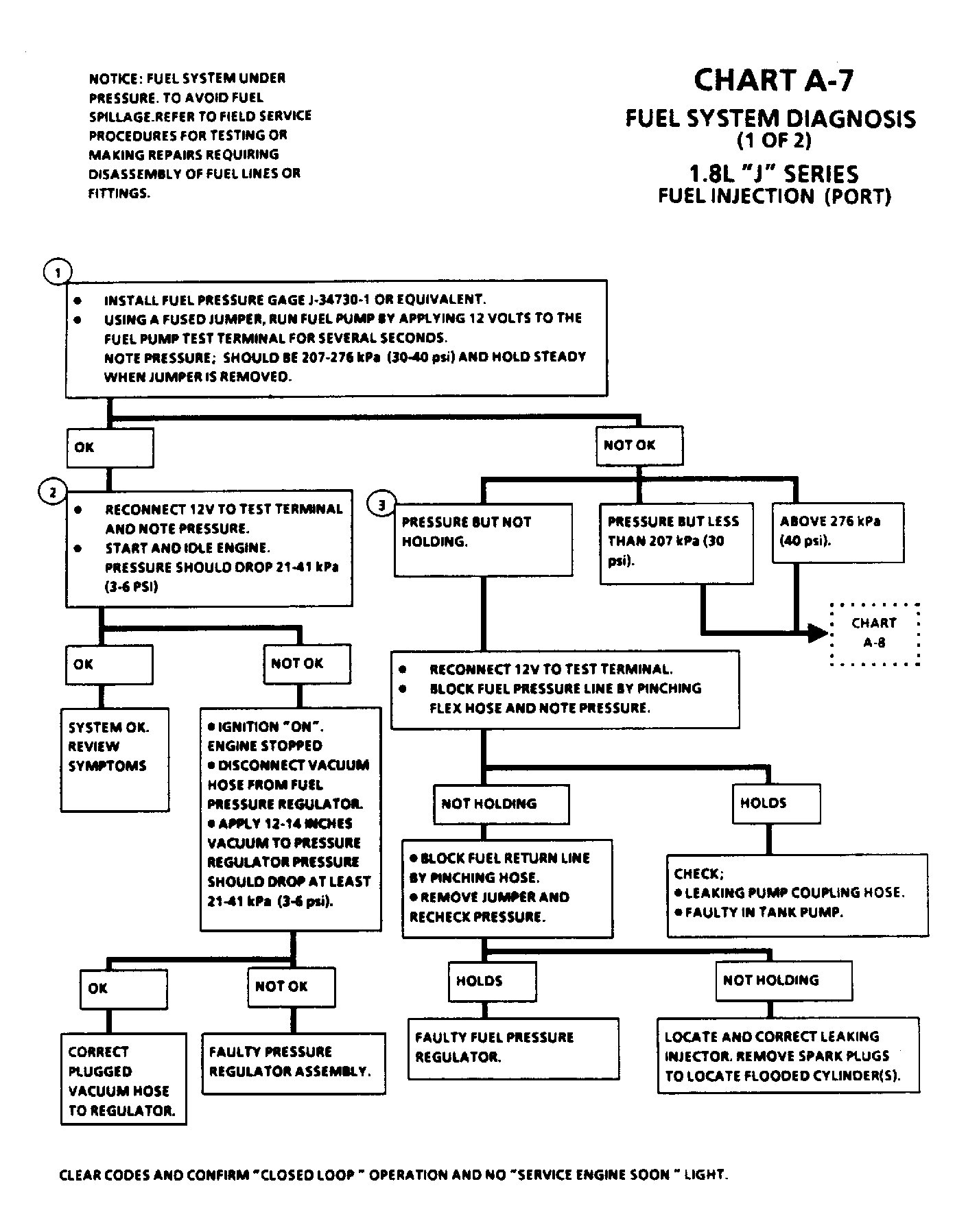

Fig 5: Chart A-7, Fuel System Diagnosis (1.8L)

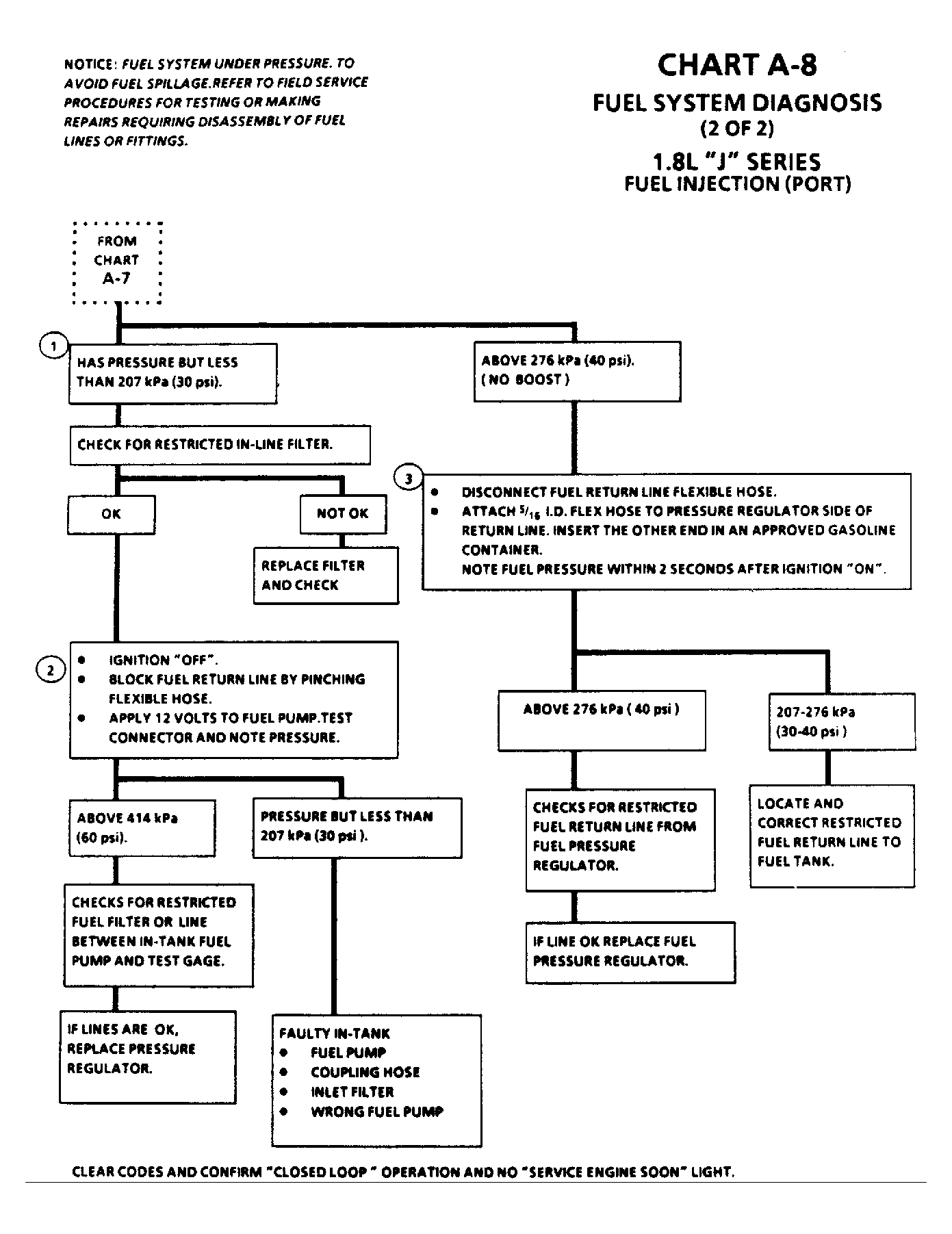

Fig 6: Chart A-8, Fuel Injection (1.8L)

Fig 7: Chart A-3, Engine Cranks But Will Not Run (3.0L)

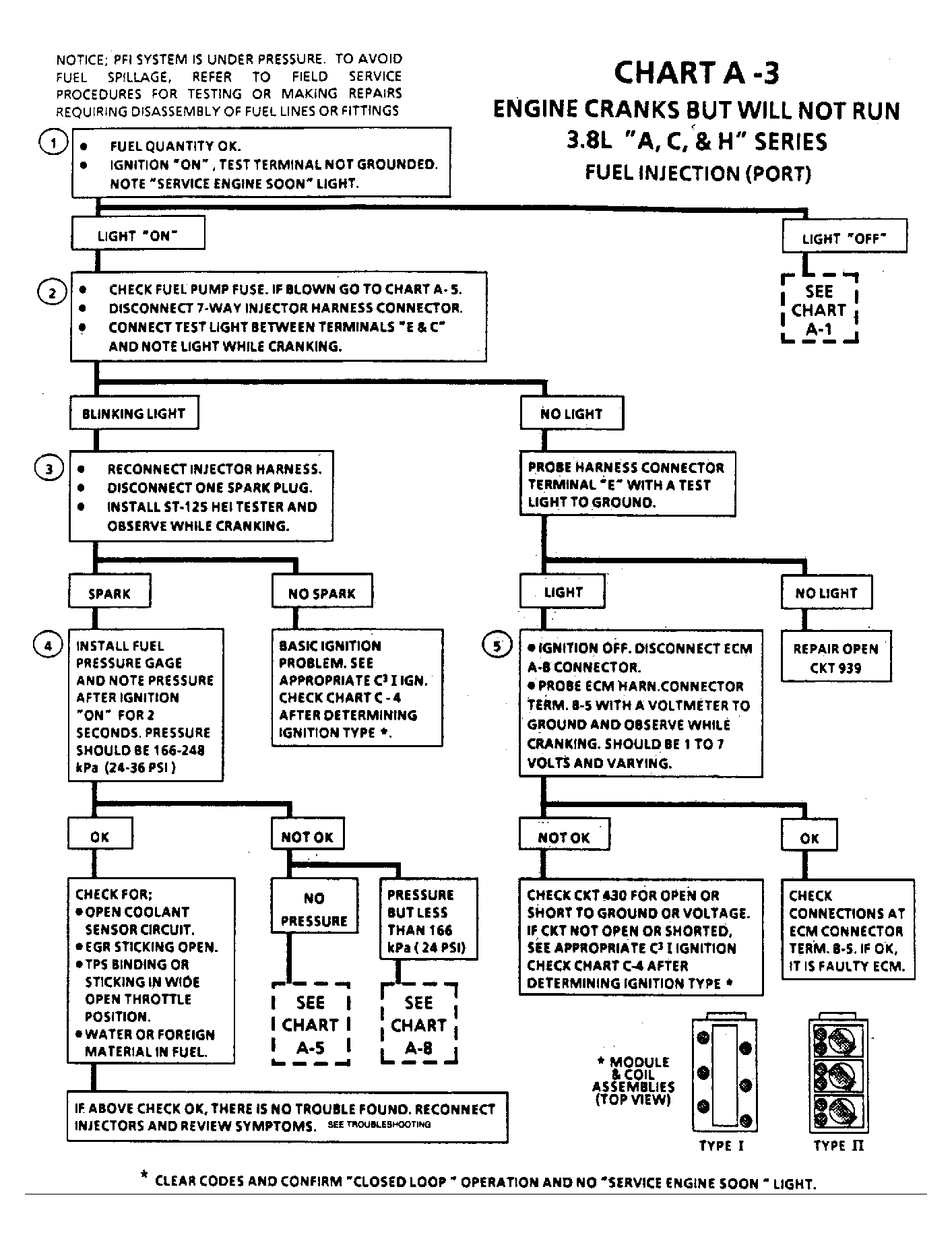

Fig 8: Chart A-3, Engine Cranks But Will Not Run (3.8L)

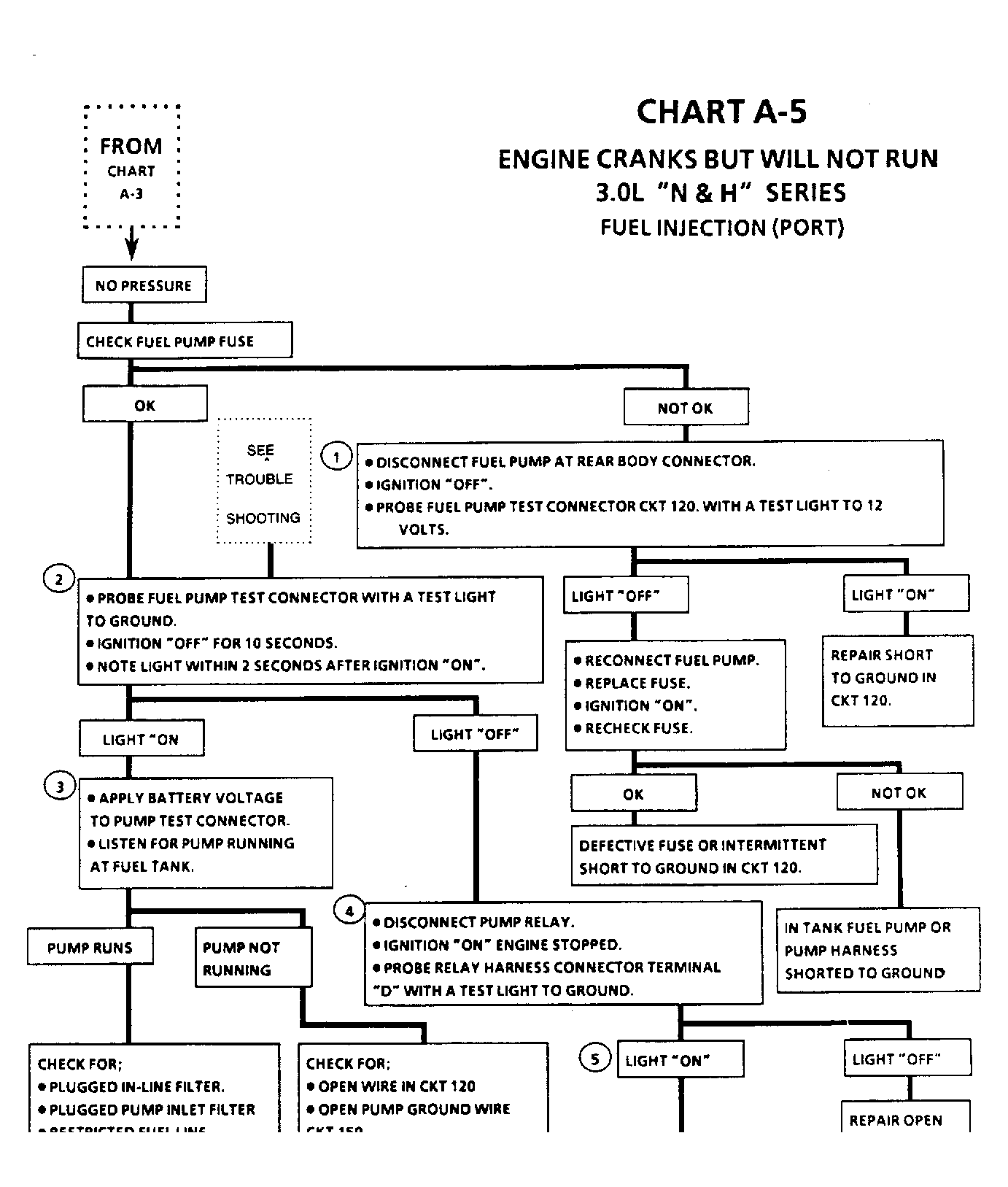

Fig 9: Chart A-5, Engine Cranks But Will Not Run (3.0L & 3.8L)

Fig 10: Chart A-6, Engine Cranks But Will Not Run (3.0L & 3.8L)

Fig 11: Chart A-7, Fuel System Diagnosis (3.0L & 3.8L)

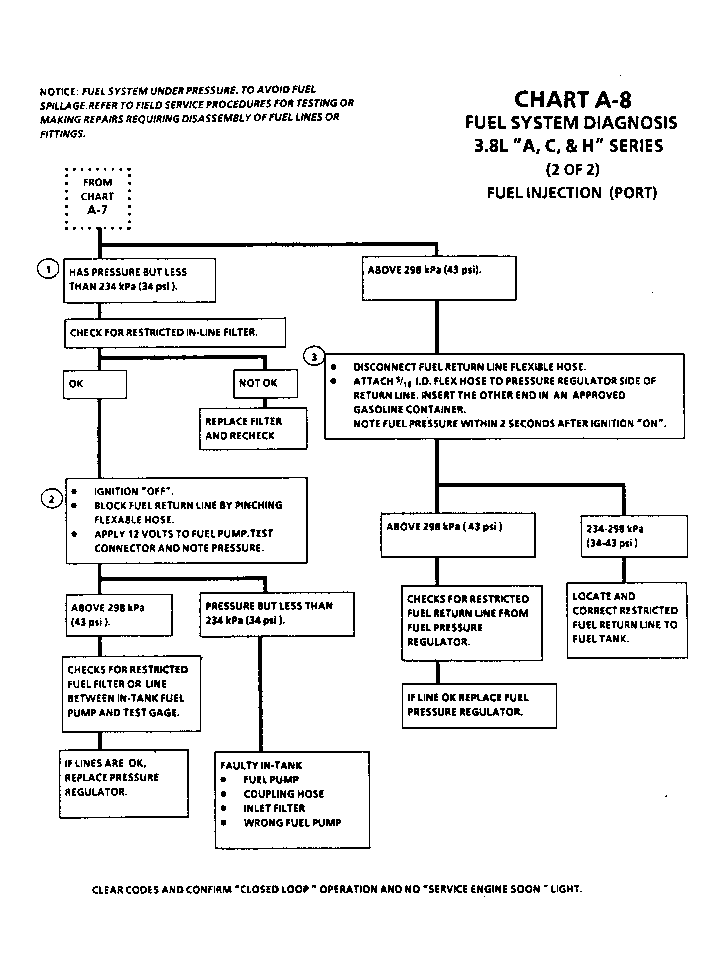

Fig 12: Chart A-8, Fuel Injection (3.0L & 3.8L)

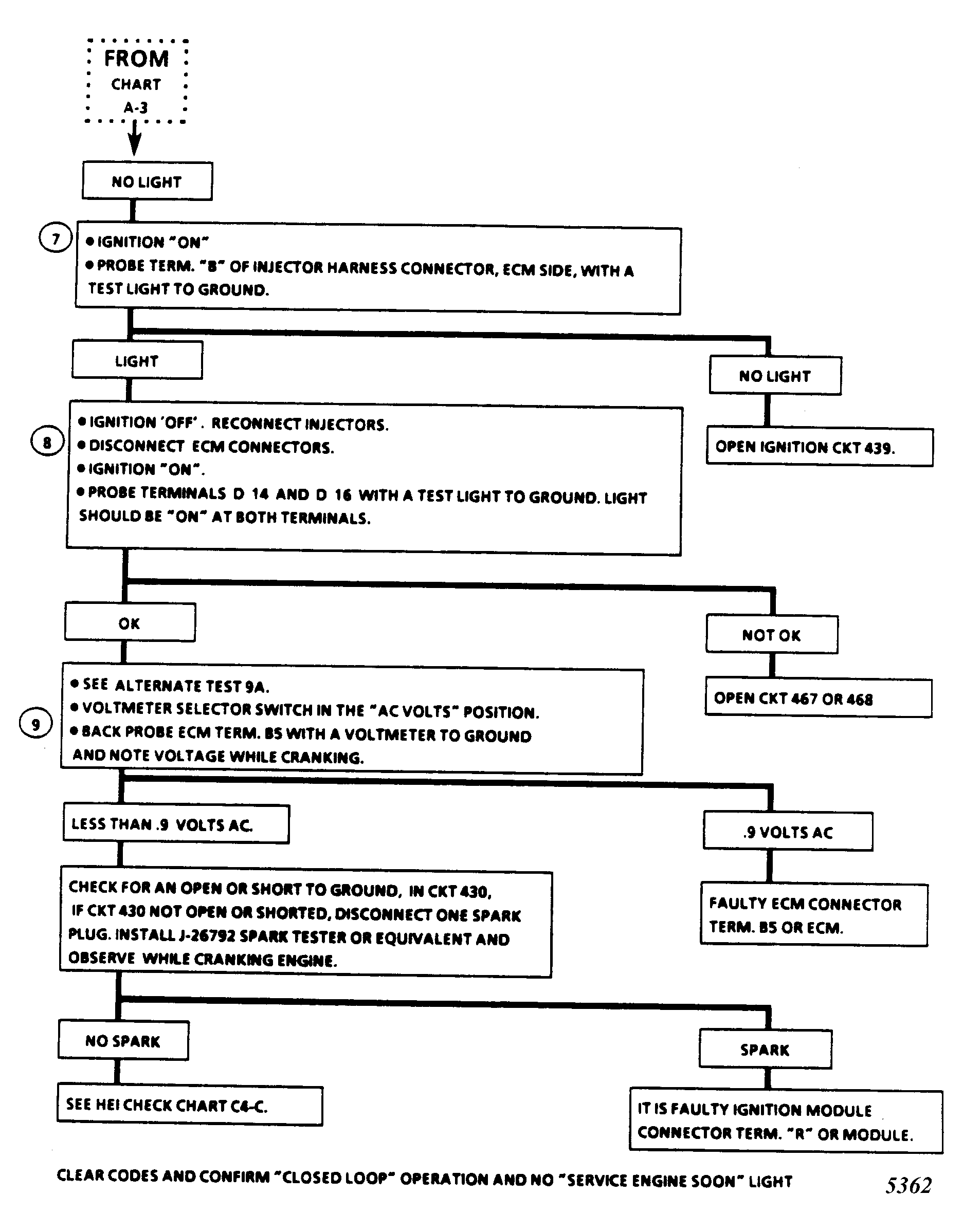

Fig 13: Chart A-3A, Engine Cranks But Will Not Run (2.8L, 5.0L & 5.7L)

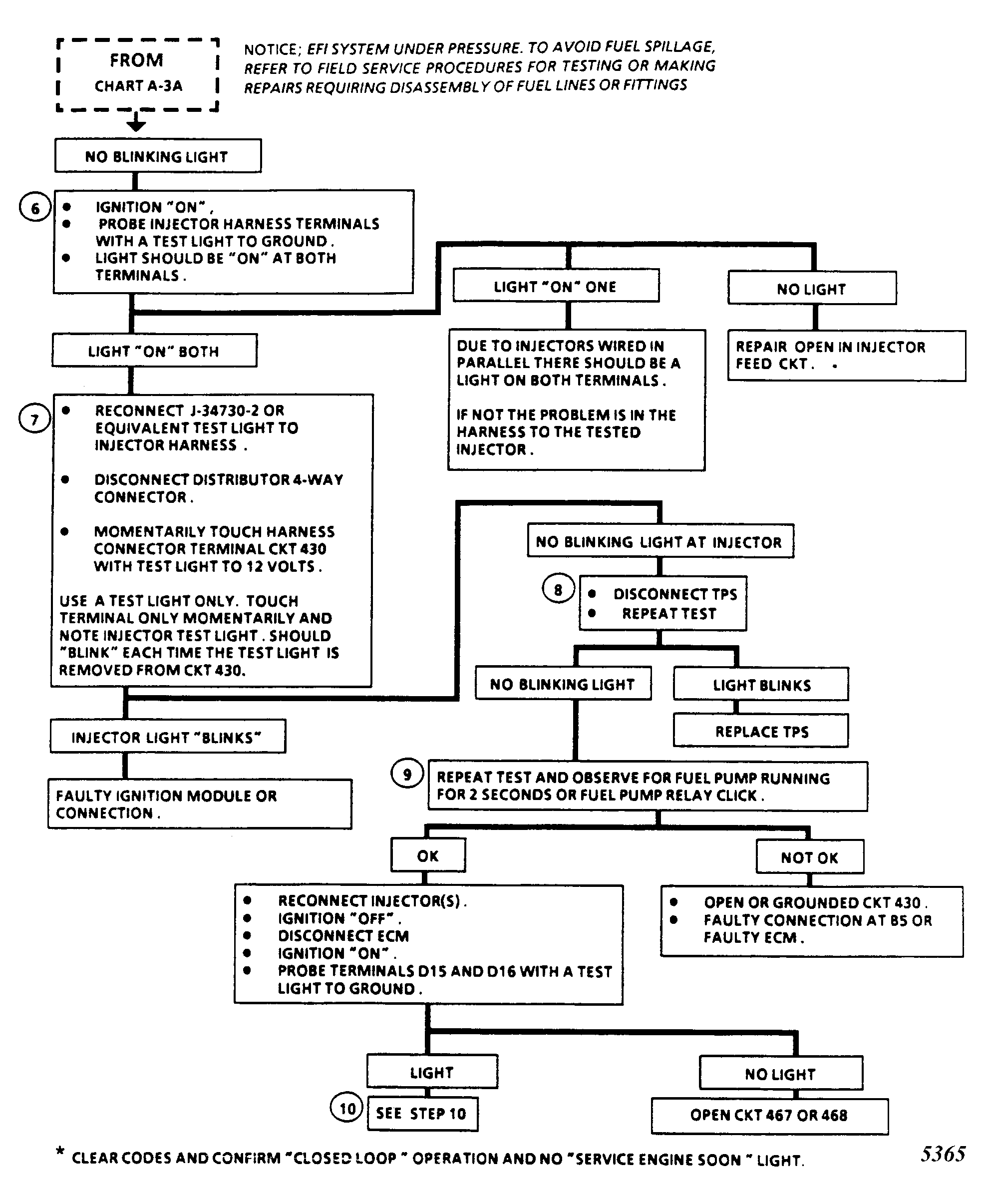

Fig 14: Chart A-3A, Engine Cranks But Will Not Run (2.8L, 5.0L & 5.7L)

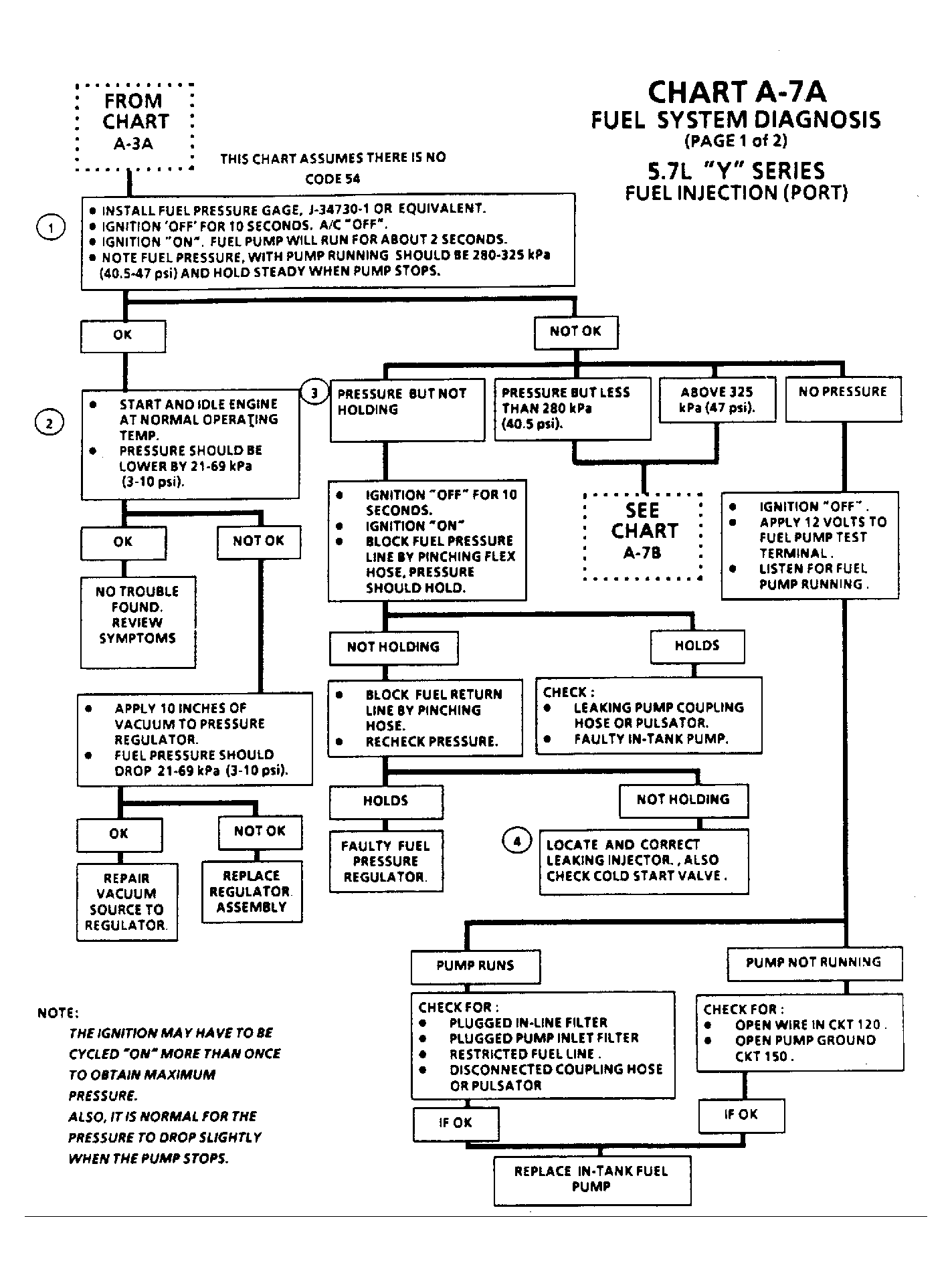

Fig 15: Chart A-7A, Fuel System Diagnosis (2.8L, 5.0L & 5.7L)

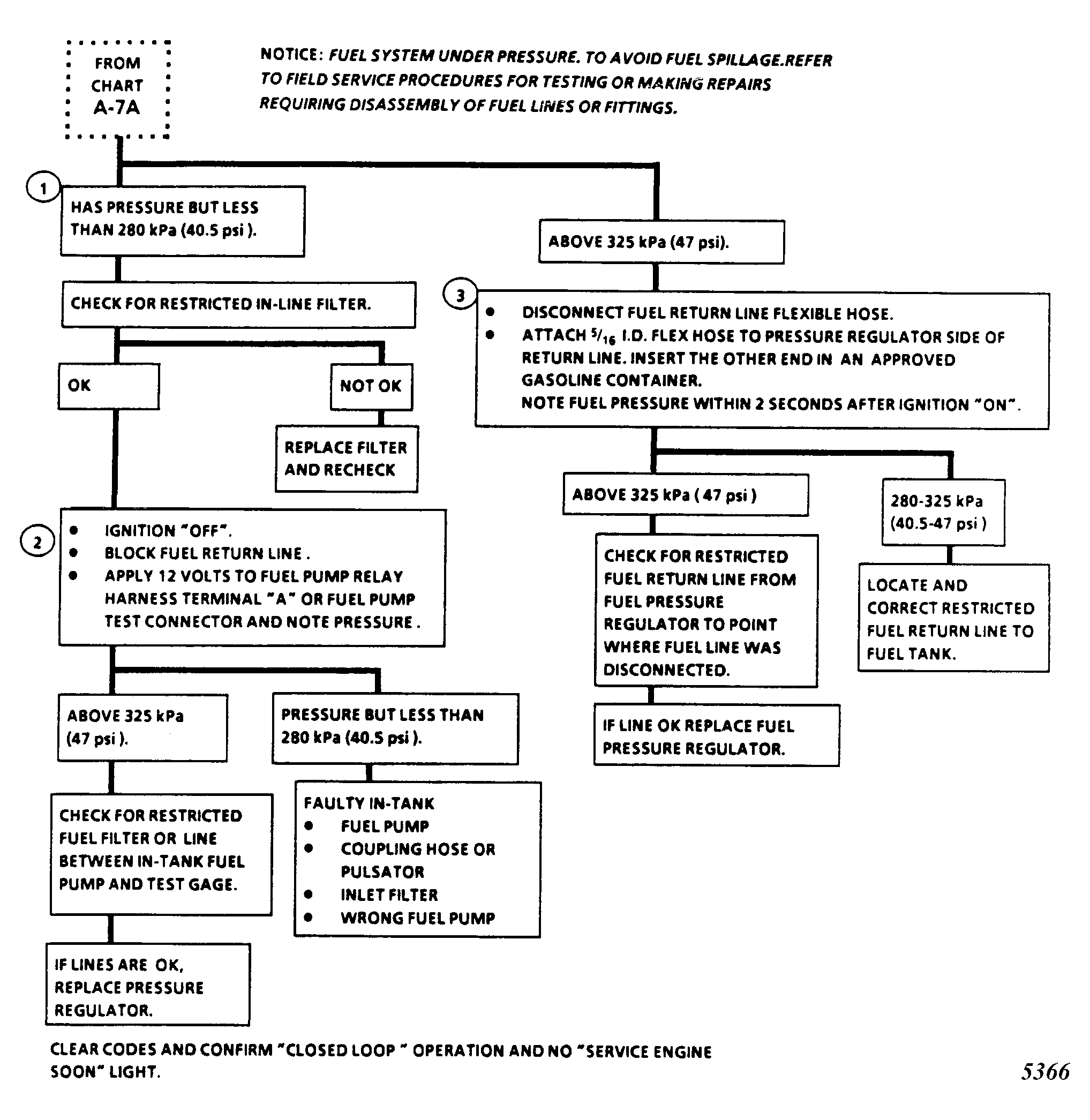

Fig 16: Chart A-7B, Fuel System Diagnosis (2.8L, 5.0L & 5.7L)

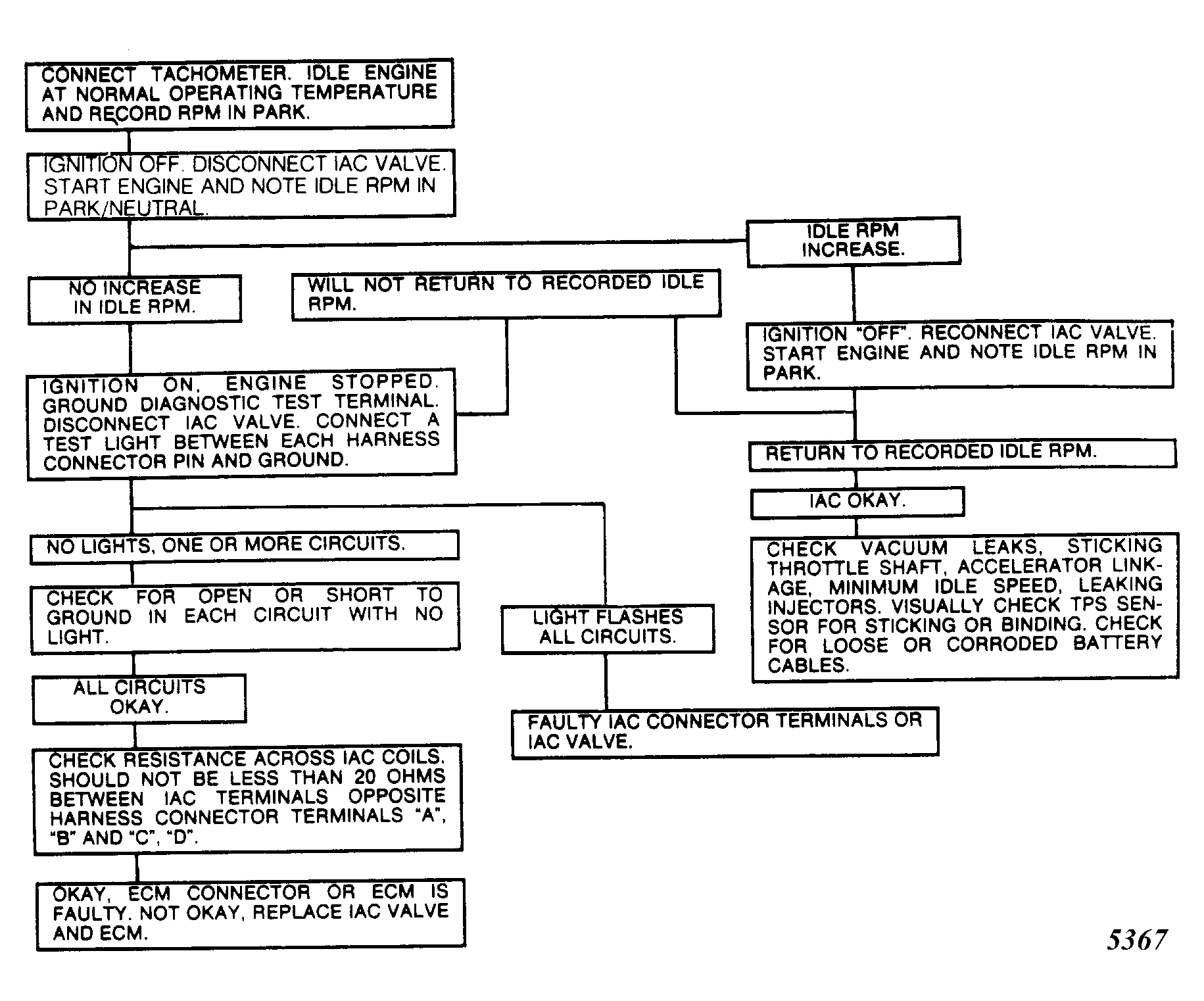

Fig 17: Idle Air Control Testing (1.8L, 2.8L, 3.0L & 3.8L)

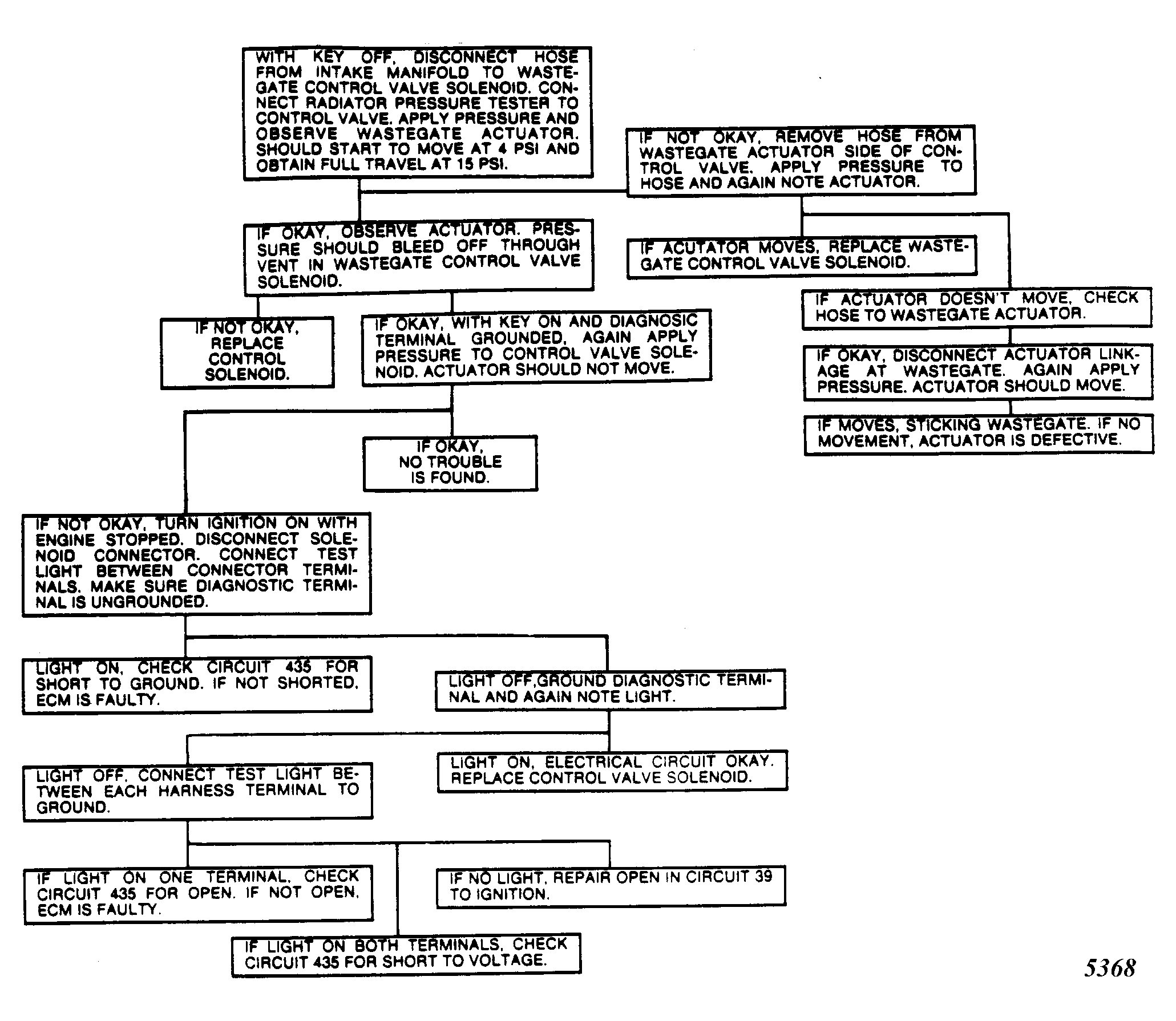

Fig 18: Wastegate Functional Check (1.8L 4-Cylinder Turbo)

Fig 19: Injector Balance Test
