lemon-mirror
:
Home
>>
Pontiac
>>
1987
>>
Fiero Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2.8L PFI Tests W/Codes
>>
ECM Terminal Identification
ECM Terminal Identification

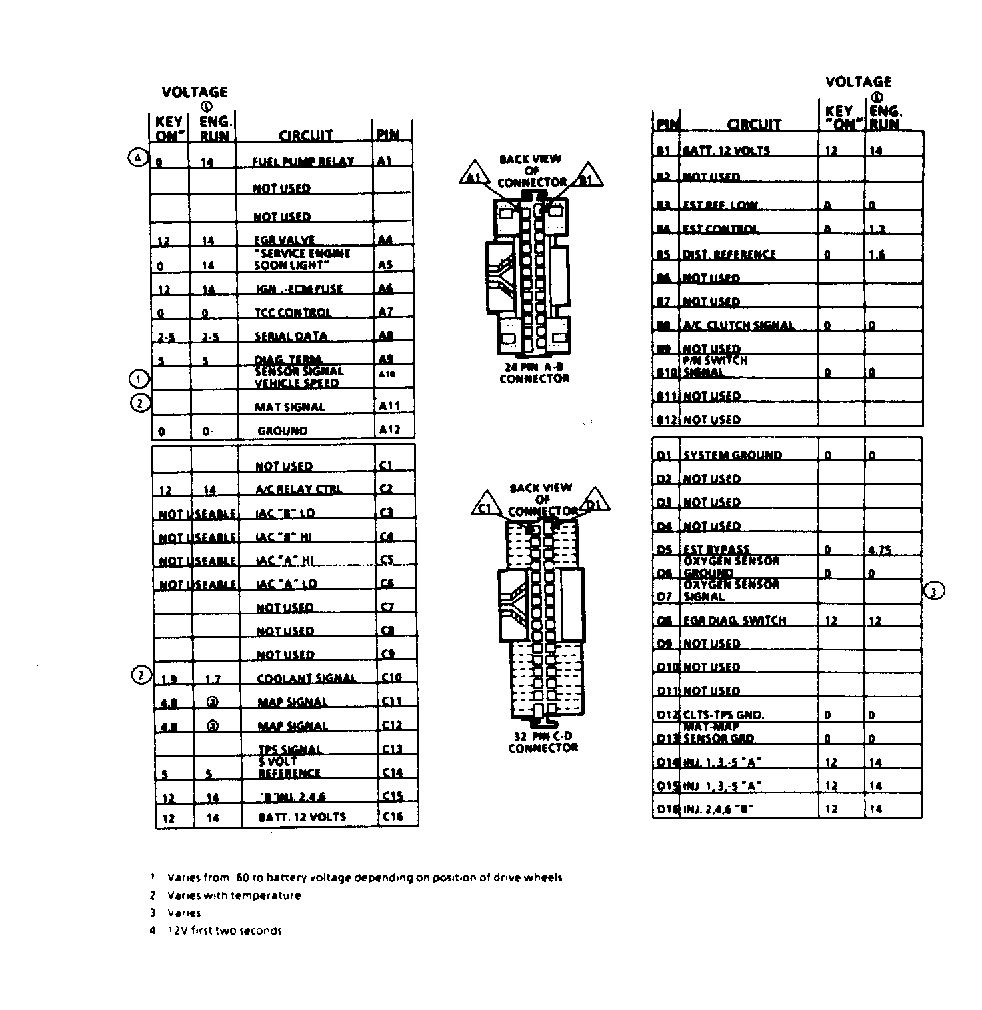

Fig 1: ECM Terminal Identification
