Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

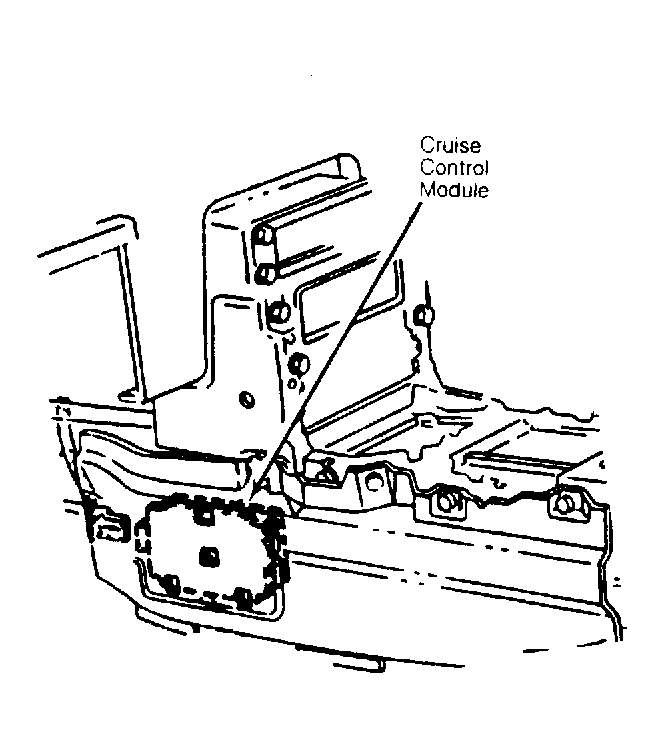

| Cruise Control Module | On left side of center console. See Figure . |

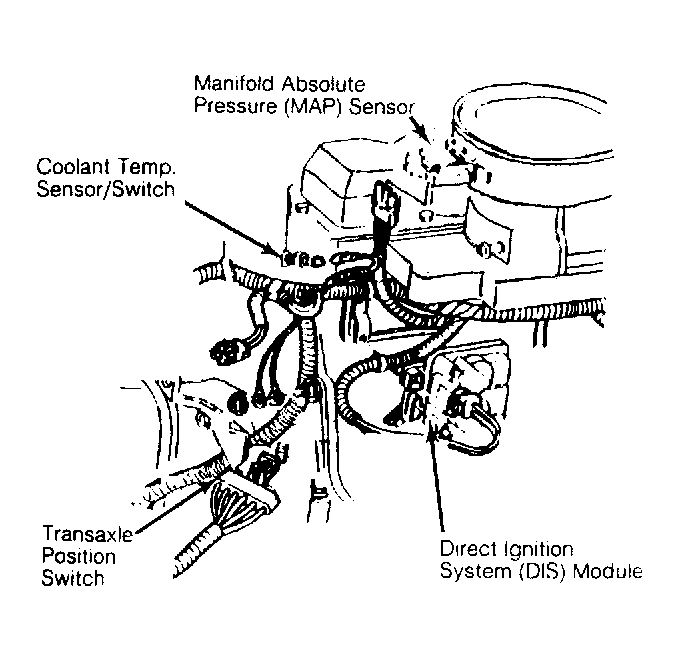

| Direct Ignition System (DIS) Module (2.5L) | On top rear of engine. See Figure . |
| Dome Light Module | In headliner, at dome light. |

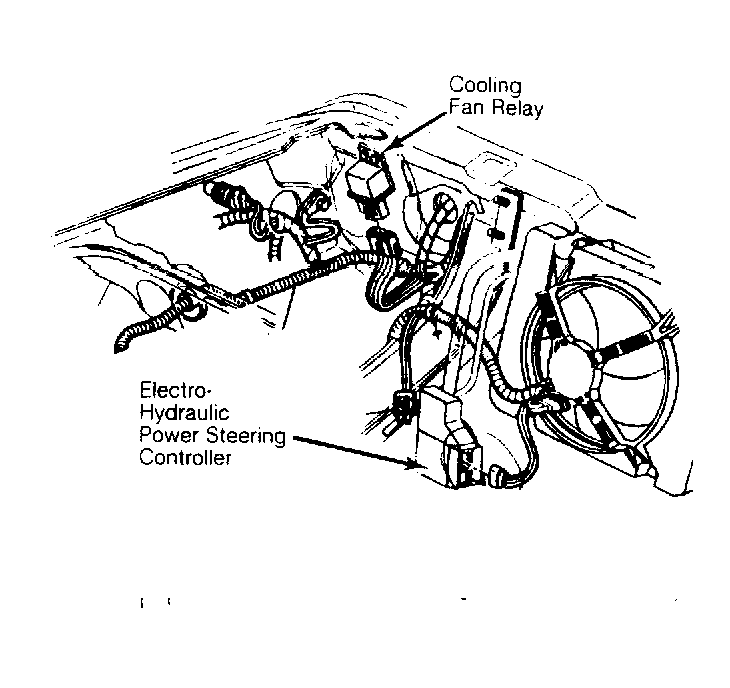

| Electro-Hydraulic Power Steering (EHPS) Controller | On lower left side of front compartment. See Figure . |

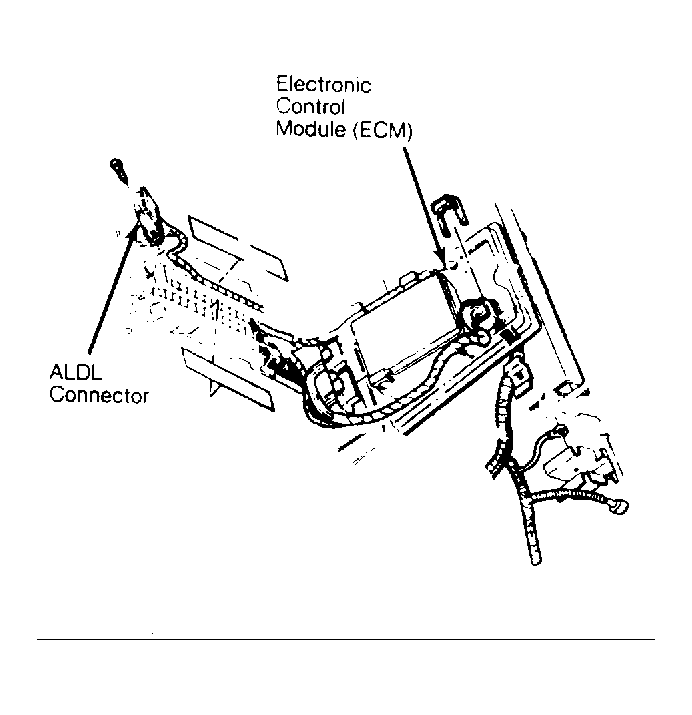

| Electronic Control Module (ECM) | Between seats, on front of rear bulkhead. See Figure . |
| Headlight Door Module | On lower left side of front compartment. |

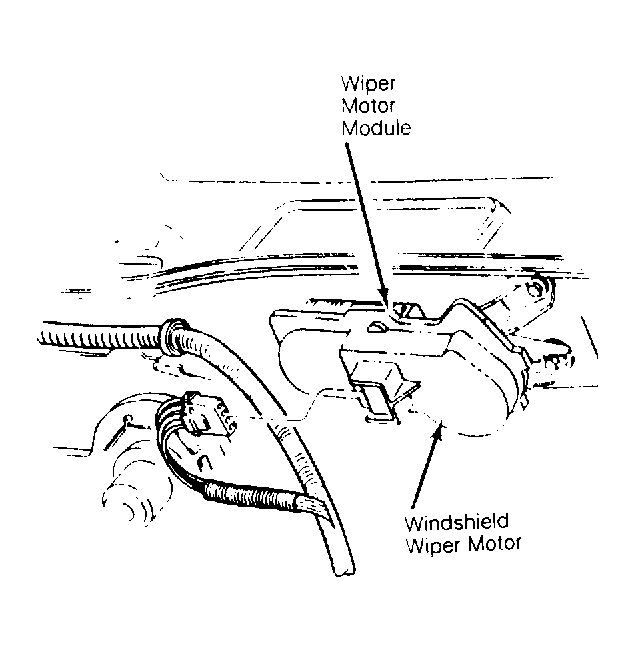

| Wiper Motor Module | On back of windshield wiper motor. See Figure . |
