1.6L TBI System: Adjustments: Notes

See appropriate TUNE-UP PROCEDURES article in this manual.

NOTE: All illustrations and diagnostic charts are supplied courtesy of General Motors Corp.

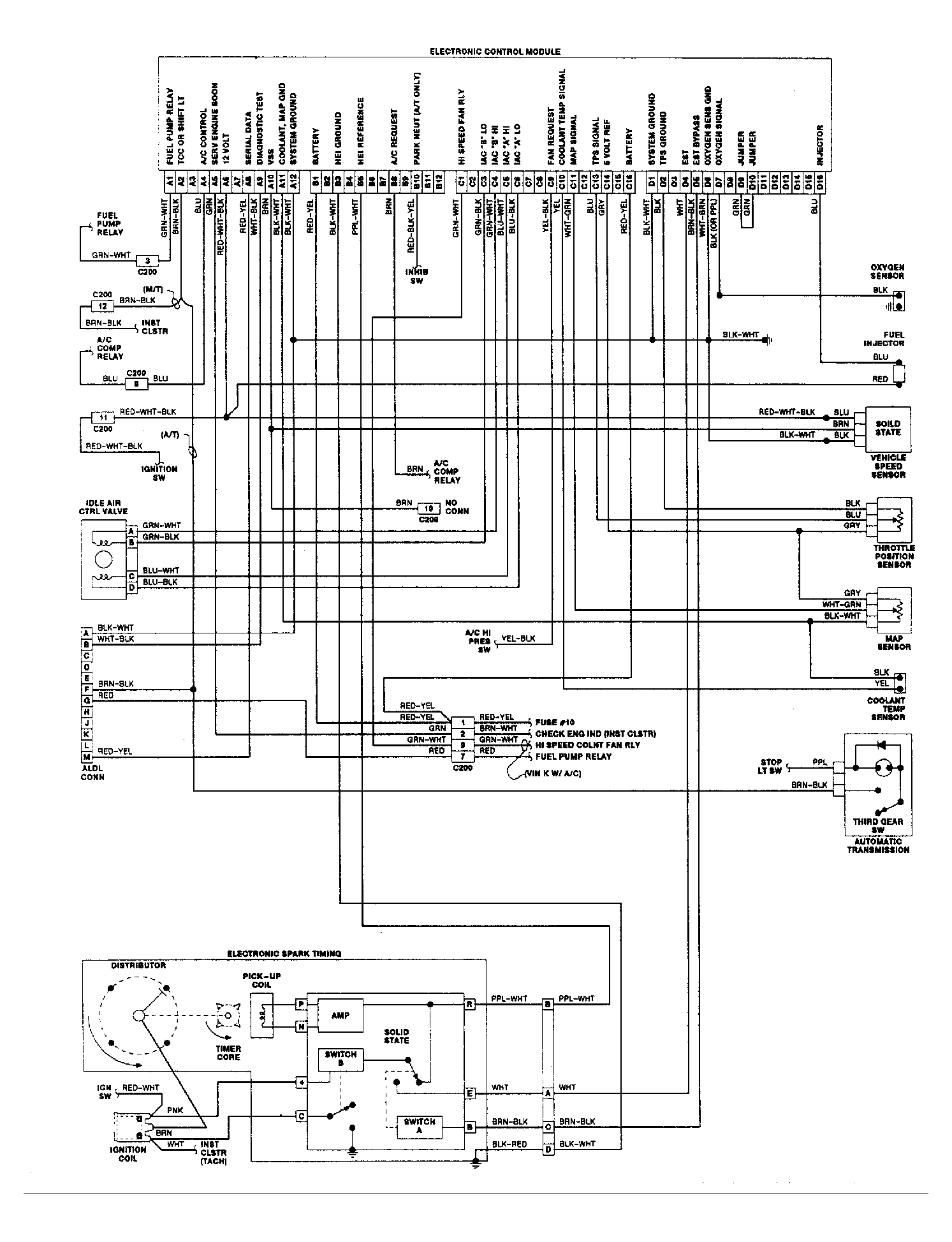

Fig 1: 1988 General Motors LeMans Wiring Diagram
G94609Courtesy of GENERAL MOTORS CORP.
