Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|

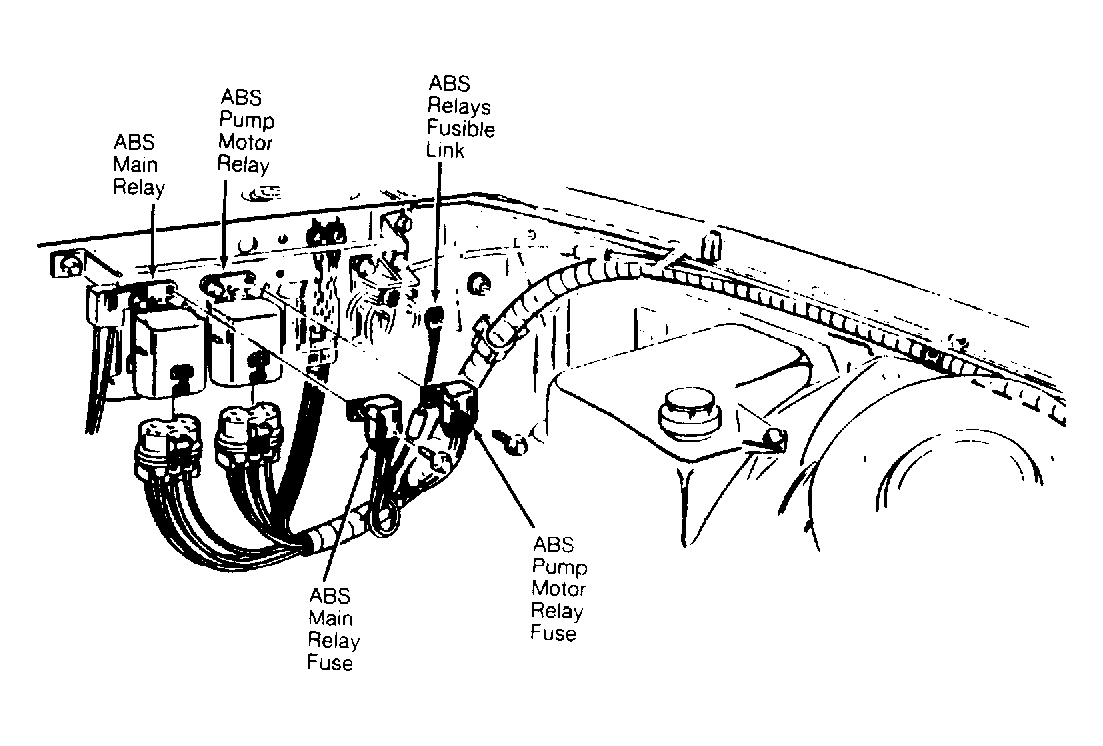

| ABS Main Relay Fuse (6000 STE) | On bracket, at right front corner of engine compartment. See Figure . | ||
| ABS Pump Motor Relay Fuse (6000 STE) | On bracket, at right front corner of engine compartment. See Figure . | ||

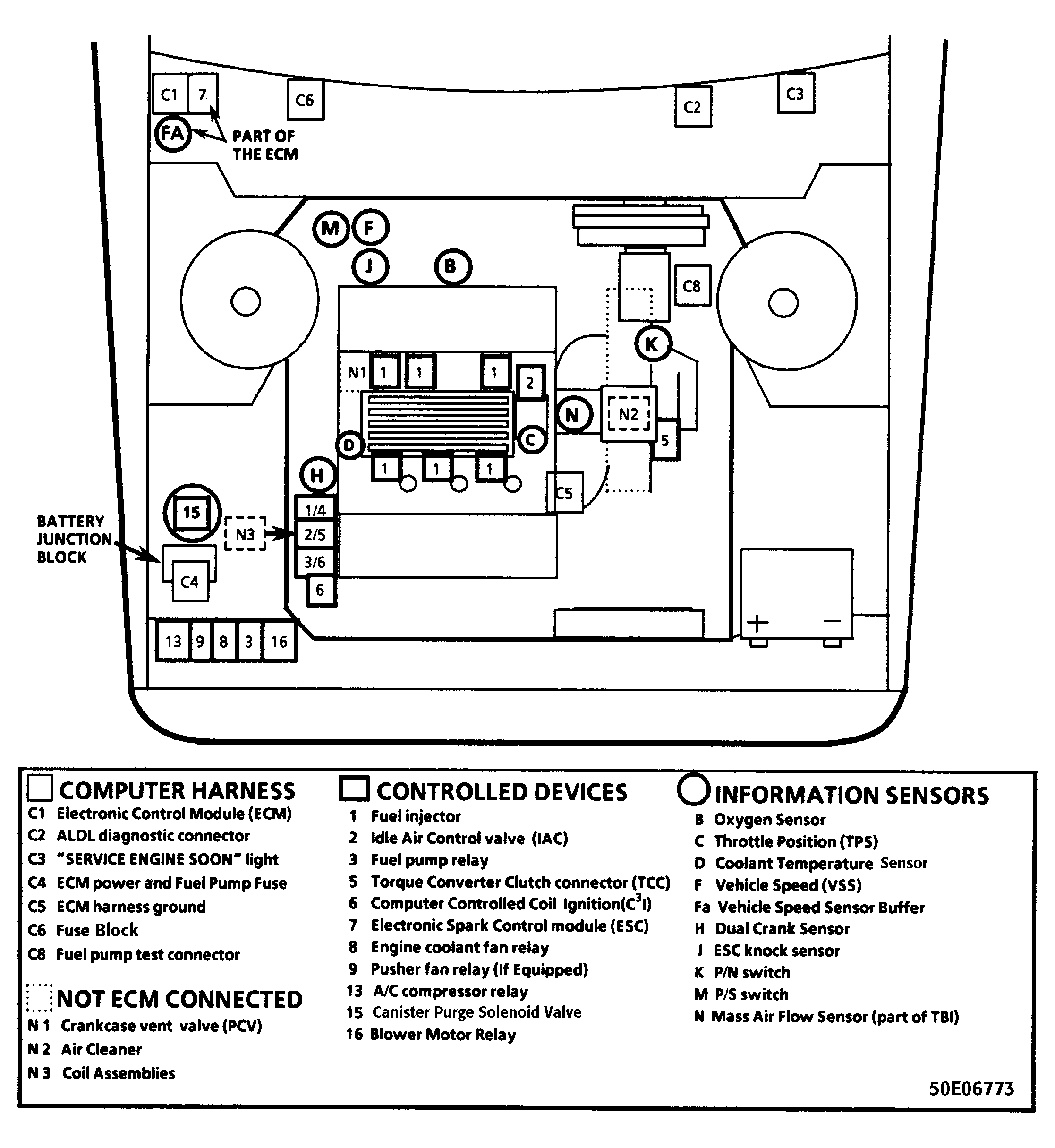

| Battery Junction Block | On right fender panel, in front of canister purge solenoid valve. See Figure . | ||

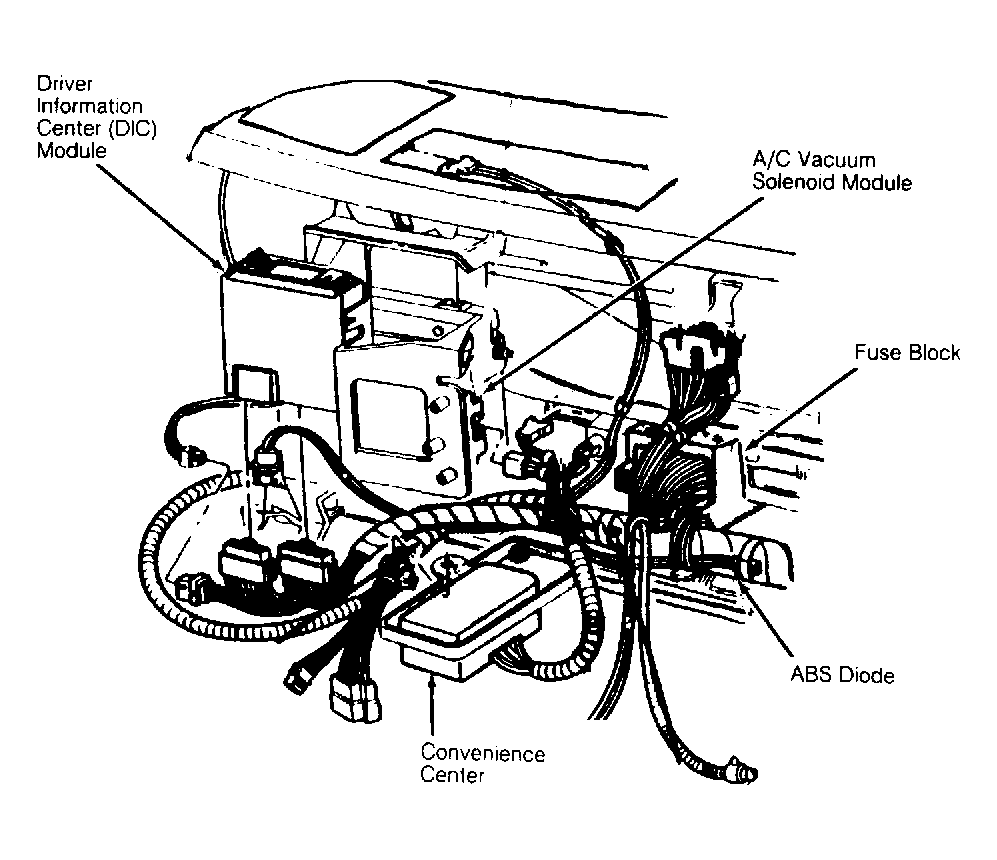

| Convenience Center | Behind right hand side of instrument panel, near shroud. See Figure . | ||
| Differential Lock Switch/Time Delay Relay Fuse | In convenience center. | ||
| Fuel Pump In-Line Fuse | On bracket, at right front corner of engine compartment. See Figure . | ||
| Fuse Block | |||
| 2.5L | Behind dash, to left of glove box. See Figure . | ||
| 2.8L (1989) & 3.1L | Behind dash, to left of glove box. See Figure . | ||
| 3.3L | Behind dash, to left of glove box. See Figure . | ||
| Fusible Links | |||
| ABS Relays (Rust) | At battery junction block. See Figure . | ||
| A/C-Heater Blower/Fuel Pump Relay (Rust) | At battery junction block. | ||
| Alternator (Rust) | At starter solenoid. | ||
| Battery Junction Block (Rust) | In harness, near battery. | ||
| Cooling Fan Relays (Rust) | |||
| Except 6000 STE | At starter solenoid. | ||
| 6000 STE | At battery junction block. | ||
| Ignition Switch (Rust) | In harness, next to battery. | ||
| Light Switch (Rust) | In harness, next to battery | ||
| Power Accy./Hazard (Rust) | In harness, next to battery. | ||
| Lumbar Seat Switch Fuse | In convenience center. | ||
| Power Accessory Circuit Breaker | In fuse block. | ||
| Power Window Circuit Breaker | In fuse block. | ||
| Radio Fuse | In convenience center. | ||
| Theft Deterrent In-Line Fuses | Taped to wiring harness under left side of dash. | ||
